Specifications
1. energy saving2..Large capacity
3..High -efficiency
4.Reasonable price
15t/h coal briquette press making line

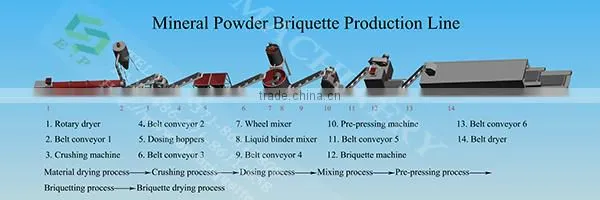

The final briquettes need to go through the following steps :
1. Drying : because the appropriate moisture content for making briquettes is 8-12% , the moisture of material is more than 15% , you have to dry them firstly .
2. Crushing : the suitable size for making briquettes is less than 3mm , so the unsuitable size need to be crushed
3. Adding the dry powder binder : the whole line need two dosing hopper . One is to put raw material , the other is used to hold the dry binder .
4. Adding the liquid binder is this step , so you need one liquid mixer .
5. Mixing the material , dry binder , liquid binder .
6. Pre-pressing : before making briquettes , the use of pre-pressing machine is better . Which can improve the quality the final briquettes
7. Briquetting : after briquetting , you can get the final briquettes with different size , different shape .
8. Drying : the dryer here is used to dry the final briquettes .
Technical parameters
Model |
Capacity ( t/h ) |
Power ( kw ) |
Discharging belt power ( kw ) |
Diameter of roller ( mm) |
Width of roller (mm ) |
Max. Pressure ( t ) |
Weight (kg ) |
Size of machine (m) |
HSYQ-290 |
1-2 |
5.5-7.5 |
2.2 |
290 |
200 |
5-6 |
700 |
1.8*1.2*1.6 |
HSYQ-360 |
2-4 |
5.5-7.5 |
2.2 |
360 |
240 |
6-7 |
1600 |
1.8*1.5*1.8 |
HSYQ-400 |
6-8 |
15 |
2.2 |
400 |
240 |
10-15 |
1800 |
2.1*1.5*1.9 |
HSYQ-450 |
8-10 |
37 |
3 |
450 |
250 |
30 |
4800 |
3*2.2*2.6 |
HSYQ-500 |
12-15 |
37 |
3 |
500 |
250 |
30 |
5500 |
3*2.2*2.6 |
HSYQ-650 |
10-15 |
37-45 |
3 |
650 |
300 |
15 |
7500 |
3*2.5*2.1 |
HSYQ-750 |
13-18 |
55-75 |
3 |
750 |
370 |
20 |
9800 |
3*2.5*2.1 |
HSYQ-850 |
15-20 |
75-95 |
3 |
850 |
370 |
30-40 |
13000 |
3*2.8*2.5 |
HSYQ-360-2 |
8-13 |
30-37 |
2.2 |
360 |
400 |
30-40 |
7000 |
3*2.2*2.4 |
Machiners
Final briquettes
