Specifications
1. High profit and low cost in raw material2. Increase the net calorific value per unit volume after briquette
3. Energy save
Hot Selling Professional 10 ton/h Coal Ball Briquette Production Line
A Moulded Machine to make the block of compressed Magnesia-Doloma,Fireclay, coal, coke ,charcoal, or Iron Powder and metal powder, used for fuel ,kindling and other Industry use. The Raw Materials will by formed by the screw Pressure and two squeezing Roller of the machie and the final products have high density and long lasting as well.
Recently, according to the different pressure, we have developed three types of the briquette machine: mechanical pressure briquette machine, hydraulic pressure briquette machine, and hydraulic pressure briquette machine with forced feeder device.
The main processes of mineral briquette production line:
- crushing: to ensure the size of raw material, because of the requirement of raw materials size, 5mm or below.
- drying process: to dry materials moisture (8-12%), in order to keep raw material ready for making briquettes.
- mixing/blending part: the first mixing part is to mix the raw material together with binder completely. And the second mixing part is to ensure the materials feed into briquette machine evenly, in other words to control the whole production line’s capacity.
- pre-pressing procedure: to increase the final briquettes density and forming ratio.
- briquette making process: convert the pre-pressed raw material into briquettes, and make sure the strength and density.
- final briquettes drying part: you can use the vertical dryer or box dryer to reduce the briquettes moisture, and then the final products could be easy to store.
Please note that every two part will be connected with a belt conveyor. In this way, it can help you reach mroe automation and save much cost on labor.
Advantages of this complete mineral briquette production line:
·China manufacturer
·professional technical team for reasonable design & suggestion
·Powerful 24 hours technical supporting
·Rollers with good anti-abrasive material to enlarge the service time.
Here are some modes of briquette machine for your reference:
Model type | Capacity (t/h) | Power (kw) | Diameter of rollers (mm) | Width of rollers (mm) | Rollers material | Maximum pressure (ton) |
290 | 2 | 5.5 | 290 | 200 | 65#Mn | 5-6 |
360 | 3-4 | 5.5-7.5 | 360 | 240 | 65#Mn | 6-7 |
400 | 4-5 | 7.5-11 | 400 | 240 | 65#Mn | 6-7 |
450 | 5-6 | 22 | 450 | 300 | 65#Mn | 6-7 |
500 | 6-8 | 30-37 | 500 | 300 | 65#Mn | 10 |
650 | 10-15 | 37-45 | 650 | 300 | 65#Mn | 15 |
750 | 15 | 45-55 | 750 | 366 | 65#Mn | 18-20 |
850 | 15-20 | 55-75 | 850 | 350 | 65#Mn | 30-40 |

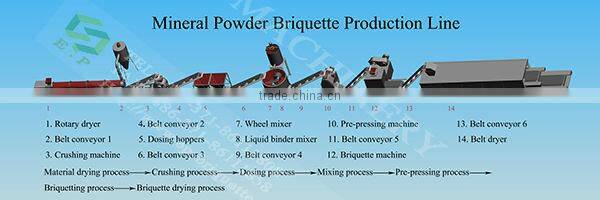

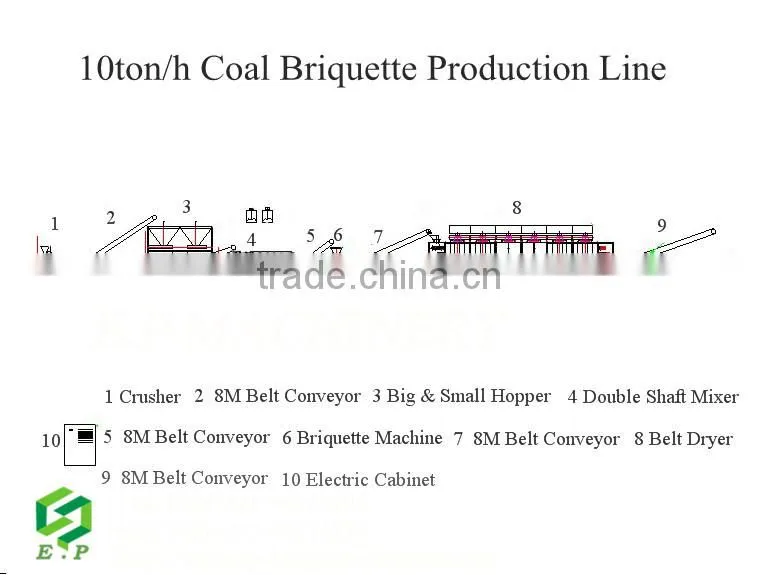

Flow chart of mineral briquette production line:

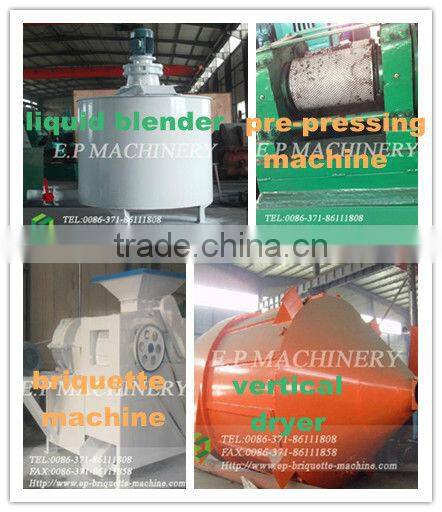

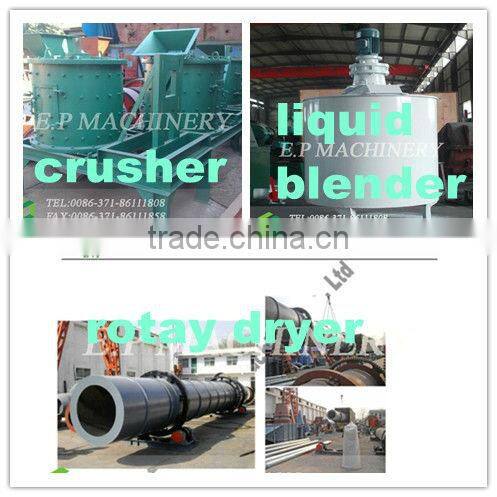

Pictures of machines in each process:

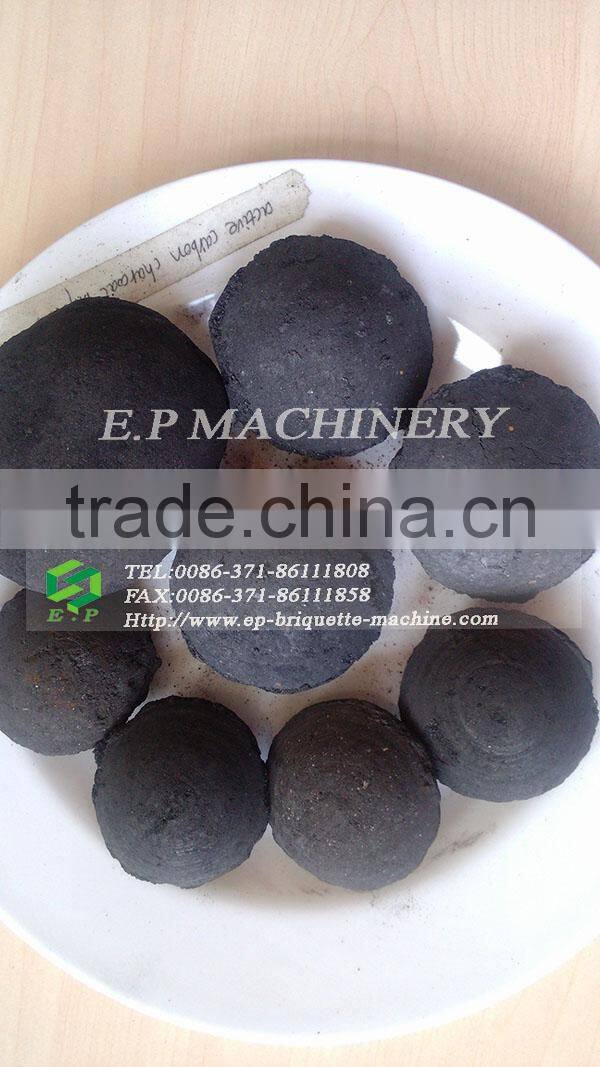

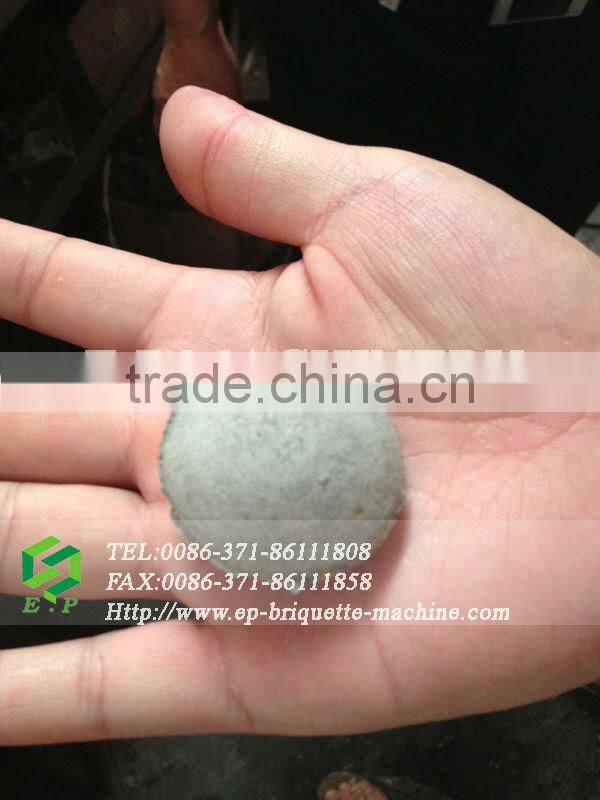

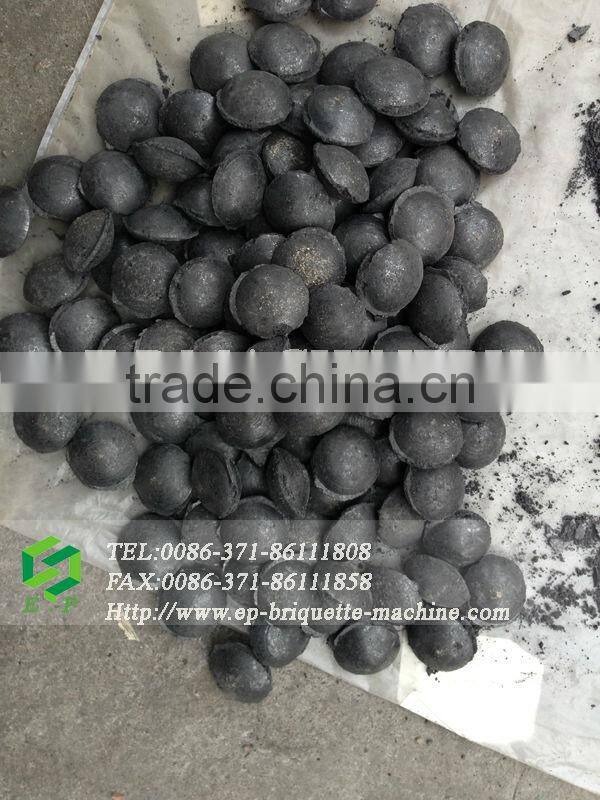

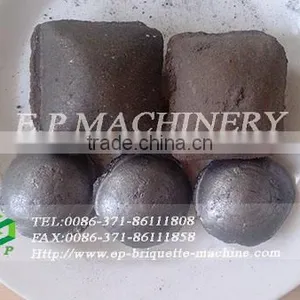

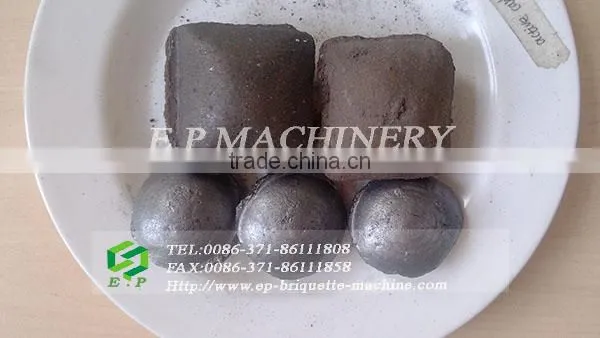

Final briquettes:
Note: please tell me about your raw material, I will offer you more details and information. Thank you!
More information or any request, you can contact me via following ways:
