Specifications
The biomass Burner use various kind of biomass as fuelGuaranteed for one year
Save money

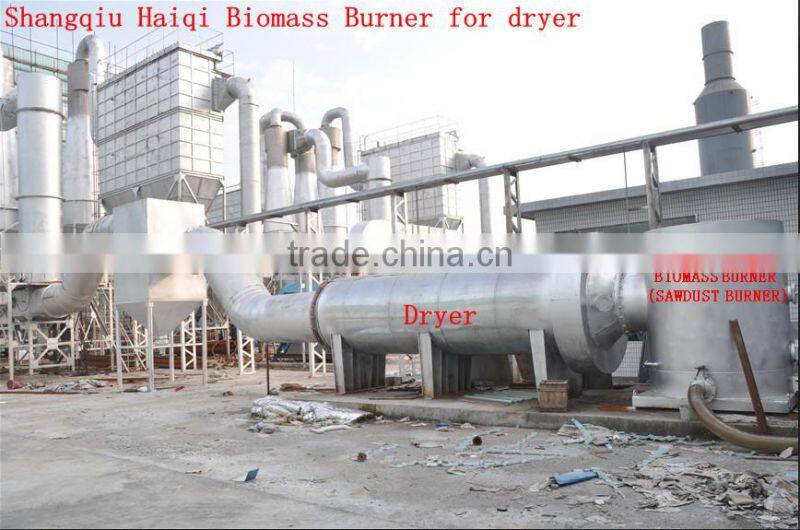

Biomass Gasifier For Dryer
|
Shangqiu Haiqi Machinery Equipment Co., LtD
| |||||||
Specifications of HQ-K system vertical pellets burner | |||||||
| Model |
Conveyor motor power (KW) |
Motor power of feeder(KW) |
Automatic ash delivery motor power(KW) |
Air fan power (KW) |
Size of main burner (mm) |
Sawdust Consumption (KG/h) |
Heating value (kcal/h) |
| HQ-K0.5 | 1.1 | 0.75 | 1.5 | 1800*900*1500 | 70 | 300000 | |
| HQ-K1.0 | 1.1 | 1.1 | 2.2 | 2400*2200*1550 | 155 | 600000 | |
| HQ-K1.5 | 1.5 | 1.5 | 2.2 | 2400*2400*1800 | 230 | 900000 | |
| HQ-K2.0 | 2.2 | 1.5 | 0.75 | 4 | 2400*2400*2000 | 310 | 1200000 |
| HQ-K3.0 | 2.2 | 1.5 | 0.75 | 5.5 | 2600*2500*2200 | 460 | 1800000 |
| HQ-K4.0 | 3 | 1.5 | 1.5 | 5.5 | 2600*2600*2350 | 600 | 2400000 |
| HQ-K6.0 | 3 | 1.5*2 | 1.5 | 7 | 2800*2600*2400 | 1000 | 3600000 |
| HQ-K8.0 | 4 | 1.5*3 |
1.5 | 7.5 | 3000*2600*2600 | 1200 | 4800000 |
| HQ-K10.0 | 4 | 1.5*3 | 1.5 | 11 | 3200*2800*2800 | 1500 | 6000000 |
Biomass Sawdust Burner
| Shangqiu Haiqi Machinery Equipment Co., Ltd. | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Specifications of HQ-J system vertical sawdust burner | |||||||||
| Model | Conveyor motor power (KW) |
Blending motor power (KW) | Feeding motor power (KW) | Air fan power(KW) |
Suspension fan motor power(KW) | Size of fuel bin *H)mm |
Size of main burner (mm) |
Sawdust consumption (kg/h) | Heating value (kcal/h) |
| HQ-J0.5 | 1.1 | 3 | 1.5 | 1.1 | 1.5 | 800*2000 | 1800*900*1400 | 70 | 300000 |
| HQ-J1.0 | 1.1 | 3 | 2.2 | 1.5 | 1.5 | 800*2000 | 2400*2200*1550 | 155 | 600000 |
| HQ-J1.5 | 1.5 | 3 | 3 | 2.2 | 3 | 1000*2400 | 2400*2400*1800 | 230 | 900000 |
| HQ-J2.0 | 1.5 | 3 | 4 | 2.2 | 3 | 1000*2400 | 2400*2400*2000 | 310 | 1200000 |
| HQ-J3.0 | 3 | 4 | 5.5 | 3 | 5.5 | 1200*2400 | 2600*2500*2200 | 460 | 1800000 |
| HQ-J4.0 | 3 | 4 | 7.5 | 3 | 5.5 | 1200*2400 | 2600*2600*2400 | 600 | 2400000 |
| HQ-J6.0 | 3 | 5.5 | 11 | 4 | 7.5 | 1500*3000 | 2800*2600*2400 | 1000 | 3600000 |
| HQ-J7.0 | 4 | 5.5 | 11 | 5.5 | 7.5 | 1500*3000 | 2800*2600*2400 | 1100 | 4200000 |
| HQ-J8.0 | 4 | 5.5 | 5.5*2 | 5.5 | 7.5 | 1500*3000 | 3000*2600*2600 | 1200 | 4800000 |
| HQ-J10.0 | 4 | 5.5 | 7.5*2 | 7.5 | 11 | 1500*3000 | 3200*2800*2800 | 1500 | 6000000 |
Wood Powder Burner
| Shangqiu Haiqi Machinery Equipment Co., Ltd. | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Specifications of HQ-w system horizontal wood powder burner | ||||||||||
| Model | Conveyor motor power (KW) |
Blending motor power (KW) | Feeding motor power (KW) | Air fan power(KW) |
Feeding Fan motor power (kw) | Suspension fan motor power(KW) | Size of fuel bin *H)mm |
Size of main burner (mm) |
Sawdust consumption (kg/h) | Heating value (kcal/h) |
| HQ-W0.5 | 1.1 | 3 | 1.5 | 1.5 | 1.1 |
1.5 | 800*2000 | 1800*900*1400 | 70 | 300000 |
| HQ-W1.0 | 1.1 | 3 | 1.5 | 1.5 | 1.5 | 1.5 | 800*2000 | 2400*2200*1550 | 155 | 600000 |
| HQ-W1.5 | 1.5 | 3 | 1.5 | 2.2 | 2.2 | 3 | 1000*2400 | 2400*2400*1800 | 230 | 900000 |
| HQ-W2.0 | 1.5 | 3 | 1.5 | 2.2 | 2.2 | 3 | 1000*2400 | 2400*2400*2000 | 310 | 1200000 |
| HQ-W3.0 | 3 | 4 | 1.5 | 3 | 2.2 | 5.5 | 1200*2400 | 2600*2500*2200 | 460 | 1800000 |
| HQ-W4.0 | 3 | 4 | 3 | 3 | 4 | 5.5 | 1200*2400 | 2600*2600*2400 | 600 | 2400000 |
| HQ-W6.0 | 4 | 5.5 | 3 | 4 | 7.5 | 7.5 | 1500*3000 | 2800*2600*2400 | 1000 | 3600000 |
| HQ-W7.0 | 4 | 5.5 | 3 | 5 | 7.5 | 7.5 | 1500*3000 | 2800*2600*2400 | 1100 | 4200000 |
| HQ-W8.0 | 4 | 5.5 | 3 | 5.5 | 11 | 7.5 | 1500*3000 | 3000*2600*2600 | 1200 | 4800000 |
| HQ-W10.0 | 4 | 5.5 | 3 | 7.5 | 15 | 11 | 1500*3000 | 3200*2800*2800 | 1500 | 6000000 |
Biomass Burner Introduction :
The biomass burner usevarious kind of agriculture waste as fuel (such as straw , wheat straw, cornstalk , corncob , rice huck , peanu shell , cotton shell , cotton straw, rank grass, forests waste , such as wood , bark , tree root ,tree leaves , wood shavings , bamboo powder , sawdust ect

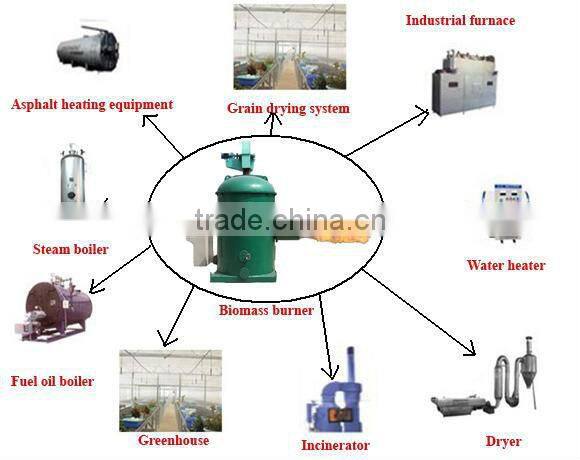

Application scope :
application scope of biomass multifunction pyrolysis burner: steam boiler, hot water boiler, industry furnace, combustion furnace, melting furnace, kitchen equipments, drying equipments, food drying system, ironing equipments, spray line equipments, asphalt heating equipments......
Benefit Analysis:
Specifications of biomass energy and other energy comparison table: (take 1000kg/h steam boiler as an example)
| Boiler equipments | Material consumption | Unit price of fuel | Operation cost |
|---|---|---|---|
| Light diesel oil boiler | 66KG | 6.3RMB/KG | 415.8RMB |
| Heavy oil boiler | 70KG | 4.5RMB/kg | 315RMB |
| Natural gas boiler | 79.3Nm³ | 3.5RMB/Nm³ | 278RMB |
| Electricity boiler | 720kw | 1.2RMB/kwh | 864RMB |
| Biomass burner | 145KG | 1.0RMB/KG | 145RMB |

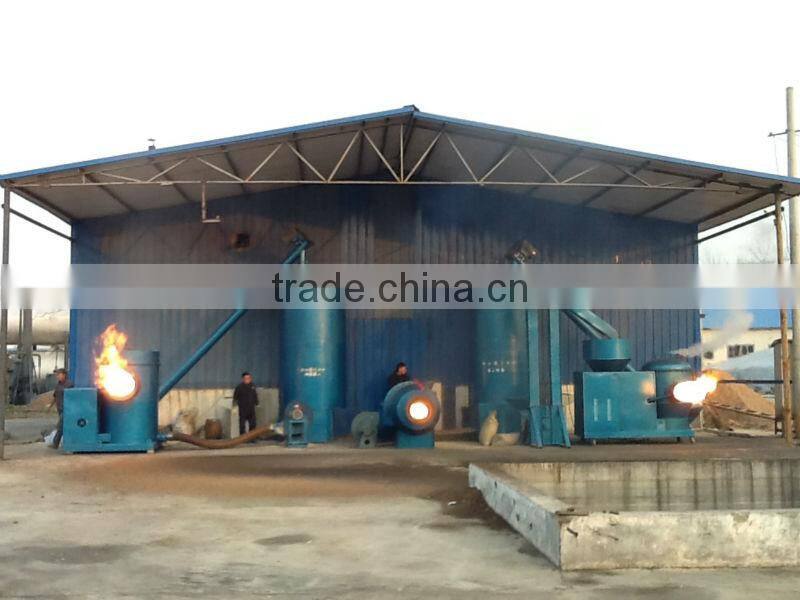

Actual case

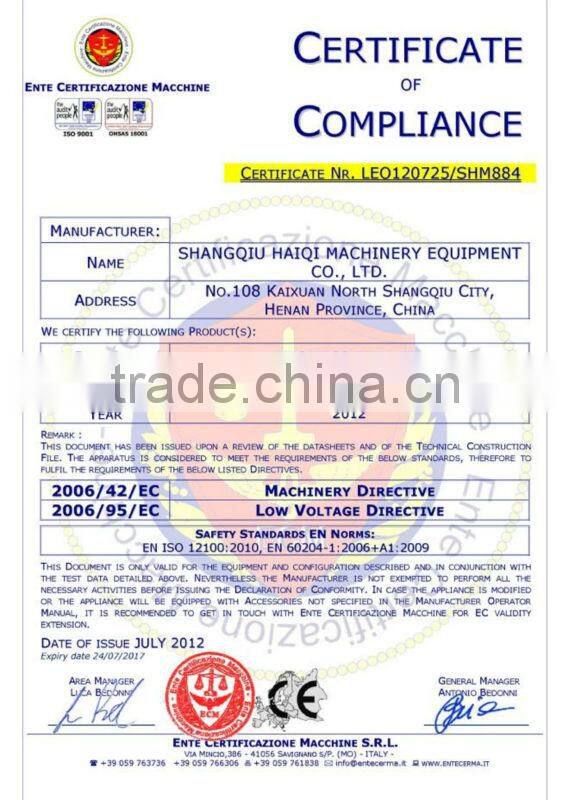

Certification

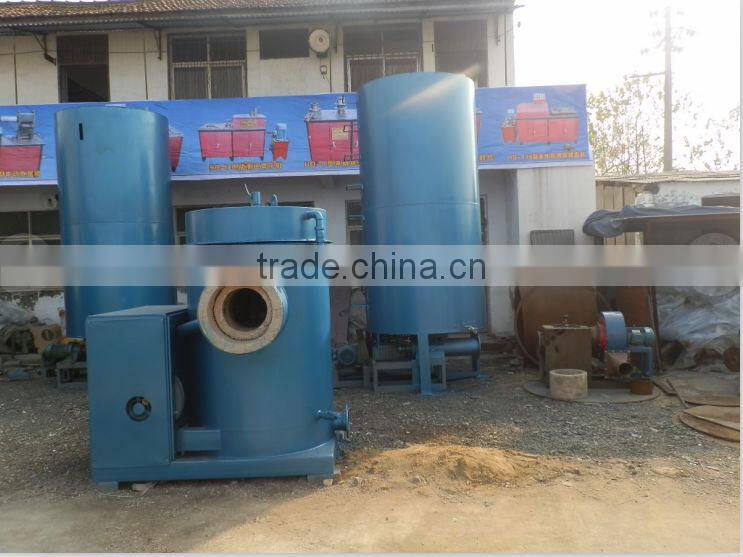

Factory
The Advantage Of Biomass Burner :
1. Small size, install and move easily. You can move it quickly when no electricity and fuel shortage.
2.Can connect with furnace mouth of the original boiler directly, do not need to convert the original boiler.
3.Burning sawdust, wood powder, wood pellet, oil seed shell and other biomass materials
4.Cost is a half of fuel oil and fuel gas.
5.No harmful gas, waste water and waste slag discharge, also can be used in city.
|

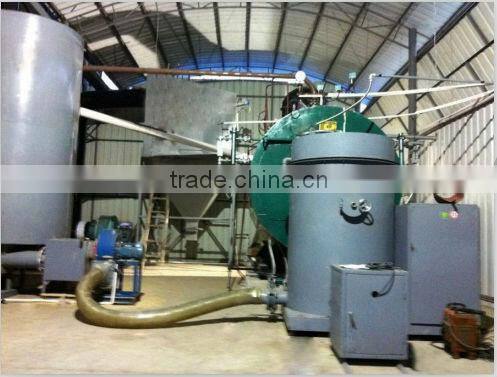

Biomass Burner connect with Oil boiler |
Biomass Burner |

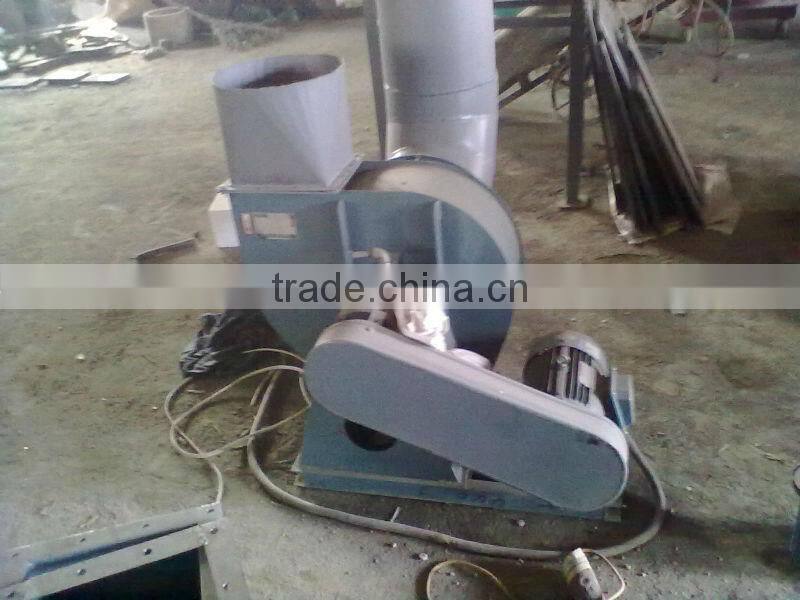

Draught Fan |
|

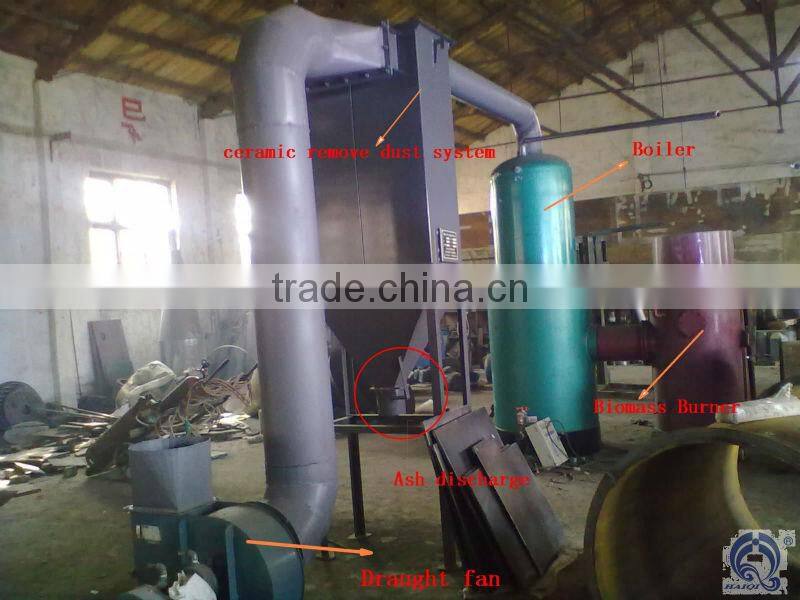

Biomass burner connect with oilboiler |
ceramic multi-tube dust remove system |
