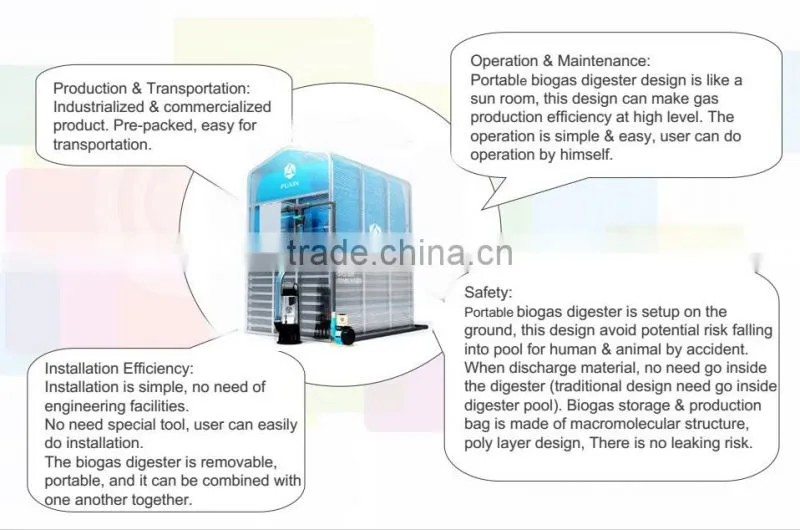

New Patented Assembly China Small Membrane Biogas Plant

Raw material

Maximum(Kg/d)

Food waste

25

Pig manure

45

Cow manure

60

Chicken manure

26

Human manure

32

Vegetable

65

membrane biogas plant small

Dimensions: 195H/156L/120W cm,
Space of green house: 3.4m3,
Volume of digester: 1.7m3,
Volume of gas storage: 1.3m3,

Weight (empty): 85 kg

  BIOGAS PUMP 220V AC 15W

Charging method: Only 220 AC
Frequency: 50Hz, Power: 15 W,
Flow≥36 L/min,
Max pressure( kgf/cm2)>0.22,
Max Vacuum (-kpa) -22,
Load flow≥12 (100 meter) L/min

          Biogas fitting

30m Φ9mm PVC soft pipe,

1pc pressure gauge 16KPa,

1pc desulpharize 1KG,

5pcs valves, etc.

     Stove double burner

Heat load: 2.8KW,

Biogas consumption rate: 0.9m3/h,

Heat efficiency : >57%,

Fire maker efficiency : >98%,
Gas entrance pressure: 1600Pa,
Gross weight: 5kgs,

Outside dimension: 730×410×130mm

      Biogas rice cooker

Rating Power: 1.0KW,
Biogas consumption: 129g/h(about0.14m3/h),
Rating pressure: 1600Pa,
Largest rice quantity: 1.6kgs,
Gross weight: 3.5kgs,

Net weight: 3.0kgs,
Outside dimension: 305×305×335mm,

     Water heater JSD14

Heat flux: 14KW,
Hot water production rate(at 25 ℃):7L/min,

Rated gas pressure: 1600pa,

Water pressure: 0.025-0.8 Mpa,

Biogas consumption: 2 - 3m3/hour

          Biogas lamp

    with electronic switch

Gas consumption: 0.07m3/h,

310×300×260mm /8 sets, 0.5kg/set,

          Room heater

Biogas consumption rate: 0.3m3/h,
Gross weight: 21kgs/20sets,
Outside dimension: 590×590×410mm,

It could keep warmth for a room about 6 - 9 m2,
Diameter of the room heater: 28cm

          Flow meter

Normal flow rate: 2.5 m3/h,
Maximum flow rate: 4 m3/h,
Minimum flow rate: 0.025 m3/h,

Maximum working pressure: 10 Kpa,

310×300×260mm /4 sets, 1.5kg/set
