Pig and Cow Dung Fecal Treatment Biogas Septic System

Pig and Cow Dung Fecal Treatment Biogas Septic System thumbnail-1
Pig and Cow Dung Fecal Treatment Biogas Septic System thumbnail-2
Pig and Cow Dung Fecal Treatment Biogas Septic System photo-1
Pig and Cow Dung Fecal Treatment Biogas Septic System photo-2
US$ 129 - 290 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
PUXIN
Model Number:
PX-ABS-4.3m3
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Shenzhen Puxin Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name PUXIN
Model Number PX-ABS-4.3m3
Place of Origin Guangdong, China
Application Other, Cooking Fuel, food waste biogas system
Product Description

Pig and Cow Dung Fecal treatment Biogas Septic System

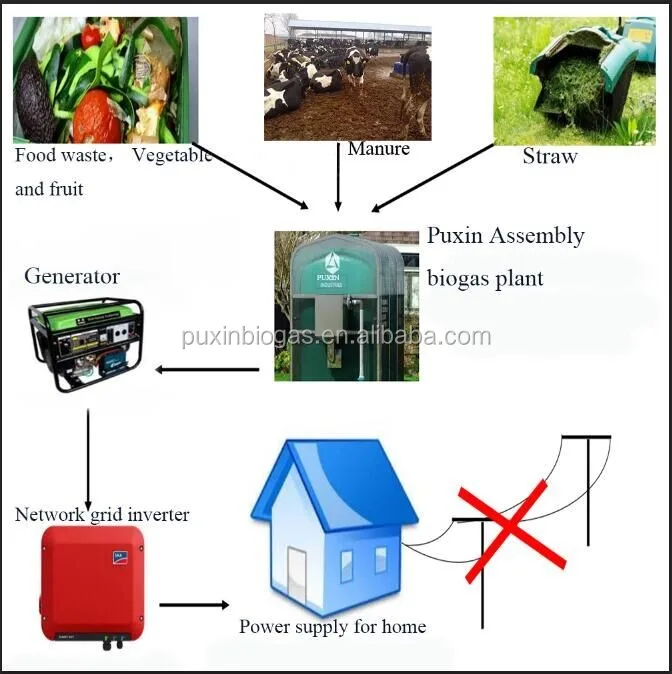

The food waste biogas system makes you treat your organic waste locally, use the biogas for cooking and electricity, feed your garden with nutritious liquid fertilizer, save your energy bill and garbage disposal fee! It is the ultimate solution for families, restaurants , hotels and resorts to treat their organic wastes (food waste, sewage sludge and animal manure etc.)

Detailed Images

The product is composed of a green house made with hollow sunlight sheet and mental supporting frame, a membrane digester with a gas storage bag combined in one, a stainless steel sink, a stainless steel outlet, a biogas filter and a biogas booster pump. The membrane of the digester has the characteristics of anti-aging, acid and alkali resistant and rodent resistance.

Product Parameter

Technical Data:

  Minimum Ambient Temperature
10 °C
  Biogas Booster Pump
15/20 W
Space of green house
3.4m3
Volume of digester
1.7m3
Volume of gas storage
1.3m3
Output
Biogas and Clean natural liquid fertilizer
Gas Pressure
0.12 bar
Gas Flow
± 36 L/min
Size of filter (desulfurizer)
1L
Weight (empty)
150 KG
Dimensions (L*W*H)
156*120*195cm


Waste Treatment Capacity:

Raw material
Maximum(Kg/d)
Food waste
25
Pig manure
45
Cow manure
60
Chicken manure
26
Human manure
32
Vegetable
65
Related Equipments

1. Biogas Pump

Charging method: Only 220 AC
Frequency: 50Hz, Power: 15 W,
Flow≥36 L/min,
Max pressure( kgf/cm2)>0.22,
Max Vacuum (-kpa) -22,
Load flow≥12 (100 meter) L/min

2. Biogas Fittings

30m Φ9mm PVC soft pipe,
1pc pressure gauge 16KPa,
1pc desulpharize 1KG,
5pcs valves, etc.

3. Stove double burner

Heat load: 2.8KW,
Biogas consumption rate: 0.9m3/h,
Heat efficiency : >57%,
Fire maker efficiency : >98%,
Gas entrance pressure: 1600Pa,
Gross weight: 5kgs,
Outside dimension: 730×410×130mm

4. Biogas rice cooker

Rating Power: 1.0KW,
Biogas consumption: 129g/h(about0.14m3/h),
Rating pressure: 1600Pa,
Largest rice quantity: 1.6kgs,
Net weight: 3.0kgs,

Gross weight: 3.5kgs,
Outside dimension: 305×305×335mm,

5. Water heater JSD14

Heat flux: 14KW,
Hot water production rate(at 25 ℃):7L/min,
Rated gas pressure: 1600pa,
Water pressure: 0.025-0.8 Mpa,
Biogas consumption: 2 - 3m3/hour

6. Biogas lamp with electronic switch


Gas consumption: 0.07m³/h,
310×300×260mm /8 sets,
0.5kg/set.


7. Room heater

Biogas consumption rate: 0.3m3/h,
Gross weight: 21kgs/20sets,
Outside dimension: 590×590×410mm,
It could keep warmth for a room about 6 - 9 m2,
Diameter of the room heater: 28cm

8.  Flow meter

Normal flow rate: 2.5 m3/h,
Maximum flow rate: 4 m3/h,
Minimum flow rate: 0.025 m3/h,
Maximum working pressure: 10 Kpa,
310×300×260mm /4 sets, 1.5kg/set

Packing & Delivery


Packing:

Plywood case package for LCL shipment


Delivery:

Depends on the order

FAQ


1. Can the biogas plant be easily dismantled ?

The answer is yes. The biogas bag is connected the biogas plant with the screw, so it can be dismantled very easy.

2. What exactly quantity of waste we need to apply every day ?

You need 25kg food waste or 45 kg pig manure, or 60kg cow manure per day, or you can mix the waste together like 5kg food waste+ 30kg pig manure+ 10kg cow manure to get 2m³ biogas per day.


Certifications
Our Company

Shenzhen Puxin Technology Co. Ltd

Shenzhen Puxin Technology Co. Ltd.was founded in November 2001, the company’s business scope is new energy and environmental protection. The company's main business:
1. Designing and constructing large and medium-sized biogas projects.
2. Developing, manufacturing and selling related products needed to build family size biogas system.
3. Developing, manufacturing and selling new style small size biogas digesters.
