Puxin large size assembly biogas system to convert organic waste into electricity

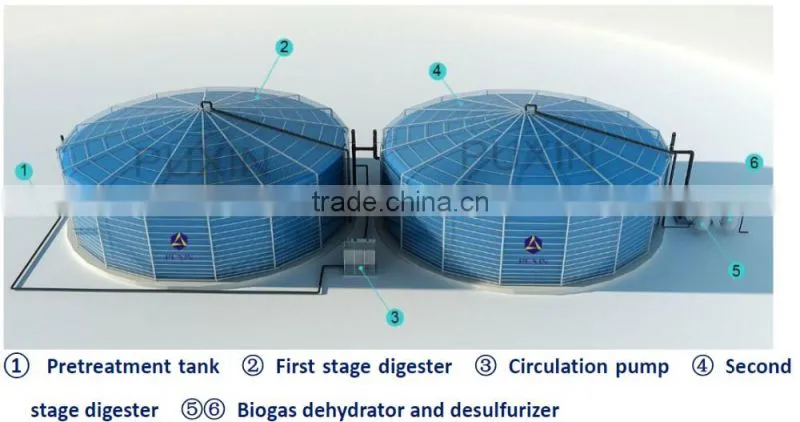

Design sketch for two stages of Puxin assemby biogas system
PUXIN medium and large size Assembly Biogas Plant is a Do It Yourself (DIY) BIOGAS SYSTEM for easy assembly. It is surface-mounted; there is no need for earthwork and heavy construction. It can be assembled by client itself according to the manual we provide without any training. It is a high efficient biogas system with hollow sunlight sheet green house and pad for insulation and heating.
It is specially designed for medium and large farm, medium and large amount of waste water or medium and large size of MSW treatment.To convert the organic waste into energy to generate electricity.
Inlet and outlet of digester: Stainless steel
Mental supporting frame: Galvanized iron

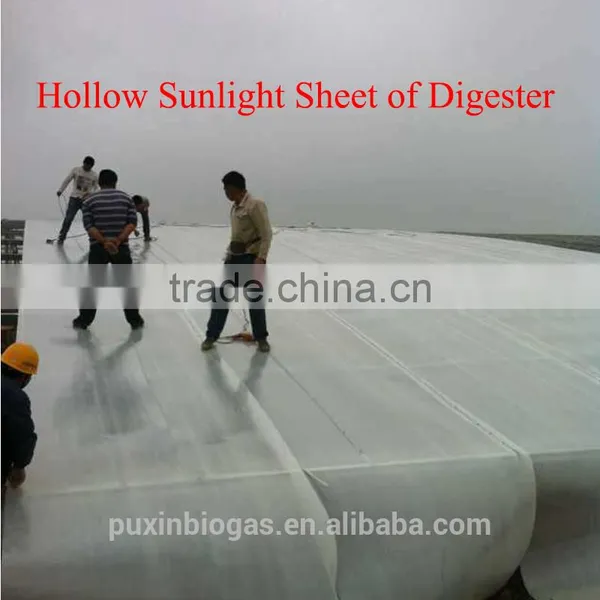

Hollow sunlight sheet of green house: PE
There is no safety problem of the biogas digester, each digester is installed with pressure releaser, when biogas pressure in the digester is too big, biogas will flow into atmosphere through pressure releaser.
The biogas fermentation process is happened in the sealed membrane digester and biogas is collected and desulfurized and be used, so there is no smell for the unit.
Normal temperature: 10 -30 Celsius
Middle temperature: 30 -35 Celsius
Higher temperature: 50-55 Celsius
Note: the temperature is not higher than 60 Celsius
| Digester model | 260M3 | 1380M3 |
| Dimensions(CM) | Φ788/550H | Φ1600/746H |
| Volume of digester(M3) | 200 | 1000 |
| Volume of gas storage(m3) | 39.8 | 200 |
| Space of greenhouse(m3) | 260 | 1380 |
| Weight(N.W.) kgs | 1100 | 4100 |
| Raw material | Max(ton/day) | Max(ton/day) |
| Food waste | 2.5 | 12.5 |
| Pig manure | 4.5 | 22.5 |
| Cow manure | 6 | 20 |
| Chicken manure | 2.8 | 14 |
| Human manure | 3.4 | 17 |
| Vegetable waste | 10 | 50 |

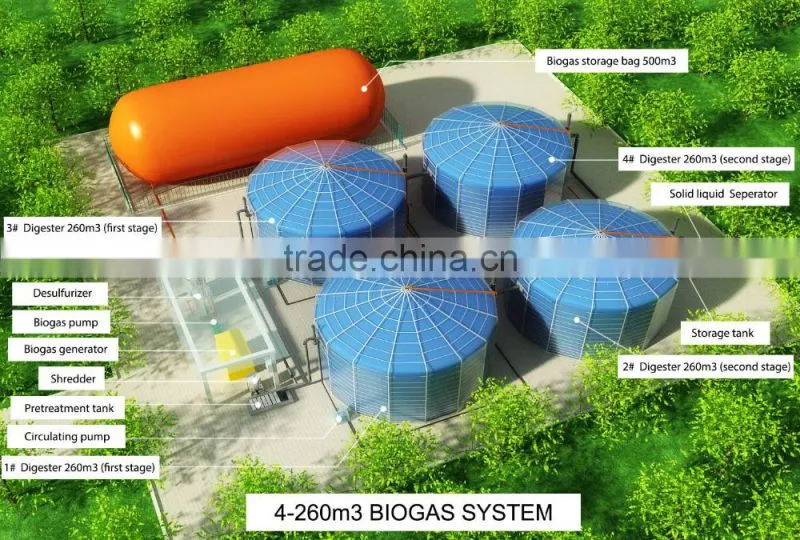

Design sketch for a customer for 4 sets of 260M3 model assembly biogas system.
We (PUXIN Company) design the project and sell all the products needed, customers install the system by themselves.
