PUXIN biogas plant for largely waste treatment
- 1000 Set / Sets per Month
- Shenzhen
- T/T Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | PUXIN | Model Number: | Medium size |
Type: | Other, ORGANIC WASTE TREATMENT BIOGAS PLANT |
Product Description
Detailed Product Description
1. Can be built by the steel mould
2. High quality and low cost
3. Low maintenance cost
4. Easy and quick to be built
5. Easy to operate.
6. Can treat all organic waste no matter solid or liquid
7. Easy to transport the equipment.
8. 30year life span.
PUXIIN medium and large size biogas plant for electricity

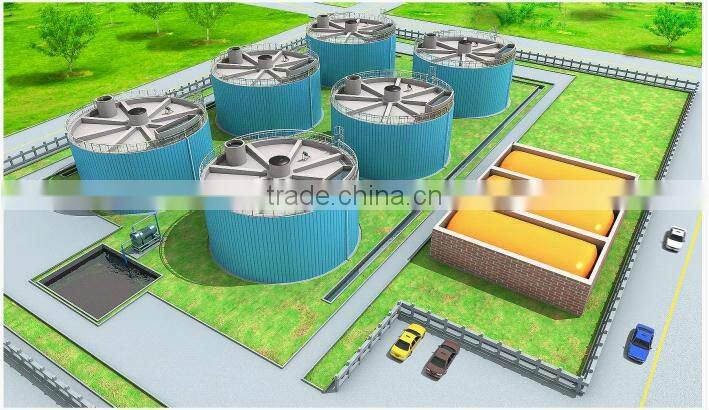

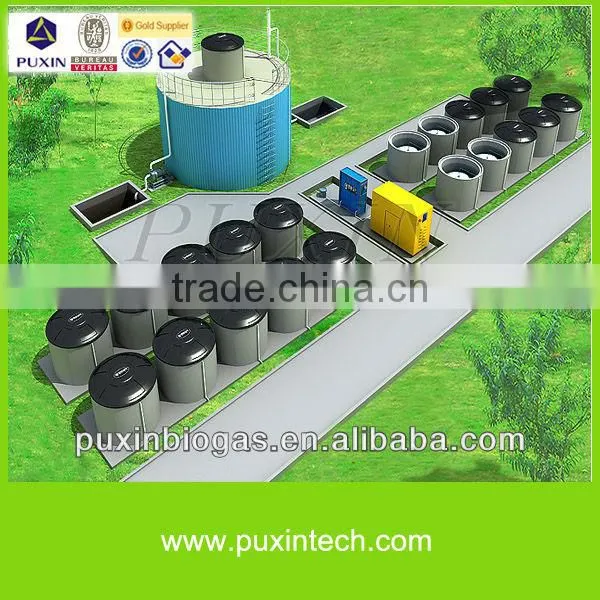

PUXIN medium and large size biogas plant is composed of one or a group of 100-400 m3 biogas digesters formed into a unit, the pipe system, the gas purify system and the appliances or electricity generator.
.
The medium and large size biogas plant is mainly applied to the livestock (pig, cow, etc.) farms to treat the wastes, or applied to treat organic wastes (food waste, grass, etc.) in large quantity..
Below are photos that show the construction processes of 100m3 PUXIN biogas digester:
For medium and large size biogas plant system we design the biogas system, sell all the equipment and products needed to build the biogas system to our customers, train the technicians for them, and our customers build the biogas system themselves.
Below lists the main equipment and products needed to build the biogas plant system
Product | Description&specification | Remark |
100-400M3 STEEL MOULD WITH OUTER AND NECK | This equipment is mainly composed of hundreds of steel moulding boards and the support shelf. The product is applied to construct the concrete digester of the Puxin 50, 75 , 100, 200 and 400 cubic meter biogas digester. | Reusable |
STEEL MOULD NECK | This equipment is mainly composed of around 30 steel moulding boards It is applied to construct the concrete digester neck of the PUXIN medium and large size biogas digester, and the concrete tank for hydraulic pressure gas holder. | Reusable |
GLASS FIBRE PLASTIC GAS-COLLECTER1.2M3 | This product is one of the main components of the PUXIN medium size and large size biogas digester. It is used to collect the biogas produced in the digester. | |
Glass fibre reinforced plastic cover | This product is used to cover the digester. | |
GAS STORAGE BAG 50M3 | Materials:Red Mud reinforced plastics Thickness 1.0mm.Size: dia.3.3*6M | |
GAS PUMP(1.5KW, 30-50M3/H) | 380V, 1.5KW, 30M3/H 10KPA | |
Desulfurization Tower (PX-250L,1000L) | Suitable flow rate 400-1600M3/Day
| |
Dehydration Tower (PX-250L) | Suitable flow rate: Less than 4000M3/Day
| |
WATER PUMP 3KW | Flow: 40M3/h, head: 13meters, Power:3KW | |
SEWAGE PUMP 5.5KW | Flow: 110M3/h, head: 10meters, Power:5.5KW |
