PuXin Medium Size 100m3 Biogas Plants

Specifications

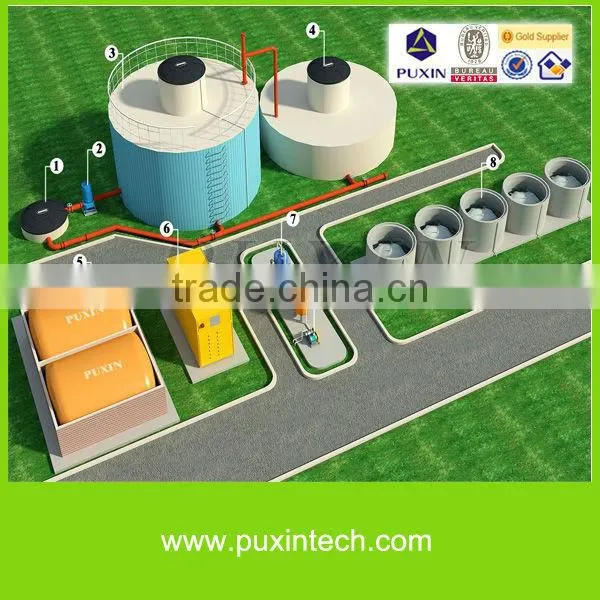

      Puxin  medium  size  100m3   biogas   plants   is  composed   of  a  concrete    digester   and   several   glass  fibre

reinforced plastic gas-holders. The digester is 100 m3 of capacity. Puxin medium size biogas system is composed

of   one   or   a   group   of   Puxin   100m3   size   biogas   plants,   the   feeding   system,   the   biogas   purify   system   (the desulphurization tower and the dehydration tower), the biogas storage and delivery system, biogas appliances or generators.

 Features:

     (1)  High reliable: no mechanic movement, no mechanic failures.

     (2)  Wide range of application. The plant can be built both under and above ground. The plant is suitable to handle both liquids (sewage, human and animal manure) and solids (grass, straw, and food waste).

     (3)  Low   maintenance   cost:   very   few   workers   are   needed,  almost   no   maintenance   for  rust   prevention   and  mechanic repair are needed.

     (4)  Durable: The concrete digester which can stand strong acid and alkali can last over 40 years, the glass

fibre gas holder can last over 10 years and it is replaceable when it is worn out or broken.

 Range of Apply:

     (1)  Disposal of sewage sludge for waste water disposal stations

     (2)  Disposal of wastes for medium size livestock farms

     (3)  Disposal of sewage and food waste for departments, factories and schools etc.

     (4)  Disposal of waste water and solid waste for food processing plants and brewing plants.

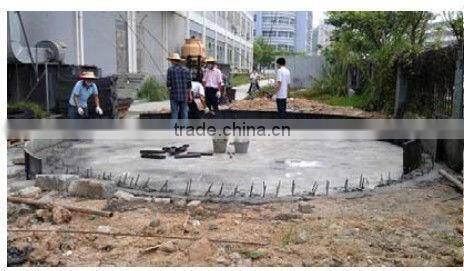

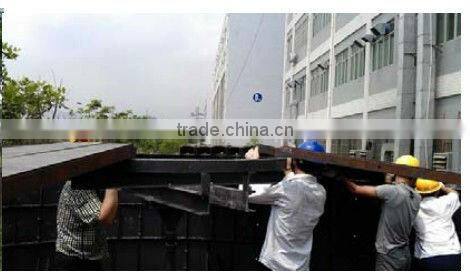

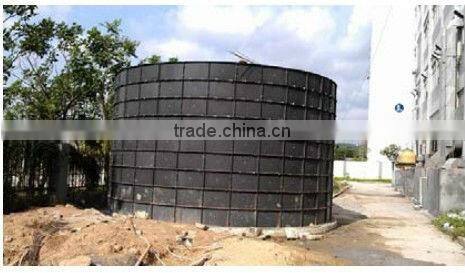

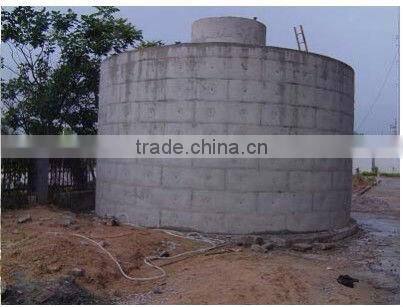

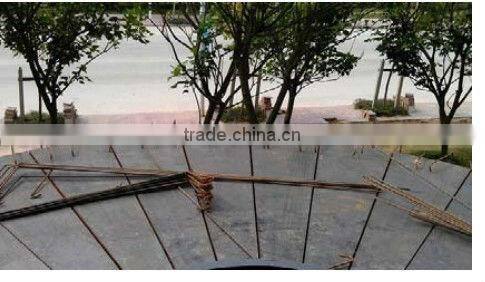

below are the pictures  showing the processes of construction.

below are the  spareparts of the biogas plants

products	description and specification	Remark

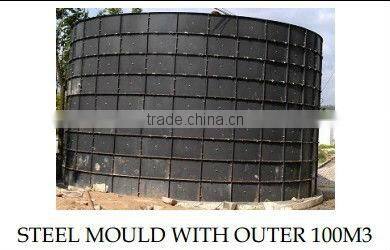

	The product is applied to  construct the concrete digester of the Puxin 50, 75 or 100 cubic meter biogas plant, Digester inner Φ600cm, Outer Φ640cm, height: 380cm+130cm.	Reusable

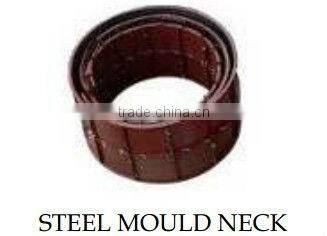

	The product is applied to construct the concrete digester neck of the Puxin 50, 75 , 100, and 200 cubic meter biogas plant, Inner Φ166cm, Outer Φ196cm, height: 130cm	Reusable

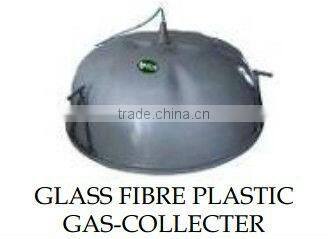

	This product is one of the main components of the Puxin medium size biogas plant, and is composed of a container made with glass fibre reinforced plastic and three steel supports. On the top of the gas –holder there is a valve that can eliminate the atmospheric pressure.164cm,High 70cm.

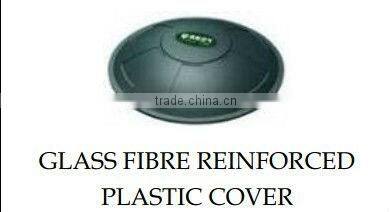

	This product is one of the components of the Puxin medium size biogas plant, and is made with glass fibre reinforced plastic.

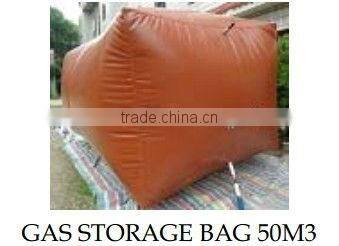

	Materials:Red Mud reinforced plastics Thickness 1.0mm.Size:3.3*6M

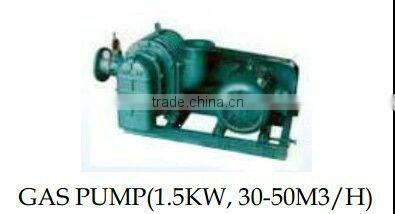

	380V, 1.5KW, 30M3/H 10KPA

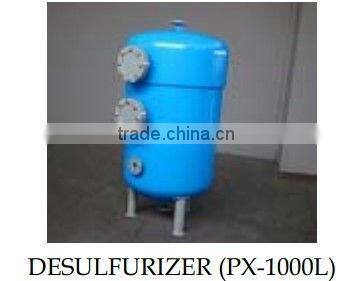

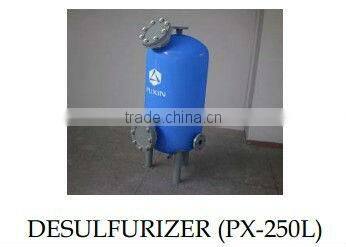

	Suitable flow rate: Less than 400M3/Day Interface caliber: ø50(PVC flanch) Desulfurizer filling: 250KGS once Application scope: Desulfurization for medium and small size biogas plant Suitable to install indoor and outdoor
	Suitable flow rate: Less than 1600M3/Day Interface caliber: ø50(PVC flanch) Desulfurizer filling: 250KGS once Application scope: Desulfurization for medium and small size biogas plant Suitable to install indoor and outdoor

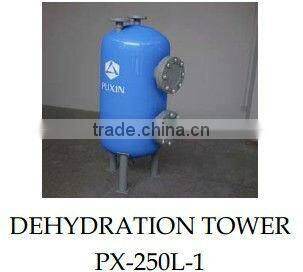

	Suitable flow rate: Less than 4000M3/Day Interface caliber: ø50(PVC flanch) Application scope: Dehydration for medium and small size biogas plant Suitable to install indoor and outdoor

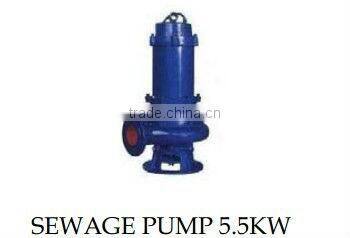

	Flow: 60M3/h, head: 10meters, Power:5.5KW
