Specifications
High Quality Ozone Generator Water For Drinking Water Treatment1.ozone machine with ORP meter
2.10G 20G 30G 40G 50G
3.MOQ:

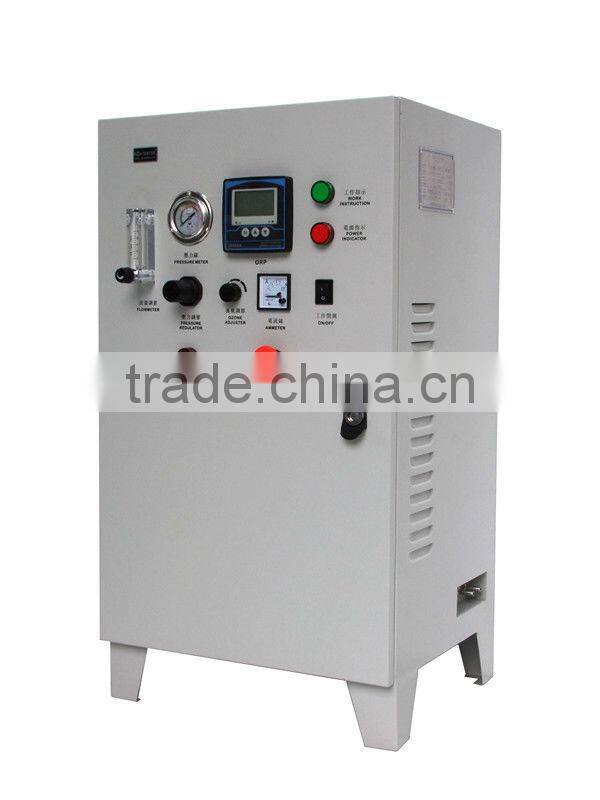

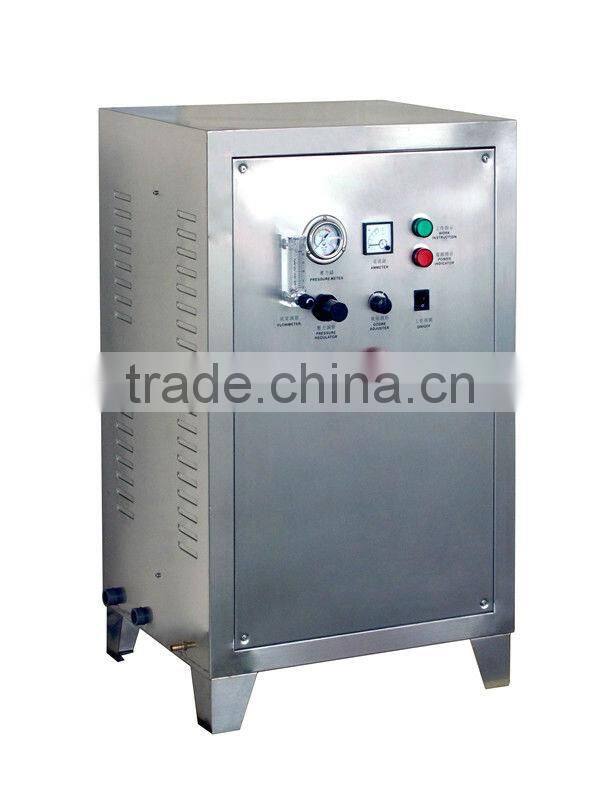

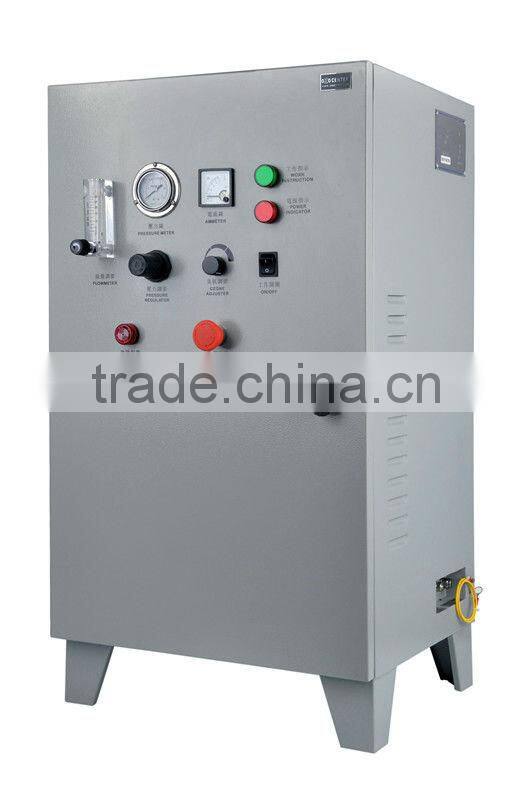

High Quality Ozone Generator Water For Drinking Water Treatment
Applications:

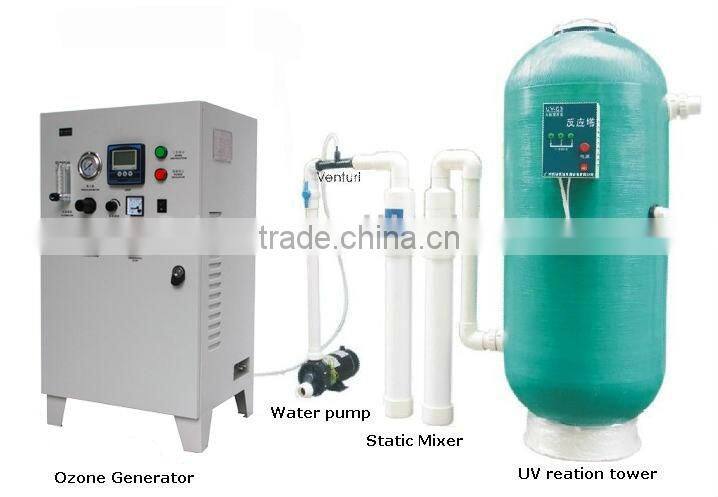

Drinking water treatment, Spring water treatment ozone generator, Vegetable and fruits wash machine, Chemical oxidation, Decolor and bleach ozone machine, Mariculture equipment, Mariculture ozone generator, Aquaculture water sterilization ozone generator, Aquaculture equipment, Remove alga equipment, Aquaculture ozone generator, Aquaculture recycle water treatment equipment, Raw water aquaculture equipment, Connect with outside gas feeding ozone generator, Nursery aquaculture equipment
Control panel:
Ozone output adjuster, Flow meter, ORP Monitor, Pressure regulator, Voltmeter, Ampmeter, Switch, Emergency stop, Working light, Power light, Alarm
Features:
1. Carbon steel sprayed with plastic housing
2. It must connect with outside oxygen generator or oxygen tank
3. With built-in water cooling enamel ozone tube,high frequency electric board, thus max ozone concentration: 100Mg/L with stable ozone capacity, long life time
4. Easy operate for system, it can add ORP on control for water PH
5. Small in size, adjustable ozone range: 20%--100%
6. Use with over current, over voltage, water protection device, for ensuring ozone machine running safety
Specifications:
Item |
Unit |
CH-WZQP |
||||
10G |
20G |
30G |
40G |
50G |
||
Oxygen flow rate |
LPM |
1~3 |
2~7 |
3~10 |
5~10 |
8~18 |
Ozone concentration |
Mg/L |
69~88 |
52~104 |
56~93 |
85~116 |
60~90 |
Ozone output |
G/Hr |
5~12 |
12~22 |
16~33 |
34~51 |
43~64 |
Power |
W |
220 |
250 |
400 |
510 |
1300 |
Fuse |
A |
3 |
3 |
3 |
5 |
6 |
Cooling water flow |
LPM |
30 |
48 |
|||
Size |
mm |
460×390×840 |
||||
Noted:
1. Above ozone capacity were tested under oxygen source
2. Net weight will be 10% different for different plug.
3. It must connect with outside oxygen/air source.
CH-KT
CH-WZQ
CH-WZQP
