Specifications
enamel water cooling ozonator cell1.10G-60G /H water cooling
2.ozone generator spare parts
3.high output
4.MOQ:1

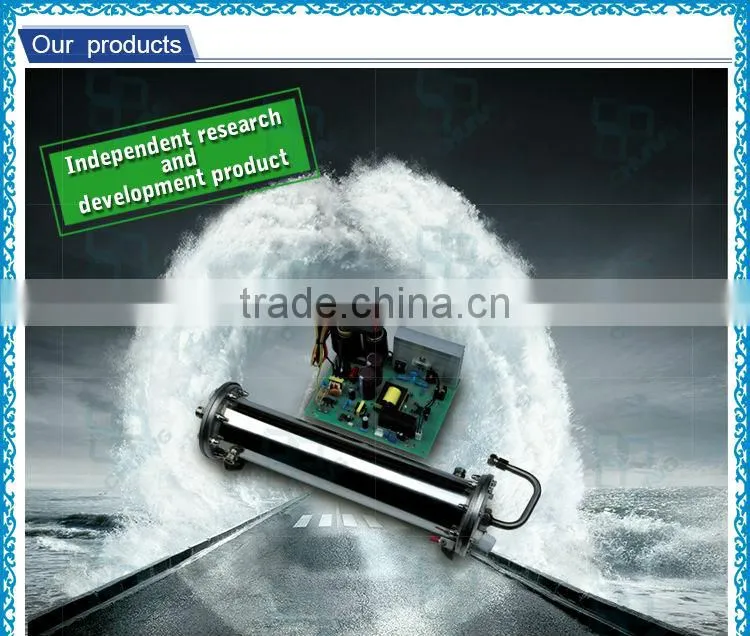

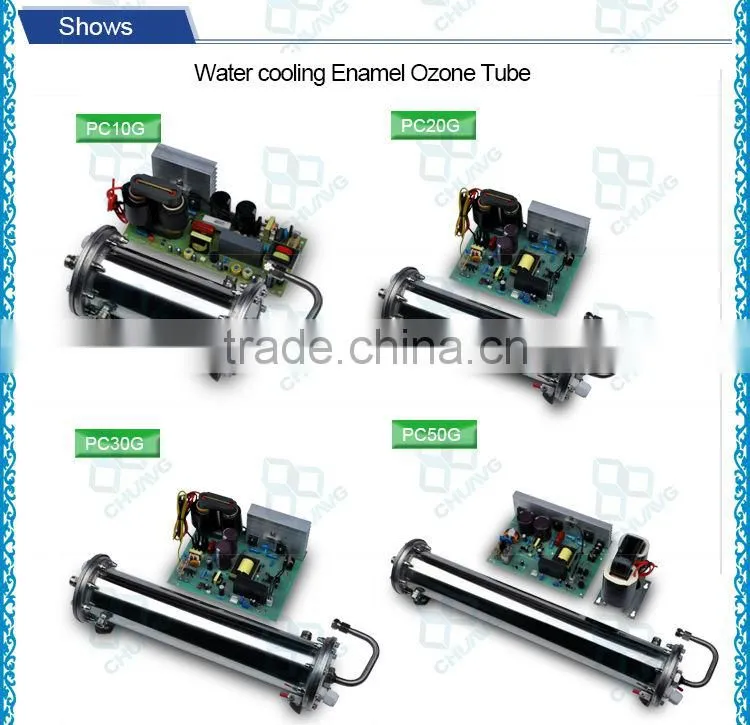

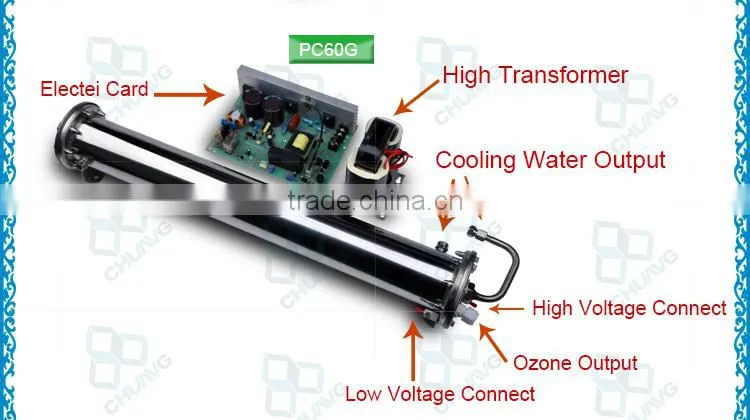

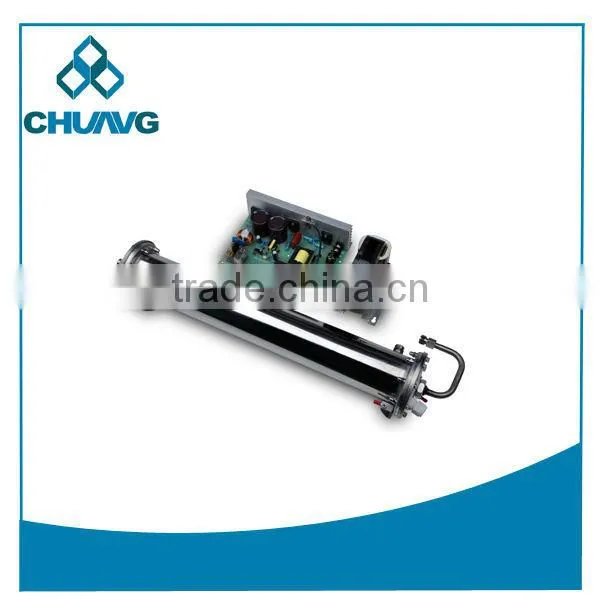

60G enamel water cooling ozonator cell for water treatment
Description
Item |
Unit |
CH-PC10G |
CH-PC20G |
CH-PC30G |
CH-PC50G |
CH-PC60G |
Oxygen flow rate |
LPM |
1-3 |
2-6 |
3-10 |
5-15 |
8-18 |
Ozone concentration |
Mg/L |
88-58 |
88.6-57 |
87.5-56.8 |
90-56 |
90-60 |
Ozone output |
G/Hr |
5.28-10.44 |
10.63-20.52 |
15.75-34.08 |
27-50.40 |
43.2-64.80 |
Power |
Kw |
0.2 |
0.28 |
0.38 |
0.55 |
0.75 |
Output frequency |
KHz |
2400 |
||||
High voltage output |
V |
2800 |
||||
Cooling method |
Water cooling for internal & external electrodes |
|||||
Cooling water flow rate |
LPM |
30 |
48 |
|||
Cooling water temperature |
°C |
35 |
||||
Fitting size |
mm |
1.Air inlet & ozone outlet: EDφ8mm 2.Cooling water: EDφ10mm |
||||
Adjustable range |
% |
20-100 |
||||
Power supply |
V/Hz |
110/220V 50/60HZ |
||||
Fuse |
A |
3 |
5 |
|||
Ozone tube dimension |
mm |
250×105×125 |
310×105×125 |
430×105×125 |
575×105×125 |
778×105×125 |
Mounting hole foot print of ozone tube |
mm |
127×44(φ5) |
195×44(φ5) |
320×44(φ5) |
450×44(φ5) |
555×44(φ5) |
Power supply dimension |
mm |
200×100×85 |
190×150×85 |
210×150×80 |
||
Mounting hole foot print of power supply |
mm |
155×127 |
155×127 |
192×177 |
192×177 |
243×208 |
Ozone tube weight |
Kg |
2.50 |
3.00 |
3.60 |
4.90 |
5.45 |
Power supply weight |
Kg |
1 |
2.40 |
|||

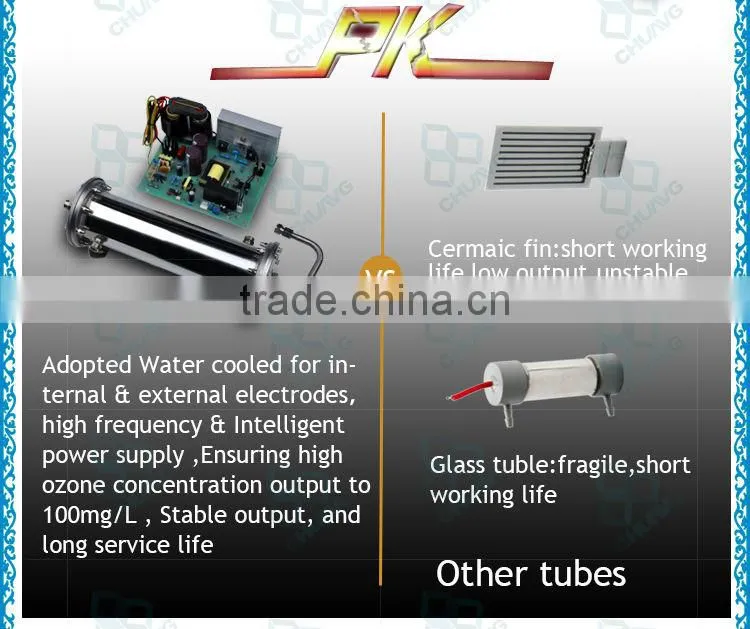

Features:
1. Electrodes
2. Cooling way
3. Adjustable ozone output: 20-100%
4. High ozone concentration & output
Working conditions:
>>Ambient temperature: 32°C,
>>Oxygen concentration: >99%,
>>Dew point: >-45,
>>Cooling water output temperature: 35°C
QUALITY CONTROL
In order to ensure the best quality , every ozone generator has been strictly tested before delivery. We promise the good performance and all parts completely according to your order .
PAYMENT
A. T/T(Bank Transfer)
B. Western Union
C. Paypal
D. Credit Card
PACKING & SHIPPING DETAILS
Packaging Detail: |
Carton case,Double layer package,Factory original package |
Delivery Detail: |
For 1-10 units, only 1-3 working days after payment confirmed |
AFTER SERVICE
We provide 12-month free maintenance.The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced,the buyer should also pay for the costs of the parts to be replaced.
FEEDBACK
Your satisfaction and positive feedback is very important to us.
If you have any problems with our items or services, please feel free to contact us .We will do our best to provide you the best customer service.

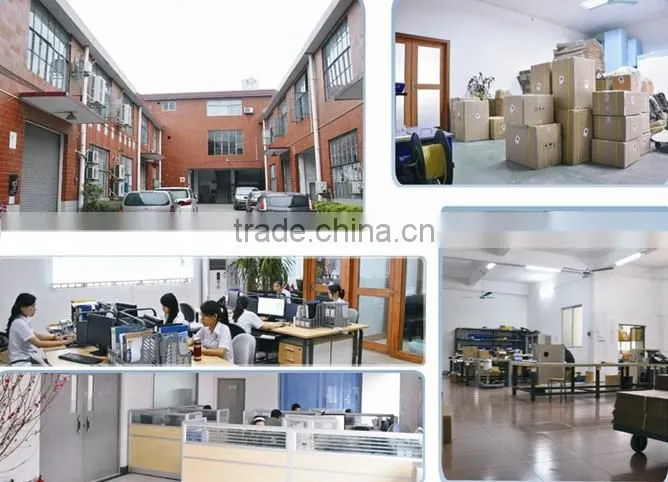

ABOUT US
