UV Resistant PE Tube PP Compression Fittings
US$ 0.2 - 30
MOQ: 1 Piece
Key Specifications
Get Latest Price
Material:
Other, PP, PP Pipe Fittings
Technics:
Casting
Type:
Coupling
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ports or other ports in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Agriculture Irrigation PP Compression Fittings/Coupling/ Plastic UnionUS$ 0.2 - 30MOQ: 1 Piece -
PP Compression Fttings For PE Pipe End PlugUS$ 0.2 - 30MOQ: 1 Piece
-
PP Compression Fittings/Water Compression Fittings/High Pressure Pipe PlugsUS$ 0.2 - 30MOQ: 1 Piece
-
High Pressure Water Pipe PP Compression Fittings Hose End FittingUS$ 0.2 - 30MOQ: 1 Piece
-
High Pressure PP Compression Fittings For PE Irrigation PipesUS$ 0.2 - 30MOQ: 1 Piece
Material
Other, PP, PP Pipe Fittings
Technics
Casting
Type
Coupling
Place of Origin
Shanghai, China
Model Number
PPF series
Brand Name
HUAWEI
Connection
Other, Thread
Shape
Equal
Head Code
Other, Round
Product Description
UV Resistant PE Tube PP compression Fittings
Parameter Details
1. Size: 20mm-110mm
2. Work pressure: 10 bar
3. Pipe fitting models: thread adaptor, end cap, coupling, reducing coupling, elbow, thread elbow, tee, thread tee
4. Material: as below
| PP compression fittings Part | Material | Color |
| Body | PP | Black |
| Nut | PP | Black Green Blue |
| Clinching ring | POM | White |
| Blocking bush | PP | Black |
| O Ring gasket | NBR | Black |
Product Features:
- Won't fall apart from irrigation sytem
- Thrust ring and lip seal are pressure locked into the body and won’t fall out during assembly, but remain easy to remove for clearing or servicing.
- Won't leak
- Thrust ring compress the lip seal to compensate for scratches on the pipe surface and pipe ovality.
- Won't pull apart
- The tapered profile ensures a perfect mechnical seal on the piping system when the nuts is tightened to the body.
- Easy installing
- Lip seal-noust an “o”ring. Food sast rubber(NBR) allows for easy insertion of the pipe and improve seal performance.
- Easy to reuse
- Grip ring splits apart for easy removal of the pipe. No more hassles when modify pipe work.
- Superior UV resistance
Product Application:
Water pipeline system, irrigation system and drinking water system
Porduct Images

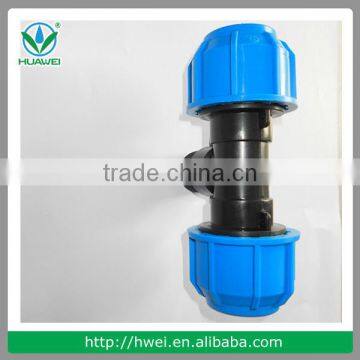

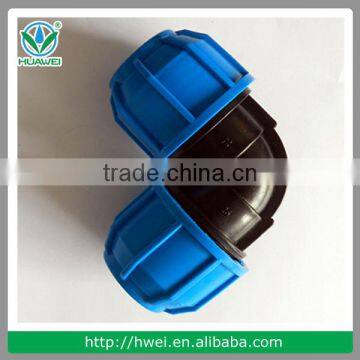

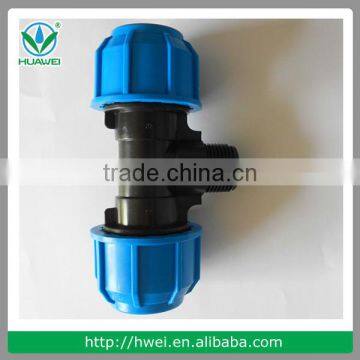

PP compressiong fittings images and installing
Packing & Shipping
Related Products
Our Services
- Porfessional irrigtion solution provider
- Survery------Designing irrigation system-----Implement-----After-sale service
- Customized Service
- With our own mould workshop, customzied service is avaiable
- OEM Service
- We can offer OEM service according to customers' Logo, package, etc.
- Free Samples
- Customers just need to afford the shipping freight to get free samples
- Online Service
- 24 hours online service available
- Easy Payments
- T/T, L/C, Western Union, Paypal, etc. acceptable
- One Stop Shopping
- Full range of irrigation system goods are available
Our Honors
- Supplier of Shanghai EXPO 2010 and Disney project in shanghai
- Enterprise of State Supported Agriculture Machinery Promotion
- State Class A Irrigation Enterprise
- Associator of China Irrigation and Drainage Association
- Supplier of China Foreign Aid Projects
- Professional Solution Provider for High Efficient Intergration of Water and Fertilizer
- Certification of European Standards ISO9001 Quality Management System
Company Information
Shanghai huawei is professional leading irrigation solution provider in China and ever were Shanghai Expo 2010 irrigation supplier. We offer ONE STOP IRRIGATION SERVICE, from DESIGNING irrigation system with our own qualified designing team, MANUFACTURING irrigation goods, EXPORTING goods to overseas customers. Our wild products line contains drip irrigation system, micro irrigation system and impulse irrigation system, such as drip tape, drip pipe, dripper, dripper arrow, micro sprayer, micro sprayer tape, impulse sprinkler, PP pipe & compression fittings, fertilizer injector, filter, etc.
