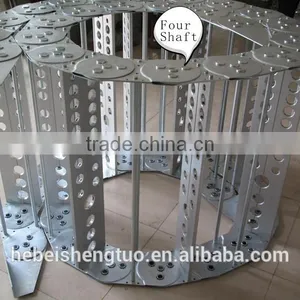

Steel Cableveyor TLG30

FOB Price

US$ 5 - 20 / Meter

50 Meters(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China		Brand Name	ST
Model Number	TLG10,TLG20,TLG30,TLG40,TLG50

steel cableveyor 'sfeature:

1.suitable for installing a large quantity and heavy cables ,oil pipes,or gas pipes

2.allow suspending installation,not need supporting

3.big length is allowed

4.different supporting board : SLS(form supporting board)SLP(plastic spacer) SLA(aluminium alloy supporting board)

5. supporting plate type:intergrated type,combinated type,frame type

6.TLG cable chain's size

type	Bending radius	pitch	Max aperture	Chain’s H	Chain thickness	Divider plate thickness	The distance between hoses on the connector	The hose diameter on the connector
TLG20	75.100.150.200.250.300	75	32	50	8	3.5	30	90
TLG30	115.150.200.250.300.400	100	50	75	10	3.5	50	11
TLG40	185.200.250.300.400.500	125	70	100	14	3.5	70	13
TLG50	250.300.400.500.600	175	118	150	14	4.5	115	13
TLG50’	250.300.400.500.600	180	118	150	14	4.5	115	13
