Waste Foam Plastic Melting Machine Foam Plastic Board Hot Melter

Waste Foam Plastic Melting Machine Foam Plastic Board Hot Melter photo-1
US$ 4,500 - 5,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Other, foam plastic recycling machine
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao shanghai guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Other, foam plastic recycling machine
Place of Origin Henan, China
Brand Name JINGXIN
Model Number JX220
Voltage 380V
Power(W) 5500
Dimension(L*W*H) 800*790*1200 mm
Weight 600 kg
Certification CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

This waste foam plastic hot melting machine was specifically designed to melt and extrude beads of expanded polystyrene (EPS) for waste removal purposes.

There is a hopper made of stainless steel on top of this foam plastic melting  machine ,feeds the beads from a collection bag into a set of horizontally mounted heated rolls, which are used to melt the beads. By incorporating a vacuum system, the beads may be deposited directly into this foam melt machine from a foam trim, route or groove operation.

As the heated rolls revolve, the beads melt and then are scraped from each roll while in the liquid state. As this liquid foam falls into a container located under the rolls, it cools and solidifies. The transformation of EPS waste from beads to extruded sheets saves tremendous plant space and disposal costs.

Model
Heater Power
Motor Power
capacity
JX220
5.0 kw
18.5 kw
280 -320 kg/h
JX320
5.0 kw
18.5-22.0 kw
450-550 kg/h
JX350
5.0 kw
22.0-30.0 kw
600-700 kg/h

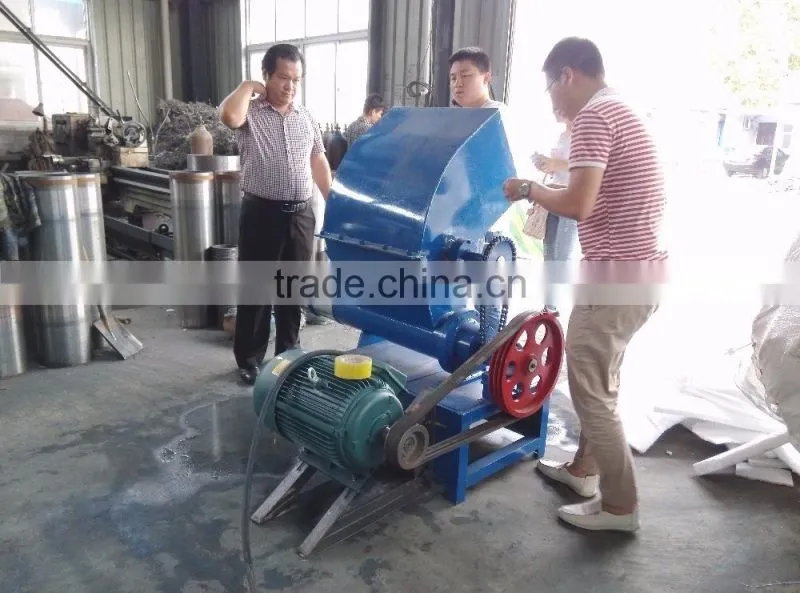

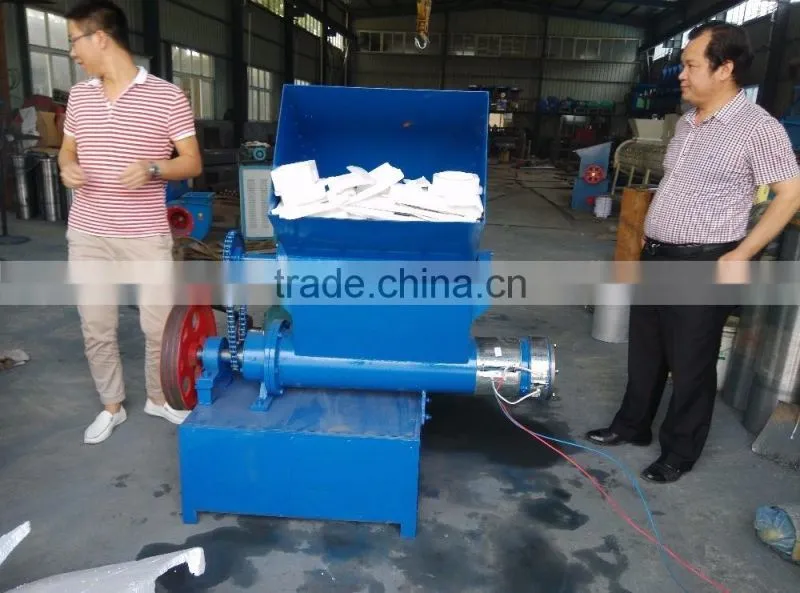

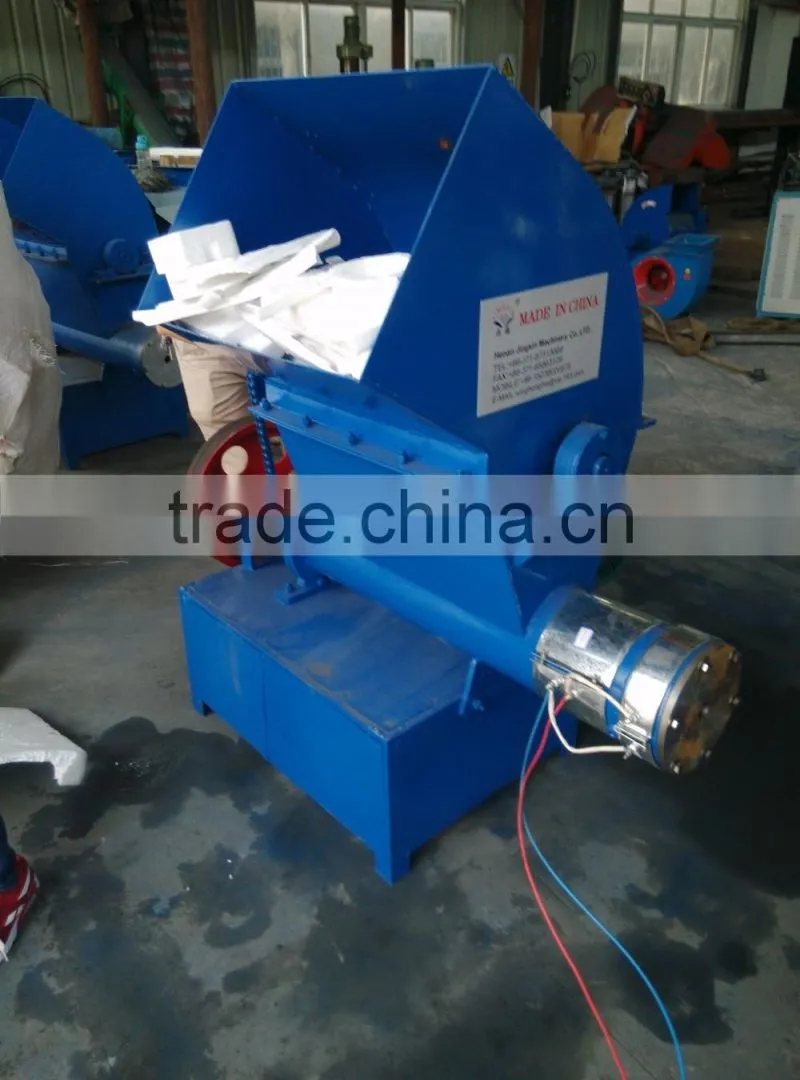

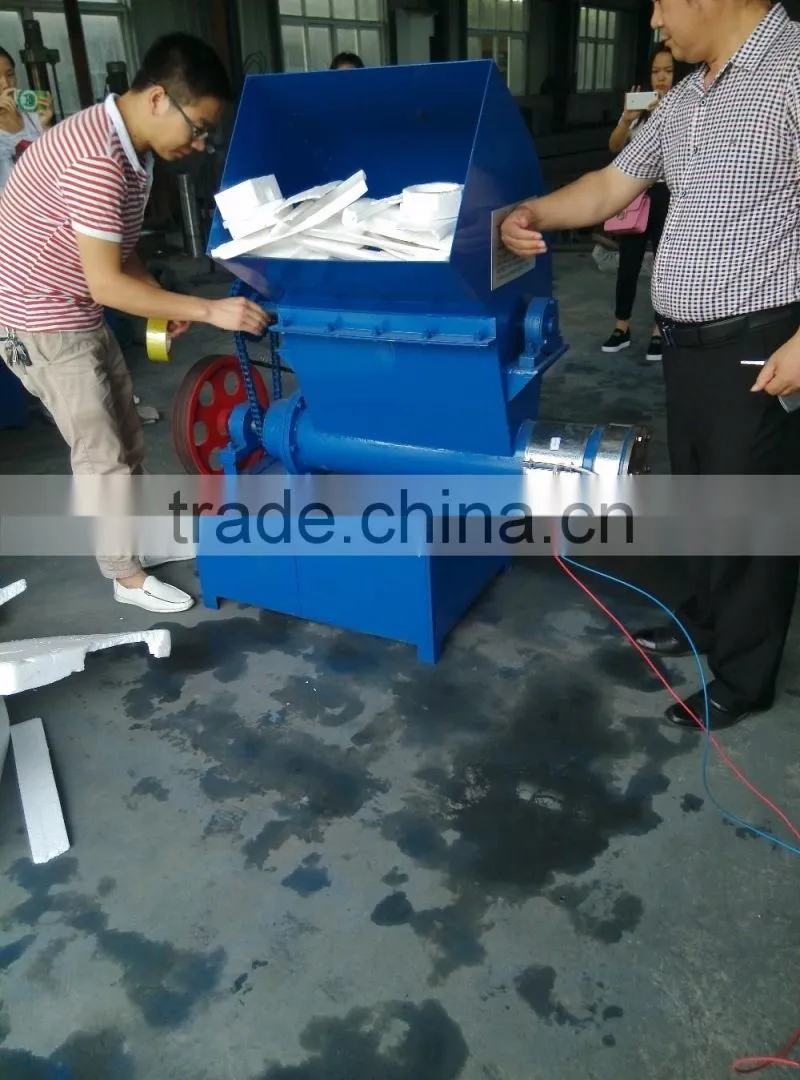

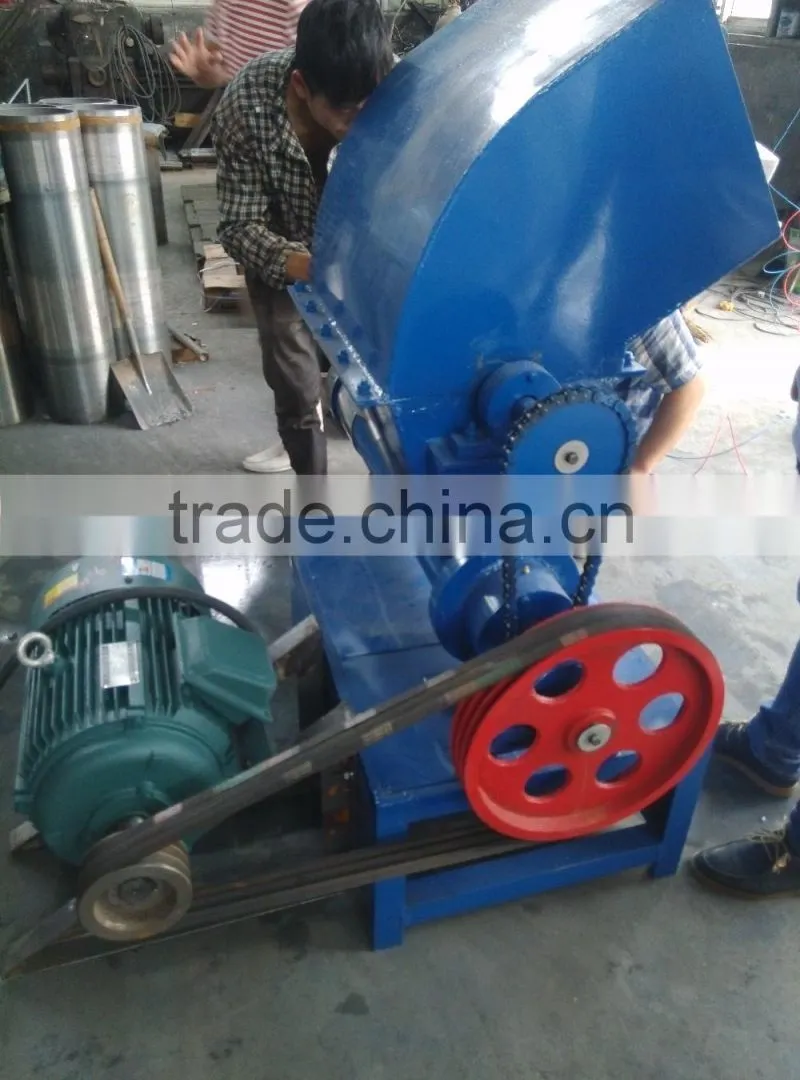

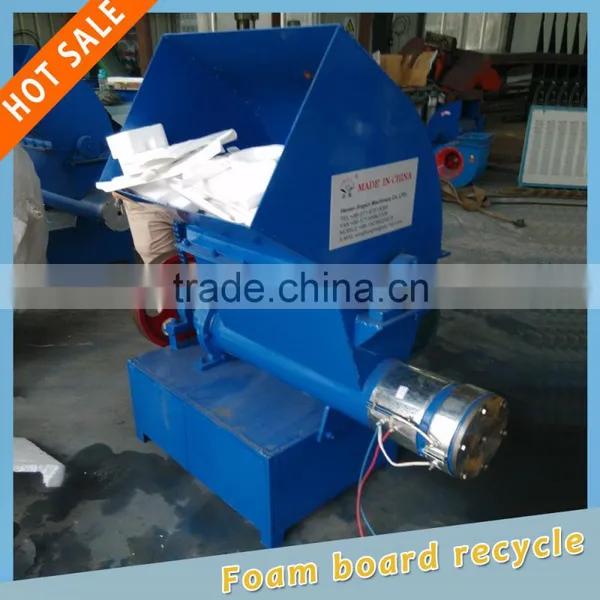

Detailed Images
Packing & Delivery

This waste foam plastic hot melting machine will be standard export wood case package
