Specifications
Model:HX250Capacity:3500-5000 pcs
Weight:850kg
Raw material:clay
Motor:11kw

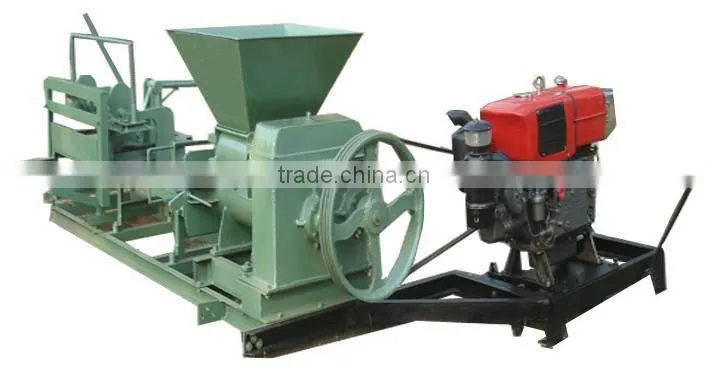

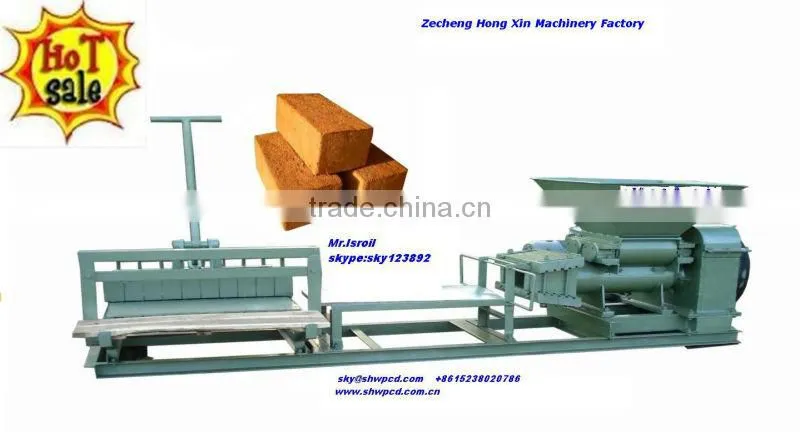

Small clay brick making machine :
This machine is intended to be used for its low investment.
Its brick quality is nearly the same as vacuum extruder method.
As a raw material it can be used clays, muds.

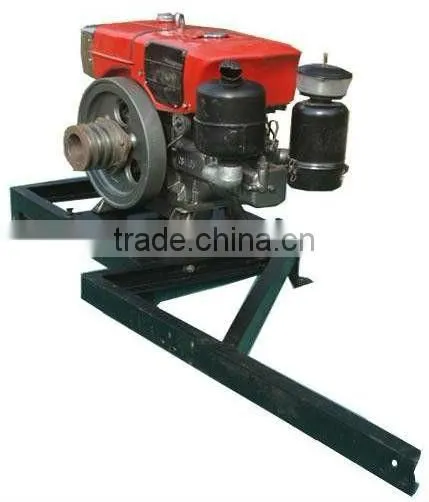

The machine principally consist of a vertical cylinder, which houses a vertical shaft with a spiral arrangement of blades, fixed at different angles to ensure an optimium mixture of the clay and additives. the blades force the clay down wards,exerting high compressive forces,on account of which the clay is pressed through a mouth piece on one side of the cylinder. Power is supplied by a back geared electric motor at the base of the machine. Diesel or petrol engine driven machines can be supplied on request.
You can install it on a trolley also for being moveable.
We provide the most cost effective technology from raw material to finished product.
If you have any enquiry, don't hesitate to contact with me:
