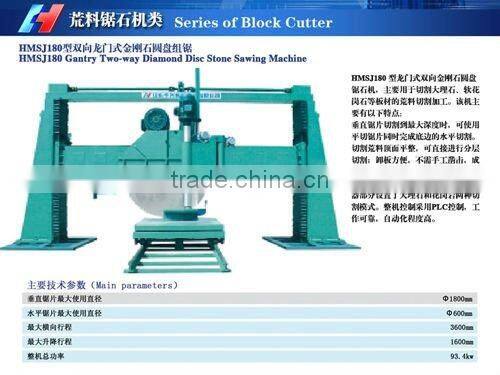

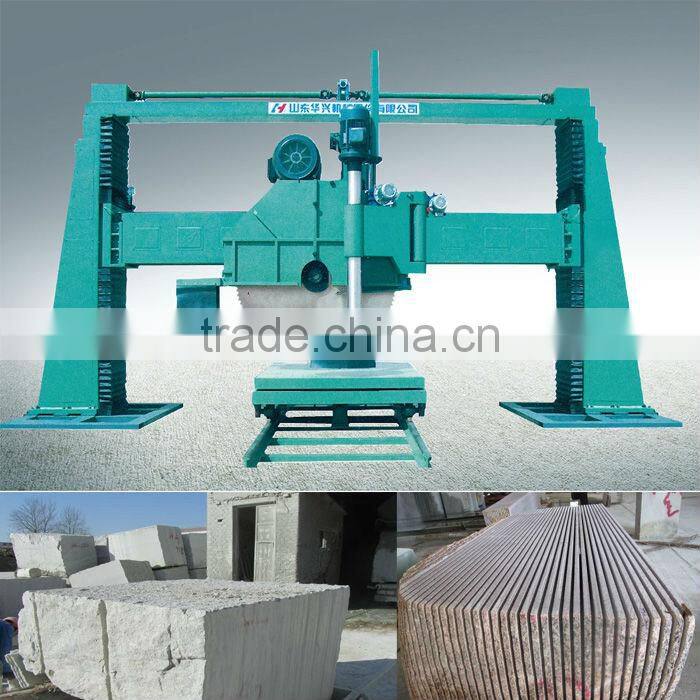

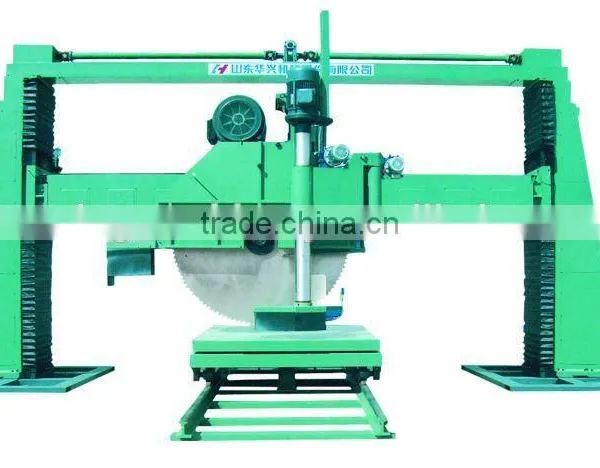

HMSJ 180 Two-way Diamond Disc Stone Sawing Machine
This machine is mainly used for cutting the stone block of marble and soft granite.
Main Parameters:
1. Maximum diameter of vertical disc 1800mm
2. Maximum diameter of horizontal disc Φ600mm
3. Maximum cross stroke 3600mm
4. Maximum vertical stroke 1600mm
5. Rotary speed of main shaft 633rpm; 504rpm
6. Maximum distance from axis of main shaft to trolley 2750mm
7. Area of trolley 1700*1700mm
8. Size of stone block 2500*1600*2000mm
9. Flow quantity of cooling water ≥12m³/ h
10. Pressure of cooling water ≥0.2Mpa
11. Total capacity 93.4kw
Horizontal cutting up-down motor 0.55kw
