Home > Products > Vibration finishing equipment > High Frequency Concrete Vibrator

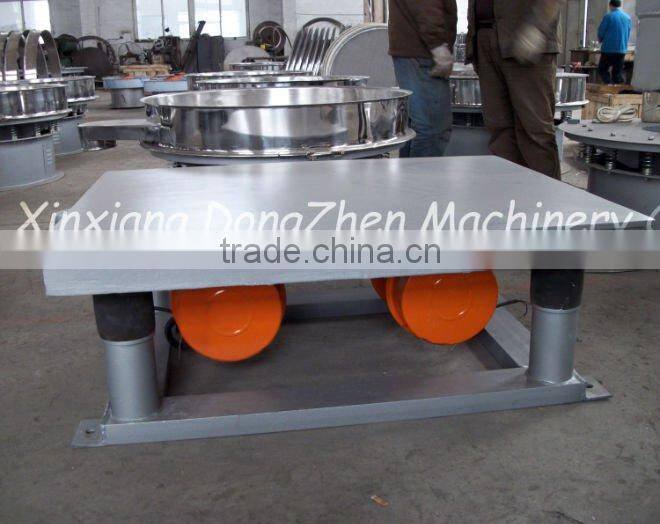

High Frequency Concrete Vibrator
- Qingdao/Tianjin
- T/T D/P D/A Money Gram Credit Card
You May Like
Product Details
| Type | Paving Block Making Machine | Brick Raw Material | Other, for all construction materials | |
| Processing | Brick Production Line | Method | Other, gravity compaction | |
| Automatic | Yes | Capacity | dicussion | |
| Place of Origin | Henan, China | Brand Name | Dongzhen | |
| Model Number | ZDP | Power | various | |
| Voltage | 380/50 V/HZ |
Product Description
Specifications
1.Low noise and consumption,easy to maintain.2.Reliable fuction,small vacumm and flexible installation
3.Special requirement.
Application :
ZDP series vibrating table can be widly used in metallury,mould,food,Chemical and Building material etc

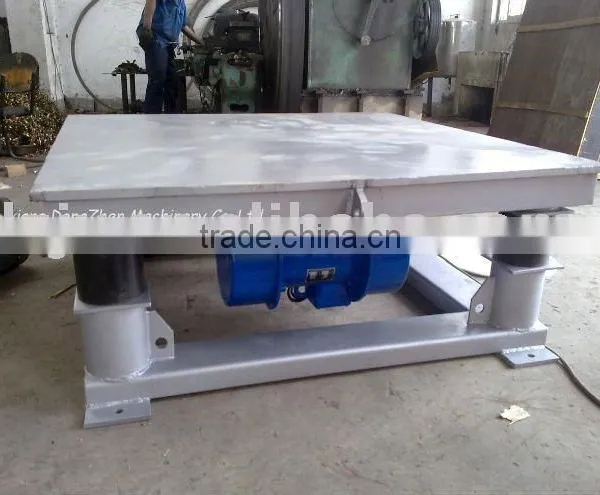

Vibrating Tables are designed to settle and compact dry bulk materials in various types of containers. Their application provides either a sizeable increase in the net weight of the container or reducing in the container size with subsequent savings in shipping and storage space.
Vibrating Tables are available in two types Electromagnetic & Electromechanical. The choice of the proper type and model depends upon the application, characteristics of the material or objects being handled, its reaction to vibration, the maximum weight to be handled and the type of container.
Technical parameter
Model | Aera(square meter) | powder(kw) | Amplitude(mm) | Weight(kg) |
ZDP-500×500 | 0.25 | 2×0.25 | 2-5 | 300 |
ZDP-1000×1000 | 1 | 2×0.4 | 2-5 | 600 |
ZDP-1200×1200 | 1.44 | 2×3 | 2-5 | 1200 |
ZDP-1500×1500 | 2.25 | 2×3 | 2-5 | 2000 |
ZDP-3000×3000 | 9 | 6×1.5 | 2-5 | 3000 |
Note:Redesign is available for special need.
Please kindly contact with us for the details as per your application.
We'd like to supply you the best solution.

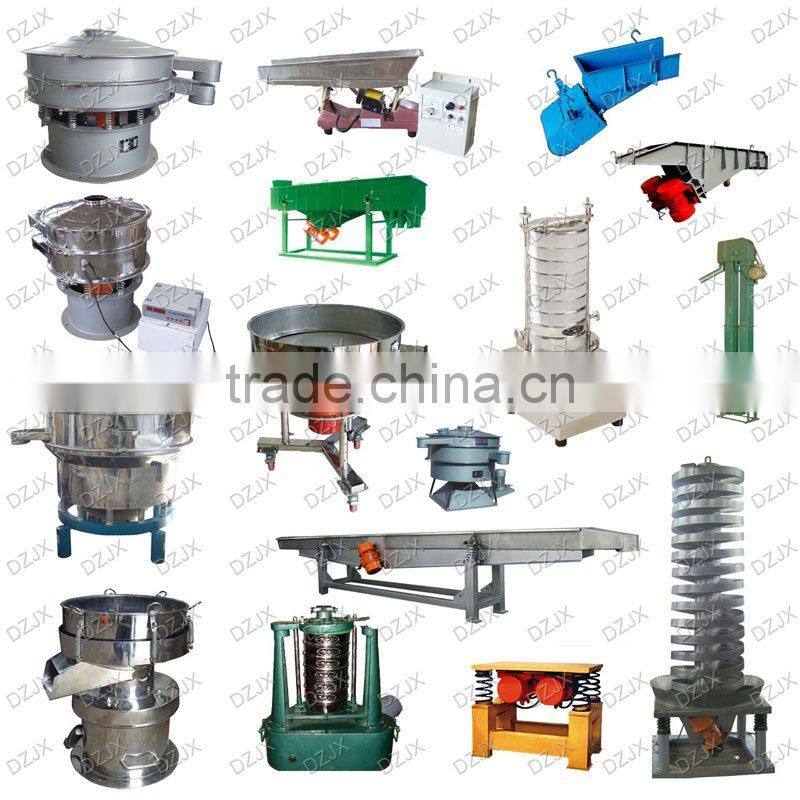

Other vibrating equipment is available, please feel free to contact.
