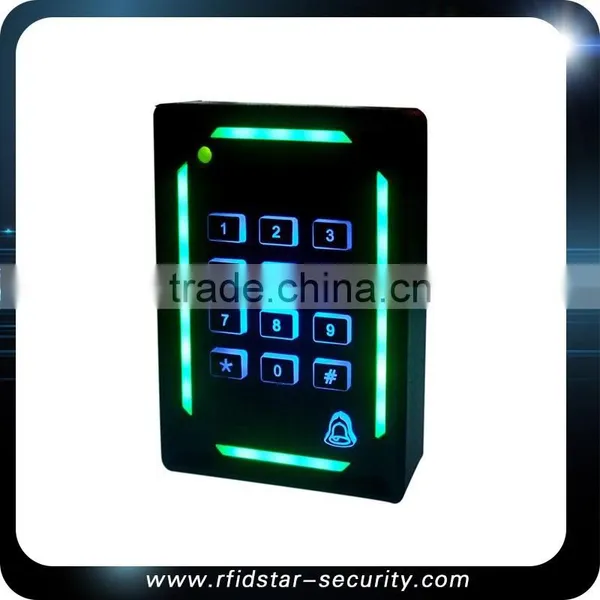

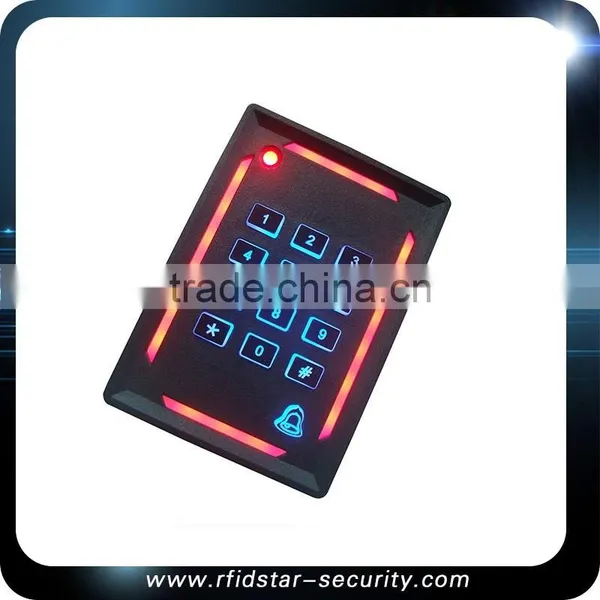

Help CenterSecurity Door 125khz Keypad Keyboard Long Distance 125khz Rfid Card Reader for Wholesales
Related Products
-
RS485 Access and Attendance Control Keypad Time Attendance Access ControllerUS$ 45 - 70MOQ: 1 Piece -
2015 New Type Waterproof Matel Standalone Access Control Keypad/rfid Access Control/access Control SystemUS$ 40 - 50MOQ: 1 Piece
-
Standalone Door Access Controller 20k Users 100k Events EM ID ControllerUS$ 18 - 20MOQ: 1 Piece
-
TCP/IP 1/2/4 Door Access Controller for Access Control SystemUS$ 45 - 75MOQ: 1 Piece
-
Metal Password Keypad Stand Alone Access Controller With KeypadUS$ 25 - 35MOQ: 1 Piece
|
Item | ST-N09 |
| Size | 110x78x22mm | |
| Color | Black | |
| Metarials | ABS+Epoxy | |
| Voltage | DC9~12V | |
| Current | 50mA | |
| Temperature | -25℃~85℃ | |
| Reader speed | 0.2sec | |
| Humidity | 10%~90% | |
| Punch interval | 0.5sec | |
| Waterproof | IP67 | |
| Support | 125KHz EM ID | |
| 13.56MHz MF IC | ||
| Frequency | 125KHz/13.56MHz | |
| Communication | Weigand26,Weigand34,RS232,RS485 | |
| Communication Distance | The weigand 100m | |
| Built-in | Antenna,speaker,buzzer,red(bule)green color LED | |
| Transmission | Weigand,RS232,RS485 | |
| Speical Provide | Logo printing,long cable,Reader module,Daul frequency(ID&IC) | |
| Application |
For access control ,attendance,fees,patrol,card,building onsay, parking systems, highways and rfid application. |
|
| Advantage |
This series of reader with high sensitivity receiver,small operation current,single DC power supply,low price,and high reliability. |
|
| Introduction |
Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws. |
|

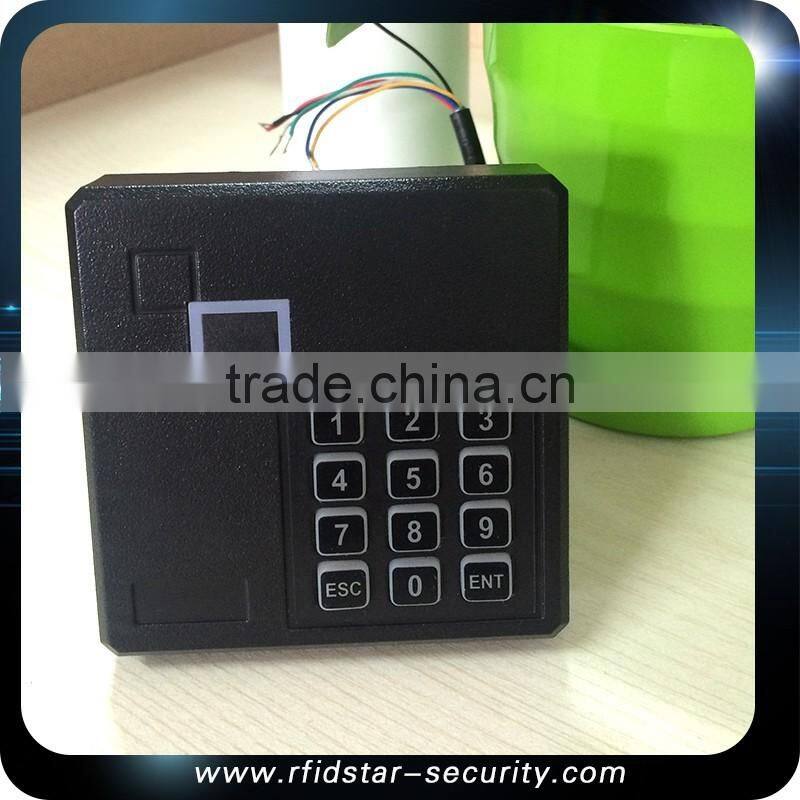

| Wire Connection | Red DC 5V-16V | |
| Black GND | ||
| Blue D1 | ||
| White D0 | ||
| Brown BEEP | ||
| Green LED | ||
| Yellow Alarm | ||
| Notice |
1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply |
|
|
2. When external Power is used, make sure sharing the power with Controller Box or using the same GND | ||
|
3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires | ||
Packing:
1pcs/box, Export Standard Package
Delivery Detail:
The normal quantity is delivery on 3-7 working days upon receive your payment,the big quantity we should check on our production schedule first then arange.
Shipping way:
1. Fast way: By express courier, such as: DHL, Fedex, UPS, TNT,EMS... take about 3-7 days.
2. Cheap way(small package):By China post, should take about 15-70 days.
3. Cheap way: By Air or by Sea shipment for heavy parcel
Star Security Technologies(Shanghai)Co., Ltd is a professional manufacturer of Security Products,Main products are the access control RFID reader, offline or TCP/IP network Access Controller, related access control products. Along with the RFID Cards, special mini cards, Smart label, RFID Tags, NFC tag, Also we have special trading business on the Animal Identification, like the Glass tag(microchip), ear tag, comply with ISO11784/11785.
·Fast lead time
·1 Year Warranty
·Stable delivery way
·Strict QC management
·Timely information feedback
·Small MOQ(Order Quantity Flexible)

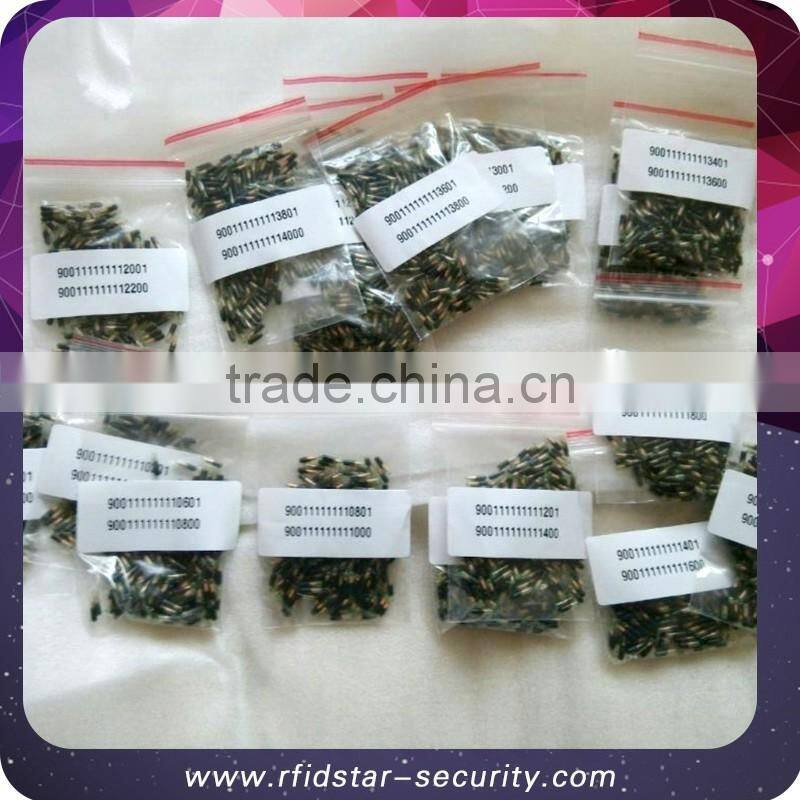

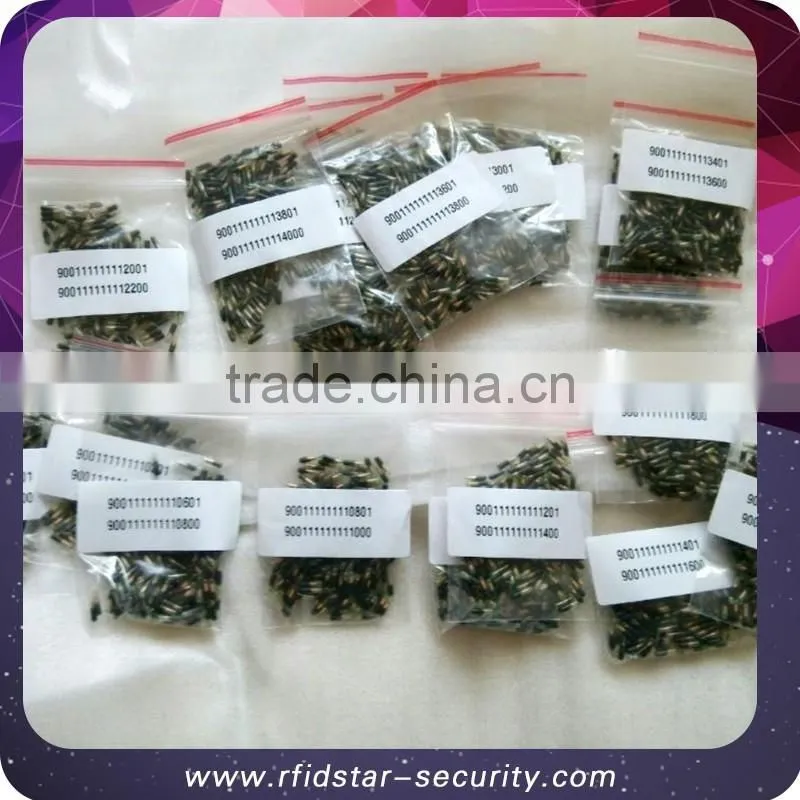

Q: For this animal microcip,it's have GPS function?
A: No, all animal microchip have no GPS function, our microchip just like the ID number give to the animal. then you can management the animal by the ID.
Q:For the waterproof type items,it's 100% waterproof?
A: Yes, if we marked the products is waterproof, that's mean 100% waterproof.
Q:What's the lead time?
A: For normal products, like blank chip cards. Weigand interface reader,1.4x8mm,2x12mm,1.25x7mm microchip&syringe, we will have some there products in stock to keep the fast delivery.
Q:Is there can accept Custom?
A: Sure, we accept Custom. Like the access control reader, we can make the special interface,RS232,RS485,Dual frequency reader(ID&IC at same time), 1M long wiring,logo printing...
RFID Card,RFID Tag,RFID Label, printing by your design,or design for you follow up your requirements.
