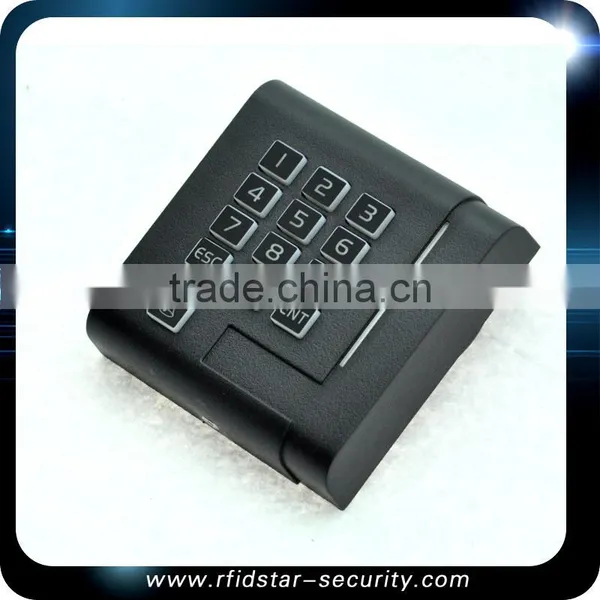

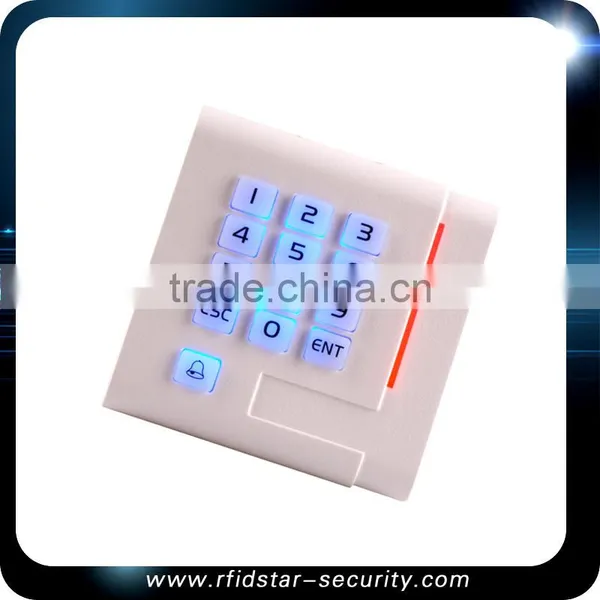

RFID Keyboard reader with smart card reader for office door
| Technical Parameters | ||||||||||||||
| Item | ST-N22 | |||||||||||||
| Size | 86x86X20mm | |||||||||||||

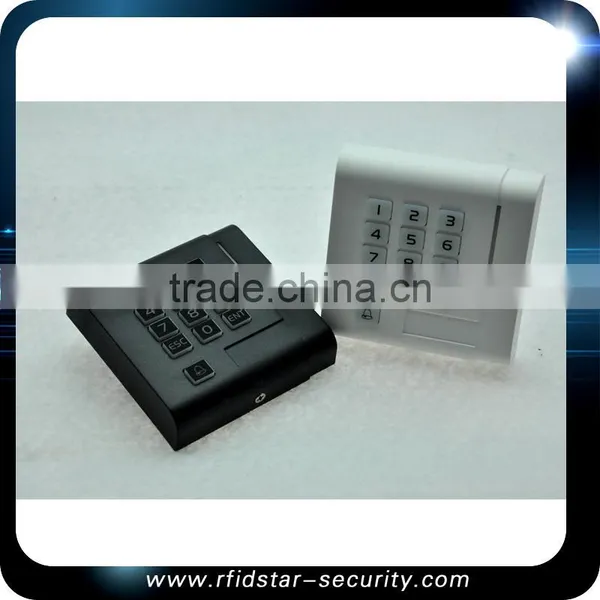

| Color | Black,White | |||||||||||||
| Metarials | ABS+Epoxy | |||||||||||||
| Voltage | DC9~12V | |||||||||||||
| Current | <50mA | |||||||||||||
| Temperature | -25℃~85℃ | |||||||||||||
| Reader speed | <0.2sec | |||||||||||||
| Humidity | 10%~90% | |||||||||||||
| Punch interval | <0.5sec | |||||||||||||
| Support | 125KHz EM ID | |||||||||||||
| 13.56MHz MF IC | ||||||||||||||
| Frequency | 125KHz/13.56MHz | |||||||||||||
| Communication | Weigand26,Weigand34 | |||||||||||||
| Communication Distance | The weigand 100m | |||||||||||||
| Built-in | Antenna,speaker,buzzer,red(bule)green color LED | |||||||||||||
| Transmission | Weigand | |||||||||||||
| Speical Provide | Logo printing,long cable,Reader module,Daul frequency(ID&IC) | |||||||||||||
| Application | For access control ,attendance,fees,patrol,card,building on say,parking systems, highways and rfid application. | |||||||||||||
| Advantage | This series of reader with high sensitivity receiver,small operation current,single DC power supply,low price,and high reliability. | |||||||||||||
| Introduction | Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws. | |||||||||||||

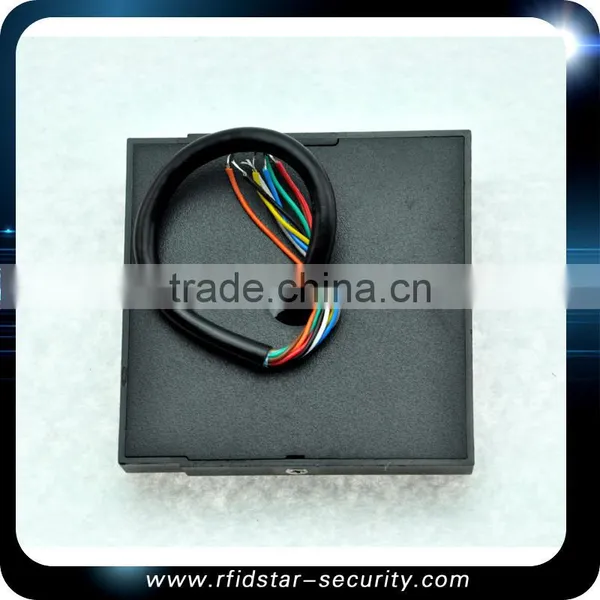

| Wire Connection | Red DC 5V-16V | |||||||||||||
| Black GND | ||||||||||||||
| Blue D1 | ||||||||||||||
| White D0 | ||||||||||||||
| Brown BEEP | ||||||||||||||
| Green LED | ||||||||||||||
| Yellow Alarm | ||||||||||||||
| Notice | 1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply | |||||||||||||
| 2. When external Power is used, make sure sharing the power with Controller Box or using the same GND | ||||||||||||||
| 3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires | ||||||||||||||
New RFID Reader
·Fast lead time
·1 Year Warranty
·Stable delivery way
·Strict QC management
·Timely information feedback
·Small MOQ(Order Quantity Flexible)
STAR SECURITY TECHNOLOGIES(Shanghai)Co., Limited is a professional manufacturer of Security Products, Main products are the access control RFID reader, offline or TCP/IP network Access Controller, related access control products. Along with the RFID Cards, special mini cards, Smart label, RFID Tags, NFC tag, Also we have Special trading business on the Animal Identification, like the Glass tag(microchip), ear tag, comply with ISO11784/11785.
ID TK4100 Blank Card or IC FM08 Blank card
If your order above 5000pcs, we will send 1pc ST-D01 Weigand26 ID or IC reader for free!
For All Reader
If your order above 20pcs, we will send 30pcs ID or IC Cards for free!
If your order above 50pcs, we will send 100pcs ID or IC Cards for free!
If your order above 100pcs, we will send 500pcs ID or IC Cards for free!
Q: For this animal microcip,it's have GPS function?
A: No, all animal microchip have no GPS function, our microchip just like the ID number give to the animal. then you can management the animal by the ID.
Q:For the waterproof type items,it's 100% waterproof?
A: Yes, if we marked the products is waterproof, that's mean 100% waterproof.
Q:What's the lead time?
A: For normal products, like blank chip cards. Weigand interface reader,1.4x8mm,2x12mm,1.25x7mm microchip&syringe, we will have some there products in stock to keep the fast delivery.
Q:Is there can accept Custom?
A: Sure, we accept Custom. Like the access control reader, we can make the special interface,RS232,RS485,Dual frequency reader(ID&IC at same time), 1M long wiring,logo printing...
RFID Card,RFID Tag,RFID Label, printing by your design,or design for you follow up your requirements.
