Keypad access security key reader for door access control system(ST-D06)
- 50000 Piece / Pieces per Month
- Shanghai Shenzhen and any port in China
- T/T Credit Card PayPal
-
Reader System Panel Card Keypad Gate Door Access Control Rfid Reader
-
13.56mhz NFC RFID Waterproof Rs232 RFID Reader HF Card Reader With Rs232 Port
-
Battery powered 433mhz wireless rfid proximity card reader access control system
-
handheld 125KHz ID Card RFID Copier/Writer/Reader/Duplicator
-
10.1 inch ture flat all-in-one tablet pc RFID reader rk3288 android panel pc with capacitive touch lcd screen
-
UHF RFID Reader Smart 340 4-port retail system Impinj R2000 long range rfid scanner Smart UHF RFID Reader
Product Details
| Place of Origin: | Shanghai, China | Brand Name: | STAR | Model Number: | ST-D06 |
Product Description

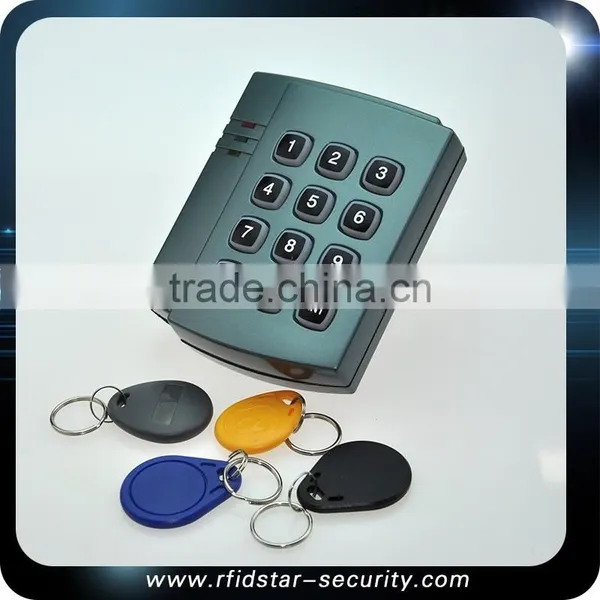

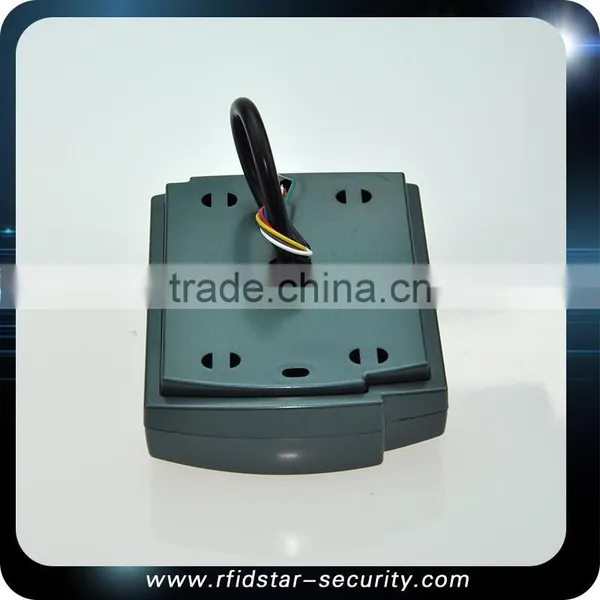

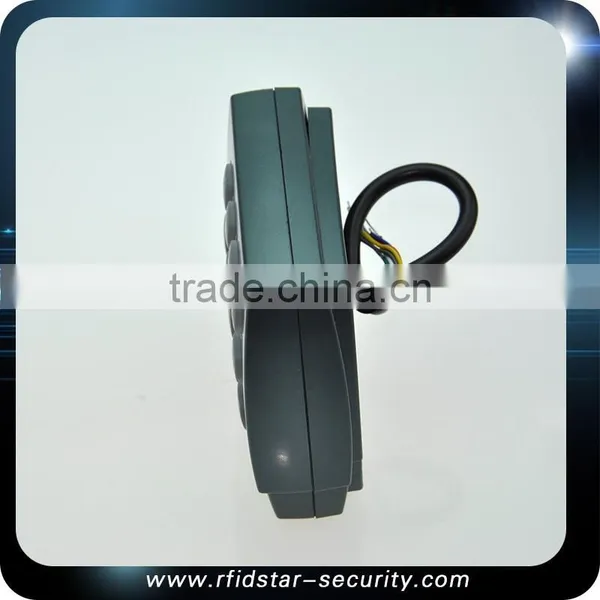

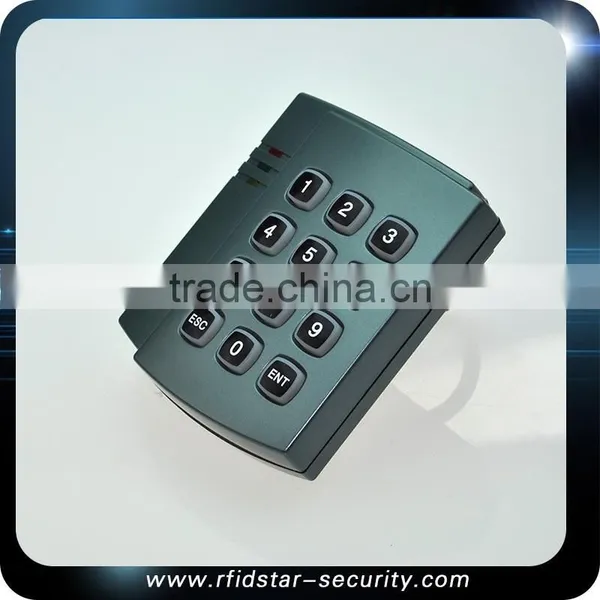

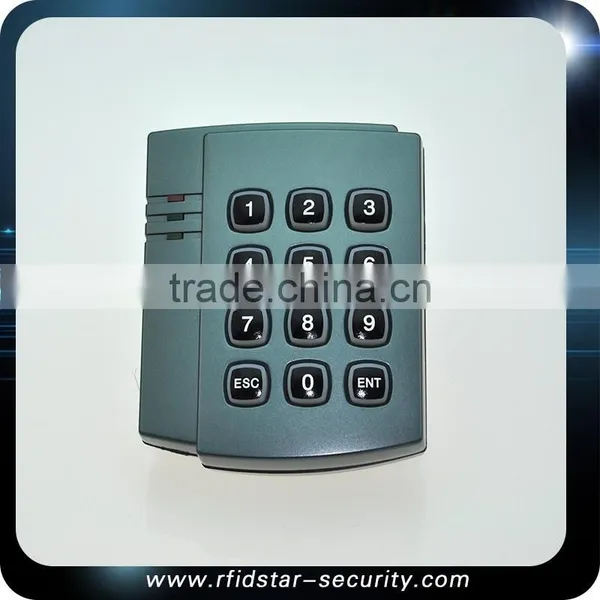

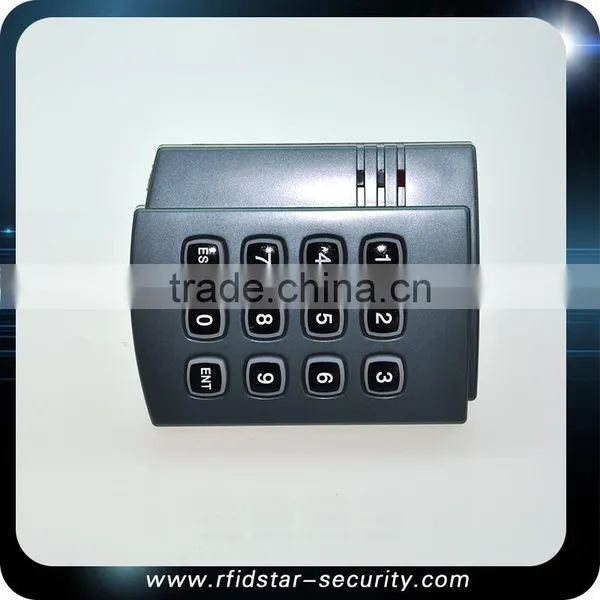

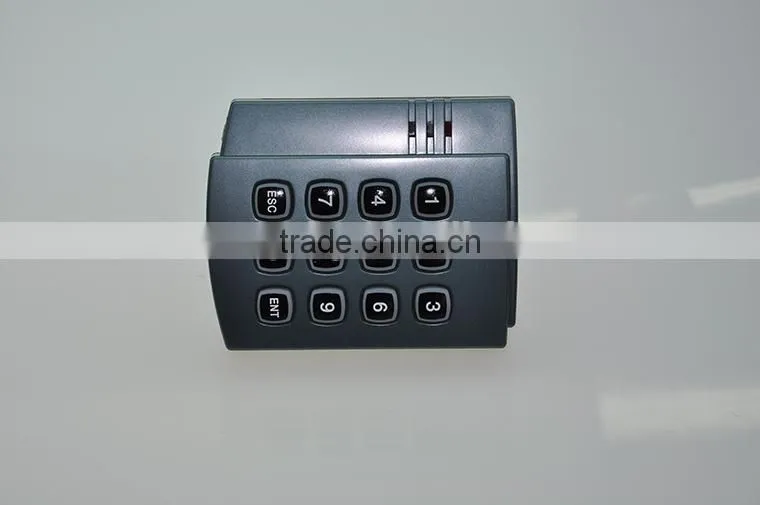

Keypad access security key reader for door access control system(ST-D06)
Technical Parameters | ||||||||||||||
| Item | ST-D06 | |||||||||||||
| Size | 108x88x32mm | |||||||||||||
| Color | Gray | |||||||||||||
| Metarials | ABS+Epoxy | |||||||||||||
| Voltage | DC9~12V | |||||||||||||
| Current | <50mA | |||||||||||||
| Temperature | -25℃~85℃ | |||||||||||||
| Reader speed | <0.2sec | |||||||||||||
| Humidity | 10%~90% | |||||||||||||
| Punch interval | <0.5sec | |||||||||||||
| Waterproof | IP68 | |||||||||||||
| Support | 125KHz EM ID | |||||||||||||
| 13.56MHz MF IC | ||||||||||||||
| Frequency | 125KHz/13.56MHz | |||||||||||||
| Communication | Weigand26,Weigand34 | |||||||||||||
| Communication Distance | The weigand 100m | |||||||||||||
| Built-in | Antenna,speaker,buzzer,red(bule)green color LED | |||||||||||||
| Transmission | Weigand | |||||||||||||
| Application | For access control ,attendance,fees,patrol,card,building on say,parking systems, highways and rfid application. | |||||||||||||
| Advantage | This series of reader with high sensitivity receiver,small operation current,single DC power supply,low price,and high reliability. | |||||||||||||
| Introduction | Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws. | |||||||||||||
| Wire Connection | Red DC 5V-16V | |||||||||||||
| Black GND | ||||||||||||||
| Blue D1 | ||||||||||||||
| White D0 | ||||||||||||||
| Brown BEEP | ||||||||||||||
| Green LED | ||||||||||||||
| Yellow Alarm | ||||||||||||||
| Notice | 1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply | |||||||||||||
| 2. When external Power is used, make sure sharing the power with Controller Box or using the same GND | ||||||||||||||
| 3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires | ||||||||||||||
Option 1:
ID TK4100 Blank Card or IC FM08 Blank card
If your order above 5000pcs, we will send 1pc ST-D01 Weigand26 ID or IC reader for free!
Option 2:
For All Reader
If your order above 20pcs, we will send 30pcs ID or IC Cards for free!
If your order above 50pcs, we will send 100pcs ID or IC Cards for free!
If your order above 100pcs, we will send 500pcs ID or IC Cards for free!
100% Waterproof Metal case Standalone Controller and Reader
