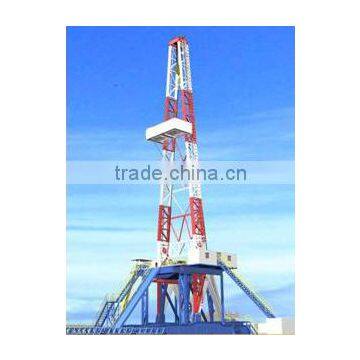

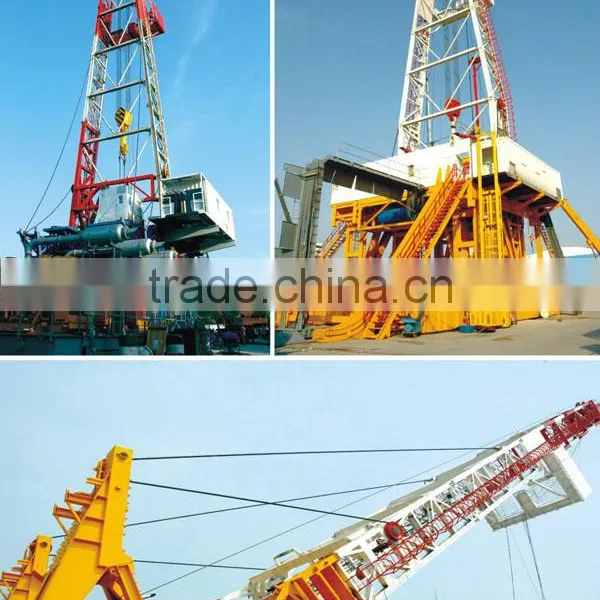

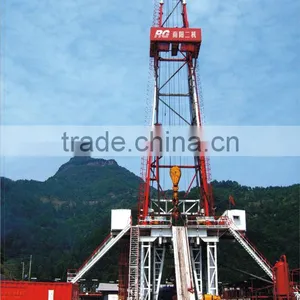

Help CenterSkid-mounted Oil Drilling Rig
Related Products
Specifications
With an optimum structure and high-level integration, the skid-mounted drilling rig of 3000HP is your better selection.
1. The drive ways of these kinds of drilling rigs include mechanical drive, electrical drive (VFD or SCR), electro/mechanical drive and others.
2. The compact skid modular structure is convenient for installation and transportation. It meets the requirement of entire moving structure and cluster well drilling. In addition, the drilling rig requires only a small working space due to its compact configuration.
3. Mast structure types include A type, K type (telescopic vertical hoisting mast, entire hoisting mast), etc.
4. The structure types of the substructure include swing-up, sling-shot, box-on-box, and telescoping etc.
Band brakes or hydraulic disc brakes can be applied as the main brake; water cooling thrust plate pneumatic brake or FDWS brakes can be used as auxiliary brakes; the energy-consumption brake can be used as the AC variable frequency drive rig’s auxiliary brake.
5. The drilling rigs adopt network and information technology as well as integrated design for the control, monitoring and display of power, air and hydraulics so as to realize intelligent and safe control of the driller.
6. A standardization and modularization design and various methods of combining the design have been applied in order to increase the universality and exchangeability of the drilling rigs.
7. The configurations of the solid control system, well control system, high-pressure pipe manifold system, generator house, pump engine house, doghouse and other auxiliary facilities can meet the different requirements of the end-users.
| Model | ZJ90DB |
Drilling depth (ft) 41/2″DP |
29500 |
| 5″DP | 26000 |
| Max hook load (lbf) | 1517400 |
| Hook speed (ft/s) | 0~6 |
| Mast effective height (ft) | 157 |
| Mast type | K type |
| Drill floor height (ft) | 40 |
| Substructure type | Swing up |
| Engine type | CAT3512B generator set |
| Engine power (hp × set) | 5×1757 |
| Drive ways | VFD drive |
| Transmission box model | ZLQ90DB |
| Traveling system | 8×7 |
| Drawworks | JC90DB |
| Drawworks power | 3000 |
| Main brake | Disc brake |
| Auxiliary brake | Motor resistance brake |
| Drilling line diameter (in) | 1 3/4” |
| Hook block | YC675,DG675 |
| Swivel | SL750 |
| Rotary table | ZP495 |
| Mud pump power (hp×set) | 1600×3/2200x3 |
| Nominal working pressure of hydraulic system (psi) | 2000 |
| Max. working pressure of air system (psi) | 145 |
Why Choose Us?
AHCOF International Development CO.LTD (hereinafter as AHCOF) is a state owned subsidiary company and has a good relationship with RG PETRO-MACHINERY (GROUP) CO. LTD, one of the key manufacturers of petroleum drilling equipment and services supplier in the World, offering integrated services of oil drilling rigs, such as maintenance, refabrication and operation.
As a leading manufacturer, we have a warehouse in Houston and we are equiped with a local team overseas providing convenient communication and real-time service to clientes. China's industrial chain is possible with a business network in China, so we can offer diversified products.
On the other hand, we can provide a financing solution. Shipping, law, insurance and other international trading services are also available. We hope we can be your permanent supplier by providing advance drilling equipment with the best drilling services solutions.
AHCOF people will be engaged in their task of making AHCOF into an international well-known integrative company and in the fulfillment of giving their customers a high-value-added service and we are expecting to cooperate with both domestic and foreign customers sincerely for a mutual growth and benefit in splendor.
Shipping time depends on the destination.
After we ship the goods, we will email you the shipping information, as well as tracking details.
The goods will be delivered by the most reasonable way for delivery.
Warranty and After-sales services
1. All of our drilling rigs are provided warranty period and after-sales services, pls contact us for details.
2. We offer technical support to our drilling equipments, please contact us freely if you have any question to our drilling equipment you received, we will tell you how to solve the problem by email or phone.
