Specifications
Rotary type pleating machine is a type of pleating machine designed for high speed production.4A air filter paper rotary pleating machine
Rotary type pleating machine is a type of pleating machine designed for high speed production. They are capable of producing pleats of range of widths and depths.
Feature: Efficient, fast, and easy to handle.
Pleat Designs
The rotary pleating machines can produce varieties of designs in the pleats like:
Dimple Design
Pleat Lock Design
Zig Zag Design
Other Designs

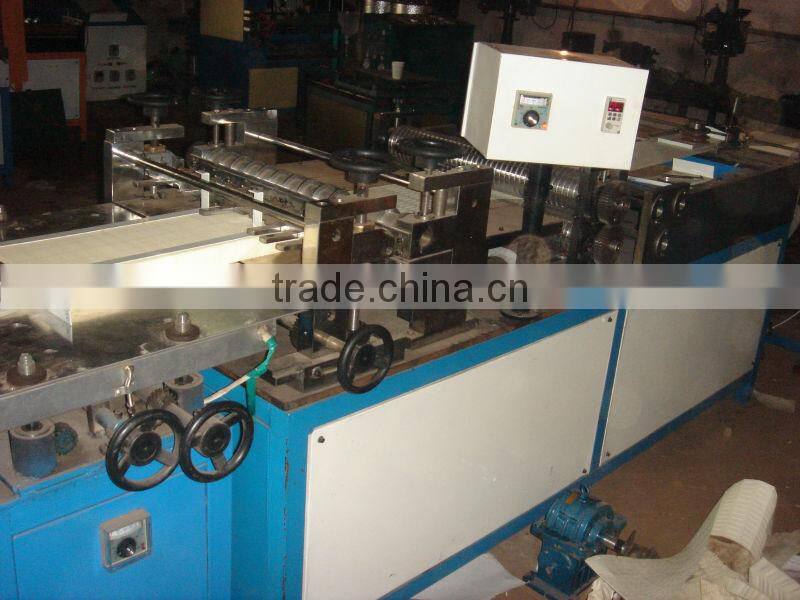

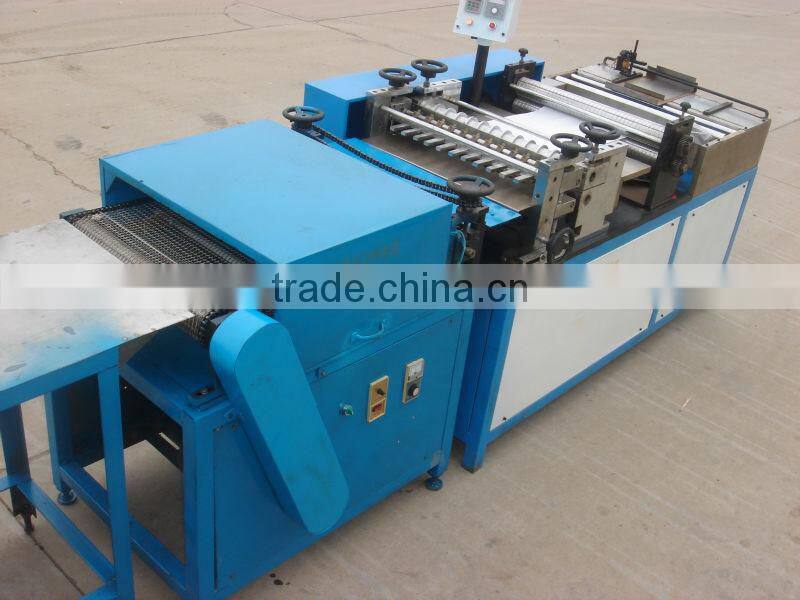

4A ROTARY PLEATING MACHINE
4A 650Type Filter Paper Pleating machine
1. Pre-slitting, counter, wetting, marking, heating, pleating
2. Max. Pleating width: 620mm
3. Pleating height: 18 - 75mm
4. Pleating speed: 3-40M/min
5. Power: 1.5KW 380V Total power: 5kw
6. Temperature available: 0° C - 200° C
7. All speed adjustable motor
8. Machine weight: 800KG
9. Machine dimension: 1800mm x 1220mm x 1350mm
4A 780Type Filter Paper Pleating machine
1. Pre-slitting, counter, marking, heating, pleating
2. Max. Pleating width: 780mm
3. Pleating height: 18 - 75mm
4. Pleating speed: 3 - 40M/min
5. Power: 1.5KW 380V Total power: 5kw
6. Temperature available: 0° C - 200° C
7. All speed adjustable motor
8. Machine weight: 900KG
9. Machine dimension: 1800mm x 1350mm x 1350mm
We design and produce the filter production lines:
Oil and fuel filter producing machine
Heavy duty air filter producing machine
Pu air filter producing machine
ECO filter producing machine
HEPA air filter producing lines
Cabin air filter producing machine
|
Name |
Air filter manufacturing machine Air filter pleating machine Filter folding machine 4A Type air filter paper rotary pleating machine |
| Model No. | 4A |
| Max Pleating Width | 650mm,780mm ,1200mm etc. |
| Pleating Height | 18-75mm |
| Type | Rotary type paper pleating |
| Used For | Oil, Fuel Filter Paper Pleating |
| Capacity | 30m/min. |
