Home > Manufacturing & Processing Machinery > Paper Machinery > Paper Making Machine > Real Factory Mini-pleated HEPA Filter/H12 H13 H14 U15 Gel Seal HEPA Filter Pleating Machine
Real Factory Mini-pleated HEPA Filter/H12 H13 H14 U15 Gel Seal HEPA Filter Pleating Machine
US$ 20,000 - 35,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Paper Folding Machine
Computerized:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Real Factory Hepa Mini-pleating Production LineUS$ 20,000 - 35,000MOQ: 1 Set -
Hot Sale Polyurethane Spray Foam MachineUS$ 5,000 - 10,000MOQ: 1 Set
-
Clipping Machine for Heavy CarUS$ 2,000 - 5,000MOQ: 1 Set
-
Anping Shuangjia Full Auto Clipping Machine for Oil FilterUS$ 2,000 - 5,000MOQ: 1 Set
-
Automatic Expanded Metal Spiral Tube Making MachineUS$ 12,000 - 12,000MOQ: 1 Set
Condition
New
Type
Paper Folding Machine
Computerized
Yes
Place of Origin
Hebei, China
Brand Name
shuangjia
Model Number
SJ-4A
Voltage
380v
Power(W)
1.5kw
Dimension(L*W*H)
8000*1150*1700mm
Weight
1000kgs
Certification
CE
Warranty
6 month
After-sales Service Provided
Engineers available to service machinery overseas

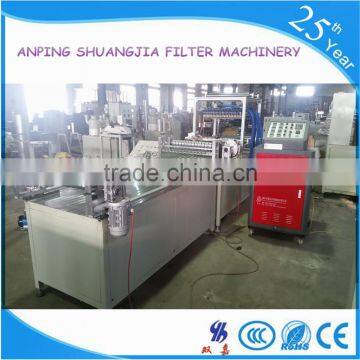

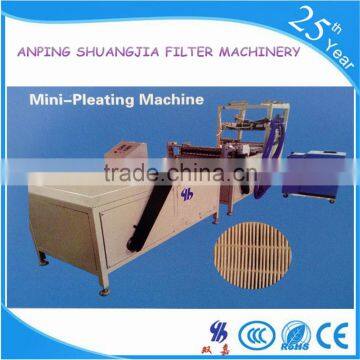

Mini-pleated HEPA filter/H12 H13 H14 U15 Gel Seal HEPA Filter pleating machine
Model No. |
Mini pleating machine |
Type |
Fiberglass Pleating machine |
Used For |
Fiberglass filter paper pleating |
Capacity |
20-150 pleats/min. |
Mini pleating machine is used in the pleating and gluing of fibre glass filter media, (do the gluing of polyester spun bonded non-woven filter media and so on), to produce high efficiency air filters. Easy operation and high efficiency. Pleated filter media sample.
Specifications:
1) Filter Media Max. Width: 630mm
2) Working Speed: Adjustable 3-15m/min
3) Pleating Height(Depth): 16 - 100mm (Adjustable by changing rollers)
2) Working Speed: Adjustable 3-15m/min
3) Pleating Height(Depth): 16 - 100mm (Adjustable by changing rollers)
4) Space Between Gluing Lines: 25mm
5) Hot Melt Nozzles: 24 + 24 Nozzles (24 nozzles on Both sides)
Other Features:
1) Pleat counting & marking device
2) Total power of motors: 8KW 380V
1) Pleat counting & marking device
2) Total power of motors: 8KW 380V
3) Speed adjustable motor
4) Unwinding stand
5) Electrical supply as per customer's requirements
4) Unwinding stand
5) Electrical supply as per customer's requirements
Machine Working Dimension Required: 8000 x 1150 x 1700mm
Machine Parts and Dimensions:
1) Marking Machine: 1250mm x 950mm x 1100mm
2) Pleating & Gluing Part: 2250mm x 1150mm x 1700mm
3) Forming and Conveyer (Collecting part): 2200 x 1000 x 1000mm
4) Separate Gluing Machine: 800mm x 700mm x 1550mm
1) Marking Machine: 1250mm x 950mm x 1100mm
2) Pleating & Gluing Part: 2250mm x 1150mm x 1700mm
3) Forming and Conveyer (Collecting part): 2200 x 1000 x 1000mm
4) Separate Gluing Machine: 800mm x 700mm x 1550mm
Company Information
Full filter making line can be offered, our product refer to rotary pleating machine, knife pleating machine, Gluing machine, PU gluing machine, Dryer ovens, Clipping machine, Slitting machine, sealing machine, rolling machine.. etc.
We design and produce the filter production lines:
- Oil and fuel filter producing machine
- Heavy duty air filter producing machine
- Pu air filter producing machine
- ECO filter producing machine
- HEPA air filter producing lines
- Cabin air filter producing machine
Our machine have the feature of economic, functional, durable. major filter manufactuers in America, Europe, south east Asia, middle east, seventeen province of China come to order our machines.
Our Mission( ANPING SHUANGJIA FILTER MACHINERY CO., LTD):To be an innovative, advance and experieced supplier to our global filter making customers.
