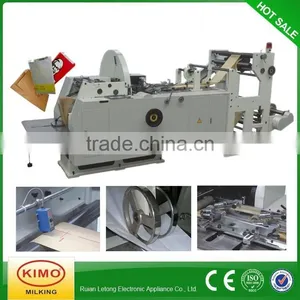

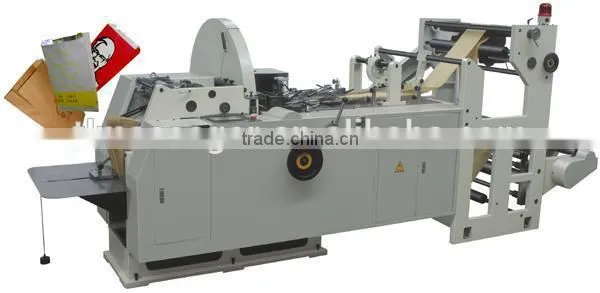

Fully Automatic Machine Making Paper Bag With Best Price
Product Introduction Of Machine Making Paper Bag:
A.This machine making paper bag forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding, bottom gluing and finishing bags.
B. Easy operation, low power consumption, high efficiency.
C. Our machine making paper bag is an ideal machine for producing food bags, KFC bags and McDonald's bags.
Features Of Machine Making Paper Bag:
1: Controls bag length freely in a range through the human-machine interface.
2: Adopt touch screen and PLC programmable control system, the work condition can be shown real time.
3: Equipped with an accurate photocell system for printed mark tracking.
4: Color mark error stopping system.
5: Double photoelectric sensor limit automatic correction control system.
6: Material lifting adopt pneumatic lift structure.
7: Automatic lubrication system.
Main Technical Parameter Of Machine Making Paper Bag:
| Model | RS-LMD400 |
| Cutting Length (C) | 150-460mm |
| Bag making length (H) | 140-450mm |
| Bag making width (L) | 80-250mm |
| Gusset depth (S) | 10-50mm |
| Standard flap (P) | 12-17mm |
| Max.bag making speed Max.bag making speed | 100-400pcs/min |
| Max.roll paper weight | 400kg |
| Max.roll paper diameter | 1000mm |
| Reel inner diameter | 76mm |
| Paper specification | 30-80gsm |
| Web edge control system | YES |
| Web tension control system | YES |
| Pasted with film | YES |
| Air pressure | ≥0.12m3/min, 0.6~1.2Mpa |
| Main driven motor | Double servo motor |
| Supply voltage | 380V, 50Hz, three phase |
| Power | 6KW |
| Weight | 3000kg |
| Overall dimension | 4580*1650*1850mm |

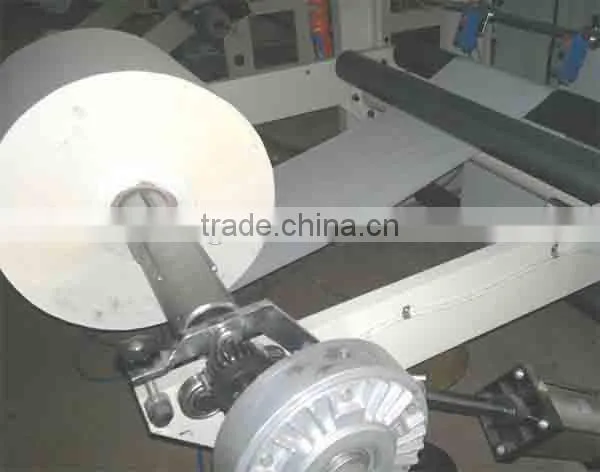

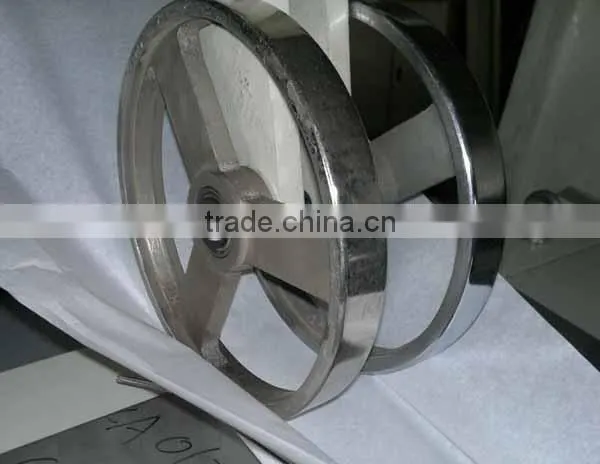

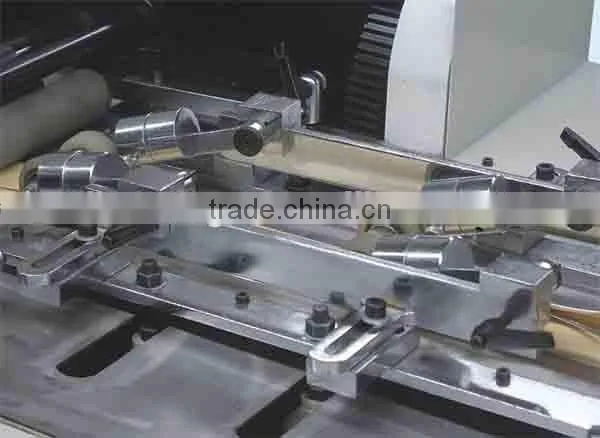

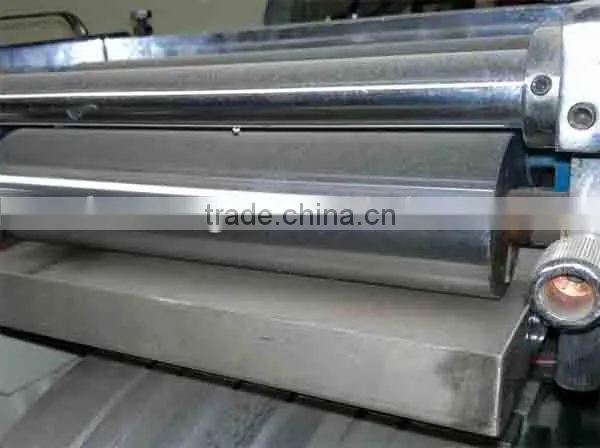

Details Picture Of Machine Making Paper Bag:

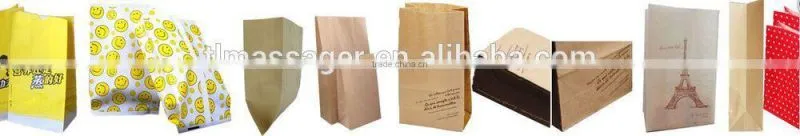

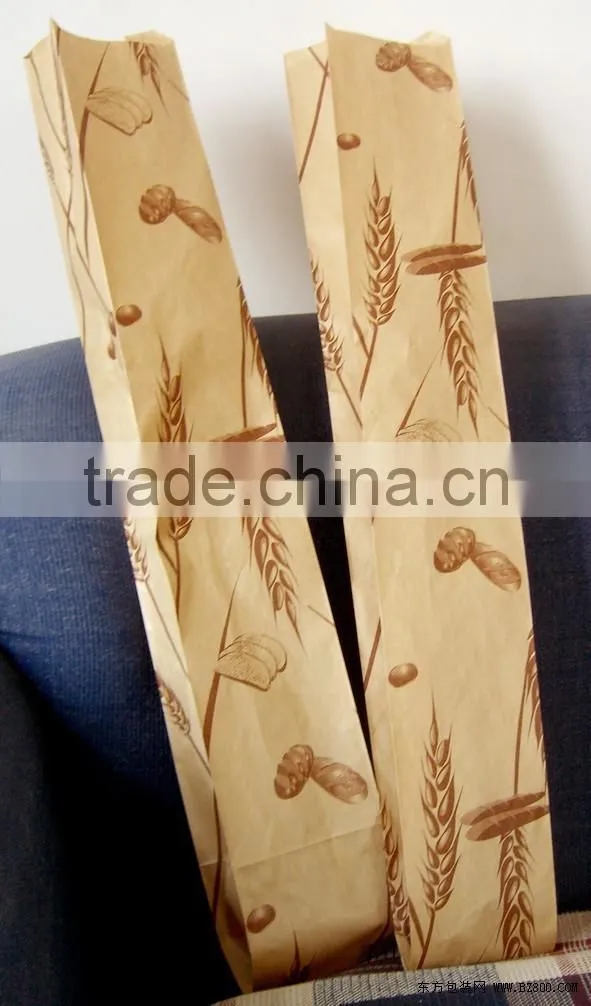

Samples Of Machine Making Paper Bag:
Packaging & Shipping Of Machine Making Paper Bag:
Advantage & Service Of Machine Making Paper Bag:
a. Have several senior engineers service in many countries, all the year round, with our after-sales office in countries.
b. Machines with quality guarantee for one year, life-long maintenance.
c. A lot of machines can be monitored via Internet, solve customer requirements immediately
d. Several senior engineers innovate and reform the technology continuous, in order to ensure the quality of mechanical stability.
e. Undertake various non-standard machinery, solve the customers' special requirements.
