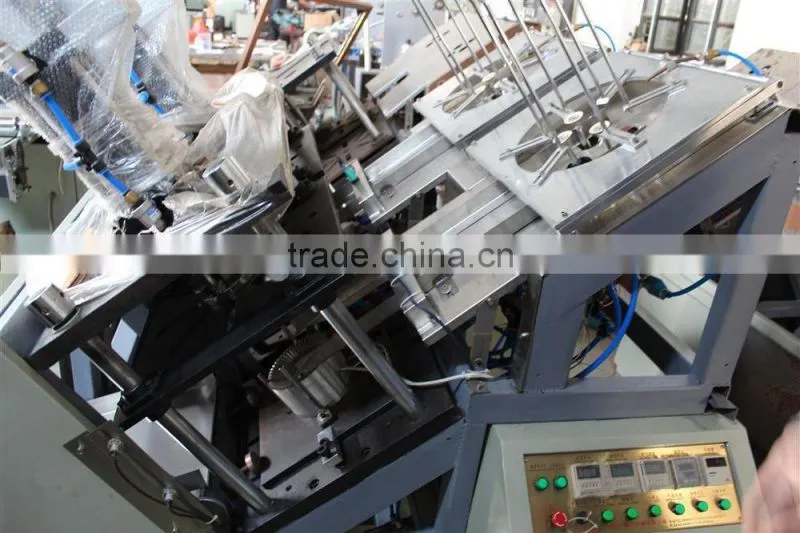

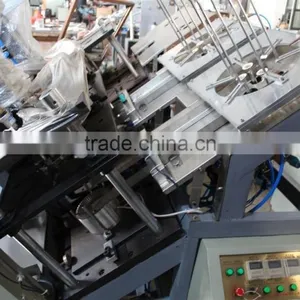

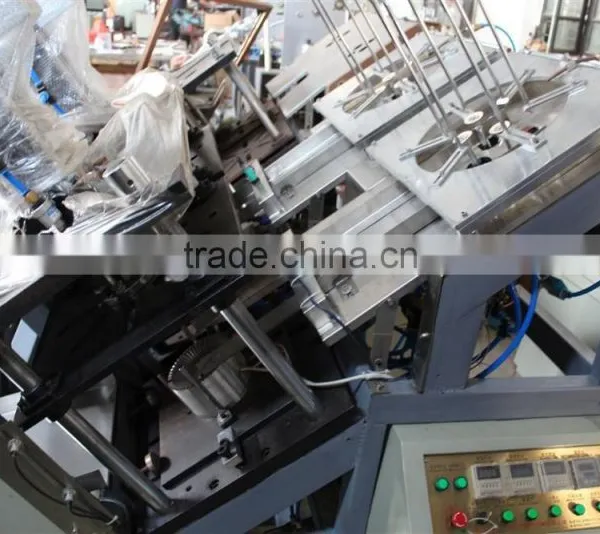

KIMO Dairy Automatic High Speed Paper Cup Forming Machine For Sale

KIMO Dairy Automatic High Speed Paper Cup Forming Machine For Sale photo-1
KIMO Dairy Automatic High Speed Paper Cup Forming Machine For Sale photo-2
KIMO Dairy Automatic High Speed Paper Cup Forming Machine For Sale photo-3
KIMO Dairy Automatic High Speed Paper Cup Forming Machine For Sale photo-4

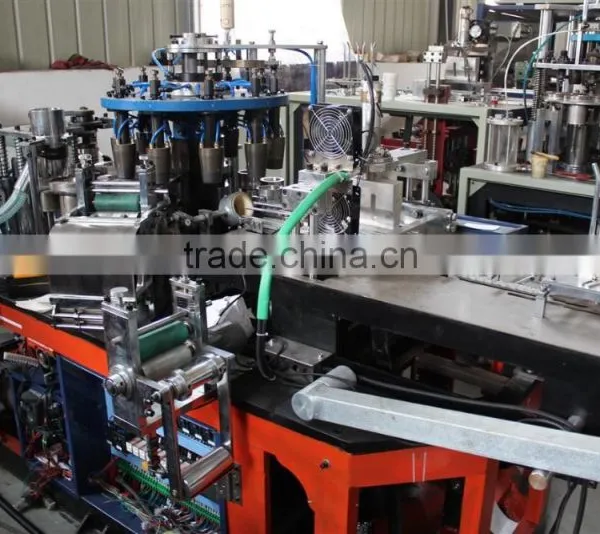

KIMO Dairy Automatic High Speed Paper Cup Forming Machine For Sale photo-5

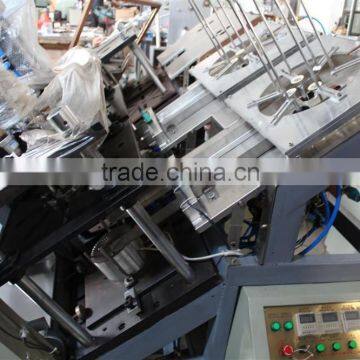

KIMO Dairy Automatic High Speed Paper Cup Forming Machine For Sale photo-6
US$ 20,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Paper Cup Machine
Processing Type:
Paper Folding Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Paper Cup Machine
Processing Type Paper Folding Machine
Place of Origin Zhejiang, China
Brand Name KIMO
Model Number HSZB
Voltage 220/380V 50/60HZ
Power(W) 10KW
Dimension(L*W*H) 3200*1700* 2000mm
Weight 2500 kg
Certification CE
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas

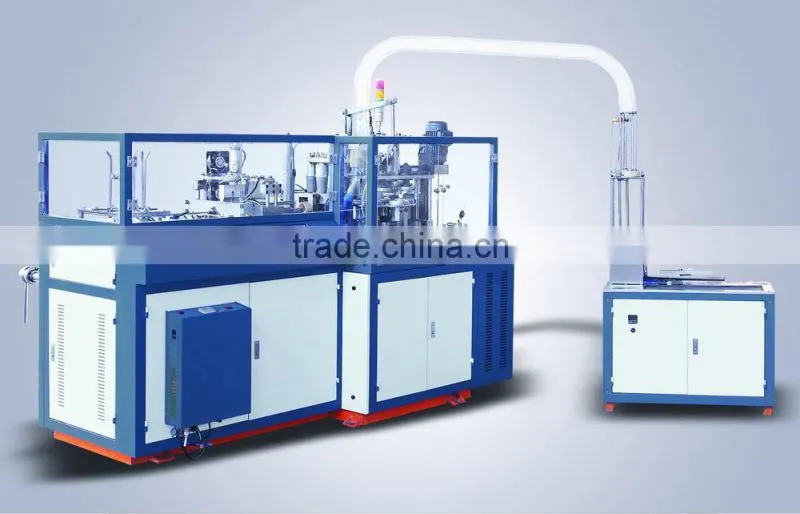

Automatic High Speed Paper Cup Forming Machine

KIMO Dairy Automatic High Speed Paper Cup Forming Machine For Sale



Description Of Paper Cup Forming Machine:



A. High-speed paper cup forming machine is our latest machine, which is made by us base on our 20 years manufacturing experience and advanced technology from oversea countries, it is a pioneer equipment in China.



B. Thanks to the sealing station is adopted ultrasonic sealing, so this model paper cup forming machine can produces various cups for hot and cold beverages; Ice cream, yoghurts, soups and snacks using single side or double sides PE coated paper.



C. As one of our most popular models, it has its own compact structure, the paper cup forming machine runs steadily and fastly, finished cup with good quality, lowest waste percentage and less noisy, it is the best choice for making any type paper cups.



Characteristics Of Paper Cup Forming Machine:



1.  The material of cup mould is adopted aluminum instead of carbon steel, owing to the aluminum material is light than carbon steel so it assure the machine running faster than the general paper cup forming machine.



2.  The 90degree revolve transfer cup. It make the forming cup 100% to transfer to mould, reduce the rate of wasting.



3.  The cup bottom can be transferred by one time. It mean the cup bottom can be transfer to cup inside, with highly exactness, reduce the wasting when transfer the second time.



4.  Revolve curling bottom. It reduce the touch about cup bottom printing and make the bottom curling equality. It will not destroy the printing surface and the two sides PE paper bottom surface.



5.  The parts of machine with nice craftwork. It make sure every part can exchange by each other.



6.  Takes to the blowing air system, the finished paper cups are blowing to certain place to stacking THROUGH a piece of windpipe.



Main Technical Parameter Of Paper Cup Forming Machine:

Model   HSZB
  Production capacity   60-70PCS/min
  Required paper   170-400gsm Single Side PE Paper or Double Sides PE Paper
  Cup’s Range

(A) 60 -100MM , (B) 60-140MM

(C) 40 -70MM , (D) 5 -11 MM

  Total power   220/380V 50/60HZ 10KW
  Air supply requirement

Working pressure: 0.5-0.7working

gas volume: 0.6m3 /per minute

  Weight   2500 kg
  Overall dimensions (L*W*H)   3200*1700* 2000mm
  Cup size   3~16 oz
  HS Code   8441309000
  Quality Certificate   CE, ISO, SGS
  Packing Method   Wooden Case(Inside machine is covered by plastic film)





Samples Of Paper Cup Forming Machine:

KIMO Dairy Automatic High Speed Paper Cup Forming Machine For Sale KIMO Dairy Automatic High Speed Paper Cup Forming Machine For Sale KIMO Dairy Automatic High Speed Paper Cup Forming Machine For Sale

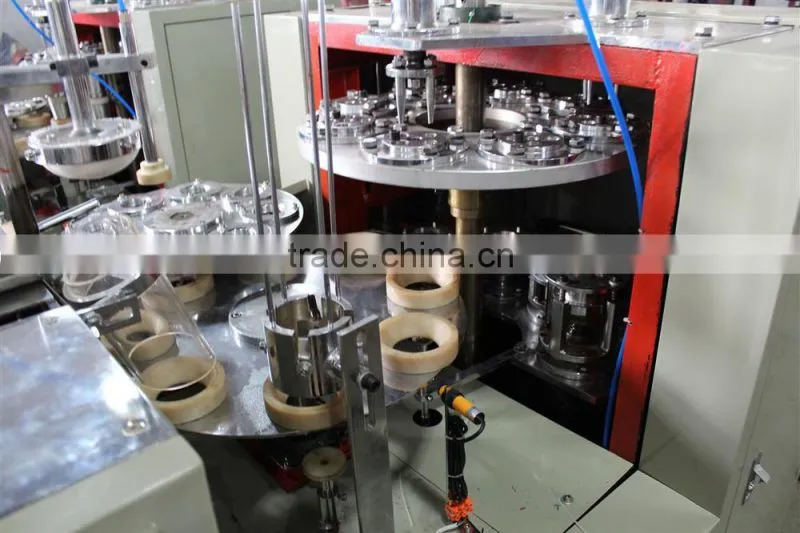

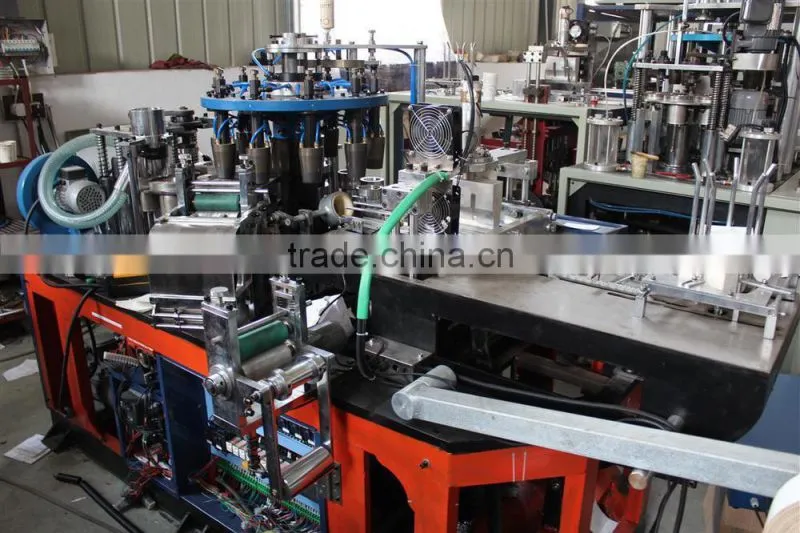

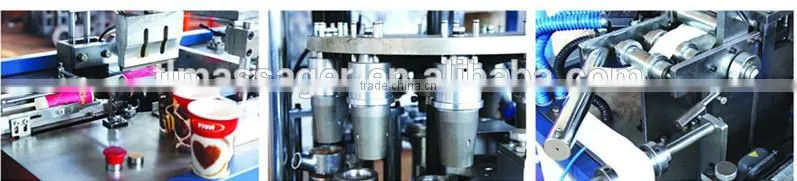

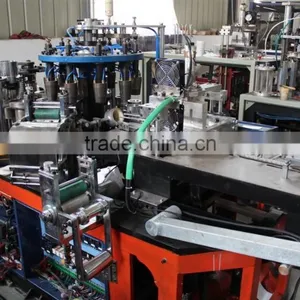

Details Pictures Of Paper Cup Forming Machine:

KIMO Dairy Automatic High Speed Paper Cup Forming Machine For Sale  KIMO Dairy Automatic High Speed Paper Cup Forming Machine For Sale



KIMO Dairy Automatic High Speed Paper Cup Forming Machine For Sale                                  KIMO Dairy Automatic High Speed Paper Cup Forming Machine For Sale



KIMO Dairy Automatic High Speed Paper Cup Forming Machine For Sale

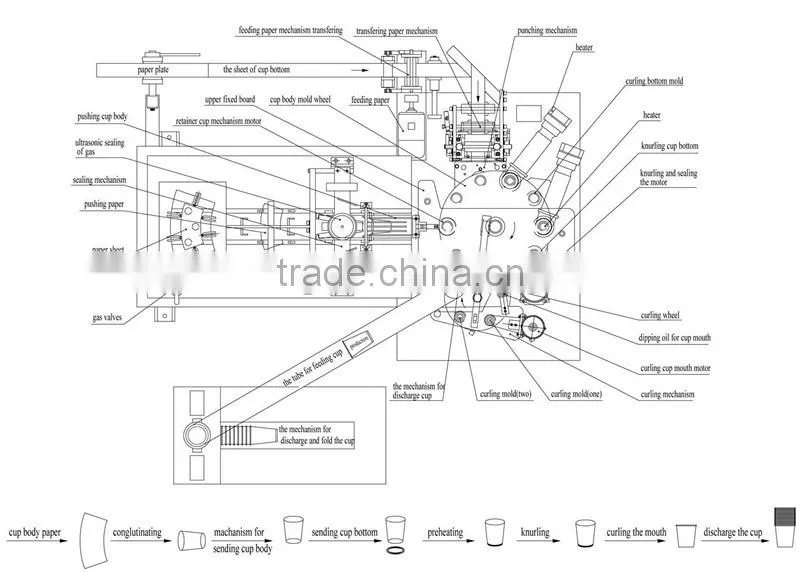

The Technological Figure Of Paper Cup Forming Machine:

KIMO Dairy Automatic High Speed Paper Cup Forming Machine For Sale



Packaging & Shipping Of Paper Cup Forming Machine:



KIMO Dairy Automatic High Speed Paper Cup Forming Machine For Sale



Advantage & Service Of Paper Cup Forming Machine:



a. Have several senior engineers service in many countries, all the year round, with our after-sales office in countries.



b. Machines with quality guarantee for one year, life-long maintenance.



c. A lot of machines can be monitored via Internet, solve customer requirements immediately



d. Several senior engineers innovate and reform the technology continuous, in order to ensure the quality of mechanical stability.



e. Undertake various non-standard machinery, solve the customers' special requirements.
