China High & low-pressure PE Film Extruder Machine
Use Of Film Extruder:
Our PE film extruder machine is used for blowing the various plastic film of low density polyethylene (LDPE), high density polythylene (HDPE) and linear low density polyethylene (LLDPE) etc, which are widely used for packing industrial produces, textile. garments and food and farmland.
Characteristics Of Film Extruder:
1. The cylinders and the screw stems of the above extruders are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment of the film extruder.
2. The auxiliary machine has a platform working table for making operation easy.
3. The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.
Main Technical Parameter Of Film Extruder:
| Model | SJ-50 | SJ-55 | SJ-60 | SJ-65 |
| Screw Diameter | Φ50mm | Φ55mm | Φ60mm | Φ65mm |
| Screw Ratio | L/D 28:1 | L/D 28:1 | L/D 28:1 | L/D 28:1 |
| Screw Speed | 10-100r/min | 10-100r/min | 10-100r/min | 10-100r/min |
| Folding Width Of Film | 100-600mm | 200-800mm | 300-1000mm | 400-1200mm |
| Single-sided Thickness Of Film | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
| Max. Extrude Output | 35kg/h | 50kg/h | 65kg/h | 80kg/h |
| Power Of Main Motor | 7.5kw | 11kw | 15kw | 18.5kw |
| Power Of Traction Motor | 1.1kw | 1.1kw | 1.5kw | 1.5kw |
| Heating Power | 11kw | 13kw | 19kw | 21kw |
| Overall Dimensions (L*W*H) | 4800×1900×3500mm | 5500×2100×3800mm | 6500×2300×4200mm | 6500×2500×6000mm |
| Weight | 1.5T | 2T | 2.3T | 2.6T |
| Suitable Raw Material | PE | PE | PE | PE |
Design and specifications are subject to change without notice.

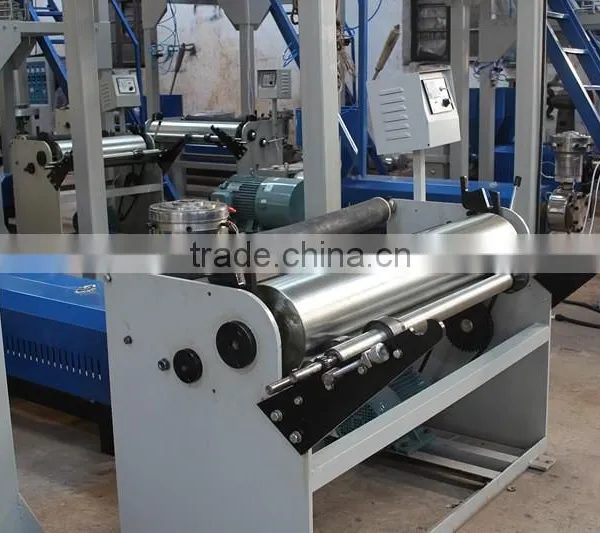

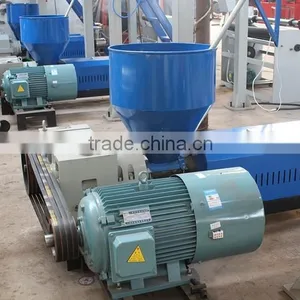

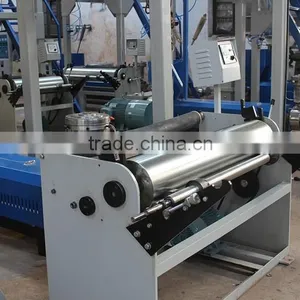

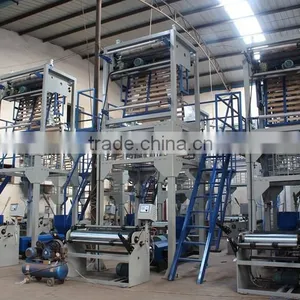

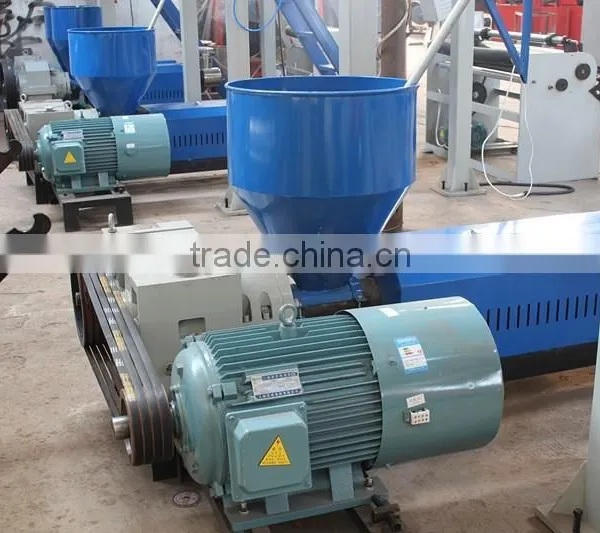

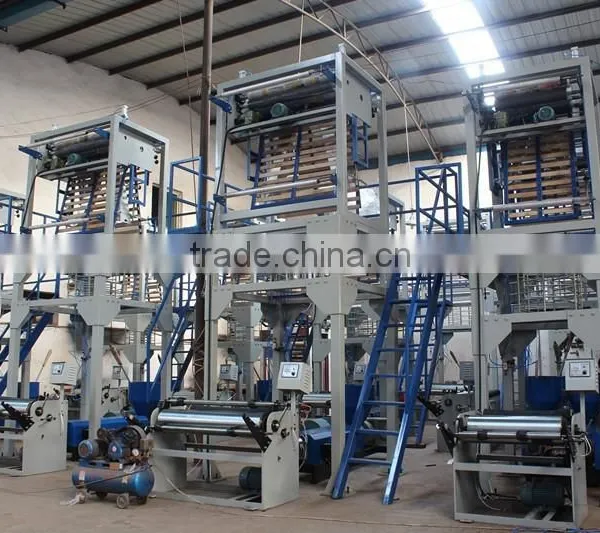

Details Pictures Of Film Extruder:
Samples Of Film Extruder:
Packaging & Shipping Of Film Extruder:
Company Information Show:
Advantage & Service Of Film Extruder:
a. Have several senior engineers service in many countries, all the year round, with our after-sales office in countries.
b. Machines with quality guarantee for one year, life-long maintenance.
c. A lot of machines can be monitored via Internet, solve customer requirements immediately
d. Several senior engineers innovate and reform the technology continuous, in order to ensure the quality of mechanical stability.
e. Undertake various non-standard machinery, solve the customers' special requirements.
