China Fully Automatic Disposable Cup Making Machine
Description Of Disposable Cup Making Machine:
A. This disposable cup making machine is our latest machine, which is made by us base on our 20 years manufacturing experience and advanced technology from oversea countries, it is a pioneer equipment in China.
B. Thanks to the sealing station is adopted ultrasonic sealing, so our disposable cup making machine can produces various cups for hot and cold beverages; Ice cream, yoghurts, soups and snacks using single side or double sides PE coated paper.
C. As one of our most popular models, it has its own compact structure, the disposable cup making machine runs steadily and fastly, finished cup with good quality, lowest waste percentage and less noisy, it is the best choice for making any type paper cups.
Characteristics Of Disposable Cup Making Machine:
1. The material of cup mould is adopted aluminum instead of carbon steel, owing to the aluminum material is light than carbon steel so it assure the machine running faster than the general disposable cup making machine.
2. The 90degree revolve transfer cup. It make the forming cup 100% to transfer to mould, reduce the rate of wasting.
3. The cup bottom can be transferred by one time. It mean the cup bottom can be transfer to cup inside, with highly exactness, reduce the wasting when transfer the second time.
4. Revolve curling bottom. The disposable cup making machine reduce the touch about cup bottom printing and make the bottom curling equality. It will not destroy the printing surface and the two sides PE paper bottom surface.
5. The parts of disposable cup making machine with nice craftwork. It make sure every part can exchange by each other.
6. Takes to the blowing air system, the finished paper cups are blowing to certain place to stacking THROUGH a piece of windpipe.
Main Technical Parameter Of Disposable Cup Making Machine:
| Model | HSZB |
| Production capacity | 60-70PCS/min |
| Required paper | 170-400gsm Single Side PE Paper or Double Sides PE Paper |
| Cup’s Range |
(A) 60 -100MM , (B) 60-140MM (C) 40 -70MM , (D) 5 -11 MM |
| Total power | 220/380V 50/60HZ 10KW |
| Air supply requirement |
Working pressure: 0.5-0.7working gas volume: 0.6m3 /per minute |
| Weight | 2500 kg |
| Overall dimensions (L*W*H) | 3200*1700* 2000mm |
| Cup size | 3~16 oz |
| HS Code | 8441309000 |
| Quality Certificate | CE, ISO, SGS |
| Packing Method | Wooden Case(Inside machine is covered by plastic film) |
Samples Of Disposable Cup Making Machine:

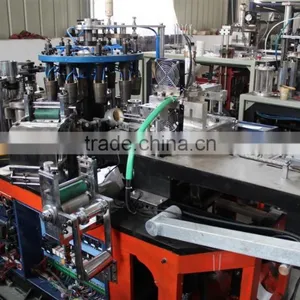

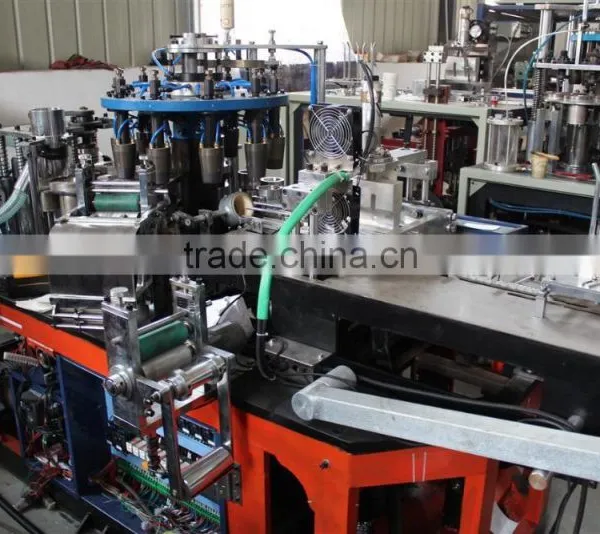

Details Pictures Of Disposable Cup Making Machine:
The Technological Figure Of Disposable Cup Making Machine:
Packaging & Shipping Of Disposable Cup Making Machine:
Advantage & Service Of Disposable Cup Making Machine:
a. Have several senior engineers service in many countries, all the year round, with our after-sales office in countries.
b. Machines with quality guarantee for one year, life-long maintenance.
c. A lot of machines can be monitored via Internet, solve customer requirements immediately
d. Several senior engineers innovate and reform the technology continuous, in order to ensure the quality of mechanical stability.
e. Undertake various non-standard machinery, solve the customers' special requirements.
Company Information Show:
CONTACT:
Contact us, best price and high quality for you. Thanks!
