Fully Automatic Disposable Cup Making Machine
Popular Advantages Of Disposable Cup Making Machine:
Our disposable cup making machine is a multi station automatic machine producing both single and double PE coated drink cups, ice cream cups through continuous process of automatic paper feeding, sealing, oil injection, bottom cutting, heating, knurling, curling and stacking.
This disposable cup making machine adopting hot air system, PLC control, servo motor driving, full-automatic failure warning, counting, detection, stopping, etc.
Features Of Disposable Cup Making Machine:
• Different from other normal disposable cup making machine, this model use special square steel heavy and good quality, much stably when running.
• Intelligent design, PLC automatic control, servo motor driving, full-automatic failure warning, counting, detection, stopping, etc of the disposable cup making machine.
A. The main motor use the best gear reduction unit;
B. Two times bottom paper feeding;
C. Operate panel use touch screen controlled.
• Adopt full-automatic sealed lubricating system, which ensures the long-term uninterrupted high-speed running of our disposable cup making machine.
• This disposable cup making machine's parts all adopt standard production, have high generality and good exchange performance, and facilitate equipment maintenance.
Main Technical Parameter Of Disposable Cup Making Machine:
| Paper request | 150-350 (single & double PE paper) |
| Voltage supply | 220V~380V, 50Hz or customized |
| Cup size | 1.5~12oz |
| Speed | 60~70pcs/min |
| Paper cup top diameter | Min 38mm-Max 94mm |
| Paper cup bottom diameter | Min 30mm-Max 75mm |
| Paper cup height | Min 30mm-Max 111mm |
| Total power | 9.5kw |
| Weight | 2000kgs |
| Overall dimensions (L*W*H) | 2800*1400*1700mm |
| Main parts brand |
PLC: Mitsubishi Touch Screen: Siemens or other Ultrasonic: Evergreen (Taiwan) |

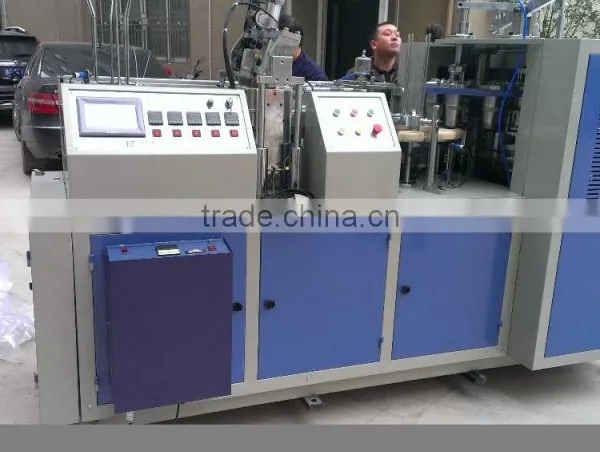

Details Pictures Of Disposable Cup Making Machine:
Samples Of Disposable Cup Making Machine:
Packing & Shipping Of Disposable Cup Making Machine:
Advantage & Service Of Disposable Cup Making Machine:
• Have several senior engineers service in many countries, all the year round, with our after-sales office in countries.
• This disposable cup making machine with quality guarantee for one year, life-long maintenance.
• A lot of disposable cup making machine can be monitored via Internet, solve customer requirements immediately.
• Several senior engineers innovate and reform the technology continuous, in order to ensure the quality of mechanical stability.
• Undertake various non-standard machinery, solve the customers' special requirements.
Certifications:
CONTACTS:
Contact us, best price and high quality for you. Thanks!
