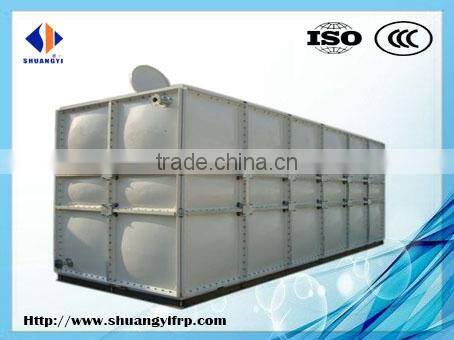

FRP Food Grade Panel Water Storage Tank / Concrete Base Water Tank
1.Technical Parameter:
| Item | Performance index | Item | Performance index |
| tensile strength,Mpa | ≥60 | Compression strength,Mpa | >145 |
| Bending strength,Mpa | ≥100 | Shear strength,Mpa | >90 |
| Flexural modulus,Gpa | ≥7.0 | Impact strength KJ/M2 | >75 |
| Barcol hardness | ≥60 | Puncture Voltage KV/MM | 10-18 |
| Water absorption,% | ≤1.0 | Volume Resistance | >10^14 |
| Glass fiber content,% | ≥25 | Shrinking Percentage | 0.157 |
2.The GRP Water Tank Plate:
The materials of SMC water tank plate is SMC sheet which food-grade resin. It is made by high temperature, high pressure and mechanical pressing.
(1) In manufacturing process, It adopts to manufacture method that mechanical pressing so it increase the anti-seismic and shock resistance strength;
(2) In the shape design, there is sag arc in the middle of water tank plate, it improve the bearing capacity of water tank. In addition, it has the 45° and 90° flange so it don’t need to corner fittings.
(3) The specifications of water tank plate have: 1000*1000mm; 1000*500mm, 500*500mm, the thickness of plate has: 5mm,8mm,10mm,12mm,14mm,16mm,18mm and 20mm.( 5mm thickness plate is used for the cover plate), so it can assemble any required capacity water tank.
3.Reference pictures
4.The steel parts of the GRP water tank:
5.The GRP Water Tank Structure:
The grp water tank consists the SMC plate, sealing materials, structural article and the pipe system. The general water tank is standard design, the special water tank need to the special design. The overall strength is high, No leakage, no deformation, convenient to maintenance and repair.
6.The Introduction of company
Jinan shuangyi Environment Engineering Co., Ltd,an ISO9001 certified and the largest manufacturing company successfully engaged since 2007,produces the widest range of world class innovative products of air ventilating facility and accessories,Cooling Towels,FRP products,and water tanks as a complete solution to plant engineering and utility requirements.
7.Our certificates
