Industrial chicken shed/broiler farm/poultry house construction design
Chicken shed construction specific:

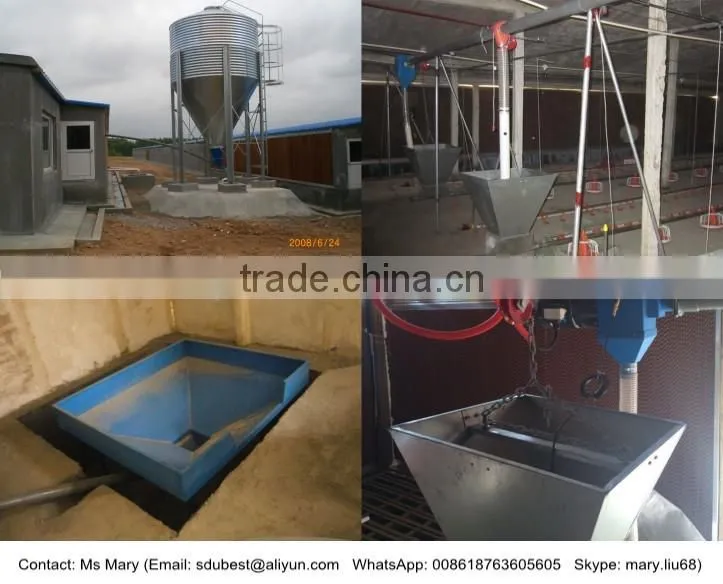

1.Automatic main feed line system:
Silo/ manpower hopper is the beginning part of main feed line system. The system convey feed from silo/
manpower hopper into each feeding line hopper automatically.
Silo/manpower hopper:
Silo characteristics:
-silo with a protective guard rail, safe and reliable.
-solid connection and good sealing performance.
-double-layer galvanized steel sheet ensure more than 10 year service life
Driving motor:
| Power | 0.75Kw |
| Voltage | 380V/220V |
| Frequency | Three-phase/single-phase |
Feed conveying pipe:
| Diameter of conveying pipe | 75*3.6mm |
| Material | PVC |
| Helical spring auger | imported from South Afirca |
| Feeding ability | 1400Kg/h, Maximum |
| Conveying length | 60m |
| Radius of bending pipe | R1500-2000 |
Feed level sensor:
Germany IFM feed level sensor

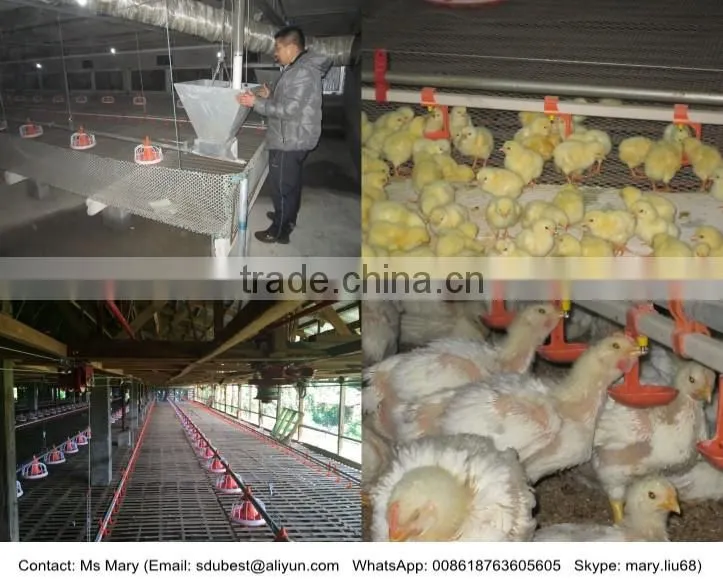

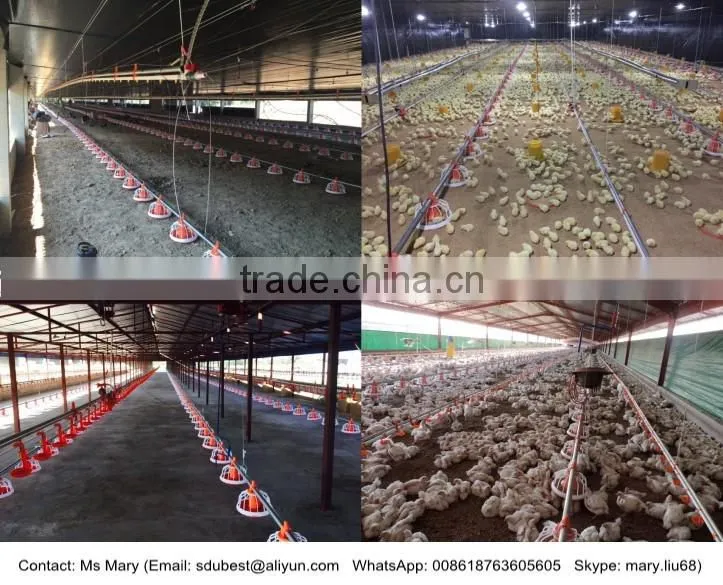

2.Automatic pan feeding system:
The system convey feed from vice hopper into each feed pan automatically.
Driving motor: Taiwan brand
| Power | 0.7KW/1.1KW/1.5KW |
| Voltage | 380V/220V |
| Frequency | Three-phase/Single-phase |
Vice hopper:
| Size | 70Kg, 90Kg |
| Material | hot-dip galvanized sheet |
| Material thickness | 1mm |

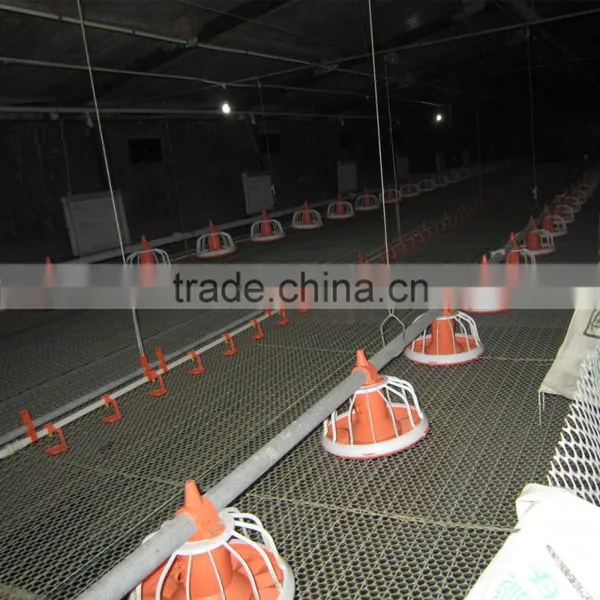

Pan feeding lines:
| Conveying pipe | 4 pan/3m, 3 pan/3m |
| Diameter | 45mm |
| Material |
hot-dip galvanized steel pipe(zinc coating amount: more than 275g per square meter) |
| Thickness | 1.2mm |
| Spring auger | imported from South Africa |
| Feeding ability | 400K/h |
Feed sensor:
Germany IFM feed livel sensor (time delay range:0-2 hours)
Suspension&lifting system:
The height of feed pan is very important for chicken growing, it's very convenient to adjust feeding lines'
height by winch. The best height of feeding line: chicken back height and feed pan up grill should be at
the same level.
Anti-perching system:
It prevents chicken from staying on the feeding line for too long.
3.Automatic nipple drinking system:
The system supply clean water to each drinking lines steadily, the water will be out when the birds touch
nipples. Our nipples valve rod is movable in 360 degrees, which are suitable for all chickens to drink.
The system mainly including waterline front system(pressure regulating valve, filter, water meter,
doser), pressure regulator, nipple drinking lines, suspension and lifting system, waterline end
module, etc.

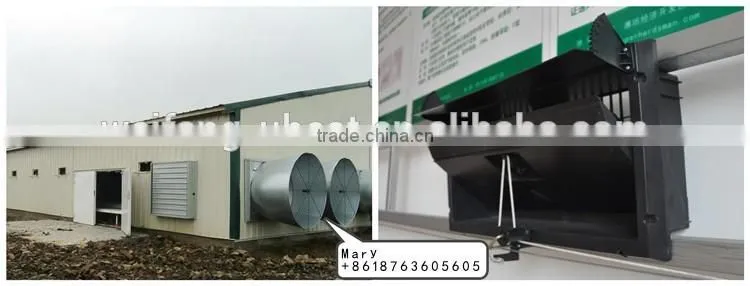

4.Ventilation system:
The system controls climate condition, can provide fresh air, proper humidity and temperature for birds,
ensuring your chickens provide maximum production.
The system including ventilation fans and air inlets. We have butterfly cone fans and box fans for your
option.
| Specifications | 50'' butterfly cone fan | 50'' axial flow box fan | 36'' axial flow box fan |
| Flow amount(m3/h) | 51020 | 43170 | 20800 |
| Size(L*W*H)(mm) | 1380*1380*1360 | 1380*1380*450 | 1000*1000*450 |
| Noise level(db) | ≤65 | ≤65 | ≤64 |
| Power(Kw) | 1.1 | 1.1 | 0.4 |
| Voltage(V) | 380/220/others | 380/220/others | 380/220/others |
| Current(A) | 2.8 | 2.8 | 1.25 |
| Weight(Kg) | 100 | 89 | 54 |

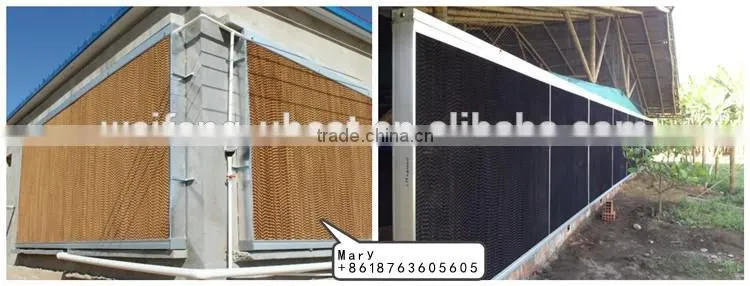

5.Cooling pad system:
When the air goes through the pad, the heat will be taken down by the evaporation of water, so the air
will be cooled before going into your chicken shed.
Cooling pad parameters:
Thickness:100mm;150mm
Width:300mm;600mm
Height(with frame):1660mm;1960mm;2160mm
Frame:Galvanized sheedt and Aluminium alloy
Aluminium alloy frame:High strength, good corrsion resistance, water distribution uniformity,beautiful and
practical.

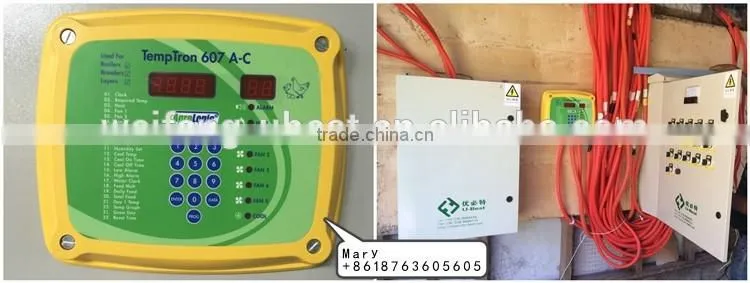

6.Environment control system:
The system saves labor, the Israel environment controller can set an optimum working mode according to
local climate and different stage chicken raising requirements, through control the on/off of ventilation fans,
cooling pads, heaters even air inlets to control chicken farm environment automatically.

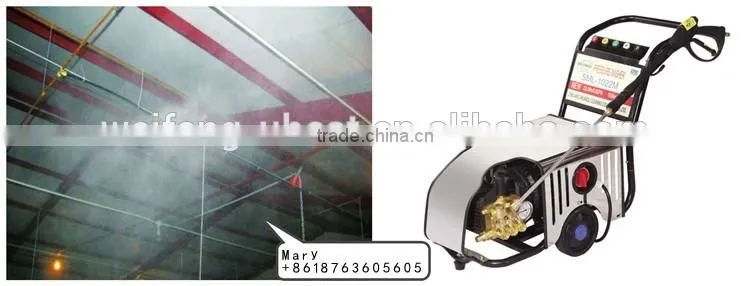

7.Spraying&disinfecting system(fogging system):
It's effective tool for reducing temperature, increasing humidity, cleaning and disinfecting your chicken
farm.

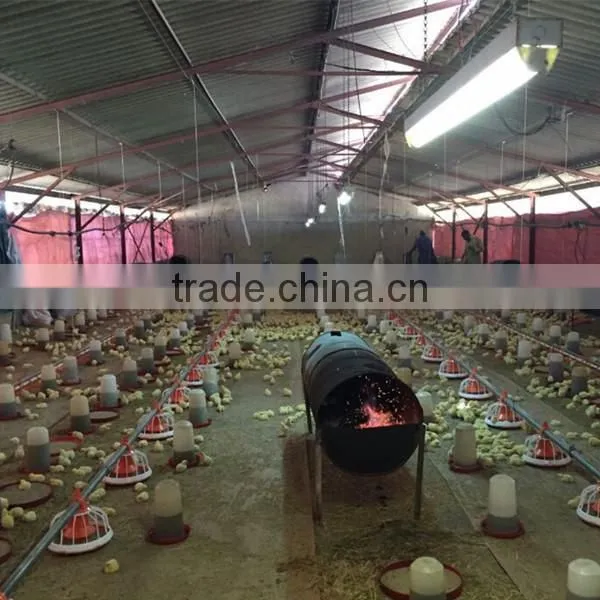

8.Heating system(heater):
Proper temperature is critical to chickens, especially day-old chicks, we have coal heaters, diesel heaters,
gas heaters, gas brooders, electricity heaters for your option.
Advantages of our chicken shed construction:
-Save labor and time, one chicken shed just need one worker;
-Increase survival rate;
-Save feed&water;
-Easy to install and disassembly;
-Easy to operate;
-Automatic controlling birds raising environment;
-15-year service life, 12-month warranty, 0.1%-2% free spare parts;
Good services for our chicken shed construction:
1)Chicken shed design--provide the best guide and service for your broiler farm/poultry house.
2)Layout drawing--provide layout of our equipments, you will know how to install our equipment.
3)Equipment installation--we can send our engineers to your location for on-site installment guidance.
4)Workers training--we can train your workes to ensure no-risk raising.
5)After-sale service--prompt reply for any questions from our clients.
