Environment controlled broiler chicken farm

                       Environment controlled broiler chicken farm

1.Automatic main feed line system:

Silo/ manpower hopper is the beginning part of main feed line system. There is a feed sensor at the end of

main feed line which controls the motor on and off to achieve automatic feed delivery.

Silo/manpower hopper

Silo characteristics:

-silo with a protective guard rail, safe and reliable.

-solid connection and good sealing performance.

-double-layer galvanized steel sheet ensure more than 10 year service life

Driving motor:

Feed conveying:

Feed level sensor:

Germany IFM feed level sensor

2.Automatic pan feeding system:

There is a feed sensor at the end of each feeding line which controls motor on and off to achieve

automatic feed delivery. The motor will start working and convey feed when sensor doesn't touch

feed and will stop working when sensor touchs feed.

Driving motor:

Taiwan brand

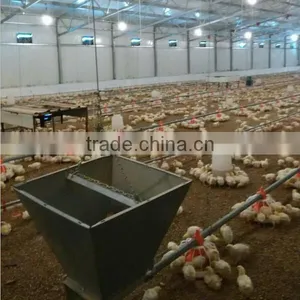

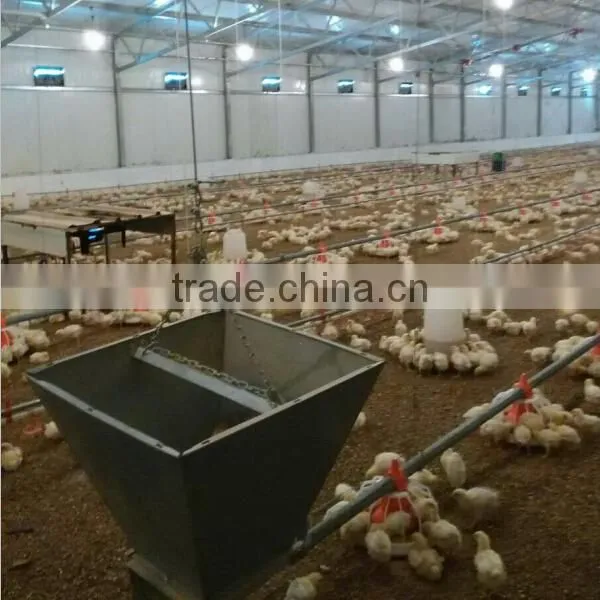

V-shaper bin(with hopper)

Pan feeding system:

Feed sensor:

Germany IFM feed livel sensor (time delay range:0-2 hours)

Suspension&lifting system:

The height of feed pan is very important for chicken growing, it's very convenient to adjust the

feeding line height by winch. The best height of feeding line: chicken back height and feed pan up

grill should be at the same level.

Anti-perching system:

It prevents chicken from staying on the feeding line for too long.

3.Automatic nipple drinking system:

The system provides fresh water for broiler chicken, which is vital to the healthy growth of birds.

Water will flow out from 360 degress when the chickens touch the nipples.

The system mainly including filter, pressure regulator, nipple drinking lines, suspension&

lifting system, etc.

4.Ventilation system:

The system controls climate condition, can provide fresh air, proper humidity and temperature for

birds, ensuring your chickens provide maximum production.

The system including air inlets, butterfly cone fan and axial flow fan for your choice.

5.Cooling pad system:

When the air goes through the pad, the heat will be taken down by the evaporation of water, so the air

will be cooled before going into the chicken house.

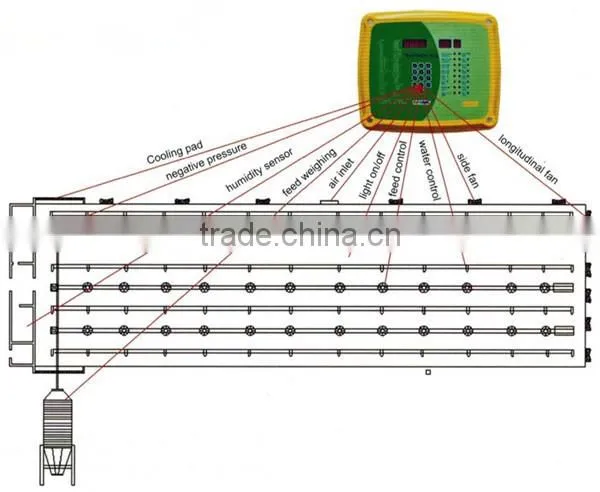

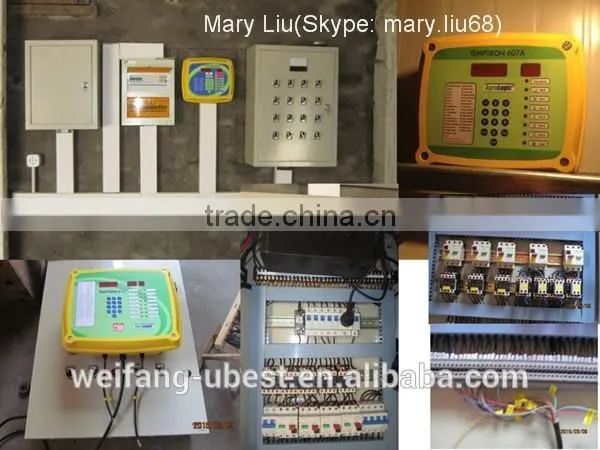

6.Environment control system:

The system saves labor, the Israel environment controller can set an optimum working mode

according to the local climate and raising environment.

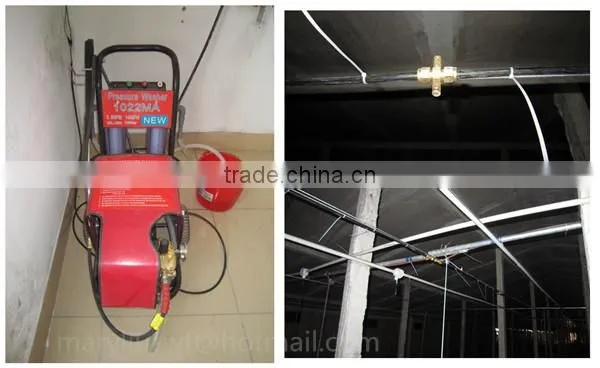

7.Spraying&disinfecting system(fogging system):

It's effective tool for cooling, damping, dedusting and disinfecting the house.

8.Heating system(heater):

Proper temperature is critical to chickens, especially day-old chicks, we have different kinds

heaters for your choice, they fire coal, diesel, gas even electricity,etc.

9.Curtain system:

Usually, in some tropical zone, the farmers are inclined to use curtain instead of real walls, and they will

accordingly adopt big ventilation fan, so curtain-ventilation fan combination. Our curtain have two kinds,

manual operated one and motorized one for your choice.

To give you a reliable price, please let us know:

1.Farm Size(length x width x height)

2.Quantity of birds.

3.Weight of chicken when sell in market.

4.Types of chicken: broiler chicken/layer chicken/breeder chicken.

5.Types of breeding: on the ground or in cages.

6.Chicken farm location and local climate condition(temperature, humidity...)
