10% discount hot sale animal husbandry equipment for breeder
Advantages about animal husbandry equipment for breeder:
1).Time saveing &Labour saving, one person is enough for one chicken house.
2).Increasing chicken living rate.
3).High quality to ensure non stopping running of your houses.
4).Comparitively cheap price.
5).automatic poultry farming equipment.
Good services for animal husbandry equipment for breeder:
1).Poultry farm shed design -- provide the best guide and service for your chicken house buliding.
2).Equipment installation -- we can dispach our engineer to your local for equipment installation.
3).Workers training--we can train your workers, to make sure no-risk farming.
4).After-sale service--prompt reply for any questions from our clients.
To give you a reliable price, please let us know:
1). Chicken shed size: (length×width × height) or how many female and male chick you will raise.
2). Local voltage, frequency, single phase or three phase.
4). Types of breeding: in cages or on the ground.
6).Poultry house location and local climatic condition like snowfall, rainfall, wind and earthquake.
animal husbandry equipment for breeder inlcuding 8 systems:
1.Main feed line system:

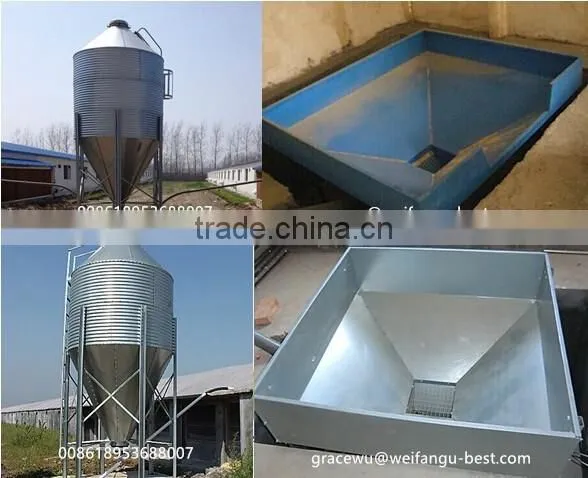

silo/manpower hopper is the beginning of main feed line. There is a feed sensor at the end of main feed line
which controls motor on and off to achieve automatic feed delivery.
Silo Parameters:
|
Capacity (Ton) |
Diameter (m) |
Floors |
Leg (mm) |
Weight (kg) |
Height (m) |
Under the port Dia(mm) |
3t/4.283 |
1.8 |
1 |
2.0 |
--- |
3.8 |
420 |
4t |
1.8 |
2 |
2.0 |
--- |
--- |
420 |
5t/7.143 |
2.45 |
1 |
2.0 |
420 |
4.7 |
420 |
8t/12.33 |
2.45 |
2 |
2.0 |
470 |
5.6 |
420 |
10t/14.23 |
2.75 |
2 |
2.5 |
600 |
5.6 |
420 |
13-15/223 |
3.1 |
2 |
2.5 |
640 |
5.6 |
420 |
16t/22.53 |
2.8 |
3 |
2.5 |
655 |
6.5 |
420 |
20t/28.53 |
3.1 |
3 |
2.5 |
755 |
6.5 |
420 |

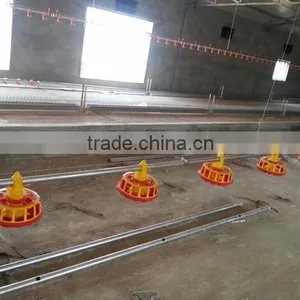

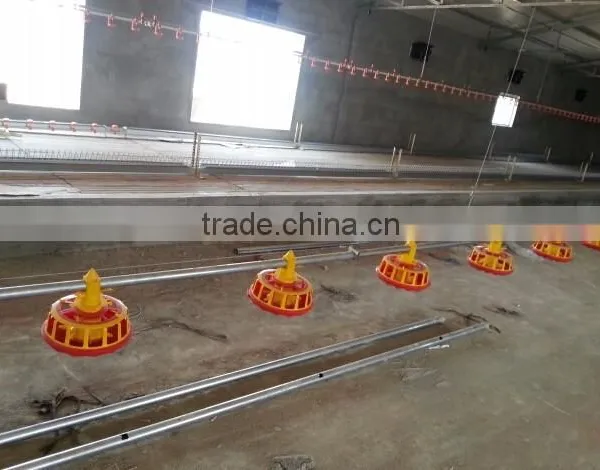

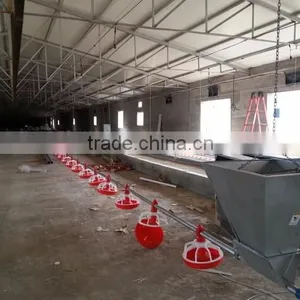

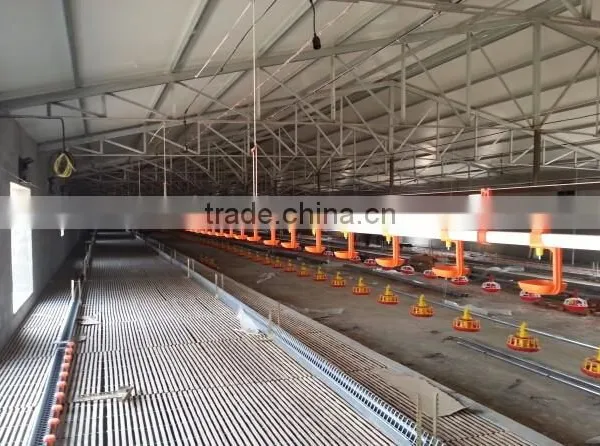

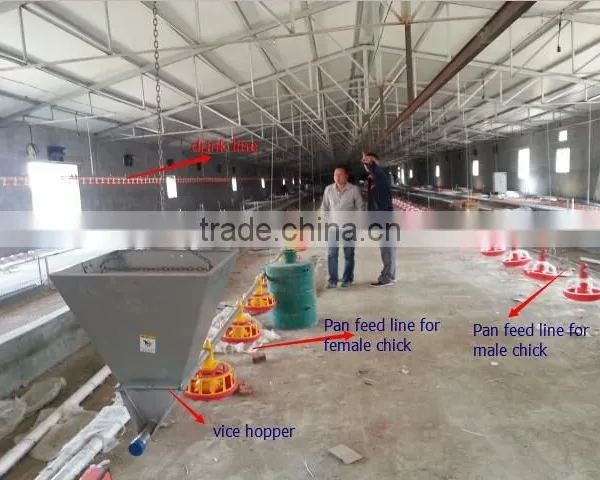

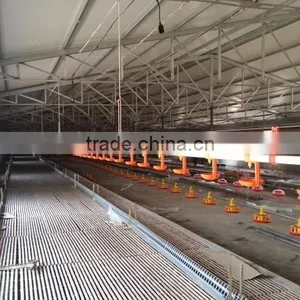

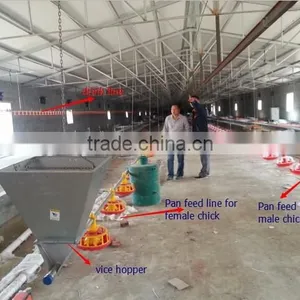

2.Breeder pan feeding system(male and female):
| Componets | Features&Function |
| Driving moter | power 0.75kw, 1.1kw,1.5Kw voltage:380V or 220V, 50HZ/60HZ |
| Feed box |
Material : hot galvanized steel, Galvanizing thickness: 180g/m2 |
| Delivery system |
1.Delivery pipe: 4 hole/3m, diameter φ45mm, hot galvanized steel , galvanizing thickness: 220g/m2 ; 2.Max delivery capacity :1 .3T/h, max distance 300m. |
|

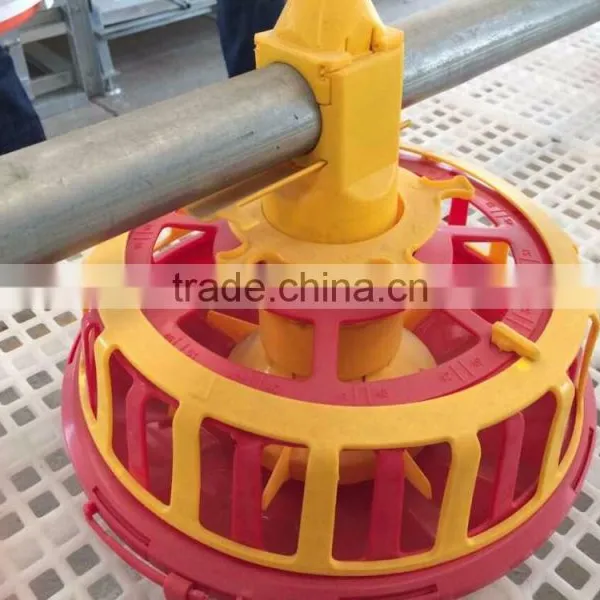

Breeder feed pan |
1.four feed pan/3m ,interval 750mm between two feed pans ; 2.Feed capacity: 12.5 birds/pan ; 3.With slide shutter-off ,could shut any feed pan freely ; 4.Pan bottom dish hanging with grill could be disassembled easily |
|

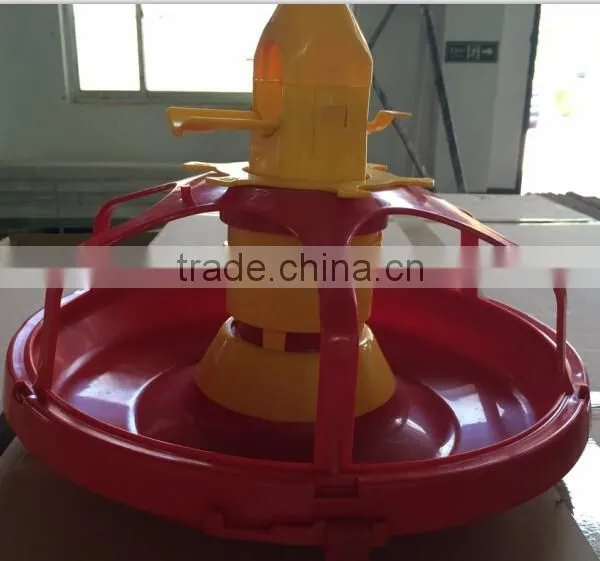

Male feed pan |
a. Diameter: 360mm b. Material: PP (polypropylene) c.Feeding capacity:6 ~ 8male birds/pan d .9-grill design: enough eating space with more cock |
Breeder chain feeding system:
| Driving system | Drive device adopt vertical reducer motor, which is more reliable and steady, lower noise and uniform delivery feed compared with mechanical reduction gear.Delivery speed reach up to 36m/min. |
| Feed through |
Feed trough is made of anti-rust material, and grill with 44mm distance can effectively separate the male and female birds. Can also be customized according to customer specifications with different grill distance.
|
| Hopper | Big hopper and vice hopper |
| Corner |
90 degree corner and slideway surface are treated by special harden process, with alloy bearing no oiling injection.Compared |
| Feed cover |
In the interface position of feed box and feed trough, there is a feed cover plate to avoid feed overflow effectively . |
| Other accessories | chain, grid,bracket, connections,etc |
3.Breeder nipple drinking line system:
Main components |
Fartures&Function |
Front part of watering system |
Adjust water supplying pressure and stabilizing drinking volume, this part is usually installed in control system. |
Nipples with drip cup |
3m/12nipples ,3m/15nipples are optional |
Lifting and suspension system |
Correct height for drinking system is very important for chicken(both higher and lower can effect chicken bone’s distortion , it’s bad for chicken growth, and also can have some water wasting), it’s very easy to adjust drinking system’s height if use this system. |
Water display level tube |
Use high transparency & impact resistant material, it’s sturdy and durable, and convenient to watch water level. This device with advanced design, it’s very easy to take down and clean. |
Pressure regulator (Double barreled with large flow capacity) |
Regulating stability, high switching performance, water supply is sufficient& equality, recoil cleaning with good cleaning result and can save time and water. |
Doser (French Dosatoran) |
Can add medicine into drinking system automatically. Don’t use power, it’s economic and reliable. Accurate, after setting, it can adjust medicine volume according to water pressure change. Its easy to control and maintain with good corrosion resistance. |
4.Automatic ventilation system:
The main parts of ventilation system is the big fan and small fan. They are controlled by the control system.
The NO. of the fans to run was decided by the temperature of the poultry house.
Ventilation fan photos:

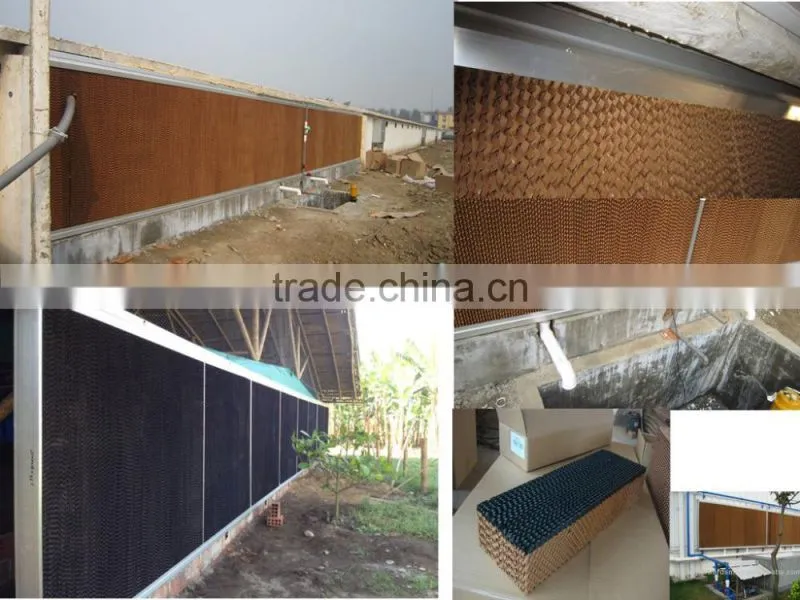

5.Cooling pads system:
Evaporative cooling pad system works in the condition of negative pressure, the cooling pad is installed on
one side of the wall, fan installed other side. When air flow through cooling pads, the water evaporation absorbs
a lot amount of heat. The height of cooling pad is 1.5-2.2m, length about 3m, the area of cooling pad in chicken
house is about 6-8 times than the fans.
6.Spray & disinfecting system:
Function:It is effectively tools for cooling, damping, dedusting, disinfecting the house.

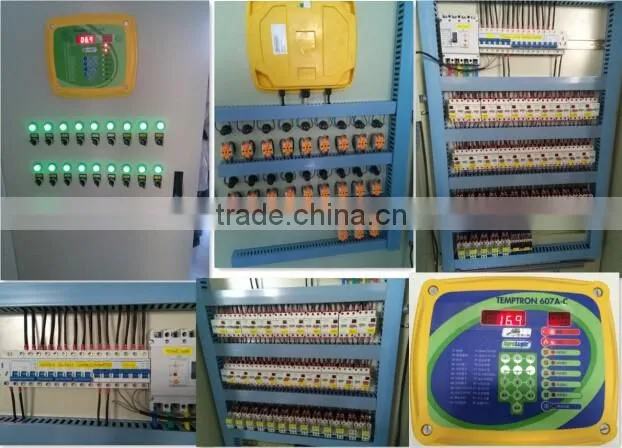

7. Best environment control system for breeder:
This system saves the labor and the resources under the condition of assuring the optimum growth environment of
the chickens. It is imported from Israel can set an optimum working mode according to the local climate and raising
environment.
8.Poultry heating system:
Heating poultry house when it is needed to satisfy the temperature demand of chickens at different growth stage.
Hot-blast heater of coal and diesel, poultry gas heater and infrared gas brooder, 3 different kind at your option.
Facotry Stock for overall world clients--animal husbandry equipment for breeder
Packaging and shipping--animal husbandry equipment for breeder:
- Feeder pan: unassembled, in carton box;
- Feeding pipe: 20pcs per bunch, in bulk;
- Hanging system: in carton box;
- watering pipe fitted with nipple, in plastic bag, 20pcs per each;
- Water spare parts like medicator, regulator,cup in carton box.
Weifang U-Best Company information:
Please feel free to contact us for more details about animal husbandry equipment for breeder.
