poultry equipment for breeder farming/Breeder pan feeder for chicken house equipment
(U-Best)
Advantages about poultry equipment for breeding farm:
1).Time saveing &Labour saving, one person is enough for one chicken house.
2).Increasing chicken living rate.
3).High quantiy to ensure non stopping running of your houses.
4).Comparitively cheap price.
5).automatic poultry farming equipment.
Good services for poultry equipment for breeding farm:
1).Poultry farm shed design -- provide the best guide and service for your chicken house buliding.
2).Equipment installation -- we can dispach our engineer to your local for equipment installation.
3).Workers training--we can train your workers, to make sure no-risk farming.
4).After-sale service--prompt reply for any questions from our clients.
To give you a reliable price, please let us know:
1. Size: (length×width × height)
2. Quantity (discount based on order)
3. Weight of chicken when you sale to the market (the rearing period, From - weeks)
4. Types of chicken: laying hens or broiler chickens
5. Types of breeding: in cages or on the ground
6. Poultry house location and local climatic condition like snowfall, rainfall, wind and earthquake.

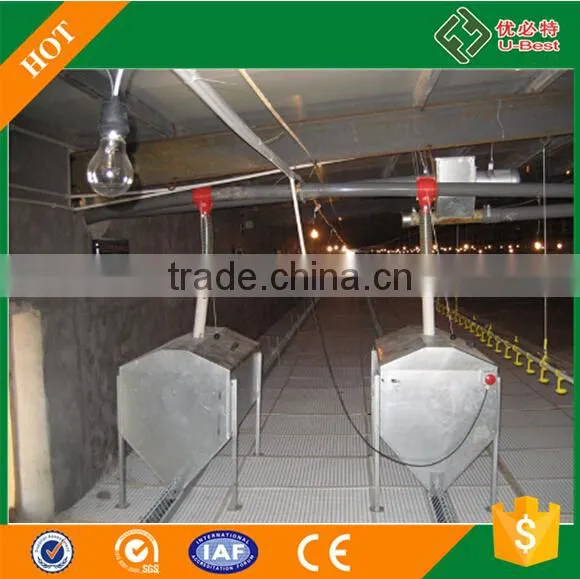

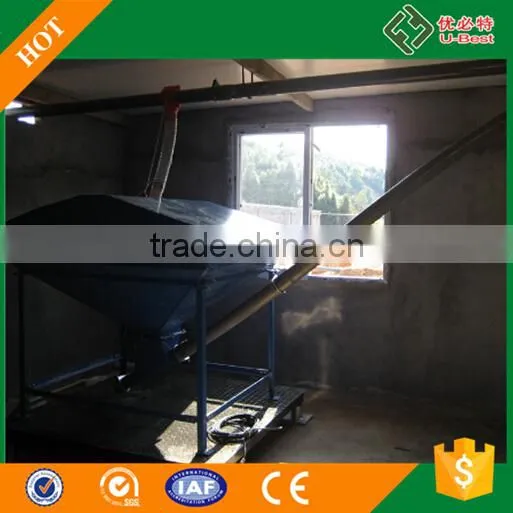

1.Main feed line system:
1).The function of deliver system is to transmit the feed outside shed to the hopper of feeding system inside,
control system indicates delivery system to work automatically.
2).Feed of poultry raising farm is stored in the silo, so as to save large amount of package, and also to ensure
the health of feed. Different specifications of silos are alternative to choose according to the daily consumption
and the size of silo. Material of silo consist of galvanized sheet and glass fiber reinforced plastic.
Silo Parameters:
|
Capacity (Ton) |
Diameter (m) |
Floors |
Leg (mm) |
Weight (kg) |
Height (m) |
Under the port Dia(mm) |
3t/4.283 |
1.8 |
1 |
2.0 |
--- |
3.8 |
420 |
4t |
1.8 |
2 |
2.0 |
--- |
--- |
420 |
5t/7.143 |
2.45 |
1 |
2.0 |
420 |
4.7 |
420 |
8t/12.33 |
2.45 |
2 |
2.0 |
470 |
5.6 |
420 |
10t/14.23 |
2.75 |
2 |
2.5 |
600 |
5.6 |
420 |
13-15/223 |
3.1 |
2 |
2.5 |
640 |
5.6 |
420 |
16t/22.53 |
2.8 |
3 |
2.5 |
655 |
6.5 |
420 |
20t/28.53 |
3.1 |
3 |
2.5 |
755 |
6.5 |
420 |
3).If you don't use silo, you can use manpower hopper.Usually,if you just build one or two farm,we suggest
you use hopper instead of silo.

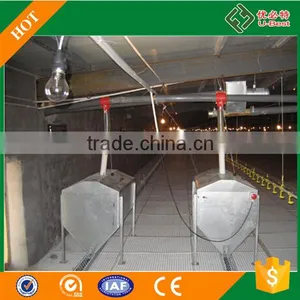

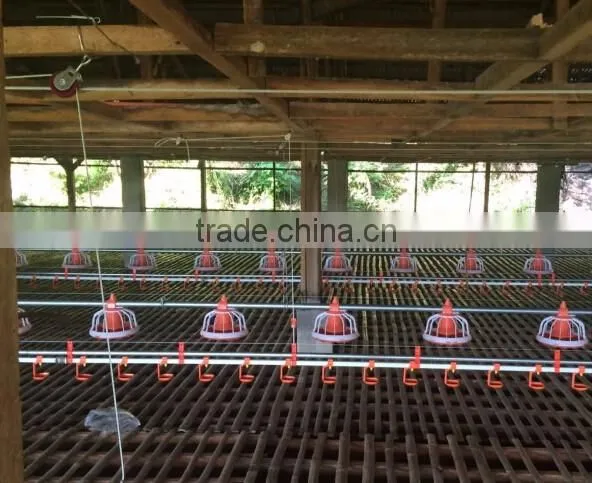

2.Automatic Pan Feeding line system:
Main components |
Fartures&Function |
Vice hopper |
hot-dip double layer 275g galvanized sheet (70kg, 90kg,120kg,150kg are optional). |
Feed bolts |
Interface diameter is 45mm, including galvanized grid |
Feed pipe |
double sided galvanized layer thickness of not less than 275g / m2, diameter 45mm, 3m /pc ( 3-hole /4-hole option) |
Helical auger |
Imported from South Africa |
Feed pan |
16 grill feed pan, ensure enough feeding space, from day old chicks to grow up chicken are reliable, Red PP material durable, easier to attract the birds feed. |
Control pan |
Including imported feed sensor, High sensitivity |
Suspension system |
Consist of steel wire rope, nylon rope, clips,winch,pulley,etc. |
Driving motor |
Power:0.75kw/1.1kw/1.5kw, Voltage:380Vor 220V, Frequency:50hz/60hz, three phase/single phase |

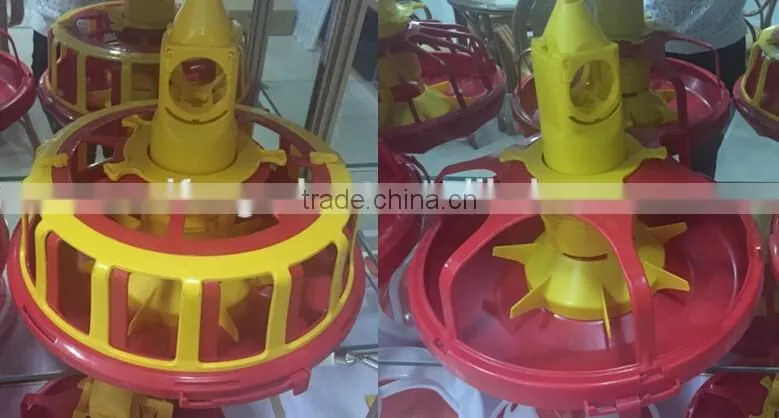

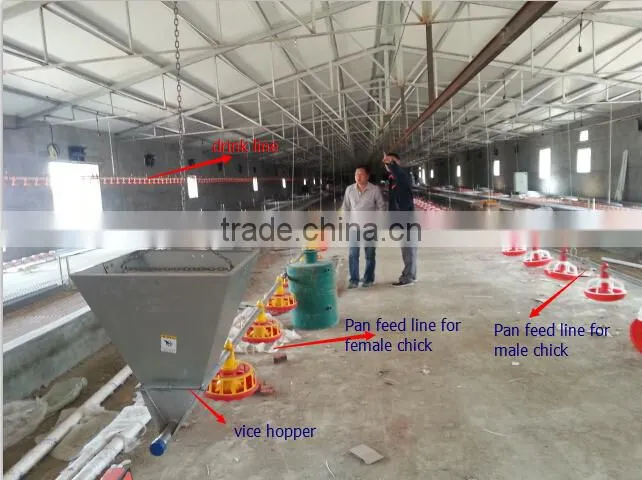

Female and male chick pan:

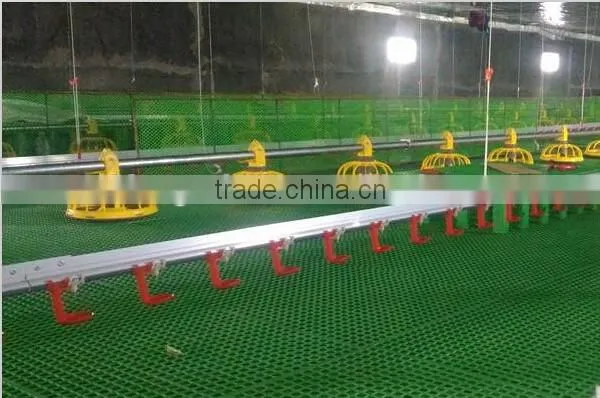

3.Automatic nipple drinking line system:
Main components |
Fartures&Function |
Front part of watering system |
Adjust water supplying pressure and stabilizing drinking volume, this part is usually installed in control system. |
Nipples with drip cup |
3m/12nipples ,3m/15nipples are optional |
Lifting and suspension system |
Correct height for drinking system is very important for chicken(both higher and lower can effect chicken bone’s distortion , it’s bad for chicken growth, and also can have some water wasting), it’s very easy to adjust drinking system’s height if use this system. |
Water display level tube |
Use high transparency & impact resistant material, it’s sturdy and durable, and convenient to watch water level. This device with advanced design, it’s very easy to take down and clean. |
Pressure regulator (Double barreled with large flow capacity) |
Regulating stability, high switching performance, water supply is sufficient& equality, recoil cleaning with good cleaning result and can save time and water. |
Doser (French Dosatoran) |
Can add medicine into drinking system automatically. Don’t use power, it’s economic and reliable. Accurate, after setting, it can adjust medicine volume according to water pressure change. Its easy to control and maintain with good corrosion resistance. |

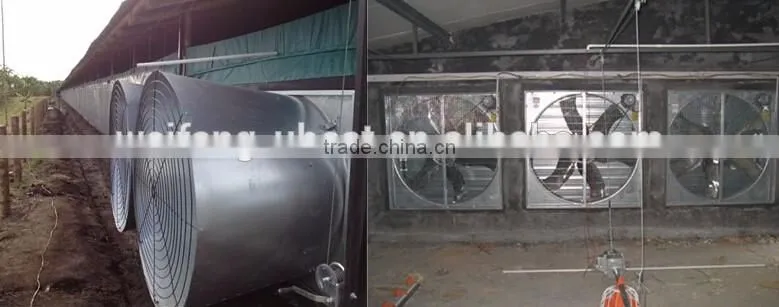

4.Automatic ventilation system:
The main parts of ventilation system is the big fan and small fan. They are controlled by the control system.
The NO. of the fans to run was decided by the temperature of the poultry house.

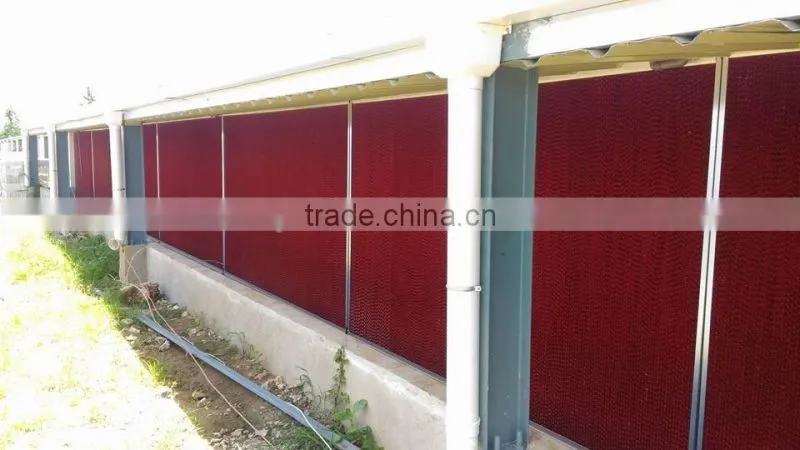

5.Cooling cell pads system:
Evaporative cooling pad system works in the condition of negative pressure, the cooling pad is installed on
one side of the wall, fan installed other side. When air flow through cooling pads, the water evaporation absorbs
a lot amount of heat. The height of cooling pad is 1.5-2.2m, length about 3m, the area of cooling pad in
chicken house is about 6-8 times than the fans.

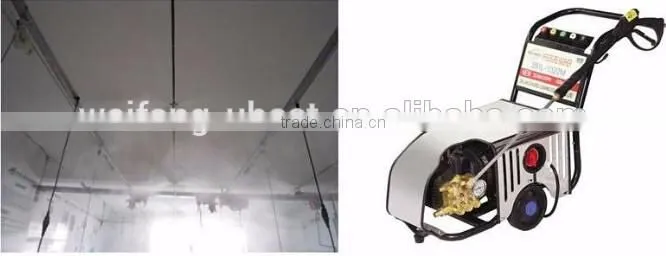

6.Spray & disinfecting system:
Function:It is effectively tools for cooling, damping, dedusting, disinfecting the house.

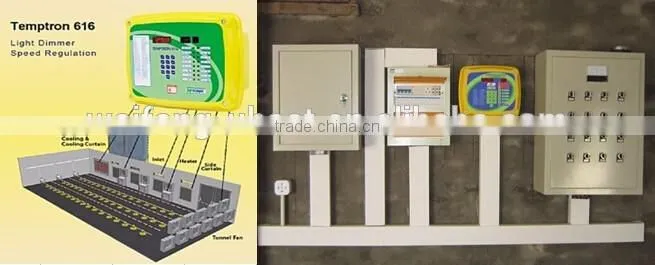

7.Environment control system:
This system saves the labor and the resources under the condition of assuring the optimum growth environment
of the chickens. It is imported from Israel can set an optimum working mode according to the local climate and
raising environment.

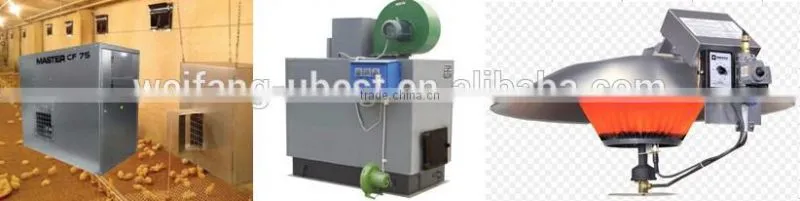

8.Poultry heating system:
Heating poultry house when it is needed to satisfy the temperature demand of chickens at different growth stage.
Hot-blast heater of coal and diesel, poultry gas heater and infrared gas brooder, 3 different kind at your option.
Facotry Stock for overall world clients--poultry equipment for breeder farming:
Packaging and shipping-- poultry equipment for breeder farming:
- Feeder pan: unassembled, in carton box;
- Feeding pipe: 20pcs per bunch, in bulk;
- Hanging system: in carton box;
- watering pipe fitted with nipple, in plastic bag, 20pcs per each;
- Water spare parts like medicator, regulator,cup in carton box.
Weifang U-Best Company information:
Please feel free to contact us for more details about poultry equipment for breeder farming.
