poultry chain feeding system for breeders, poultry pan
feeding system for breeders
What is the advantages of our poultry chain feeding system for breeders?
1).Time saveing &Labour saving, one person is enough for one chicken house.
2).Increasing chicken living rate.
3).High quantiy to ensure nonstopping running of your houses
4).Comparitively cheap price.
5).automatic poultry farming equipment.
What's kind of service you can get for poultry chain feeding system for breeders?
1).Poultry farm shed design -- provide the best guide and service for your chicken house buliding.
2).Equipment installation -- we can dispech our engineer to your local for equipment installation.
3).Workers training--we can train your workers, to make sure no-risk farming.
4).After-sale service--prompt reply for any questions from our clients.
To give you a reliable price, please let us know:
1).Chicken shed Size: (length×width × height) or how many female chick and male chick you will raise.
2).Your local voltage, frequency, single phase or three phase.
3).Types of breeding: in cages or on the ground
4).Poultry house location and local climatic condition like snowfall, rainfall, wind and earthquake.

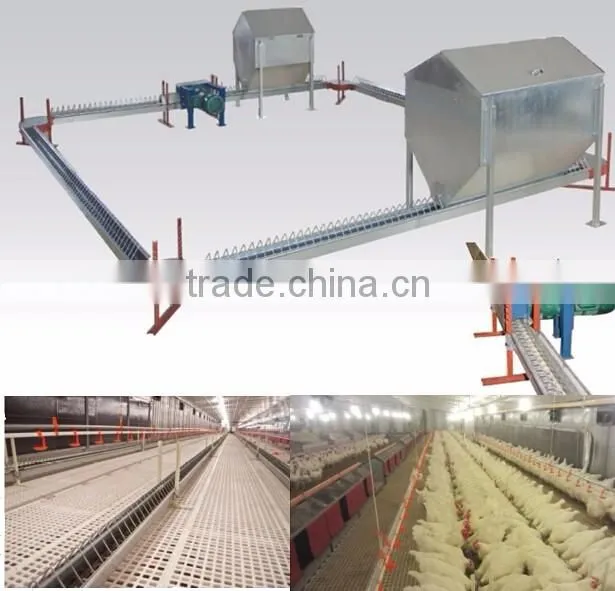

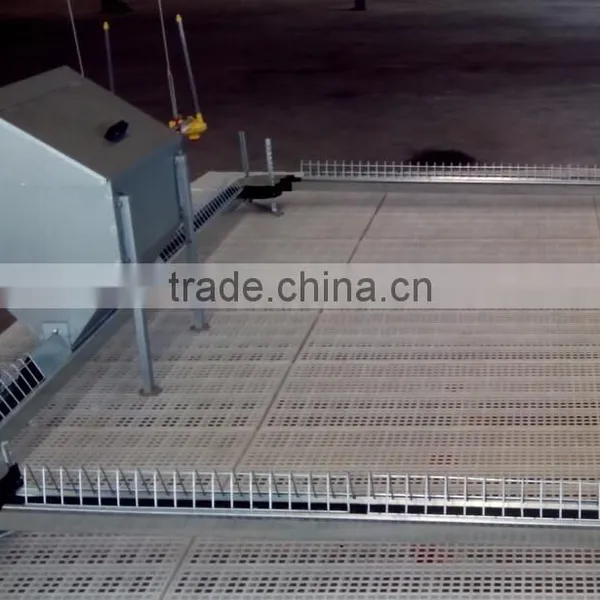

Details for poultry chain feeding system for breeders:
| Driving system | Drive device adopt vertical reducer motor, which is more reliable and steady, lower noise and uniform delivery feed compared with mechanical reduction gear.Delivery speed reach up to 36m/min. |
| Feed through |
Feed trough is made of anti-rust material, and grill with 44mm distance can effectively separate the male and female birds. Can also be customized according to customer specifications with different grill distance.
|
| Hopper | Big hopper and vice hopper |

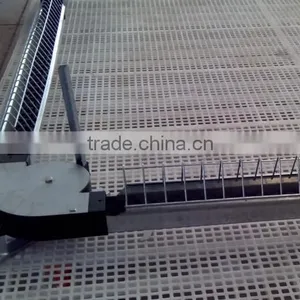

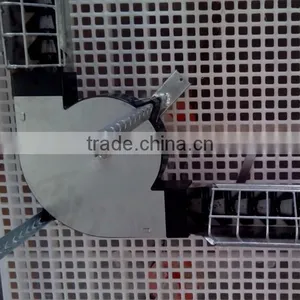

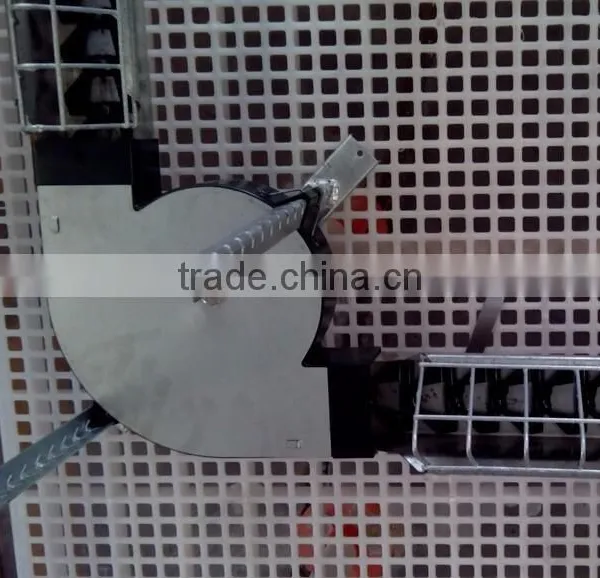

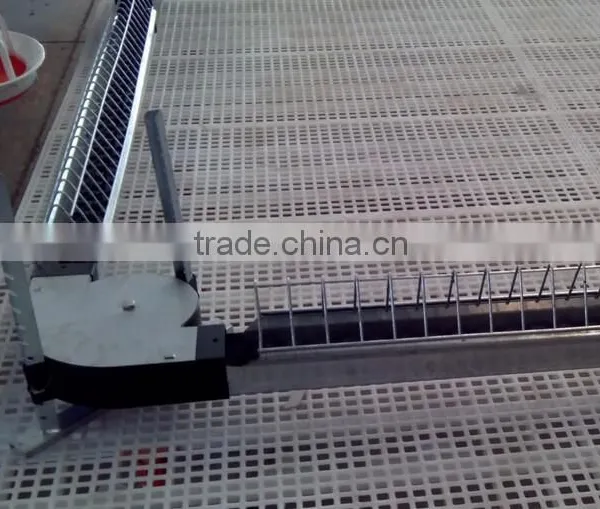

| Corner |
90 degree corner and slideway surface are treated by special harden process, with alloy bearing no oiling injection.Compared |
| Feed cover |
In the interface position of feed box and feed trough, there is a feed cover plate to avoid feed overflow effectively . |
| Other accessories | chain, grid,bracket, connections,etc |
Please note that pan feeding system for breeders are more economic than chain feeding system for breeders.

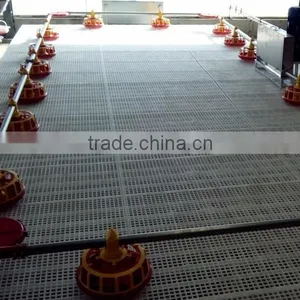

Details for poultry pan feeding system for breeders:
High-quality special driving reduction motors:
Taiwan Motor with overload protection of IP55)
Power:0.75kw Voltage:380V Frequency: 50HZ, three phase AC current
V-shaper Bin(with hopper):
Bin volume: 115L, Material: hot-dip galvanized sheet. Material thickness: 1mm

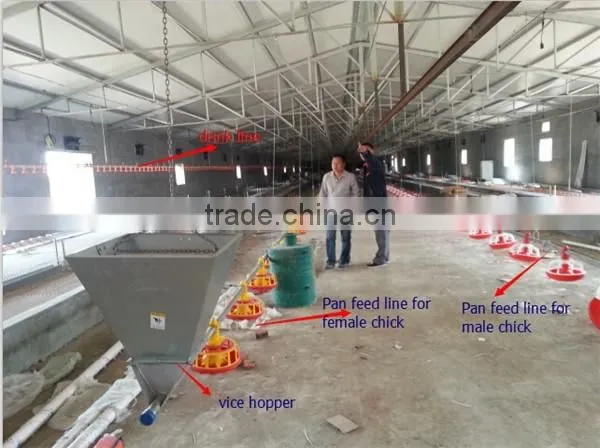

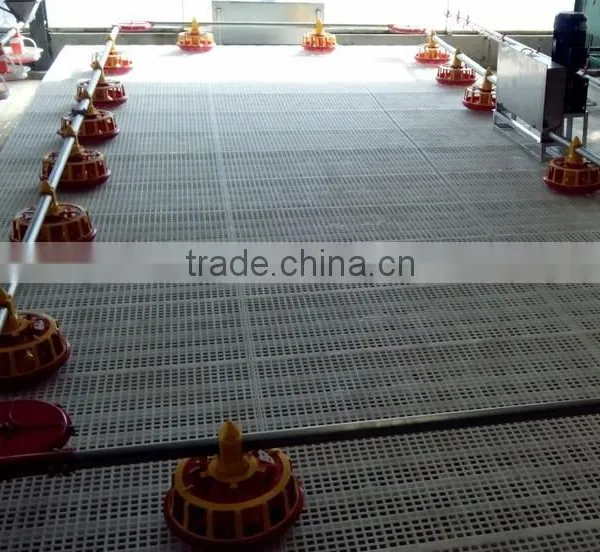

Feeding system(pan feeding system for male and female chick):
Diameter of conveying pipe: 45mm (4-pan/3m, 3pan/3m).
Material: hot-dip galvanized sheet pipe with the zinc coating amount of more than 275 square meter .
Helical spring auger from South Africa feeding capacity:450kg/h.
Sensor from Israel:
time delay range 0 to 2 hours.
Suspension and lifting system:
It's very convient to adjust the feeding line height by winch.

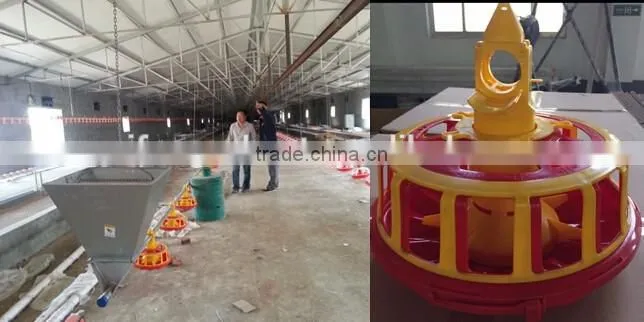

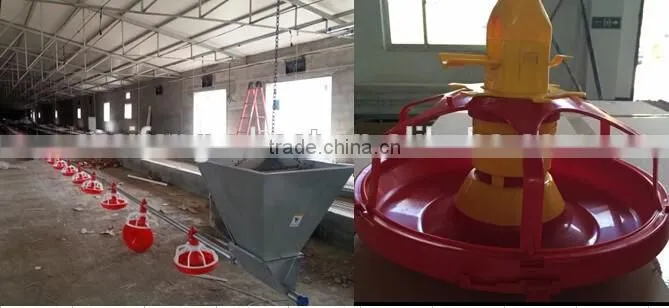

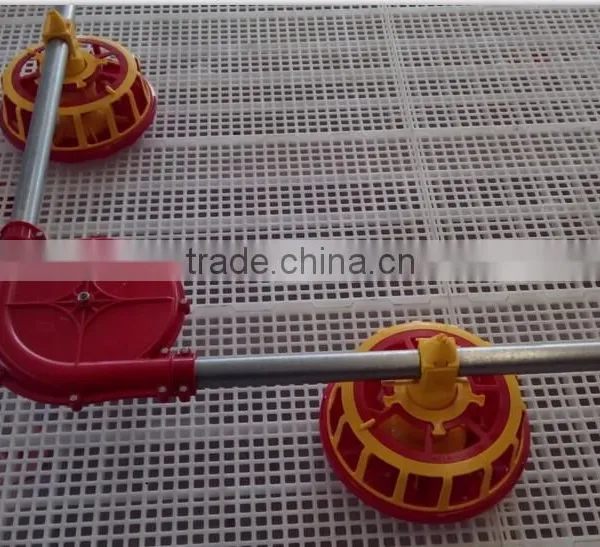

The main features of female breeder feed pan:
1).4pans/3m, feed pan distance :750mm
2). Feed pan diameter:360mm
3). Material:pp---Polypropylene
4). Feeding capacity: average 12.5 birds/pan.
5). 16 grills width of 40-52mm divide into 11 files, suitable for all the different varieties and day-old broiler breeder
feeding needs.
6). Feed hole height of 70mm,80mm,90mm three files. when feed hole width be 52mm, height be 80mm, chicks
can in&out freely.
7). Feed pan capaicty: 16 grades files, 200-630g/pan, which can meet the demand of chicken feed in different stages.
8).Pull switch design, can switch eahc pan easily.
9).Bottom of the pan is hanging pan bottom, take down easily. when washing is not all removed, convient&healthy
when installed.

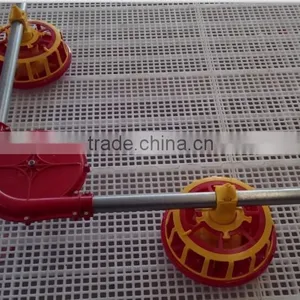

The main features of male breeder feed pan:
2).Material: PP (polypropylene)
3).Feeding capacity:6 ~ 8male birds/pan
4).6-grill design: enough eating space with more cock
5).Clamp prevents the pan from rotating and keep the feed in the middle of the pan.
6).Manual adjuster on the pan head can regulate the feed level of cylinder to the best position. Save feed to
Please feel free to contact us for more details about poultry chain feeding system for breeders.
