Automatic Poultry Equipment Feeder for Chicken

automatic poultry equipment feeder for chicken

poultry equipment feeder including:

1. Broiler Main feed line system:

Silo/manpower hopper is the beginning of main feed line. There is a feed sensor at the end of

main feed line which controls motor on and off to achieve automatic feed delivery.

Advantages:Reduce labor intensity, one person is enough for one house.

Main components of main feed line system(poultry equipment feeder):

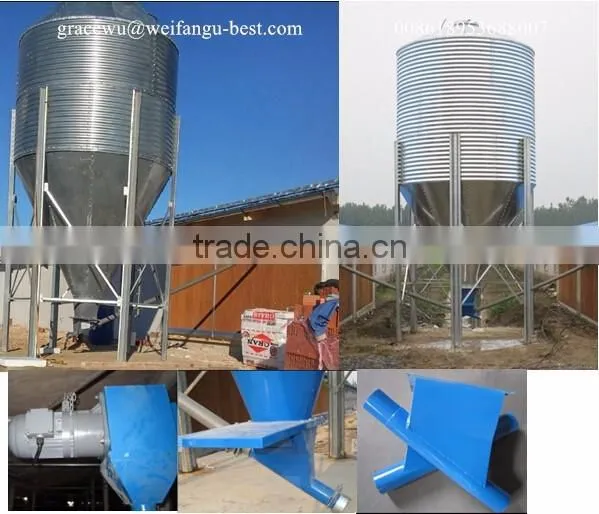

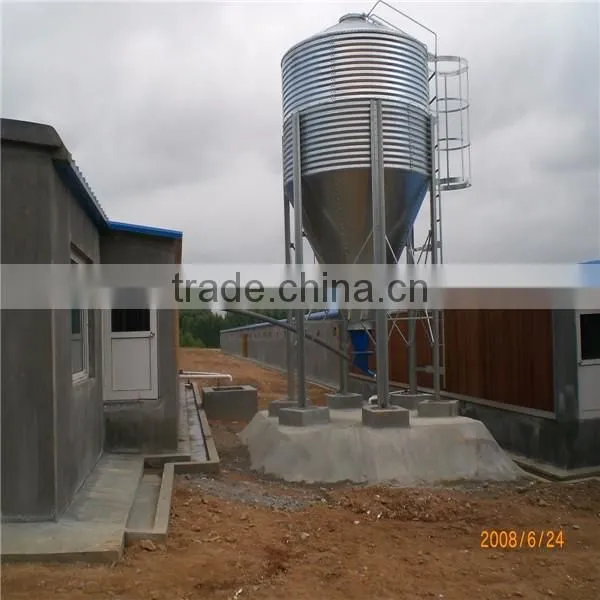

(1).Silo: Material: Galvanized sheet; Capacity:2.5T to 27T; Silo boot: one/two/three/four outlet

Silo parameters:

(2).Driving motor: 0.75kw, 380V, 50HZ, three phase, AC current

(3).Feed conveying pipe: diameter: 75*3.6mm, Material: PVC; Auger from South Africa,

                                    Feeding abality: 1400kg/h

(4). Feed Level sensor: Germany IFM feed level sensor.

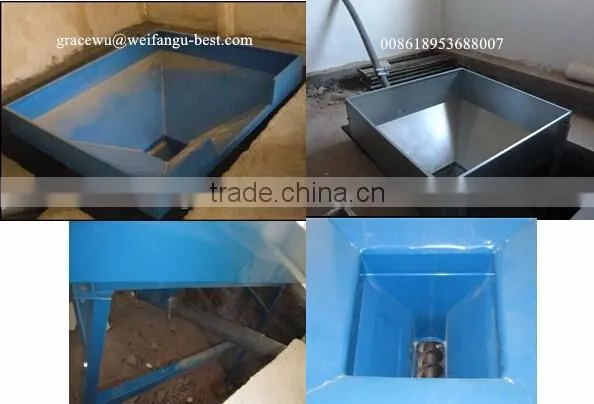

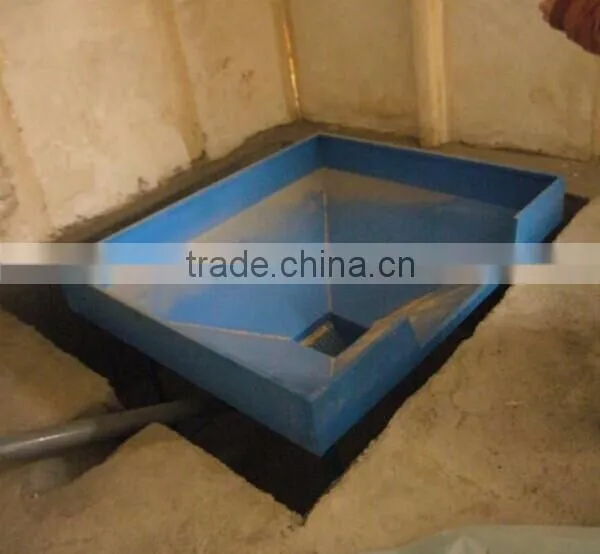

(5).Manpower hopper: If you don't use silo, you can use manpower hopper.Usually,if you just

build one or two farm,we suggest you use hopper instead of silo.

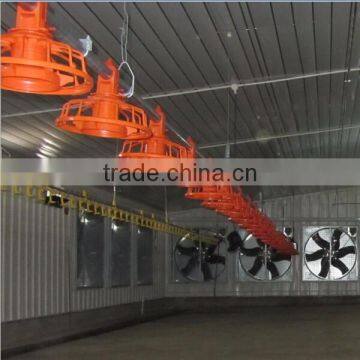

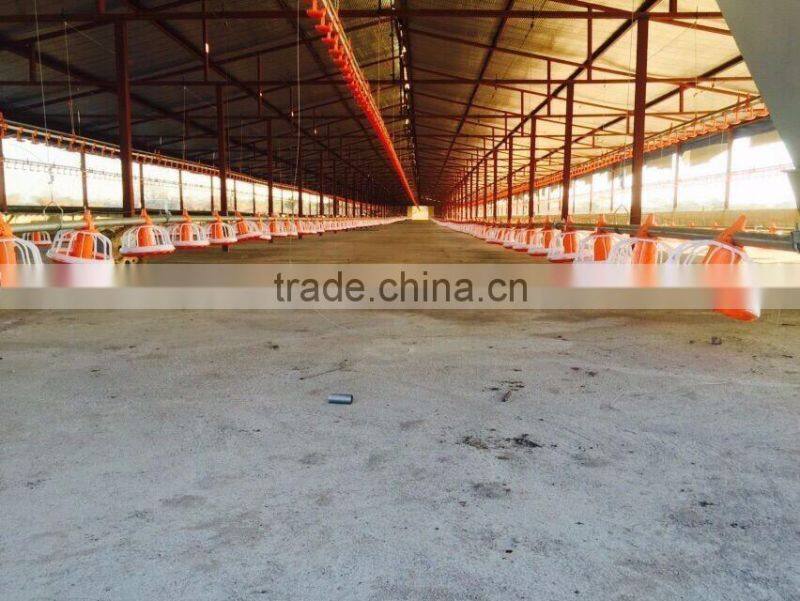

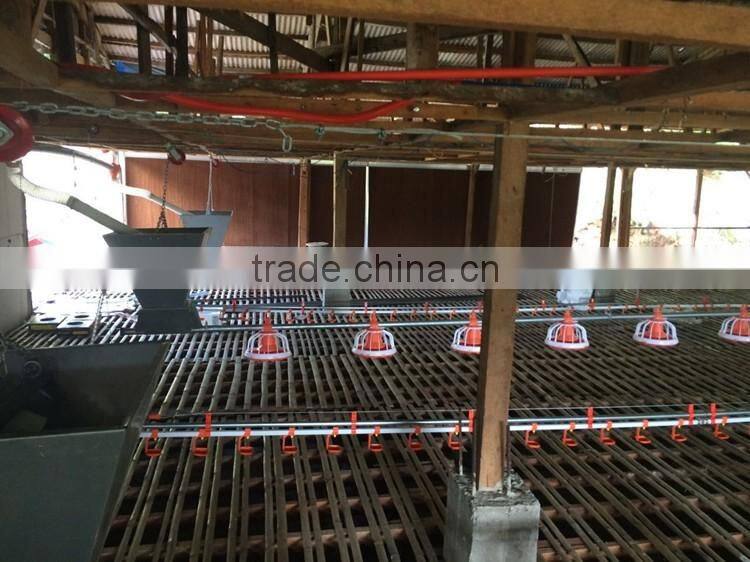

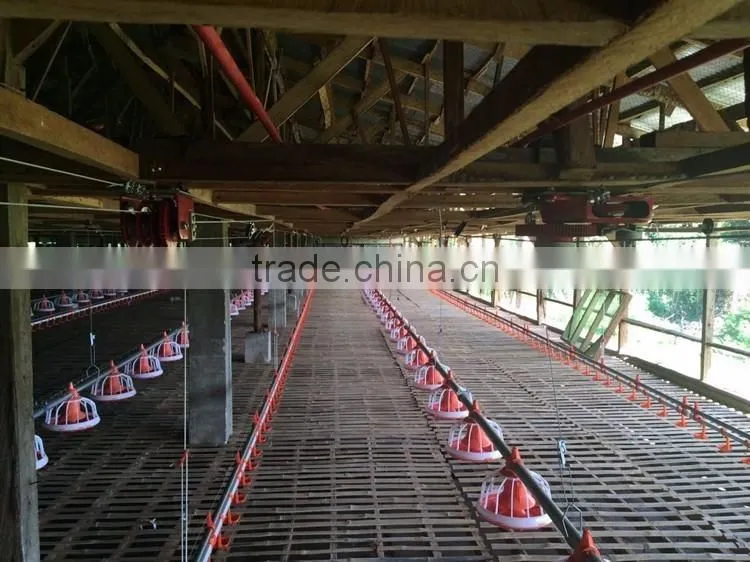

2.Broiler pan feeding system:

1).High-quality special driving reduction motor:

Taiwan Motor with overload protection of IP55)

Power:0.75kw, 1.1kw, 1.5kw, based on chicken house length,

Voltage:380V Frequency: 50HZ/60HZ , three phase/ single phase AC current

2).V-shaper Bin(with hopper):

Bin volume: 50kg, 70kg, 90kg,110kg,  Material: hot-dip galvanized sheet. Material thickness: 1mm

3).Feeding system:

Diameter of conveying pipe: 45mm Thickness:1.2mm (4-pan/3m, 3pan/3m).

Material: hot-dip galvanized sheet pipe with the zinc coating amount of more than 275 square meter .

4).Helical spring auger from South Africa feeding capacity:450kg/h.

5),Sensor from Israel: time delay range 0 to 2 hours.

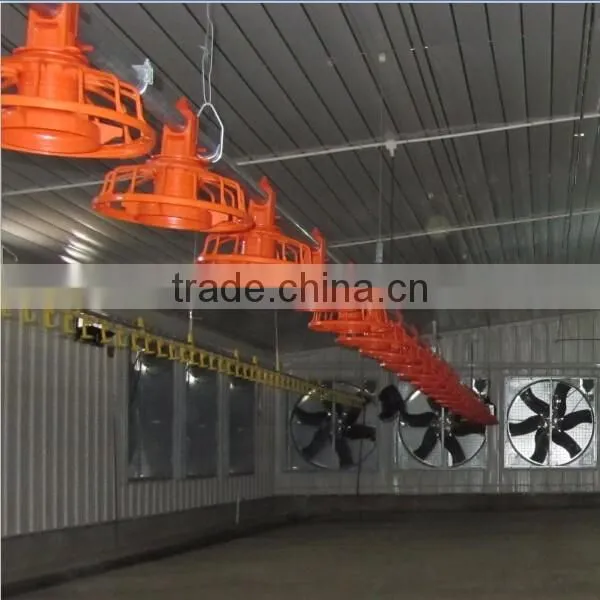

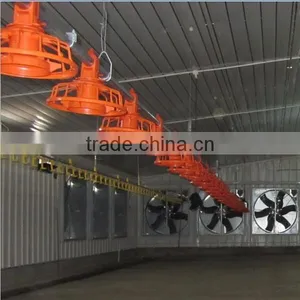

6).Suspension and lifting system:

It's very convient to adjust the feeding line height by winch.

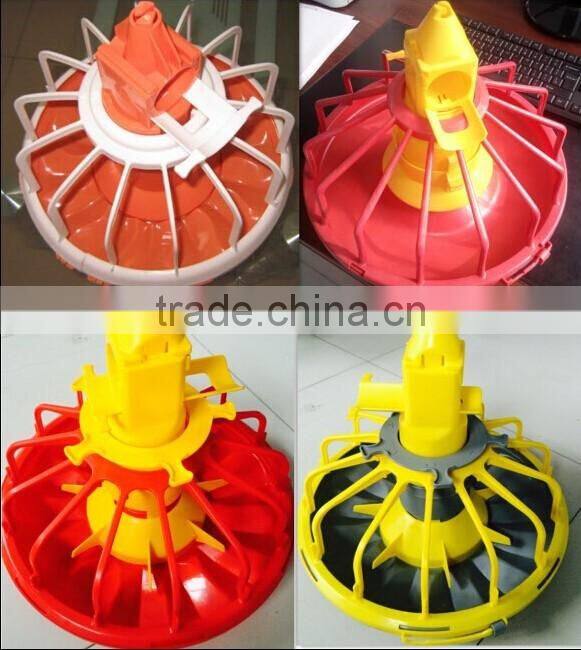

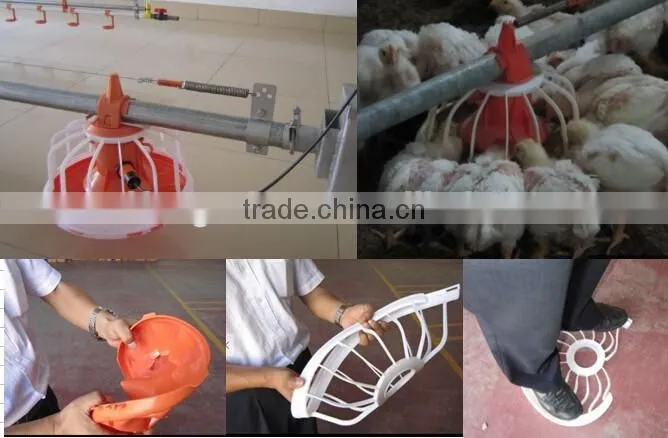

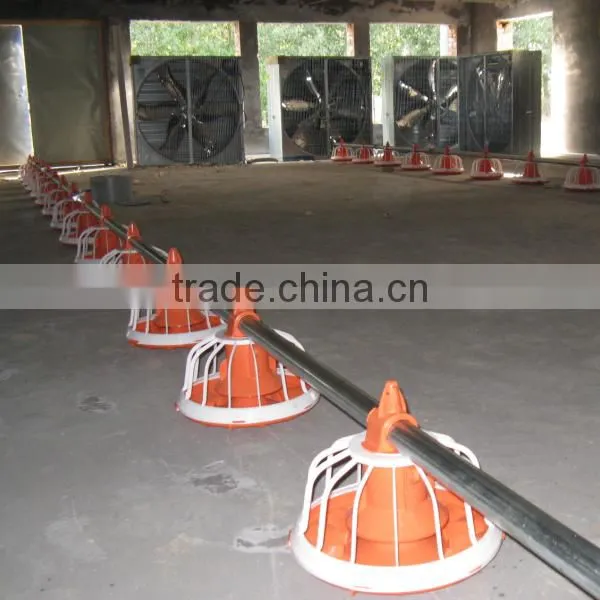

Details of broiler feeder pan:

Features:

Easy installation.

The system can used consistently from day old to adult.

Long life.

Slates can easy to clear and keep poultry healthy.

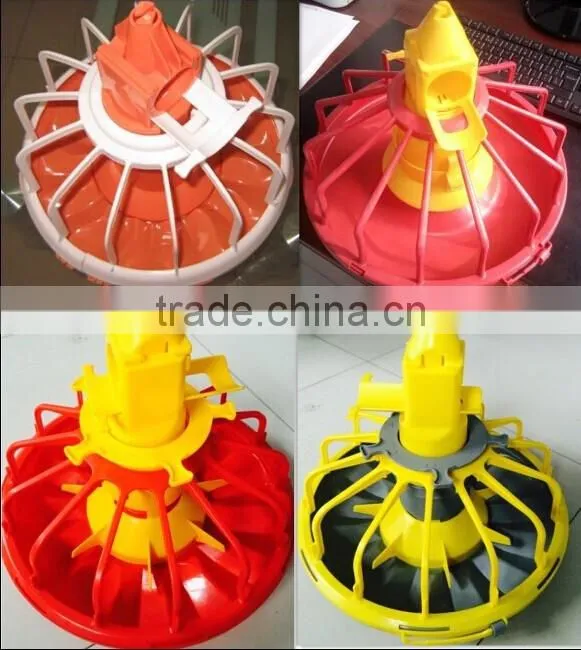

Remark: Our feed pan are customized, here is some types for optional:

poultry equipment feeder Company projects:

We have lots of construction projects home and abroad, our sales volume in Philippine market is NO.1, we are

the best and the most reliable supplier in this area, our company also have exported to Sudan, Saudi Arabia, Algeria,

Nigeria, Zimbabwe, Mozambique, South Africa,Tanzania, Zambia, Taiwan,Philippines,

Indonesia,Pakistan,Uzbekistan,UAE, Lebanon, Qatar, Palestine, Kosovo, Peru, Columbia, Honduras, Dominica

Republic,Paraguay, Costa Rica, Australia, Fiji…All get good feedback.In addition, our company is recruiting global

agents, welcome you to join us with our utmost and warm expectation.If you need more specific information, please

contact us , we will provide you professional and detailed solving plans.
