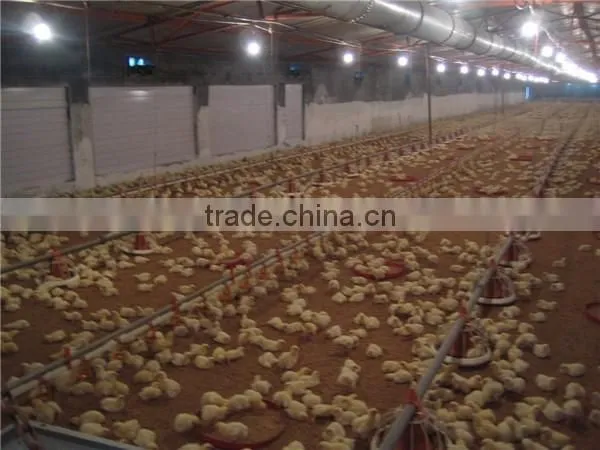

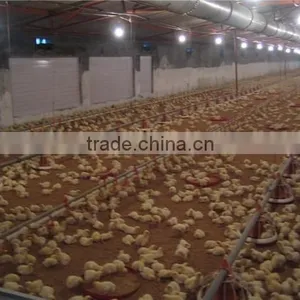

chicken feed pan system for broiler
chicken feeding system includes:
Main feed line:Silo/manpower hopper is the beginning of main feed line. There is a feed sensor at the end
of main feed line which controls motor on and off to achieve automatic feed delivery.
Advantages:Reduce labor intensity, one person is enough for one house.
chicken feed pan system: There is a feed sensor at the end of each feeding line which controls motor on
and off to achieve automatic feed delivery.

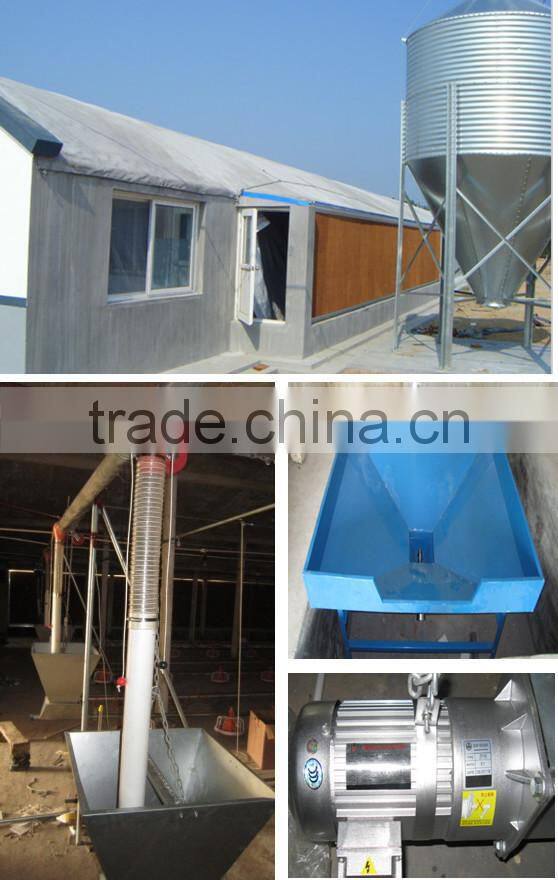

Main feed line system:
(1).Silo features:Material: Galvanized sheet; Capacity:2.5T to 27T; Silo boot: one/two/three/four outlet
(2).Driving motor: 0.75kw, 380V, 50HZ, three phase, AC current
(3).Feed conveying pipe: diameter: 75*3.6mm, Material: PVC; Auger from South Africa
(4). Feed Level sensor Germany IFM feed level sensor.
(5).If you don't use silo, you can use manpower hopper.Usually,if you just build one or two farm,
we suggest you use hopper instead of silo.

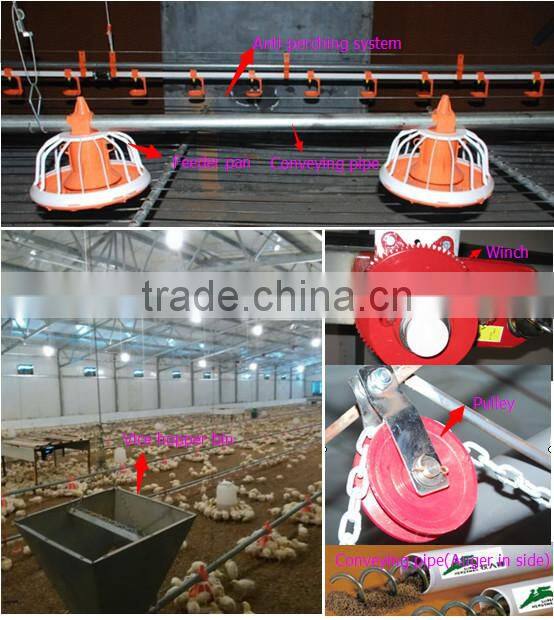

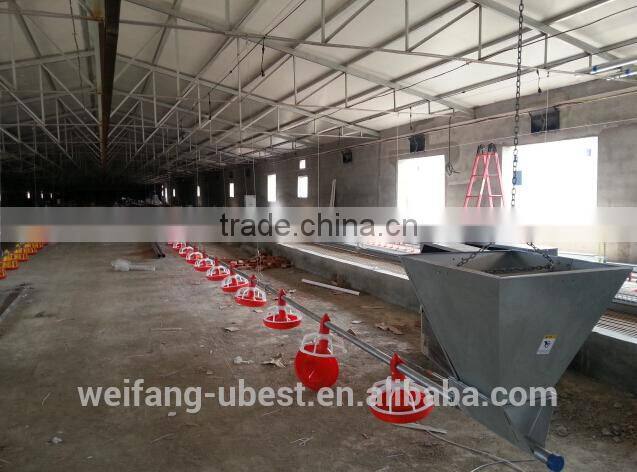

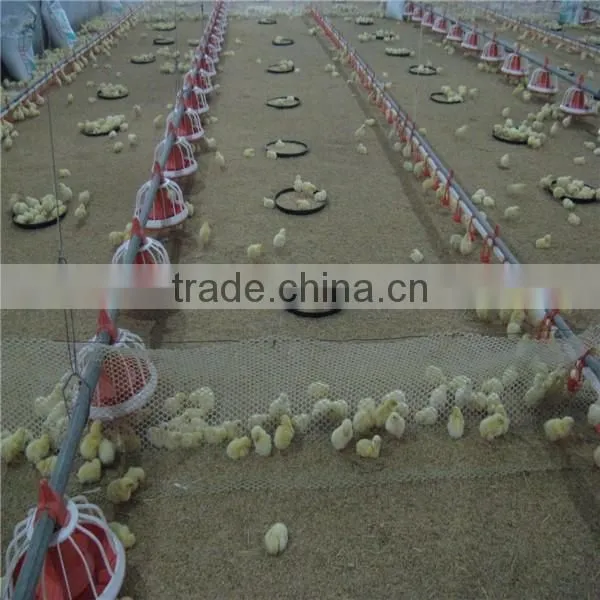

Automatic chicken feed pan system:

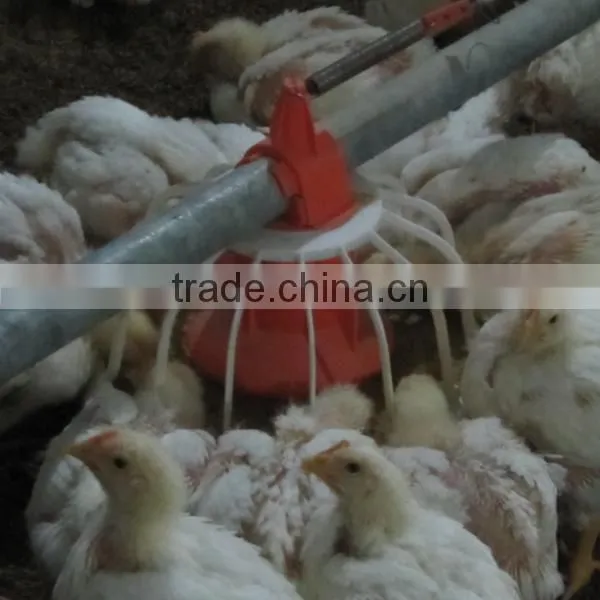

(1).Feeder pan
(2).Delivery: 45mm diameter Auger ;450kg/h

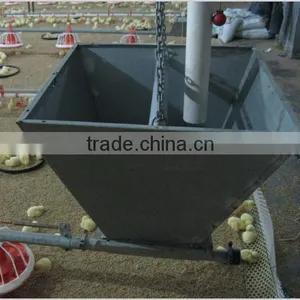

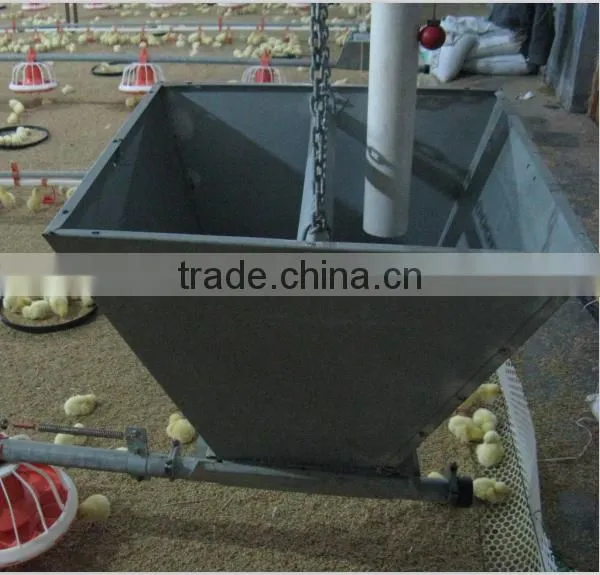

(3).Hopper:70kg,1.0mm thickness,galvanized sheet
(4).Feed sensor and Drive motor:380v,50hz,0.75kw

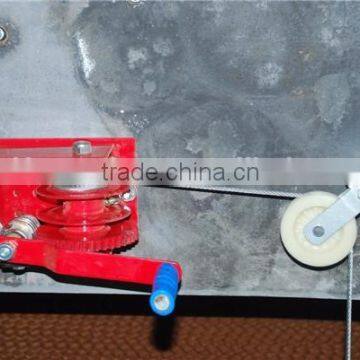

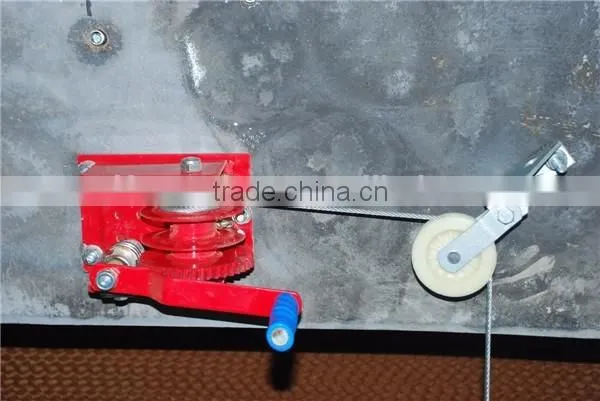

(5).Hanging system , Anti-roost system.

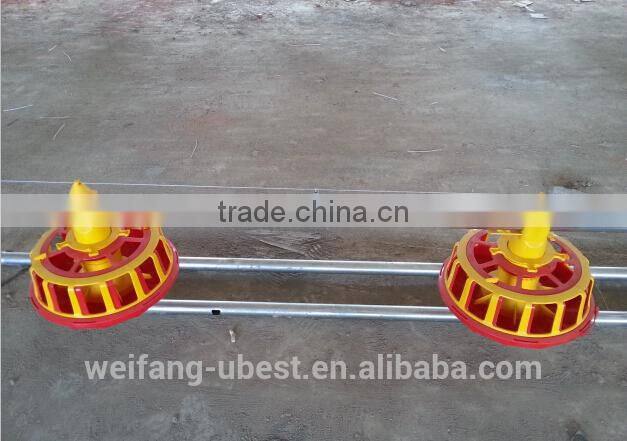

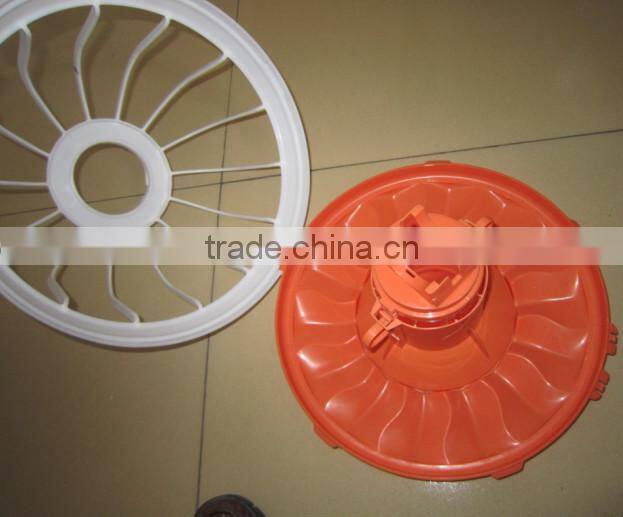

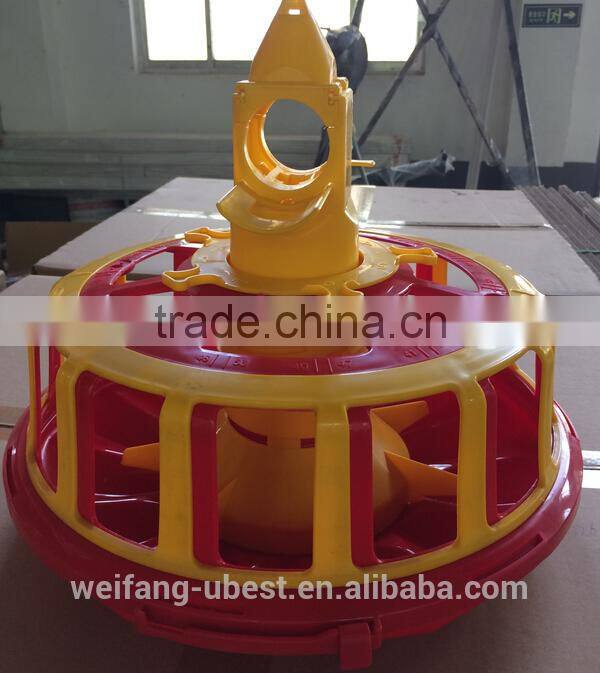

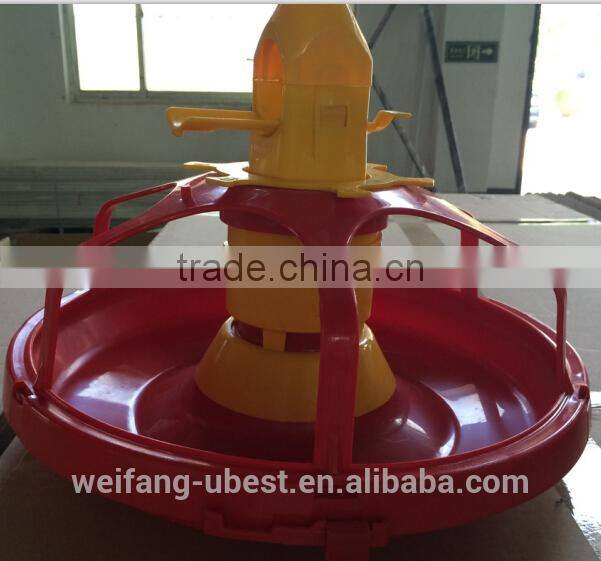

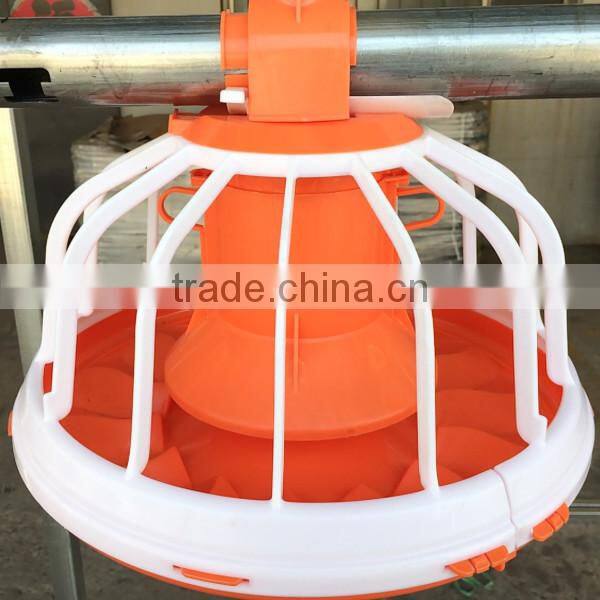

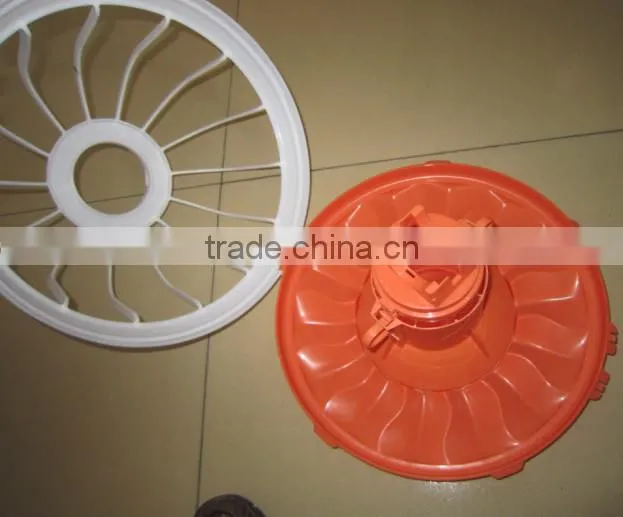

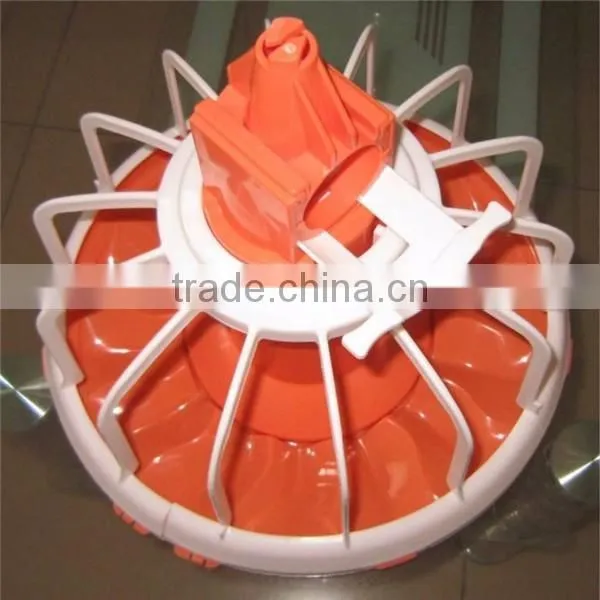

Details of broiler feeder pan:
Details of broiler feeding pan | |
No. of grilles per pan | 14 |
No. of birds per pan could feed | 40-55 |
Distance per grille | 70mm |
Density of broiler | 13-18 birds/M2 |
Max feed per pan for one bird per day | 180g/bird |
Dimension | 330mm×330mm |
Fearures: Easy installation.
The system can used consistently from day old to adult.
Long life.
Slates can easy to clear and keep poultry healthy.

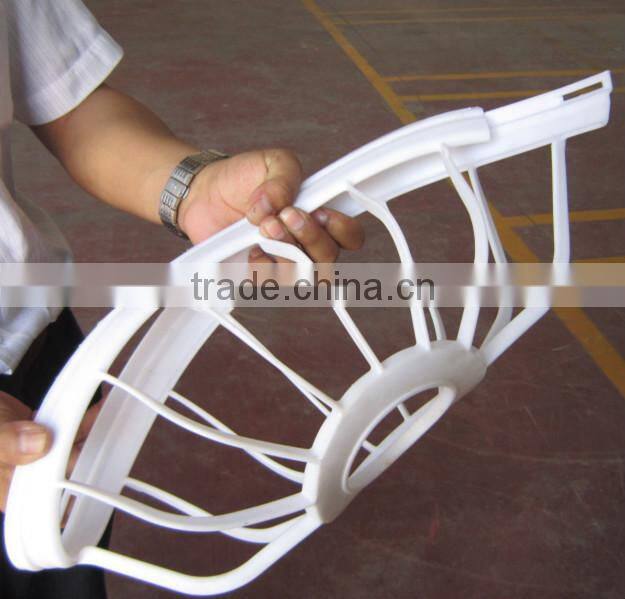

Feed pan for femal chicks:

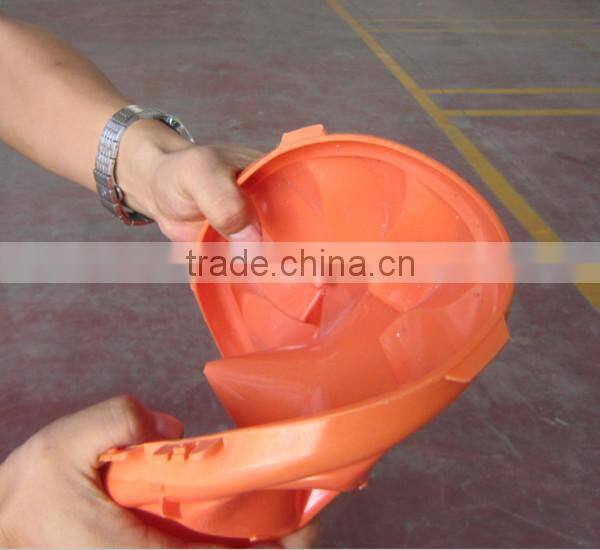

Feeder pan for male chicks:
Our package type:
- Feeder pan: unassembled, in carton box;
- Feeding pipe: 20pcs per bunch, in bulk;
- Hanging system: in carton box;
- watering pipe fitted with nipple, in plastic bag, 20pcs per each;
- Water spare parts like medicator, regulator,cup in carton box.

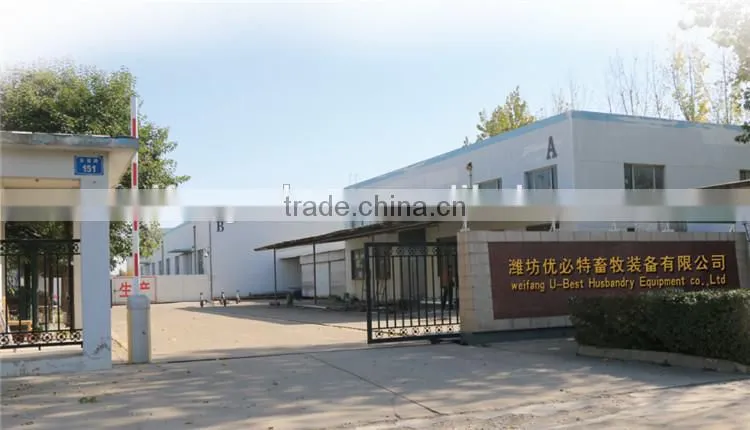

U-BEST Husbandry Equipment Co,.Ltd is located in the cultural World kite capital, Weifang, China, where
enjoys convenient access to major transportation networks. Our company specializes in the collection of animal
husbandry equipment research& development, manufacture, sales, installment, overall design and after-sale
maintance in the integration of modern comprehensive import and export service. We are pursuing to be the
most visible animal husbandry equipment and solution provider worldwide.
Please feel free to contact us for more details about chicken feed pan system for broiler.
