Automatic chicken feeder poultry chicken feeding system
(U-Best)
Weifang U-best Husbandry Equipment Co,.Ltd is professional manufacturer for poultry farm equipment for
many years with high quality and best price. Full automatic chicken farm equipment can be offered by us.
One person is enough for one chicken shed. Our engineer can help you design drawing if you need.
Turnkey projects also can be offered by us, which can help you save time and more efficient for your business.
Please don't hesitate to call me:
008618953688007 (WhatsApp) Contact: Mrs Grace Wu
| Philippines chicken farm equipment | |||
| House Size | 50mx15m | Birds Capacity | 10,000 |
| Manpower hopper | 800kg | Main stock line | 1 |
| auto square water lines | 5 | auto pan feed line | 6 |
| Columbia chicken tunnel house | |||
| House Size | 130mx13mx2.8m | Birds Capacity | 26,000 |

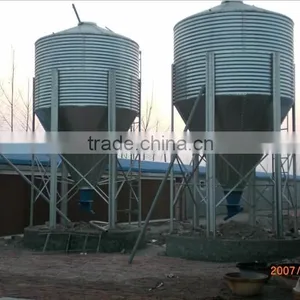

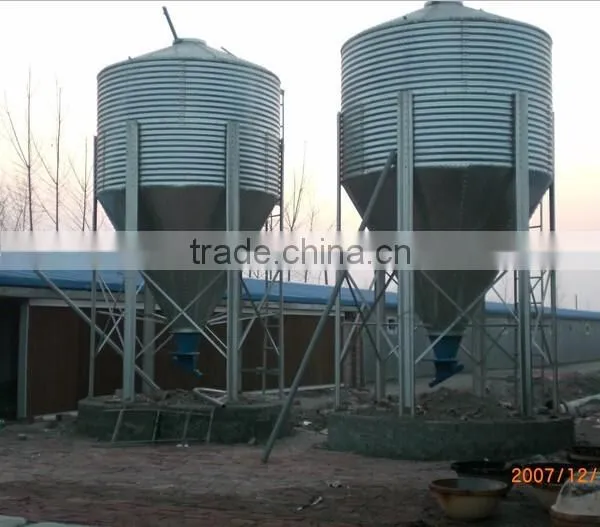

| Silo | 16 ton | Main stock line | 1 |
| auto square water lines | 4 | auto pan feed line | 4 |
Please send us your chicken shed size (LengthXWidthXHeight) when you make inquiry, so that we
can send quick and detailed quotation to you. Thanks in adavnce.
poultry chicken feeding system (Broiler):

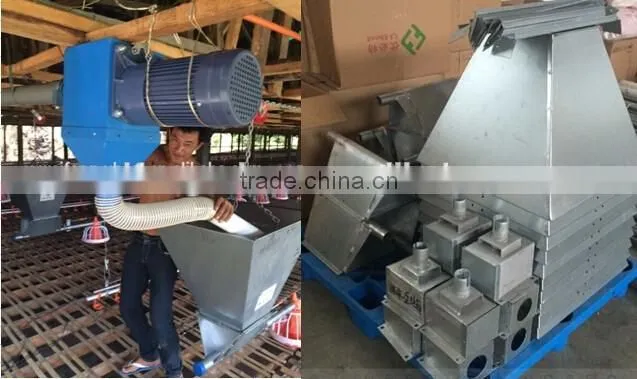

1.High-quality special driving reduction motor:
Power:0.75kw, `1.1kw,1.5kw, base on your chicken shed length.(Max Length:150m).
Voltage:380V/220V three phase or 220V, single phase, base on your local voltage.
Frequency: 50HZ/60hz

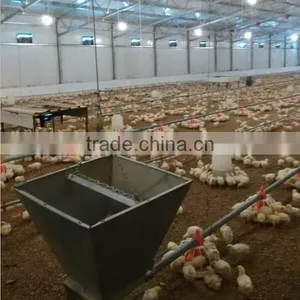

2.V-shaper Bin(with hopper):
Bin volume: 115L, Material: hot-dip galvanized sheet. Material thickness: 1mm
3.Feeding system:
Diameter of conveying pipe: 45mm (4-pan/3m, 3pan/3m).
Material: hot-dip galvanized sheet pipe with the zinc coating amount of more than 275 square meter .
Helical spring auger from South Africa feeding capacity:450kg/h.

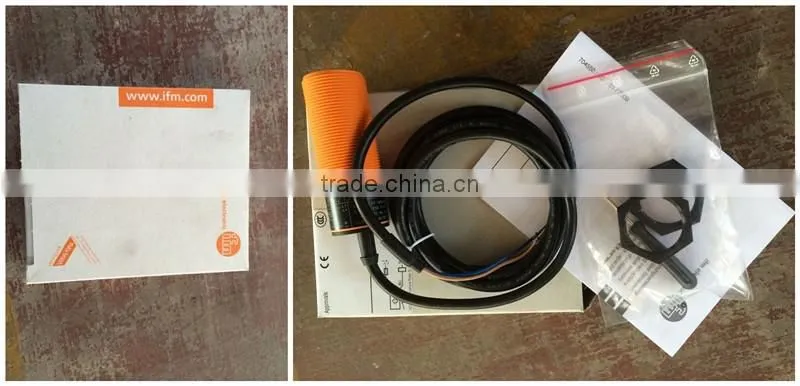

4.Feed sensor from Isreal:
time delay range 0 to 2 hours.

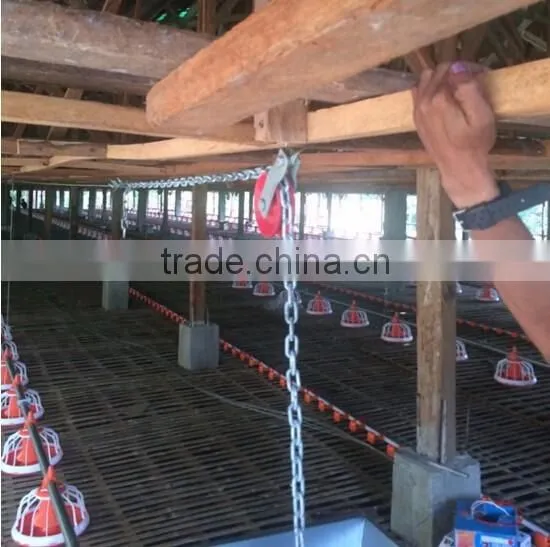

5.Suspension system:
It's very convient to adjust the feeding line height by winch.

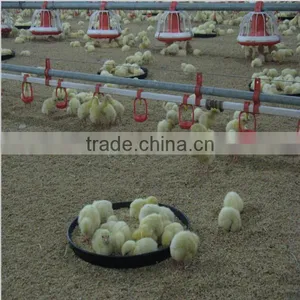

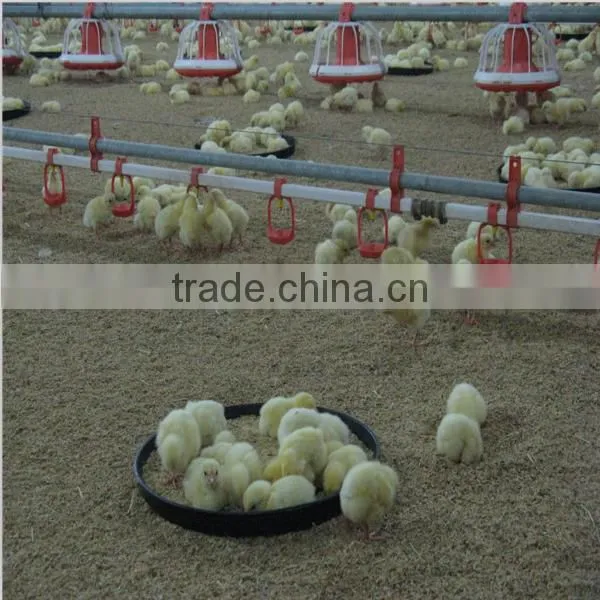

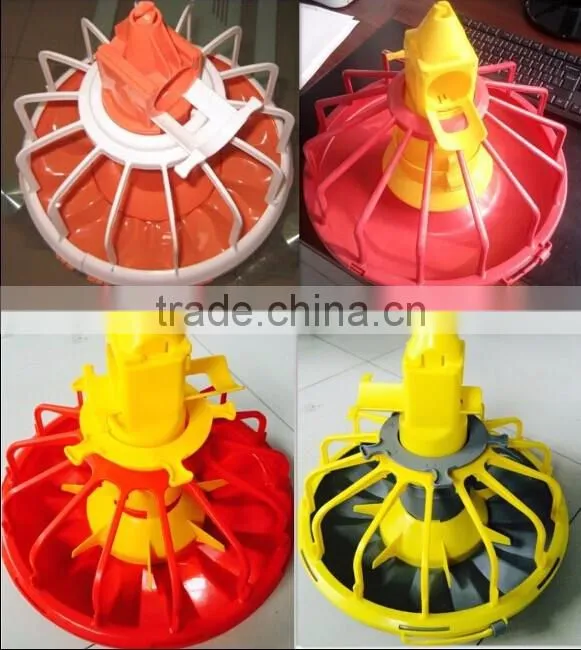

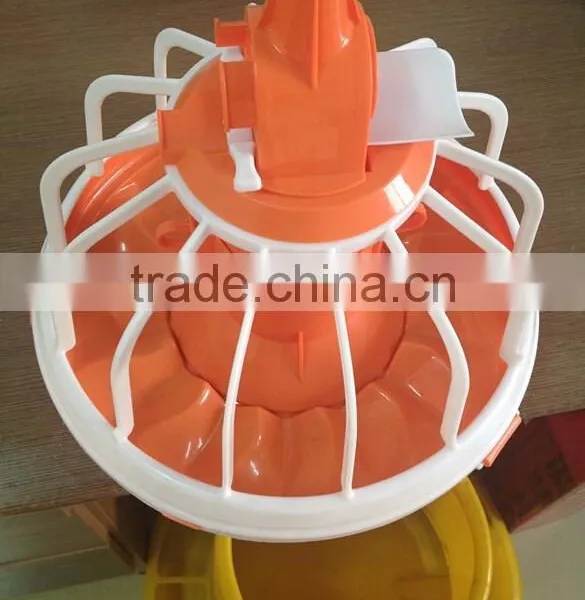

6.broiler feeder pan:
Details of broiler feeding pan | |
No. of grilles per pan |
14 |
No. of birds per pan could feed |
40-55 |
Distance per grille |
70mm |
Density of broiler |
13-18 birds/M2 |
Max feed per pan for one bird per day |
180g/bird |
Dimension |
330mm×330mm |
Main features:
1).Outside adjustment feed pan has 6 gears of feed amount, and the other kinds has 13 gears.
2).Feed pan slide switch could adjust feed flow until it is filled.
3).Outside adjustment feed pan is more convenient, accurate and quick to adjust feed flow, the operation
is to hand by the outside grids and rotate up and down.
4).Pan bottom can be disassembled on the ground, working for day-old chickens.
5).V-pan plate design can reduce feed storage on bottom, so birds can always eat fresh feed. The design
can also prevent birds from staying too long on the plate.
6).The edge of pan plate tilt towards the center, which can avoid waste of food.
7).The smooth edge can prevent the craw of birds from hurting and make sure safety and comfort feeding.
8).Feed pan installation has fixed type or swing type.
poultry chicken feeding system (Breeder):
(Please note the the only difference between broiler and breeder pan feed system is feed pan.)
The main features of female breeder feed pan:
1).4pans/3m, feed pan distance :750mm
2). Feed pan diameter:360mm
3). Material:pp---Polypropylene
4). Feeding capacity: average 12.5 birds/pan.
5). 16 grills width of 40-52mm divide into 11 files, suitable for all the different varieties and day-old broiler breeder
feeding needs.
6). Feed hole height of 70mm,80mm,90mm three files. when feed hole width be 52mm, height be 80mm, chicks
can in&out freely.
7). Feed pan capaicty: 16 grades files, 200-630g/pan, which can meet the demand of chicken feed in different stages.
8).Pull switch design, can switch eahc pan easily.
9).Bottom of the pan is hanging pan bottom, take down easily. when washing is not all removed, convient&healthy
when installed.
The main features of male breeder feed pan:
2).Material: PP (polypropylene)
3).Feeding capacity:6 ~ 8male birds/pan
4).6-grill design: enough eating space with more cock
5).Clamp prevents the pan from rotating and keep the feed in the middle of the pan.
6).Manual adjuster on the pan head can regulate the feed level of cylinder to the best position. Save feed to
| Driving system | Drive device adopt vertical reducer motor, which is more reliable and steady, lower noise and uniform delivery feed compared with mechanical reduction gear.Delivery speed reach up to 36m/min. |
| Feed through |
Feed trough is made of anti-rust material, and grill with 44mm distance can effectively separate the male and female birds. Can also be customized according to customer specifications with different grill distance.
|
| Hopper | Big hopper and vice hopper |
| Corner |
90 degree corner and slideway surface are treated by special harden process, with alloy bearing no oiling injection.Compared |
| Feed cover |
In the interface position of feed box and feed trough, there is a feed cover plate to avoid feed overflow effectively . |
| Other accessories | chain, grid,bracket, connections,etc |
| Package&Delivery- poultry chicken feeding system: |
- Feeder pan: unassembled, in carton box;
- Feeding pipe: 20pcs per bunch, in bulk;
- Hanging system: in carton box;
- watering pipe fitted with nipple, in plastic bag, 20pcs per each;
- Water spare parts like medicator, regulator,cup in carton box.
| Our service- poultry chicken feeding system: |
We have certificate :SGS Soncap CE SASO ISO.
We will free the products oringnal certificate for you.
| Contact us- poultry chicken feeding system: |
Welcome you make a call to us!
Welcome to visit our factory!
We look forward to working closely with you in future!
