Automatic Poultry Drinking System for Chickens

automatic poultry drinking system for chickens

Main parts of automatic drinking system for chickens:

Filter, pressure regulator, nipple drinking line, lifting and suspension system, electric shock system etc.

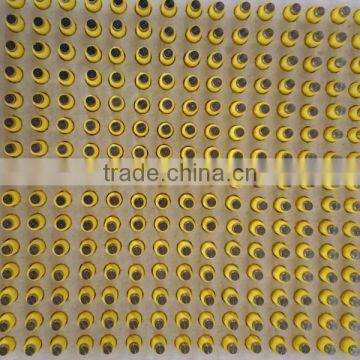

Nipples for the system:

1). Use good quality engineering plastic for outer, for the inner, we use good quality stainless steel.

     All nipples are anti-rusting, service life over 10 years.

2). Double-sealing structure, with good seal ability, can avoid to effect the chicken house for leaking.

3). Valve rod is movable in 360degree, it's suitable for all chicken to drink.

Nipple capacity ability:

Broiler: 8-12/nipple

Reserve layer:12/nipple

Reserve turkey:20/nipple

Duck:10/nipple

Breeder:10/nipple

Lifting and suspension system:

Correct height for drinking system is very important for chicken (both higher and lower can effect chicken bone's

distortion, it's bad for chicken growth, and also can have some water wasting), it's very easy to adjuct drinking

system's height if use this system.

Water display level tube:

Use high transparency & impact resistant material, it's sturdy and durable, and convient to watch water level.

This device with advanced design, it's very easy to take down and clean.

Pressure regulator:(Double barreled with large flow capacity)

Advantages:

1). Regulating stability.

2). High switching performance.

3). Water supply is sufficient& equality.

4). Recoil cleaning with good cleaning result, and can save time and can save water.

5). Good quality movable valve, it's easy to change.

 Front part of automatic poultry drinking system for chickens:

Front part is controller of water, it's main function is to adjust water supplying pressure and stabilizing drinking

volume. This part is usually installed in control room.

-Pressure regulator: make sure to supply stable water to drinking line. Anti-backlish device can discharge the impurity

in pipe.

-Filter: main function is to clean water and avoid blocking nipple.

-Water meter: to measure water usage volume.

-Doser: can add medicine exactly to prevent disease.

Please feel free to contact us for more details about automatic poultry drinking system for chickens.
