Automatic Poultry Nipple Drinker System For Chicken Drinking and Broiler Birds Watering
Brand: U-Best
Poultry Nipple Drinker System
Its main function is to deliver certain pressure water to water pipe, the water will flow out automatically when poultry touch nipples, so as to meet the function of drinking water automatically.
What we could do for your demand of poultry nipple drinker system(a part of poultry equipment):
A.Produce and supply first-class nipple drinking system of poultry equipment;
B.Select location of poultry house;
C.House design and construction preparation Guidance;
D.Breeding workers training;
E.Poultry equipment installation;
F.After-sales service
Poultry Nipple Drinker System consists of:
1.Front part of drinking system-filter, doser and water meter etc.
2.Water pipe with nipples.
3.Pressure regulator.
4.Water display level pipe.
5.Lifting and suspension system.

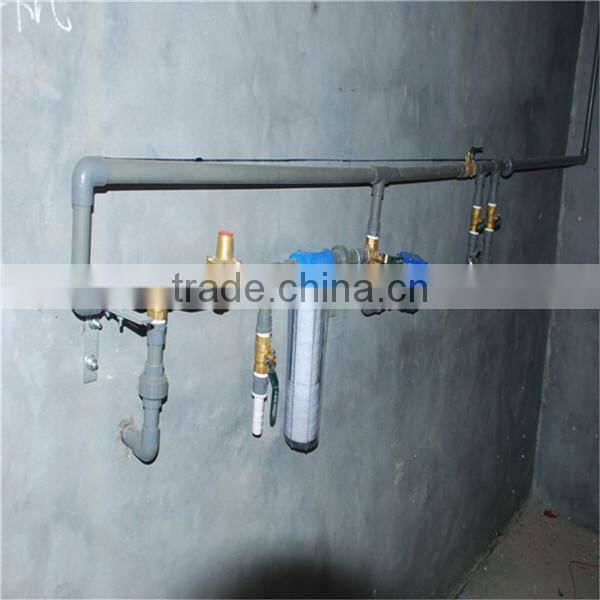

(1)Front Part of Drinking System
Front part is controller of water, its main function is to adjust water supply pressure and stabilize drinking volume. This parts is usually installed in control room.
Filter: clean water and avoid nipples block
Water Meter: measure water usage volume
Doser: add medicine exactly and automatically to prevent disease

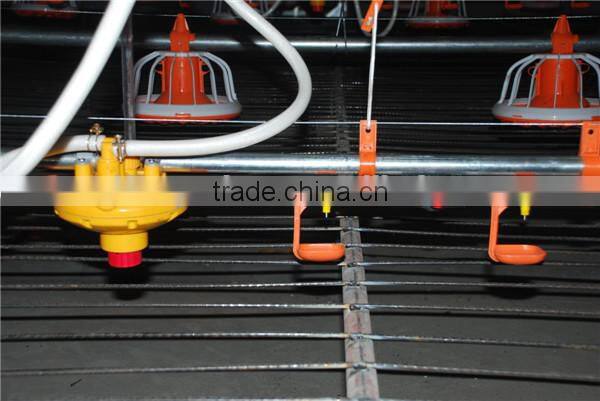

(2)Water Pipe Installed With Nipple Drinkers
Water pipe uses European technology and is made transparent PVC material.
Every nipple has to pass professional and strict test before delivery.
Two kind nipple: one kind is that outer is engineering plastic and inner is stainless steel; the other kind is that outer and inner are both stainless steel.
Both kind nipples all use double-sealing structure of good seal performance, which avoid water leak. Valve rod is movable in 360 degree, suitable for chicken to drink.
Nipple Capacity | |
Broiler: |
8-12/nipple |
Layer: |
Breeding Stage: 10-14/nipple Laying Stage: 8-10/nipple |
Turkey: |
6-12/nipple |
Duck: |
10/nipple |
Breeder: |
10/nipple |
Drip Cup - the single-arm drip cup with a reasonable structure is more suitable for new culture idea.

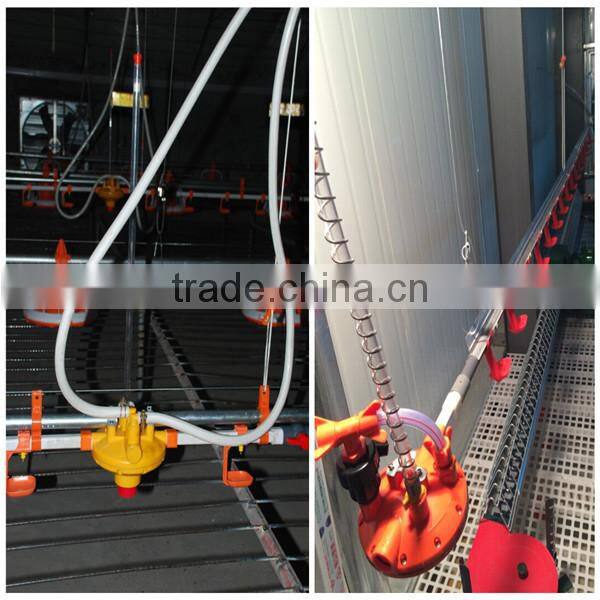

(3)Pressure Regulator
Double water-inlet-tube and flushing pressure regulator ensure large water flow.
The massive recoil tuner features stable tuning,high dexterity,,sufficient and even liquidity,convenient waterline flushing,and can save water and time.It is equipped with the standard double ball valve,which is easy to change.
(4)Water Display Level Pipe
Use high transparency and impact resistant material, sturdy and durable, and convenient to watch water level.
Poultry Days |
1-7 days |
8-14 days |
≥ 15 days |
Water Level Height(mm) |
50-80 |
80-200 |
200-350 |

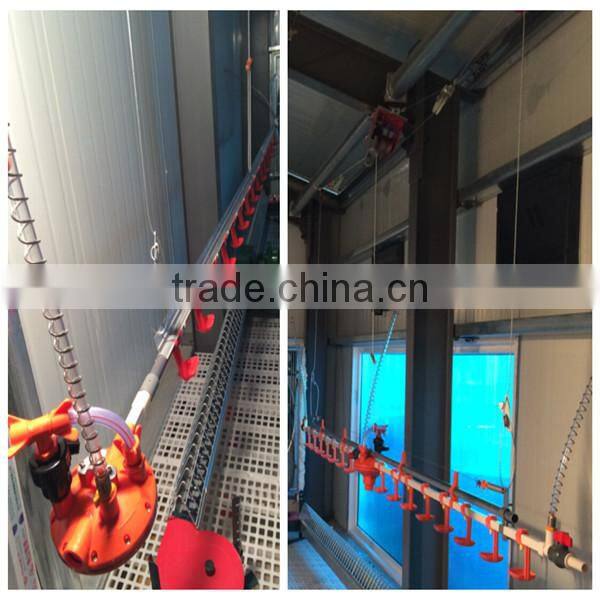

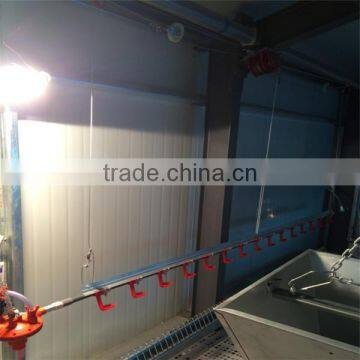

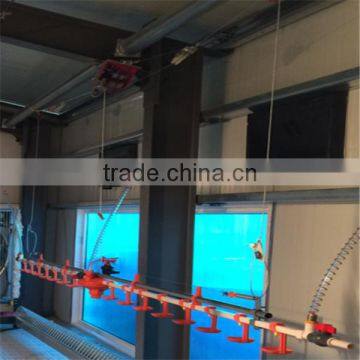

(5)Lifting and Suspension System Of Broiler Nipple Drinker
It is easy to adjust height of this drinking system in different poultry growth. It is very important to keep a right and appropriate height for poultry in different growth period, too higher or lower height can cause poultry bone distortion, which is bad for poultry growth and waste water.
Maintenance of Poultry Nipple Drinker System:
1.To check the use of nipple drinking water,find possible problems and exclude them.
2.To clean water pipe regularly,according to actual situation,when clean, remember to add 1/300 acetic to enhance washing effect.
To clean water filter regularly, according to the requirements of irrigation water.
3.When it is not in use, the remaining water should be exclude from all parts to prevent fouling.
4.When it is not in use, swing pressure regulator screw until the column height of water display tube is ZERO(0), so that the spring is relaxed,to extend its service life.
5.Suspension system maintenance:to check nylon rope tension level regularly to ensure water suspension

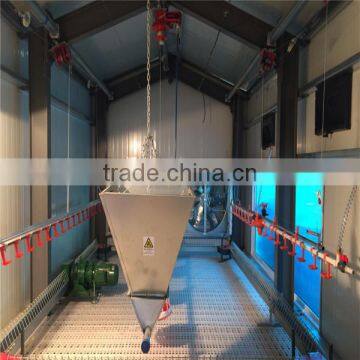

Poultry nipple drinker system is a part of a complete automatic poultry equipment, the other parts are:
1.Main feed stock line of silo/manpower system
2.Automatic pan feeding system
3.Automatic ventilation system
4.Cooling pad system
5.Environmental and power control system
6.Spraying and disinfecting system
7.Heater
If you need a complete automatic poultry equipment, please let us know following:
1. How many chickens do you plan to raise?
2. What is the size of your chicken house, including length, width and height?
3. What is the final weight you raise in farm for sale, about 1.5kgs or 2.5kgs?
4. where is your poultry farm located in, in which country?
Packaging and Shipping
Standard export package for automatic poultry farming equipment in container. Shipment in 15 days after the order confirmation.
Company Introduction:
Weifang U-Best Husbandry Equipment Co.,Ltd
We are professional manufacturer and supplier of poultry equipment of nipple drinker in China!
Our equipment has passed ISO9001:2008 Quality Management System Certification!
We have our own production line so we can control the quality very well! Our poultry equipment of broiler nipple drinker has been exported to more than 40 countries and have good market reputation!
We have many different project of chicken farm in Indonesia, Philippines, Columbia, Costa Rica, Paraguay, Honduras, Sudan, Palestine, Zimbabwe, Mozambique, Qatar, Dominica, Saudi Arabia and Fiji etc.
Welcome to contact Ms. COCO in U-Best company!
