House Safe Smart Home Electric Fencing System Solution Supplier

WHO

Shenzhen Tongher Technology Co.,Ltd ,also called Tongher Electric Fence,Tongher Fence,is established since 2007,dedicating to provide stable professional products,solutions and services of electric fence system, Tongher has offered perimeter security services and agricultural livestock animal solutions of electric fence to thousands of companies and governments in more than 20 provinces in China domestic market and foreign countries over 6 years.
WHY
Best practised R&D team and global management  guarantees the world-class technology and industry-leading potential,our products are distributed to more than 40 countries worldwide. We are a reliable electric fencing system for security and livestock supplier,facotry in China and abroad.
Our products are approved by ISO 9001, CMA by china security department and CE certificate.
WHAT
TH-Polar solar fencing energiser serials are designed to meet the needs of all animal management protection and rotational crop grazing requirement and pasture management,which can be integrated into solar power system. and they are in accordance with IEC 60335-2-76 and in conformance with AS/NZS CISPR14-1.
TH-2008 security fence energizer series is in accordance with IEC 60335-2-76 Moreover, water-proof box, connecting the wire at the bottom, advanced high/low voltage mode and unique LCD display earns a outstanding advantage in the market.
WHERE
To meet different customer's need, we design perimeter solution according to practical situation. So far, these solutions are widely used in community, residential area, government, school, plants, garage, prison, military bases, water and gas distributor, farmland and poultry area.

We do offer OEM/ODM service for energizer or accessories.

Safety Information

• ØUnless high/low voltage output disarmed of electric fence, don’t touch live fence
• ØAlways unplug the fence before handing any part of the fence
• ØDon’t install electric fence during the thunder, don’t install controller in moist place.
• ØBefore installation or using the product, professional training on technology is necessary
• ØTo maximizing the performance of your fence system,During the installation, follow the instructions to make sure the grounding of products. Refer to “4.9 item”
• ØOnce electrified , the inside of controller is 220v 50Hz AC, with 5-10KV high voltage pulse on the output port , don’t touch any part to make sure safety
• ØThe related electronic technology knowledge is necessary, read the user instruction and operate it carefully with correct methods before installation, otherwise,our side don’t bear any responsibility if any accident arise.
• ØIn case of urgency, turn off power supply, and wait for the professional staffs to check, analysis and repair ,or contact our company, don’t repack it by your own.
• ØFollow all national,state and local regulations that may apply to installation of electric fence in your area
• ØRefer to authorized repair center or our company for service,There are no ueser serviceable parts,Never alter the design of the energizer ,doing so is dangerous and will void the warranty.
• ØDo not run fence wire above ground near high voltage power lines.if too close,the electric fence may pick up dangerous levels of power from high voltage lines.Never cross under a high voltage line with electric fence.
• ØSparks may occor in electric fence system,Therefore,the area of high fire risk,fence should not be installed.

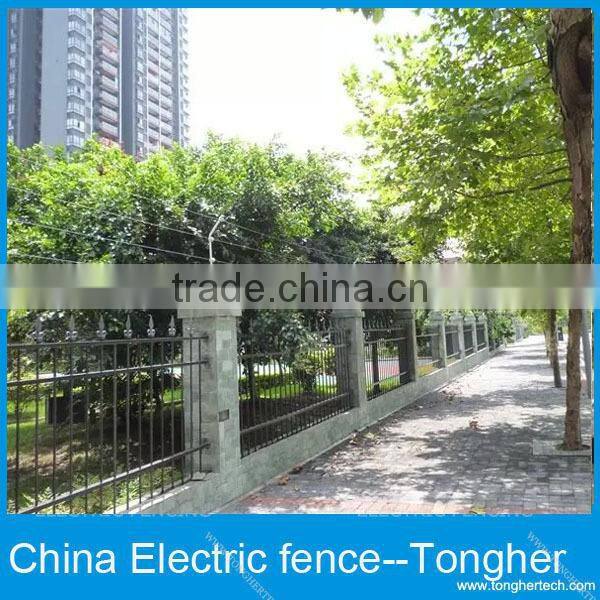

Electric fence with alarm projects pictures as below:

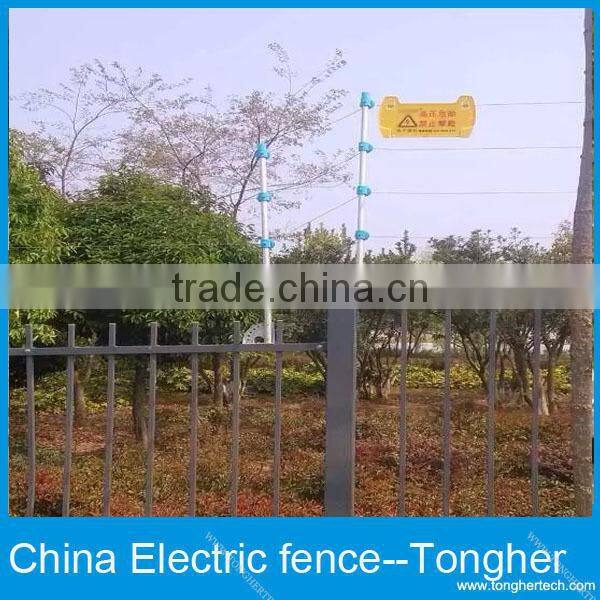

Straight posts 4 lines electric fence on top wall anti-thief.

L shape posts electric fence on top wall anti-thief with alarm for security .

L  Shape electric fence on top wall with alarm , for community  !!a

L Shape with blue insulators, for china wall top anti-thief fence with alarm functions:

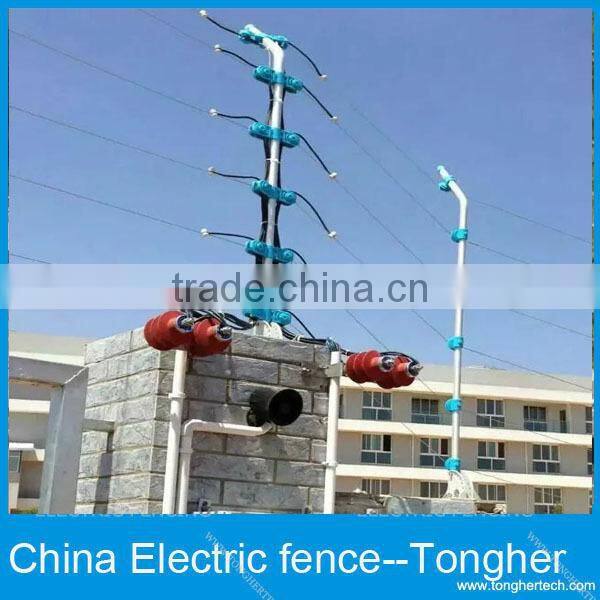

6 line mode electric fence on top wall for anti-intruders , alarm electric fence for security perimeters.

TH- Guard 2

Feature:

1.    New generation energizer that can be used as a simple security fencing energizer, but can also be a alarm panel,

   there are two alarm input for gate magnetic contacts or Infrared detector or other kind of sensor and

   detector with NO/NC output.

2.    LCD or LED indicate the zone ID the working state the voltage of live wire.

3.    High/low voltage switch manually, long-distance equipment auto switch function.

4.    RS 485 communication protocol offer long distance management solution.

5.    DC12V, NC/NO dry contact alarm output(Relay output), can work with other modern security products.

6.    Set up alarm delaying triggered time freely

7.    Spacious space is enough for 4-7Ah back up lead acid battery.

8.    Multi power supply function make the energizer working at all kind of poor power condition,

   Mains AC110-240V, Battery or Solar panel with DC12V.

9.    Sealed metal casing would reduce the electromagnetic radiation effectively, preventing the invisible damage

   to our family health or other electrical equipment.

10.  Remote control(wireless) makes the arming or disarming easily from any place.

Villa/Smart home Security Electric Fence System :

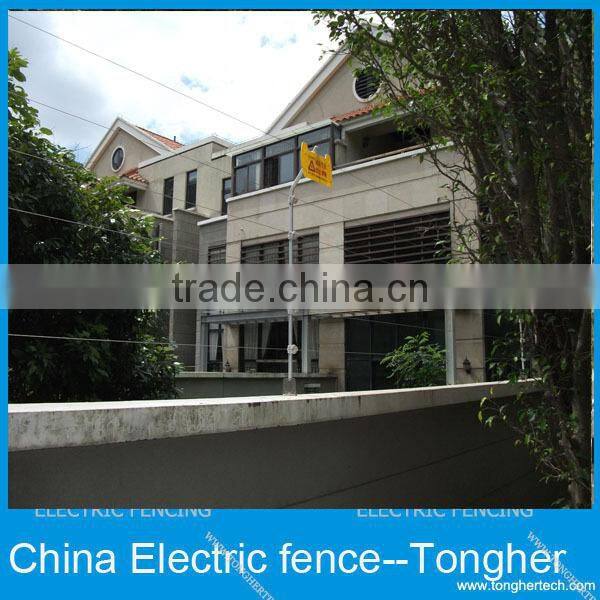

1. electric fence installed on the private house/home
2. prevent intruder to break in.
3. intruder gets electric shock
4. the electric fence system will send alarm to the guard room meantime.
5. the electric fence can integrate with the CCTV,GSM and alarm panel as a perfect security system.
6. Compliant with IEC60335-2-76
7. Tested for EMC Compliance
8. power consumption below 10W.

Electrical specification:

1.    Input: AC110-240V or DC12V

2.    Output peak voltage: 5KV~10KV

3.    Output low voltage:  1KV~3KV

4.    Pulse duration: ≤0.1s

5.    Pulse interval time: 1s

6.    Max energy of output: <5.0J

Security electric fence applied area: community,villas,transformer substation,waterworks,tabacco warehouse,school,factory, goverment, farm and detention house, prison, weapons depot.

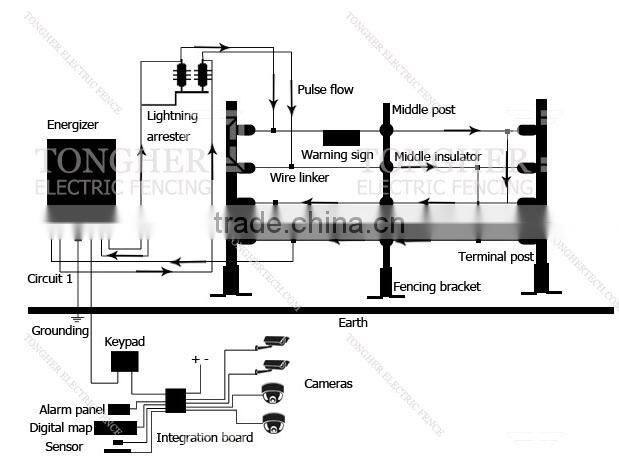

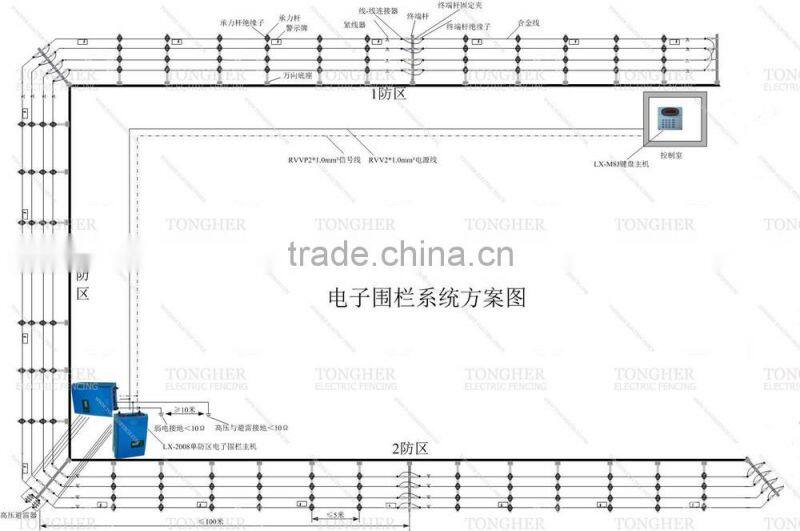

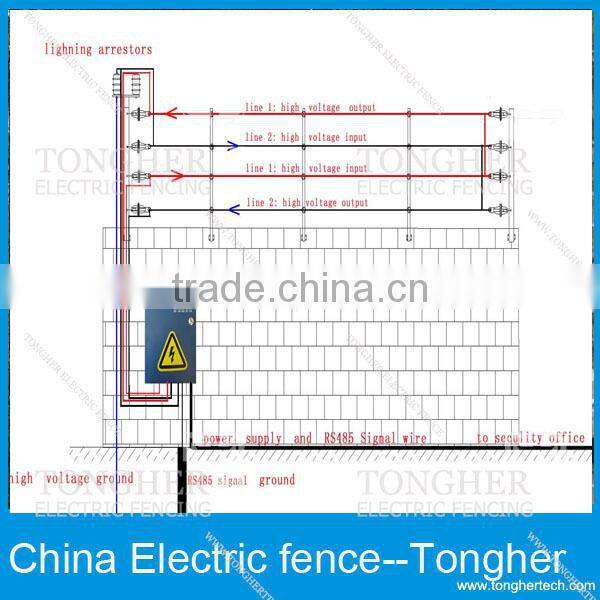

Electric fence system for home diagram:

(1)Tongher have own factory.
(2)All goods will be inspected and tested strictly by QC before shipment.
(3)We don't charge tax/duty,However, we could declare very low value for the custom such that you won't pay much tax at your local customs.
(4)If you are interested in our products,samples can be prepared for you.
(5)Sameple expens depends on the sale price of the product.
(6)We also can do OEM. We can provide personalized service for customers in need.

Warranty:
(1)All products have been strictly quality checked before packing
(2) Two Years warranty with all products, we will provide free maintainance service during warranty
period.
(3). After purchasing Tongher products, If meet some installation problem,our technical personnel/engineers may assist you to solve problem.

----SHENZHEN TONGHER TECHNOLOGY COMPANY.
