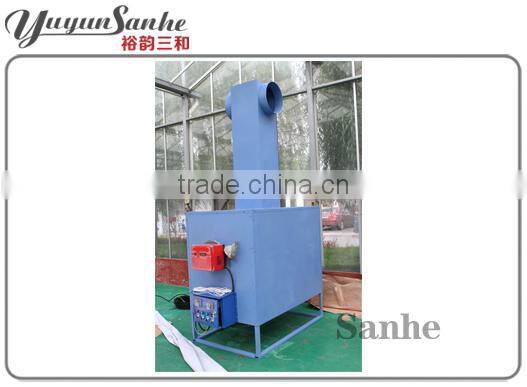

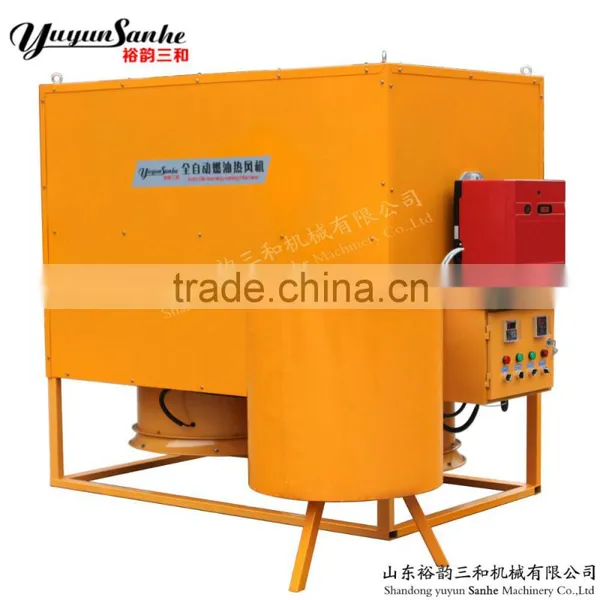

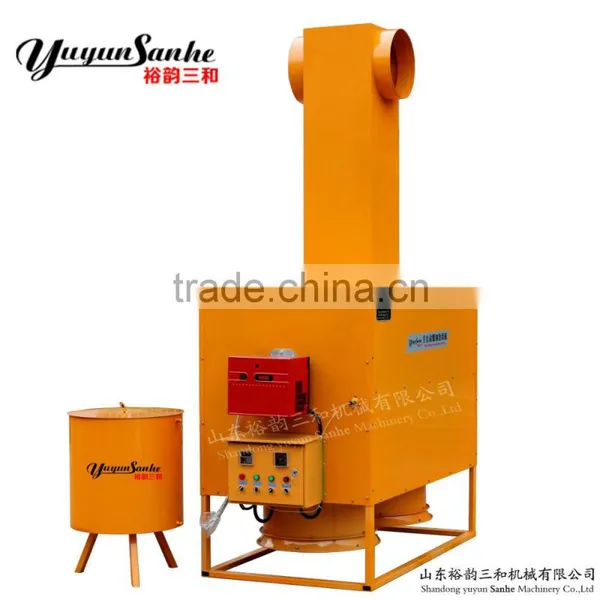

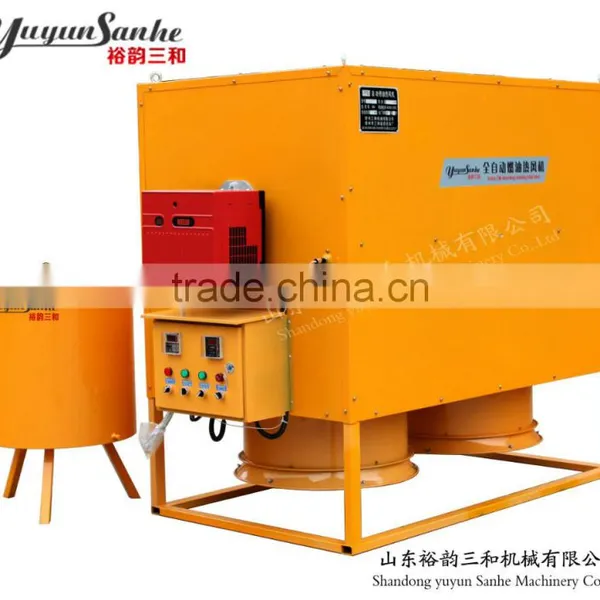

FSH Full-auto Oil-burning Heating Machine

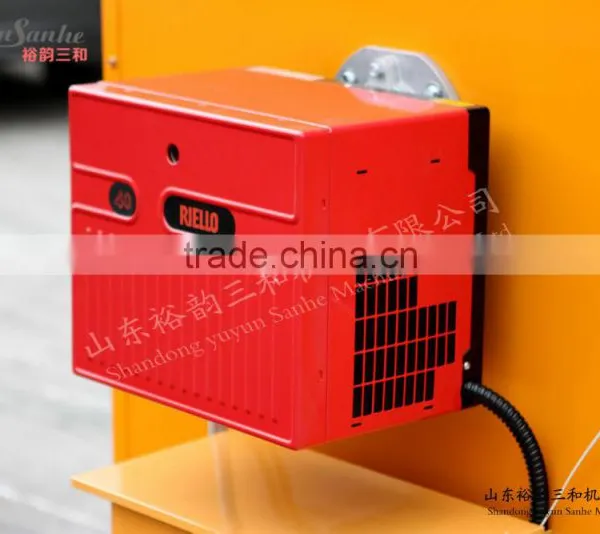

Equipped with Italy Origin Riello burner, achieve the auto-diesel supply, autoignition,automatically adjust the ratio between diesel and air; Work smoothly without smoke.All indexes meet the national class I areas environmental protection standards.

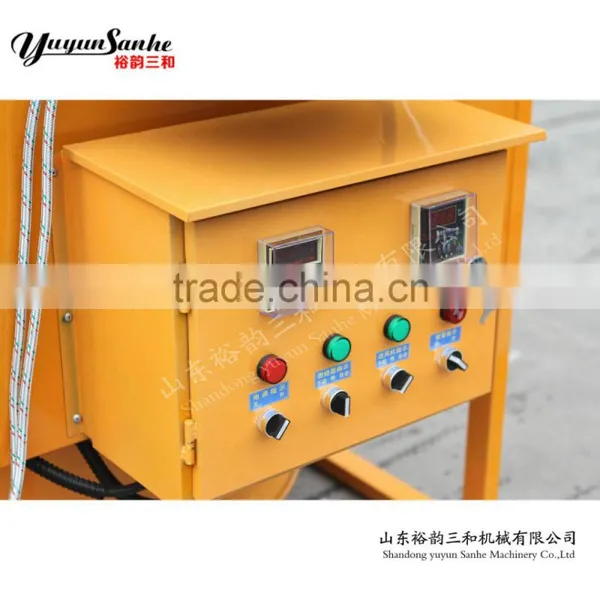

Sanhe Diesel heating machine is equipped with accurate Digital temperature control box, which operate the heater to start or stop work automatically by setup datas according to the Greenhouse temperature.

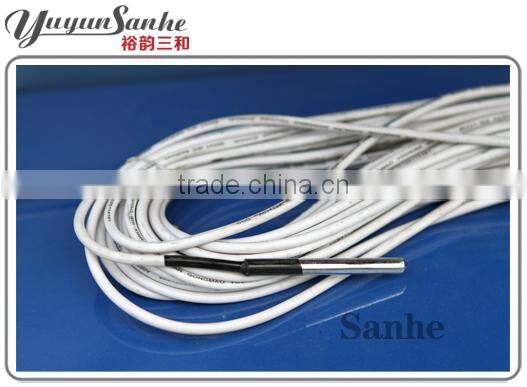

Sanhe heating machine are all equipped with 15m stainless steel water proof temperature sensor as per the request of Greenhouse. Which can make the accurate measurement even in the high temperature & humidity environment.

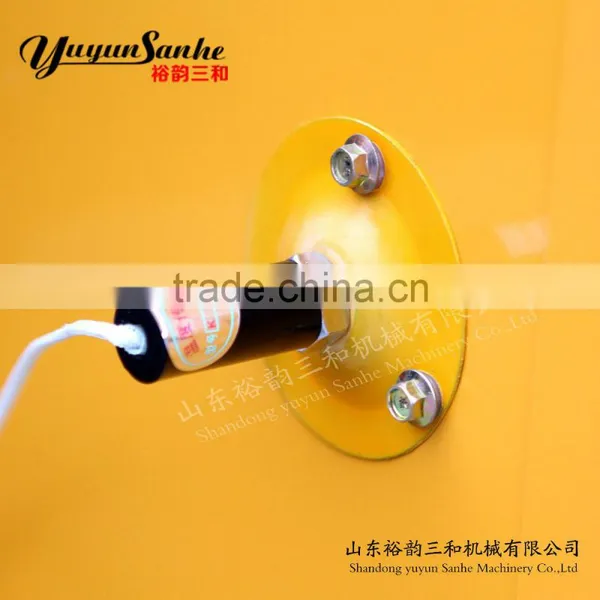

Sanhe heaters are all equipped with heat-resistant stainless steel detector,The Riello burner will stop diesel supply as soon as the detector feel that the furnace box is overheating.

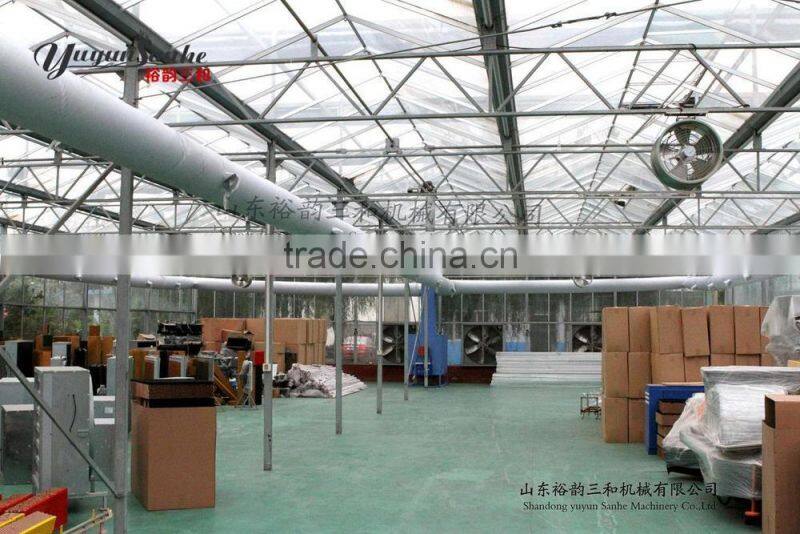

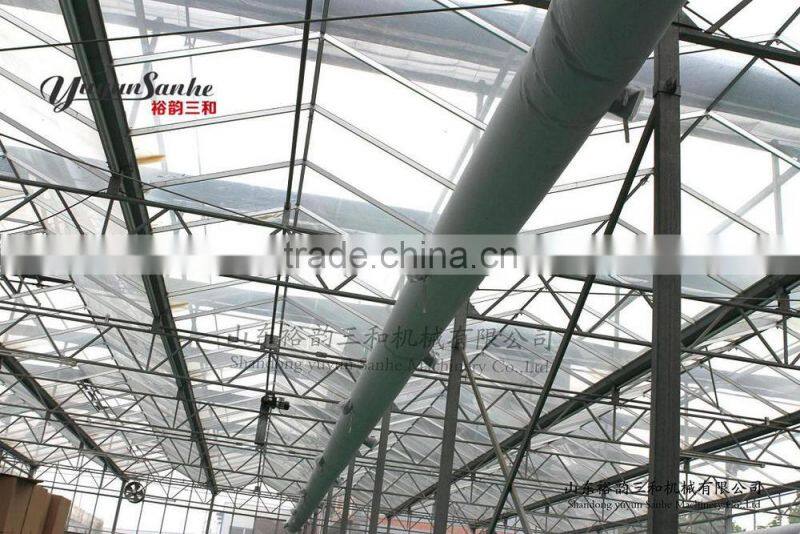

Sanhe heaters can be customized with different height of hot air supply pipe, commonly we suggest client to install it along with crossgirder. In this way, the air supply duct will not occupy ground space.

Sanhe heaters are equipped with exhaust fan in the bottom to draw the ground cold air into furnace and send out the hot air from the top outlet to warm the Greenhouse. This circular heating way achieve the best warming effciency.

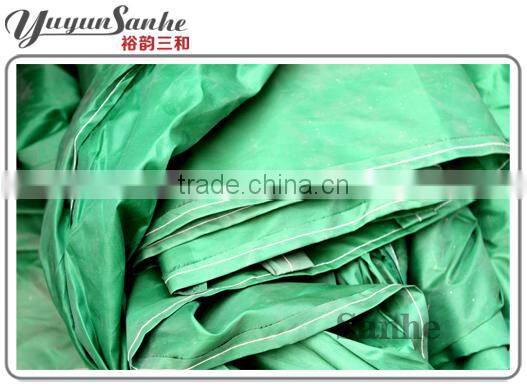

Sanhe heaters are all equipped with unitary air supply duct, easier installtion, fine operation and aesthetic outlook. The duct is made of high strength polyester material, which won’t have the weight-adding problem when its surface has drops of water.

Air supply outlet has ropes to adjust the its size.

Sanhe heaters are all equipped with stainless steel chimney, no rusting, which effectively extend its lifespan.

There are two colours for client’s choice:one is silver gray, another is green.

Technical Parameters

50000Kcal

100000Kcal

200000Kcal

Heat output power    kcal/h

50000 kcal/h

100000 kcal/h

200000 kcal/h

Heat efficiency  ≥%

≥90%

≥90%

≥90%

Fuel

                       Diesel oil

Diesel oil

Diesel oil

Consumption     kg/h

2-4.9 L/h

5-9.8 L/h

12-19.6 L/h

Way of control

Auto

Auto

Auto

Air flow   m³/h

5000 m³/h

5500 m³/h

7000 m³/h

Temperature rise °C

80-120 °C

80-120 °C

80-120 °C

Power Source  V/Hz

380V/50Hz

380V/50Hz

380V/50Hz

Electric power   kw

0.6Kw

1.0Kw

1.5Kw

Diameter of air outlet mm

400mm

400mm

400mm

Weight      kg

400Kg

600Kg

700Kg

Dimension

length×width×height  mm

1400×850×1370

1600×900×1400

1700×1000×1500

Material of frame

Galvanized +spray paint

Galvanized +spray paint

Galvanized +spray paint

Quality guarantee period

One year warranty lifelong service

One year warranty lifelong service

One year warranty lifelong service
