Home > Products > Heating machine---Fuel Oil > Auto Burning Oil Heater Machine For Poultry Farm

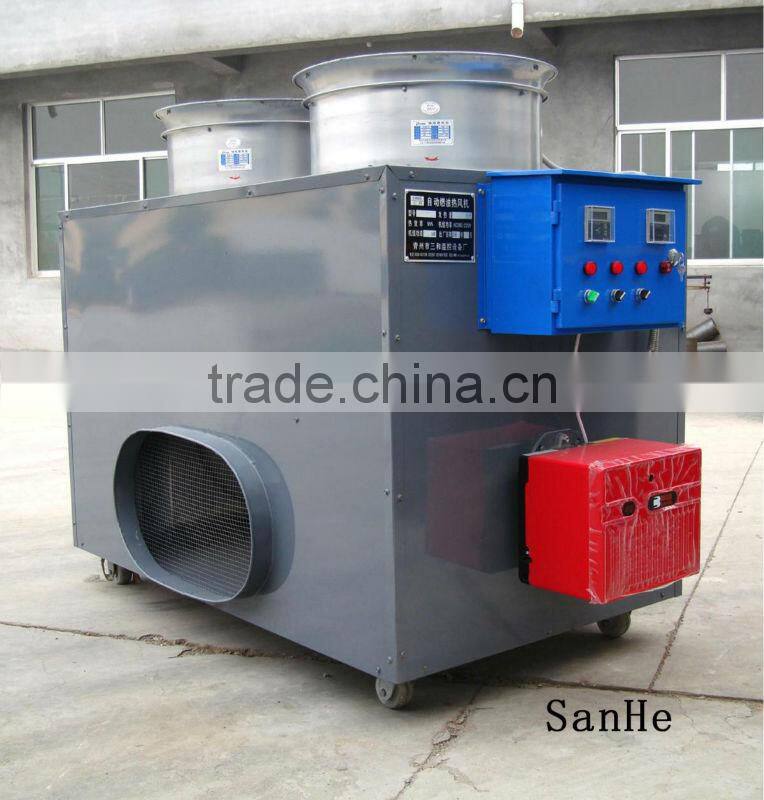

Auto Burning Oil Heater Machine For Poultry Farm

FOB Price

US$ 1,800 - 4,450 / Set

1 Set(Min. Order)

Port qingdao port
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Other, Air Heater, Air Heater
Power Source	Other, Diesel, Diesel	Place of Origin	Shandong, China
Brand Name	sanhe	Model Number	FSH
Dimension(LWH)	14008501370mm	Weight	400kg
Voltage	380/220v	Power(W)	50hz
Certification	CE certificate	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Auto Burning Oil Heater Machine For Poultry Farm

Specification:

1. Heating area: 300/600/1200 square meters.

2. Stainless steel combustion chamber,thermal conversion as high as 90%.

3. Stainless steel heat exchanger is made of 321(1Cr18NiTi) stainless steel plate,tube.

4. Double air input and output design.

5. Equipped with the word brand Riello burner.Automatic control system operate easily,warming quickly.After setting,burner would automatically start on,fir,supply air and stop for keeping steady temperature.Save large labor and financial resources.

6. Heat exchanger adopt the special three-pass design.

7. Special insulation design which minimize heat loss.

8. All the technical index meet the national environmental protection I standard.

Technical data:

Technical Parameters	50000Kcal	100000Kcal	200000Kcal
Heat output power kcal/h	50000 kcal/h	100000 kcal/h	200000 kcal/h
Heat efficiency ≥%	≥90%	≥90%	≥90%
Fuel	Diesel oil	Diesel oil	Diesel oil
Consumption kg/h	2-4.9 L/h	5-9.8 L/h	12-19.6 L/h
Way of control	Auto	Auto	Auto
Air flow m³/h	5000 m³/h	5500 m³/h	7000 m³/h
Temperature rise °C	80-120 °C	80-120 °C	80-120 °C
Power Source V/Hz	380V/50Hz	380V/50Hz	380V/50Hz
Electric power kw	0.6Kw	1.0Kw	1.5Kw
Diameter of air outlet mm	400mm	400mm	400mm
Weight kg	400Kg	600Kg	700Kg
Dimension length×width×height mm	1400×850×1370	1600×900×1400	1700×1000×1500
Material of frame	Galvanized +spray paint	Galvanized +spray paint	Galvanized +spray paint
Quality guarantee period	One year warranty lifelong service	One year warranty lifelong service	One year warranty lifelong service

Installation:
