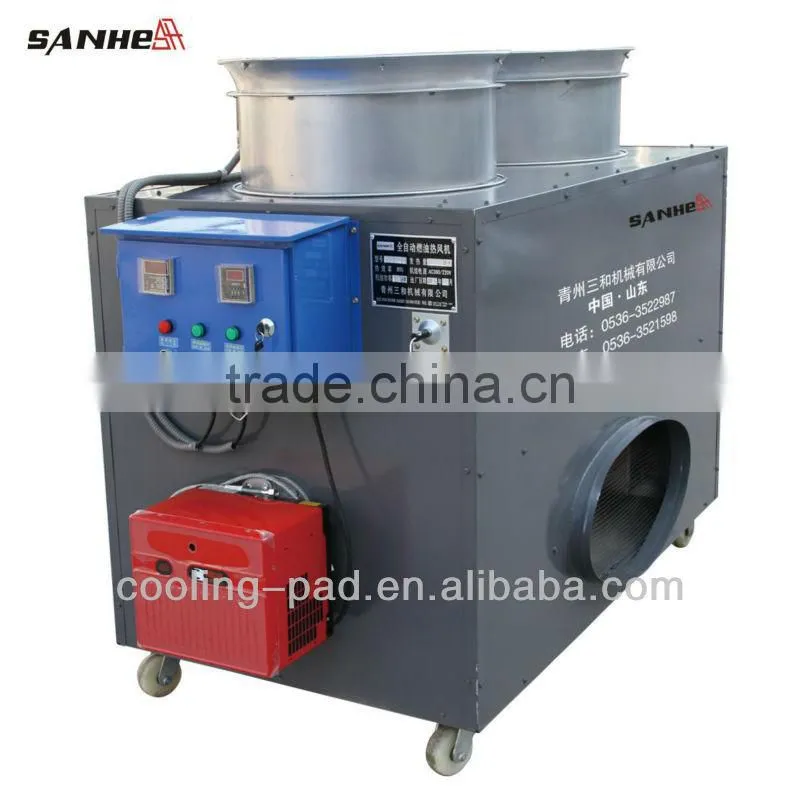

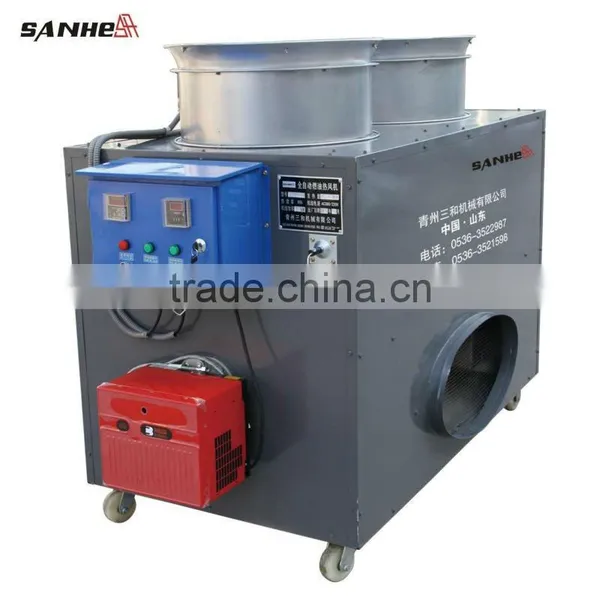

Help CenterDiesel Oil Heater for Greenhouse
Related Products
-
Auto Diesel Heater / Heater / Heating Machine / Hot Heater/poultry Equipment//air HeaterUS$ 10 - 20MOQ: 1 Piece -
Auto Burning Oil Heater Machine For Poultry FarmUS$ 1,800 - 4,450MOQ: 1 Set
-
Diesel Burning Air Heater Machine For Poultry ShedUS$ 1,800 - 5,500MOQ: 1 Set
-
Diesel Kerosene Oil Air Heater for Greenhouse and Chicken HouseUS$ 2,000 - 2,700MOQ: 1 Set
-
Yuyun Sanhe Automatic Oil-burning Heater / Heating Machine / Hot Blast Stove With Riello BurnerUS$ 2,249 - 2,419MOQ: 1 Set
Specifications
1. Double air inlet and double air outlet design2. Widely used in the greenhouse.
Features:
Heating area: 300/600/1200 square meters.
The combustion chamber is made of stainless steel.
Its thermal conversion reaches as high as 90%.
Equipped with Riello brand burner,When set needed temperature, it will automatically start on , fire up, heat up, supply air and stop to keep constant temperature.
The heat exchanger uses the three-pass design.
Our unique furnace thermal protection and insulation system can minimize heat loss.
Pro-nvironment, cost saving.
Working principle:
Get through electricity or diesel oil. Set the temperature that you want to reach.
The exhaust fan on the top exhaust cold air in the house, Through heat, the hot air is released through the two outlets on the bottom.Recyle like this.The temperature reach stated one.
Other technical parameters:
Model |
FSH-5 |
FSH-10 |
FSH-20 |
Heat output power kcal/h |
50000 kcal/h |
100000 kcal/h |
200000 kcal/h |
Heat efficiency ≥% |
≥90% |
≥90% |
≥90% |
Fuel |
Diesel oil |
Diesel oil |
Diesel oil |
Consumption kg/h |
2-4.9 L/h |
5-9.8 L/h |
12-19.6 L/h |
Way of control |
Auto |
Auto |
Auto |
Air flow m³/h |
5000 m³/h |
5500 m³/h |
7000 m³/h |
Temperature rise °C |
80-120 °C |
80-120 °C |
80-120 °C |
Power Source V/Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
Electric power kw |
0.6Kw |
1.0Kw |
1.5Kw |
Diameter of air outlet mm |
400mm |
400mm |
400mm |
Weight kg |
400Kg |
600Kg |
700Kg |
|
Dimension length×width×height mm |
1400×850×1370 |
1600×900×1400 |
1700×1000×1500 |
Material of frame |
Galvanized +spray paint |
Galvanized +spray paint |
Galvanized +spray paint |
Quality guarantee period |
One year warranty lifelong service |
One year warranty lifelong service |
One year warranty lifelong service |
Remarks: Because product improvement, various parameters are subject to our final confirmation.
We are the manufacturer and exporter in the market for many years, with CE, ISO9001, CCC certification etc. Hope to estiblish honest business relationship.
