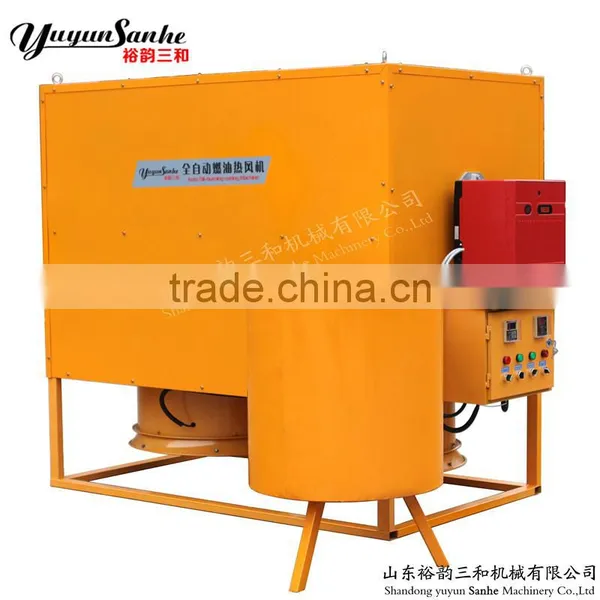

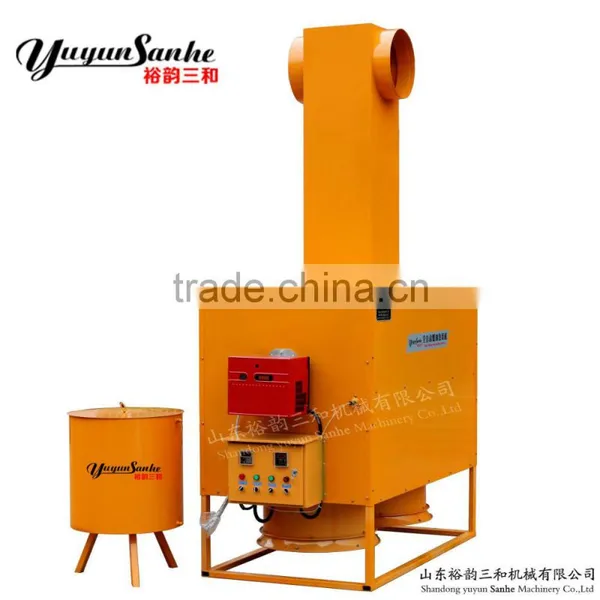

Sanhe auto oil-burning air heater is widely applied to greenhouse,poultry farm,livestock house,mining and factory buildings,also used in drying wood,tea,medicine,foodstuff and other fields.
- Heating area: 300/600/1200 square meters.
- Stainless steel combustion chamber, thermal conversion as high as 90%
- Stainless steel exchanger is made of 321 (1Cr18Ni9Ti) stainless steel plate, tube.
- Double air input and output design.

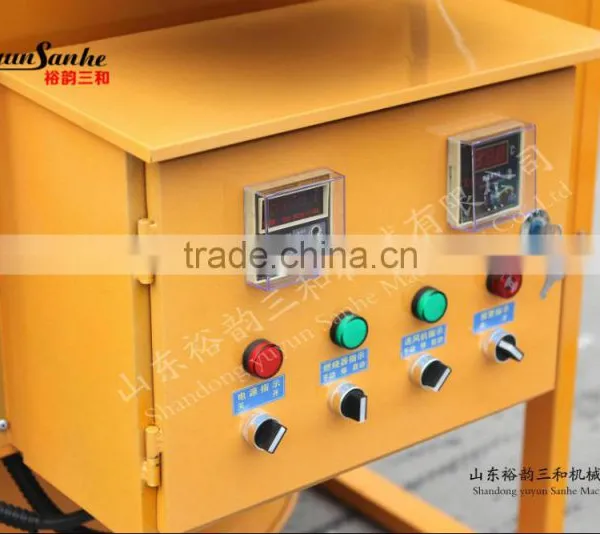

- Equipped with the world brand Riello burner. Automatic control system operate easily, warming quickly. After setting, burner would automatically start on, fire, supply air and stop for keeping steady temperature. Save large labor and financial resources.
- Heater exchanger adopt the special three-pass design.
- Special insulation design which minimize heat loss.
- All the technical index meet the national environmental protectionⅠstandard.
Technical Parameter:
Technical Parameters |
50000Kcal |
100000Kcal |
200000Kcal |
Heat output power kcal/h |
50000 kcal/h |
100000 kcal/h |
200000 kcal/h |
Heat efficiency ≥% |
≥90% |
≥90% |
≥90% |
Fuel |
Diesel oil |
Diesel oil |
Diesel oil |
Consumption kg/h |
2-4.9 L/h |
5-9.8 L/h |
12-19.6 L/h |
Way of control |
Auto |
Auto |
Auto |
Air flow m³/h |
5000 m³/h |
5500 m³/h |
7000 m³/h |
Temperature rise °C |
80-120 °C |
80-120 °C |
80-120 °C |
Power Source V/Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
Electric power kw |
0.6Kw |
1.0Kw |
1.5Kw |
Diameter of air outlet mm |
400mm |
400mm |
400mm |
Weight kg |
400Kg |
600Kg |
700Kg |
|
Dimension length×width×height mm |
1400×850×1370 |
1600×900×1400 |
1700×1000×1500 |
Material of frame |
Galvanized +spray paint |
Galvanized +spray paint |
Galvanized +spray paint |
Quality guarantee period |
One year warranty lifelong service |
One year warranty lifelong service |
One year warranty lifelong service |

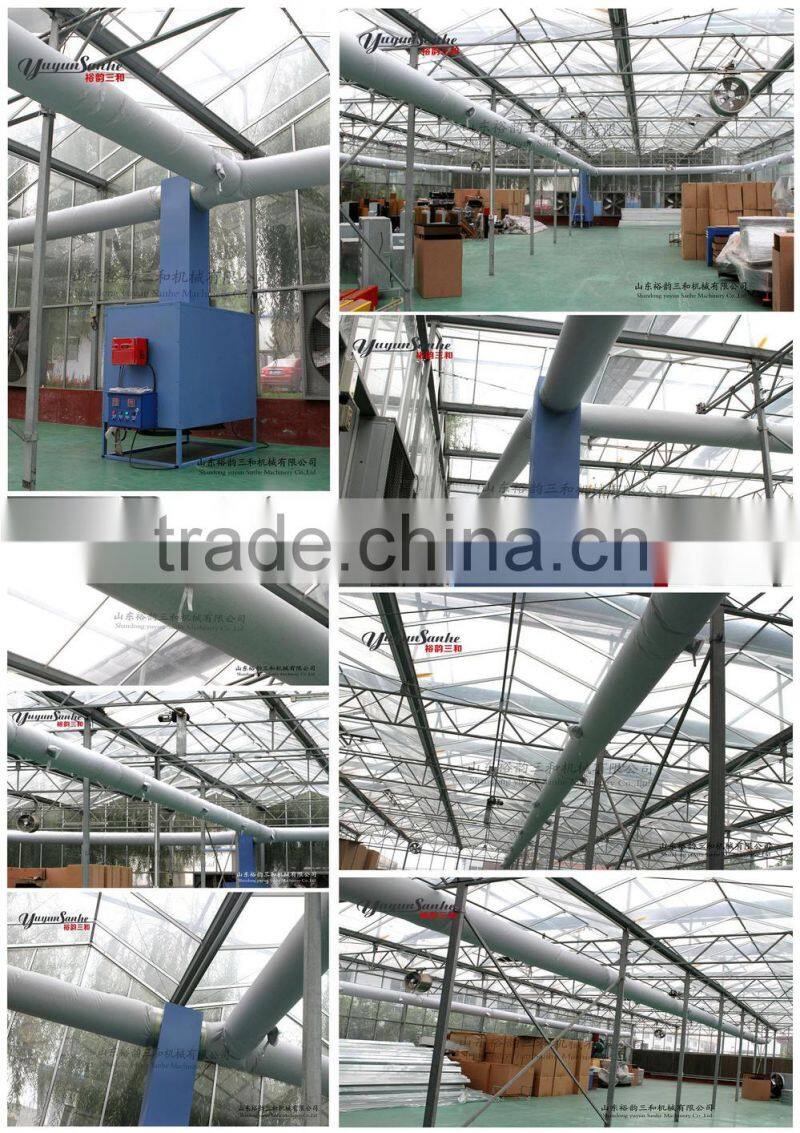

Application diagram

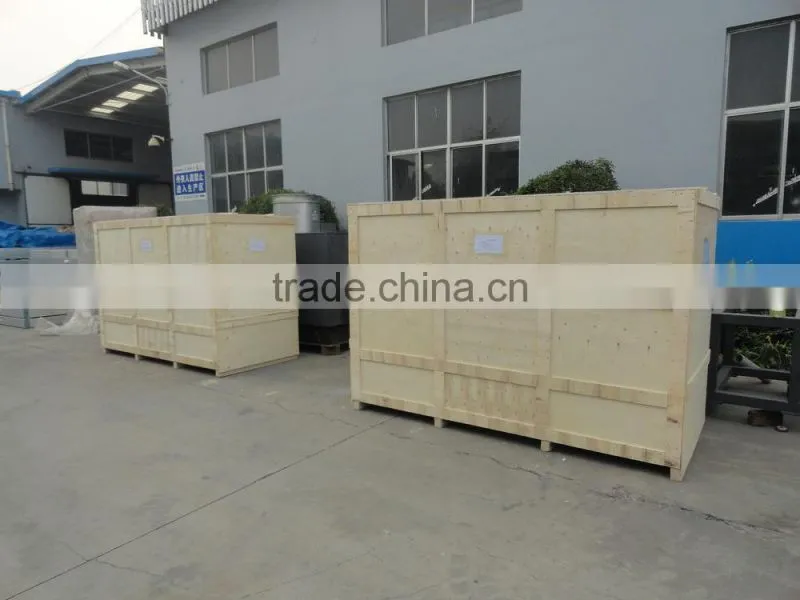

1. LCL Packing condition:

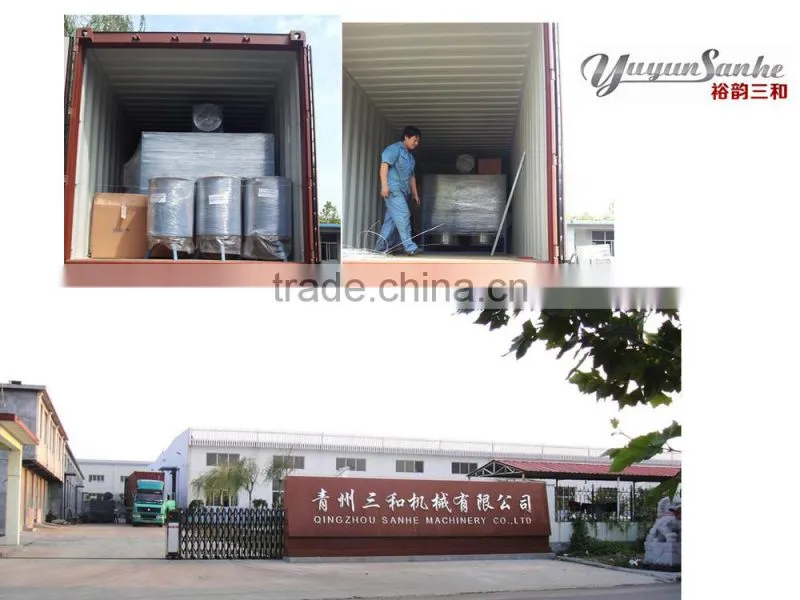

2. Full container packing condition:

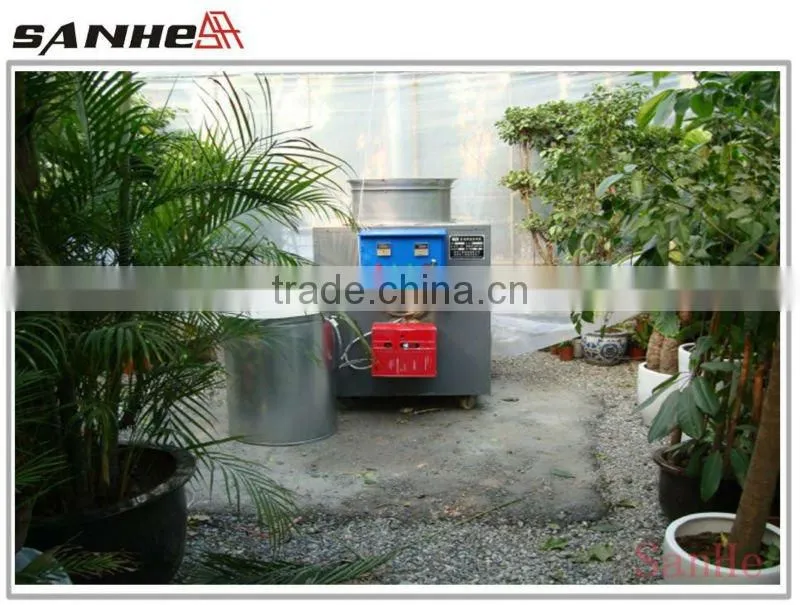

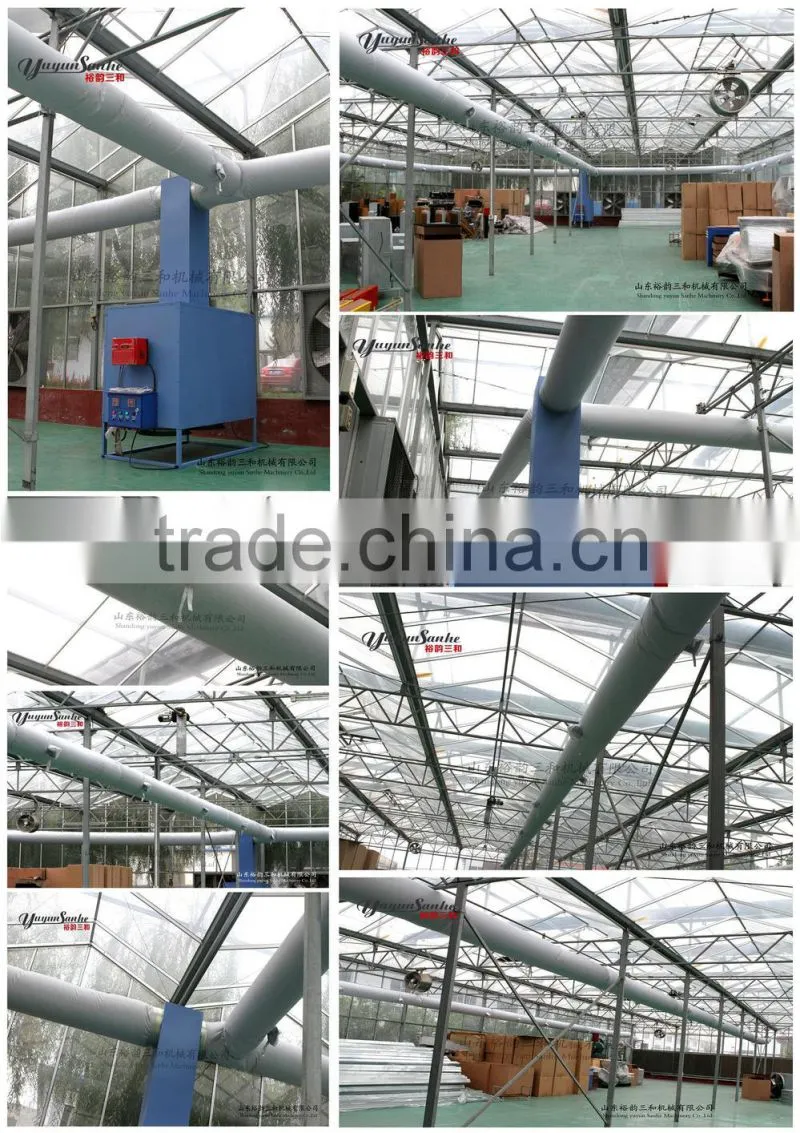

Installation site: Installation of oil-burning heating machine
Shandong Yuyun Sanhe Machinery Co.,Ltd. (Qingzhou Sanhe Machinery Co.,Ltd.) is a company combined manufacture & exporting into together. We have been in the market for about 20 years. We own a complete line to produce exhaust fan, cooling pads, heating machine, light trap, air inlet,etc.
Our company is located in Qingzhou city, Shandong Province, China. The nearest loading port is QINGDAO port.
1. Payment term:
EX-WORK or FOB QINGDAO or CIF
2. Payment way:
T/T or IRREVOCABLE L/C AT SIGHT.
3. Products personal logo:
Can be customized.
4. Guarantee period:
1 year.
