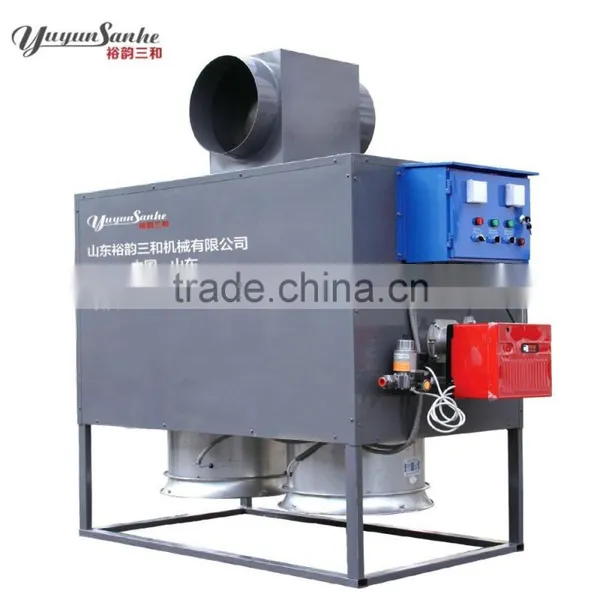

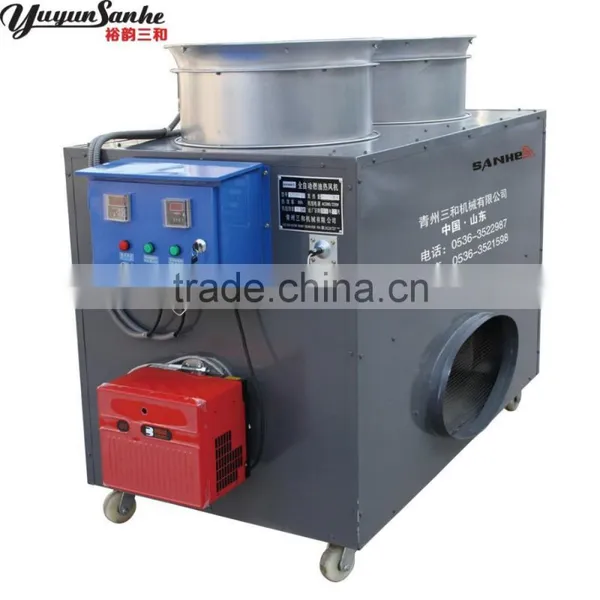

Livestock Breeding Farm Heating System Diesel Oil Fuel Air Heater With CE Certificate

Livestock Breeding Farm Heating System Diesel Oil Fuel Air Heater With CE Certificate photo-1
Livestock Breeding Farm Heating System Diesel Oil Fuel Air Heater With CE Certificate photo-2
Livestock Breeding Farm Heating System Diesel Oil Fuel Air Heater With CE Certificate photo-3
US$ 1,750 - 4,399 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Yuyun Sanhe
Model Number:
FSH-5/10/20
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name Yuyun Sanhe
Model Number FSH-5/10/20

    livestock breeding farm heating system diesel oil fuel air heater with CE certificate



Application



It’s widely used in livestock farm,poultry house to get warm or in  industry such as  textile, sock/clothes making workshop or other kind of factory to get warm and it is also used as dryer for drying wood, tea, medicine, foodstuff etc.



Details of the product



1. Heating area: 300/600/1200 square meters.

2. The combustion chamber is made of stainless steel.

3. Its thermal conversion reaches as high as 90%.

4. Equipped with Riello brand burner, when needed temperature is set, it will automatically start on, fire up, heat up, supply air and stop to keep constant temperature.

5. The heat exchanger uses the three-pass design.

6. Our unique furnace thermal protection and insulation system can minimize heat loss.

7. Pro-environment, cost saving.



 Technical Parameter of diesel Iivestock farm heater



Technical Parameters

FSH-5

FSH-10

FSH-20

Heat output power    kcal/h

50000 kcal/h

100000 kcal/h

200000 kcal/h

Heat efficiency  ≥%

≥90%

≥90%

≥90%

Fuel

Diesel oil

Diesel oil

Diesel oil

Consumption     kg/h

2-4.9 L/h

5-9.8 L/h

12-19.6 L/h

Way of control

Auto

Auto

Auto

Air flow   m³/h

5000 m³/h

5500 m³/h

7000 m³/h

Temperature rise °C

80-120 °C

80-120 °C

80-120 °C

Power Source  V/Hz

380V/50Hz

380V/50Hz

380V/50Hz

Electric power   kw

0.6Kw

1.0Kw

1.5Kw

Diameter of air outlet mm

400mm

400mm

400mm

Weight     kg

400Kg

600Kg

700Kg

Dimension

1400×850×1370

1600×900×1400

1700×1000×1500

length×width×height  mm

Material of frame

Galvanized +spray paint

Galvanized +spray paint

Galvanized +spray paint





livestock breeding farm heating system diesel oil fuel air heater with CE certificate

Company Information

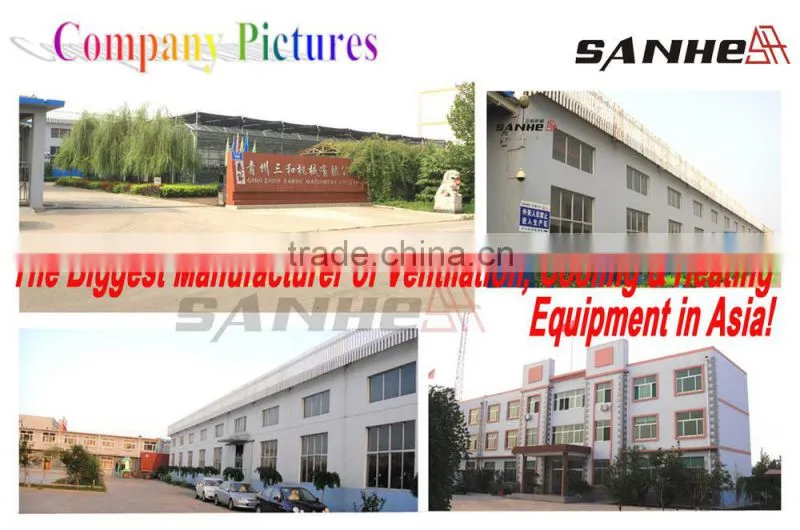

Shandong Yuyun Sanhe Machinery Co.,ltd, located in Qingzhou City, Shandong Province, China and established in 1999, is a professional manufacturer of ventilation and cooling system, humidufication an heating equipment in Asia. It is also a high-tech enterprise which has a completed set of specialized manufacturing, installation, sales and after-sale service.



In present, our products contain 60 series totally over 200 varieties of specifications, such as poultry fan, negative pressure fan, exhaust fan, gardening fan, circulation fan, cooling pad, automatic coal-burning heater, oil-burning heater, gas-burning heater, electrical heater, drier and so on, which are widely used in agriculture and industrial field and applicable to animal husbandry, poultry house, livestock breeding, flowers and plants, greenhouse, factory workshop, textile, chemical, medicine, tea, vegetable storage and supermarket.



Nowadays, we have set up more than 200 sales branches in more than 20 provinces in China, and our products have been exported to more than 50 countries in Asia, Europe, Middle East, South Africa, America, Australia and won high reputation.
