Cheap Automatic Field Wire Mesh Guard Fence Making Machine

Cheap Automatic Field Wire Mesh Guard Fence Making Machine thumbnail-1
Cheap Automatic Field Wire Mesh Guard Fence Making Machine thumbnail-2
Cheap Automatic Field Wire Mesh Guard Fence Making Machine thumbnail-3
Cheap Automatic Field Wire Mesh Guard Fence Making Machine thumbnail-4
Cheap Automatic Field Wire Mesh Guard Fence Making Machine thumbnail-5
Cheap Automatic Field Wire Mesh Guard Fence Making Machine thumbnail-6
Cheap Automatic Field Wire Mesh Guard Fence Making Machine photo-1
Cheap Automatic Field Wire Mesh Guard Fence Making Machine photo-2
Cheap Automatic Field Wire Mesh Guard Fence Making Machine photo-3
Cheap Automatic Field Wire Mesh Guard Fence Making Machine photo-4
Cheap Automatic Field Wire Mesh Guard Fence Making Machine photo-5
Cheap Automatic Field Wire Mesh Guard Fence Making Machine photo-6
US$ 10,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
HT
Model Number:
HT7-239747721
Contact Supplier Request Quote Chat Now
Anping County Haotian Hardware Wire Mesh Products Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name HT
Model Number HT7-239747721
After-sales Service Provided Engineers available to service machinery overseas

cheap automatic field wire mesh guard fence making machine

Product Description

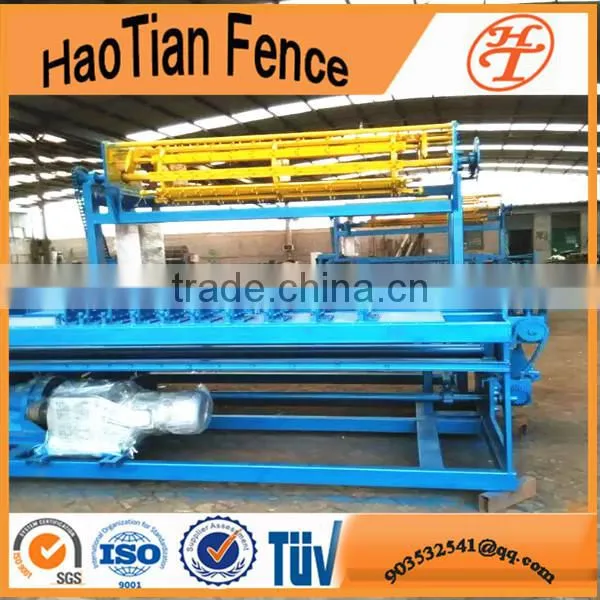

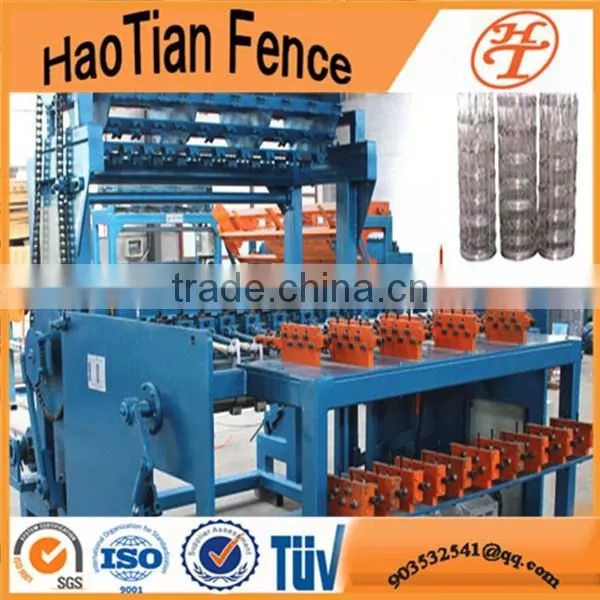

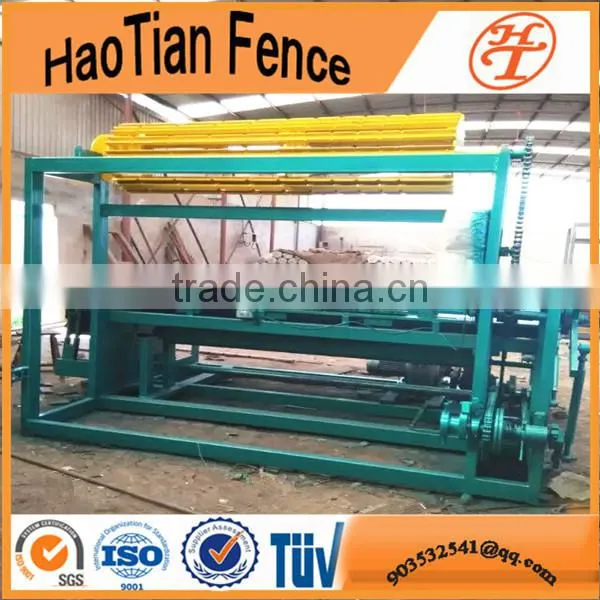

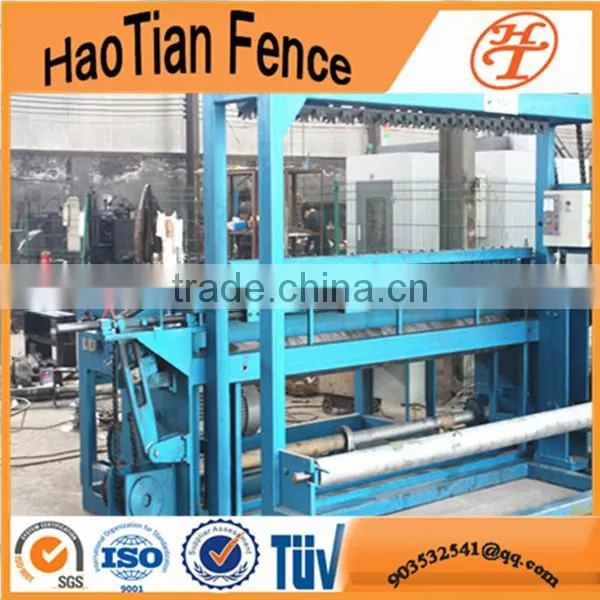

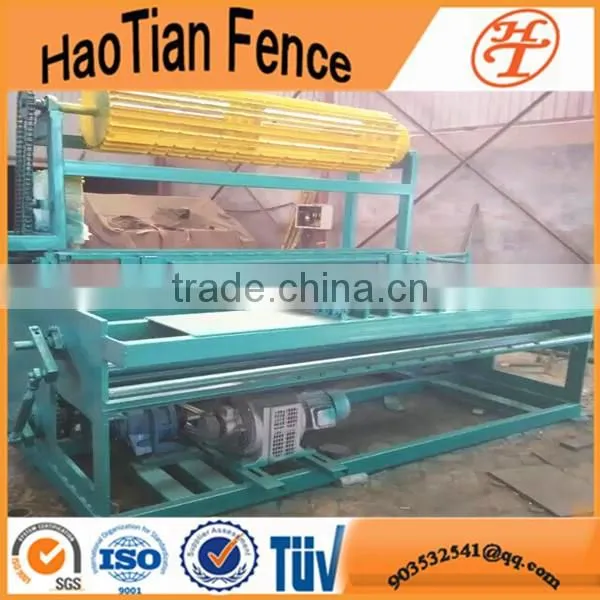

1.cheap automatic field wire mesh guard fence making machine is used to weave wrap-around fence. It can weave the diameter wire and weft wire together automatically. We have spent a lot of time to develop it which has independent intellectual property rights, self-made.



It uses sophisticated computer control, advanced production technology. With novelty, high degree of automation, operational safety and reliability, easy operation, long life. The machine controlled automatically by NC . All parts work coordinately and smoothly .It is operated flexibly and inexpensive.Products are neat and beautiful, diverse specifications.



2.Parameter of the  2015 hot sale cheap automatic field fence machine



Type

1422mm

1880mm

2000mm

2400mm

motor

5.5kw

7.5kw

7.5kw

11kw

Dimension

2.8*3.2*2.4(m)

3.3*3.2*2.4(m)

3.4*3.2*2.4(m)

3.9*3.4*2.4(m)

Efficiency

≤45row/min

≤45row/min

≤45row/min

≤45row/min

Twine diameter

1.9-2.5(mm)

1.9-2.5(mm)

1.9-2.5(mm)

1.9-2.5(mm)

Side wire diameter

2.0-3.5(mm)

2.0-3.5(mm)

2.0-3.5(mm)

2.0-3.5(mm)

Voltage

380v

380v

380v

380v

Weight

3.5T

3.8T

4.0T

4.5T

Wrap number

11

13

18

23

Minimum weft opening number

2

4

4

6

Weft number

10

12

17

22





cheap automatic field wire mesh guard fence making machinecheap automatic field wire mesh guard fence making machine

cheap automatic field wire mesh guard fence making machine

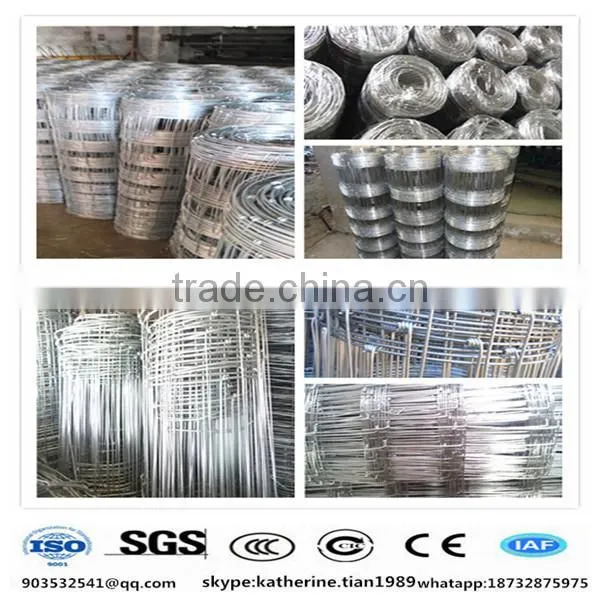

3.cheap galvanzied field fence

Field fence also named as Grassland Fence,farm fence,cattle fence,hinge joint field fence.

Field fence Specifications:



Code

Style

Specification

Total

weight(kg)

Edge Wire

Dia.(mm)

Inner Wire

Dia.(mm)

SY001

7/150/813/50

102+114+127+140+152+178

20.8

2.5

2.0

SY002

8/150/813/50

89(75)+89+102+114+127+140+152

20.8

2.5

2.0

SY003

8/150/902/50

89+102+114+127+140+152+178+203

21.6

2.5

2.0

SY004

8/150/1016/50

102+114+127+140+152+178+203

22.6

2.5

2.0

SY005

8/150/1143/50

114+127+140+152+178+203+229

23.6

2.5

2.0

SY006

9/150/991/50

89(75)+89+102+114+127+140+152+178

23.9

2.5

2.0

SY007

10/150/1245/50

102+114+127+140+152+178+203+229

26

2.5

2.0

SY008

10/150/1194/50

89(75)+89+102+114+127+140+152+178+203

27.3

2.5

2.0

SY009

10/150/1334/50

89+102+114+127+140+152+178+203+229

28.4

2.5

2.0

SY010

10/150/1442/50

89(75)

+89+102+114+127+140+152+178+203+229

30.8

2.5

2.0





Farm fence Material: low carbon electro galvanized wire, low carbon hot dipped galvanized iron wire, high carbon hot dipped galvanized wire, high strength galvanized steel wire.

Field fence Zinc coating: normally 60-100g per square meter, max 230-240g per square

Farm fence Tensile strength: horicontal wire: 80-90kgs mm2, vertical wire: 40-50 kgsmm2

Farm fence type of vertical wire: folded and straight

Farm fence diameter: 1.8-2.5mm(, inner wire ), 1.8-3.5mm( outer wire)

Field fence height: 0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.5m,1.8m,2m,2.4m;
Field fence length: 165 inch (50m) or 330 inch (100m)



cheap automatic field wire mesh guard fence making machine




Packaging & Shipping
plastic package in the container. After-sales service: We offer installation and train the workers for the customers. Our guarantee time: one year since the machine was installed at buyer's factory but within 18 months against B/L date
cheap automatic field wire mesh guard fence making machine
Our Services

 cheap automatic field wire mesh guard fence making machine



Company Information

 cheap automatic field wire mesh guard fence making machine

cheap automatic field wire mesh guard fence making machine

FAQ

 By T/T.30% Deposit in advancement, the balance against the payment of B/L.
