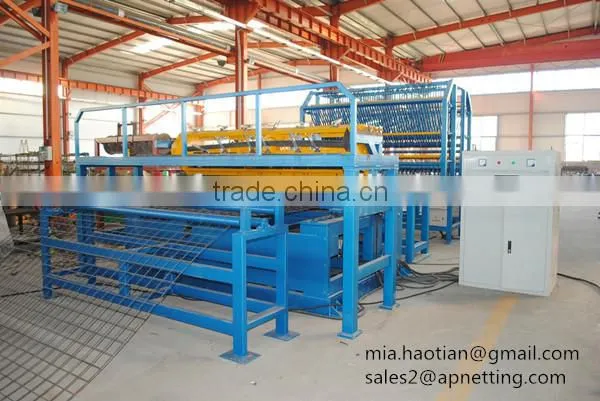

Welded steel wire rod mesh panel making machine auto mesh welding machinery
Characteristics of Steel Wire Rod Mesh Making Mashine:
1. The resistance machine adopts synchronous control technique, both welding times and seperate welding are controlled by digital PLC system with touch screen. So that the operation is much more intelliget, reasonable and has a compression, sub-welding characteristics.
2. The power system choices include pneumatic type and machinery type. The pneumatic welding power is from servo motor, welding speed is much faster and more stable.
3. Welding pressure is provided by Nitrogen gas spring, which is easy to adjust quickly, and the pressure is more evenly.
4. Line wires from the feeder and cross wire are from coils. CNC sets mesh length, automatic cutting, dropping, arresting and output, which maximized saves labor and greatly increased production.
Machine application of Steel Wire Rod Net Making Machine: Road, bridge, mine timbering wire mesh, construction mesh, reinforced mesh.
Main Parameter of Steel Wire Rod Netting Making Machine:
Wire diameter |
6.0-14.0mm |
Line wire form |
pre-cut |
Weft wire distance |
>/=50mm |
Weft wire form |
pre-cut |
Line wire distance |
50-200mm |
Rated voltage |
AC380V |
Welding net width |
2500mm(customized) |
Rated power |
150KVA×13 |
Welding speed |
20-80times/min |
Overall dimension |
2400*8000*2600mm |
Welding No. |
26 |
Length wire net |
adjustable |
Packaging and transport of Steel Wire Rod Mesh Making Machine:
Pack the machine parts in wooden boxes, then put those boxes into container and arrange the sea freight transportation to your nearest port.
For more details, please feel free to contact us. Look forward to your early inquiry.
