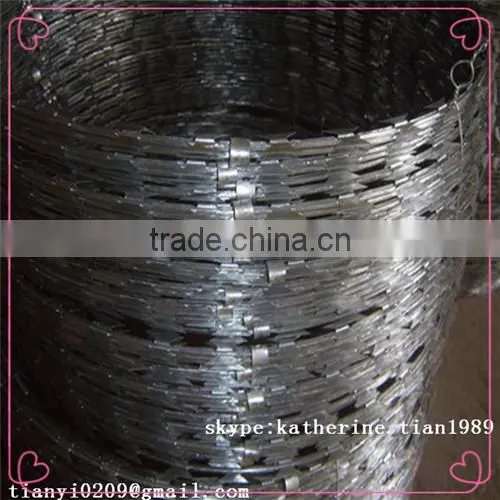

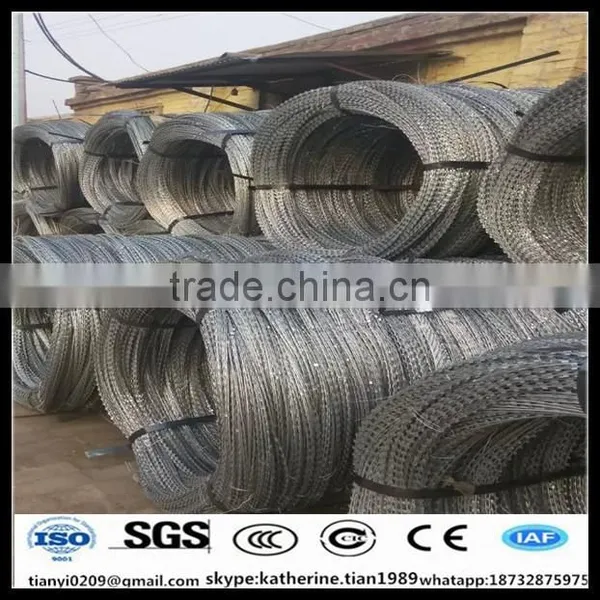

Hot dipped galvanized Concertina Razor barb wire with sharp blade for high security
Hot dipped galvanize Concertina Razor barb wire with sharp blade for high security

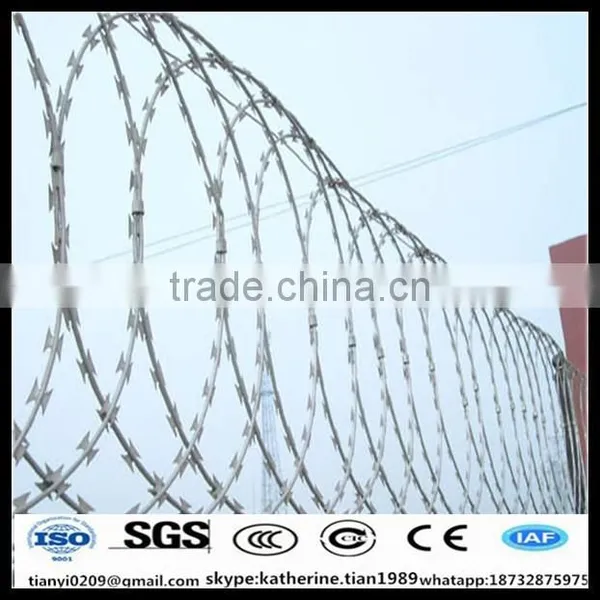

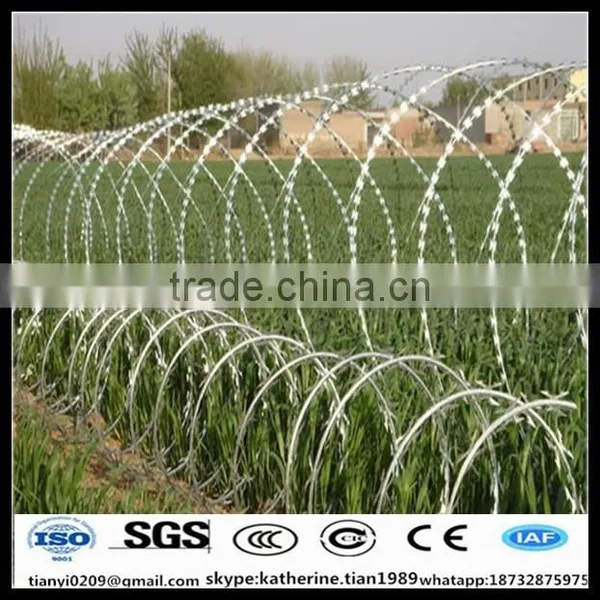

We produce all kinds of high-quality hot dipped galvanize Concertina Razor barb wire with sharp blade . It's used as an engineering construction of temporary or permanent nature of the installation on the ground or on already existing fence. Due to the substantial effect of cutting and springy properties of perimeter, the spiral is a formidable physical barrier.
1.Sorts of Hot dipped galvanized Concertina Razor barb wire with sharp blade for high security
:
1. Single loop razor wire
2. Concertina razor wire
3. Welded razor wire (razor mesh)
4. Flat razor wire
2. Regular size for Hot dipped galvanized Concertina Razor barb wire with sharp blade for high security:
Cover length: 7m, 8m, 10m, 12m, 15m or customize
Out diameter: 450mm, 500mm, 600mm, 730mm, 800mm, 980mm or customize
Blade style: BTO-10, 12, 18, 22, 30 CBT-65
Material:low carbon iron wire,PVC coated iron wire in yellow,green,blue,etc and stainless steel wire
Weaving and characteristics:twist and weaving,firm and beautiful
Classifications:Galvanized barbed wire,PVC coated barbed wire and stainless steel barbed wire.
3. Hot dipped galvanized Concertina Razor barb wire with sharp blade for high security specification
| single loop razor barbed wire(single coil) | ||||
Out diameter |
NO. of loops |
Standard cover length |
Blade Style |
Remark |
450mm |
33 |
7-8M |
CBT-60.65 |
Single coil |
500mm |
56 |
12-13M |
CBT-60.65 |
Single coil |
700mm |
56 |
13-14M |
CBT-60.65 |
Single coil |
960mm |
56 |
14-15M |
CBT-60.65 |
Single coil |
Cross type razor barbed wire(double loops) | ||||
450mm |
56 |
8-9M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
500mm |
56 |
9-10M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Crosstype |
600mm |
56 |
10-11M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
600mm |
56 |
8-10M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
700mm |
56 |
10-12M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
800mm |
56 |
11-13M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
900mm |
56 |
12-14M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
960mm |
56 |
13-15M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
980mm |
56 |
14-16M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
Hot dipped galvanized Concertina Razor barb wire with sharp blade for high security type specication
Reference Number |
Blade Style |
Thickness |
Wire Dia |
Barb |
Barb |
Barb |
BTO-10 |
0.5±0.05 |
2.5±0.1 |
10±1 |
13±1 |
26±1 |
|
BTO-12 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
|
BTO-18 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
|
BTO-22 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
|
BTO-28 |
0.5±0.05 |
2.5 |
28 |
15 |
45±1 |
|
BTO-30 |
0.5±0.05 |
2.5 |
30 |
18 |
45±1 |
|
CBT-60 |
0.6±0.05 |
2.5±0.1 |
60±2 |
32±1 |
100±2 |
|
CBT-65 |
0.6±0.05 |
2.5±0.1 |
65±2 |
21 |
Concertina Razor barb wire with sharp blade for high security Powder COATED RAZOR WIRE:
Here is our hot sell of hot dipped galvanized razor barb wire BTO-22 Information:
Hot Dipped Galvanized Razor Barb Wire (BTO-22) |
Customer request |
Barb/blade length - |
22 +/- 1 mm |
Barb/blade thickness - |
0,5 +/- 0,05 |
Barb width - |
15 +/- 1mm |
Barb spacing - |
34 +/- 1mm |
Wire diameter - |
2,5 +/-0,1mm |
Wire material - |
Steel |
Zinced surface - |
Hot dipped galvanized |
Coil Diamter 900mm | |
Weight of coil- |
20 kg |
Number of loops- |
56 loops |
The utmost effective length - |
15 m |
Package |
Carton box and pallet |
Trade Terms |
FOB Price |
Price for one coil |
18.76USD |
NOTE: Other BTO Types and CBT types razor wire is also available.
Packing: inner with water-proof paper and outer with woven bags; or in cartons, or as customers' requirements
Haotian Hardware Wire Mesh Company Advantage :
1.Anping factory price- the biggest wire mesh hometown in China
2.Over dozen years experience& SGS certifications
3.Professional staffs work for you all the time
4.We believe : Integrity comes with innovation and we will make ideas happen!
PLS TELL US THE FOLLOWING INFORMATION:
1.No of loops
2.Blade type
ver length
4. finish
5.No of clips
