Help CenterStainless Steel Concertina Razor Blade Barbed Wire
Related Products
-
Y Type Airport Fence With Razor Barbed WireUS$ 750 - 950MOQ: 3 Tons -
Anping Haotian 20 Years Produce Superior Quanlity Barbed Razor WireUS$ 750 - 950MOQ: 3 Tons
-
ISO9001 Factory of Military/prison Grade Barbed Razor Wire (standard)US$ 650 - 800MOQ: 6 Tons
-
High Quality PVC-coated Razor Wire Mesh Pvc Razor Barbed Wire FencingUS$ 580 - 650MOQ: 1 Ton
-
Painting Concertina Wire Razor Barbed Wire MeshUS$ 580 - 690MOQ: 1 Ton

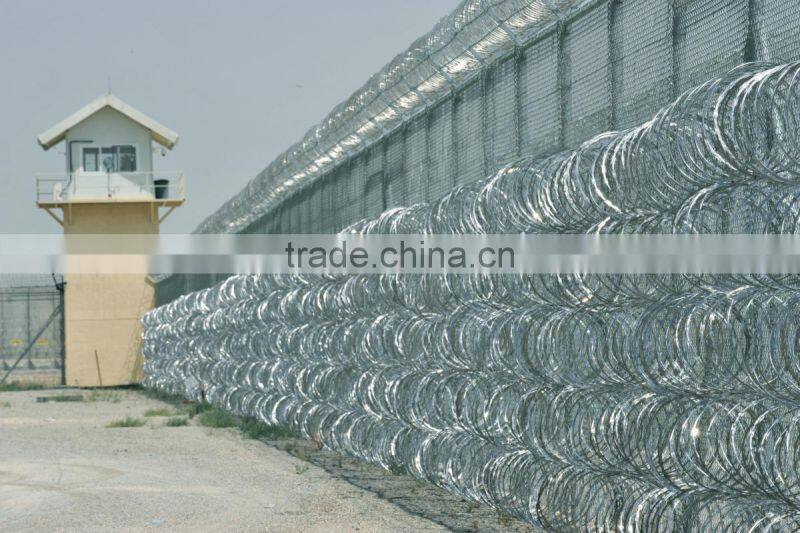

Haotian's razor barbed wire is widely used in military affairs, prison, government, bank, and also in living wall, personal house, villatic wall, window, autobahn, railway and border of the fence
Razor wire material : low carbon steel wire, stainless steel wire ,
iron wire, galvanized steel wire PVC iron wire
2.Reference No.: BTO-22 concertina
Wire Dia.: 2.5 mm +/- 0.1
Thickness (razor blade): 0.5 mm +/- 0.05
Barb length (razor blade): 22 mm +/- 1
Barb width (razor blade): 15 mm +/- 1
Barb spacing (razor blade): 34 mm+/- 1
BTO-22 Concertina specification:
Outside diameter: 450mm-900mm
No. Of loops: 36 -102loops
Stander length per coil: 9 V 10M (5 clips)
Note: single coil,crossed type
3.Package:
Option One: waterproof paper inside, plastic woven bag outside
Option Two: carton packing
Barbed Tape Wire Specification | ||||
Loop Outside Diameter |
No. of Loops |
Standard Length per Coil |
Type |
Notes |
450mm |
33 |
7-8M |
CBT-60.65 |
Single coil |
500mm |
56 |
12-13M |
CBT-60.65 |
Single coil |
700mm |
56 |
13-14M |
CBT-60.65 |
Single coil |
960mm |
56 |
14-15M |
CBT-60.65 |
Single coil |
450mm |
56 |
8-9m(3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
500mm |
56 |
9-10M (3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
600mm |
56 |
10-11M(3 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
600mm |
56 |
8-10M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
700mm |
56 |
10-12M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
800mm |
56 |
11-13M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
900mm |
56 |
12-14M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
960mm |
56 |
13-15M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
980mm |
56 |
14-16M (5 CLIPS) |
BTO-10.12.18.22.28.30 |
Cross type |
