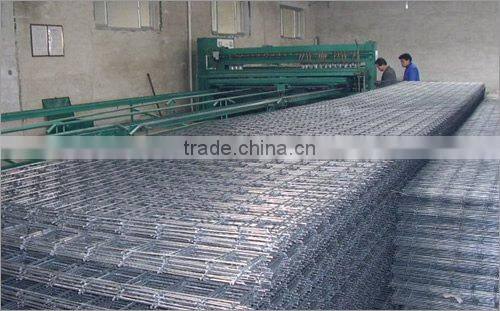

Help CenterWelded Mesh Panel Machine
Related Products
Specifications
Welded Mesh Panel MachineDiagonal truss: 100 per Sq.Mtr.
Dimension:13500X1800X1700mm
Machine Weight: 4000Kg
..............
Hebei Jinshi Industrial Metal Co.,Ltd. can product kinds of Wire Mesh Panel Machine.
Here are the details of Wire Mesh Panel Machine:
The automatic production line of three-dimensional welded wire mesh panel, adopts touching screen control system .
The power is pneumatic and step motor. It could insert and oblique cutting wire, flatten mesh and
foam board automatically, and the finished product is a steel polystyrene splint.
3D welded wire mesh panel machine has high automatic and production capacity.
low lack welding rte, high intensity and even welding point, the mesh sheet is also flat and the production cost is very low.
Main Parameters and Characteristic:
The welding diameter is 2.5mm-6mm welding transformer air self-cooling,A welding form compaction,welds at different time.When welding uses the cycle control,
reduced electrical network pollution.Welding pressure adjustable,diameter silk adjustable,and the
silk pitch of holes input computer pitch of holes changes automatically.
Specification:
Welded Width(mm) |
914.4, 1219.2, 1524(36,48,60) |
Mesh(mm) |
6.35--12.7(1/4.,--1/2.) |
Welded Diameter(mm) |
F0.54--F1.0(BWG24--BWG19) |
Welded Speed(Mesh/Min) |
=30-60(radial) |
Power |
3+N~50-60Hz 80/220V+/-10%=250 -315KVA |
Welded Transformer Capacity |
50KVA x 3 60KVA x 4 60KVA x 4 |
Welded Width(mm) |
1219.2, 1524,1828.2,2133.6 |
Mesh(mm) |
50.8-203.2(2,-8,) |
Welded Diameter(mm) |
F2.0--F5.0(BWG24--BWG19) |
Welded Speed(Mesh/Min) |
=20-45(radial) |
Power |
3+N~50-60Hz 380/220V+/-10%=250 -315KV |
Welded Transformer Capacity |
50KVA x 4 60KVA x 5 60KVA x 6 60KVA x 7 |
