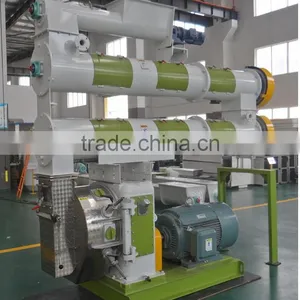

High Quality Ring Die Animal Feed Pellet Mill

High Quality Ring Die Animal Feed Pellet Mill photo-1
High Quality Ring Die Animal Feed Pellet Mill photo-2
High Quality Ring Die Animal Feed Pellet Mill photo-3
High Quality Ring Die Animal Feed Pellet Mill photo-4
High Quality Ring Die Animal Feed Pellet Mill photo-5
High Quality Ring Die Animal Feed Pellet Mill photo-6
US$ 8,000 - 40,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
DY
Model Number:
DYZL320
Payment & Shipping
Payment Methods:
Port of Shipment:
Shang Hai LianYungang QingDao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name DY
Model Number DYZL320

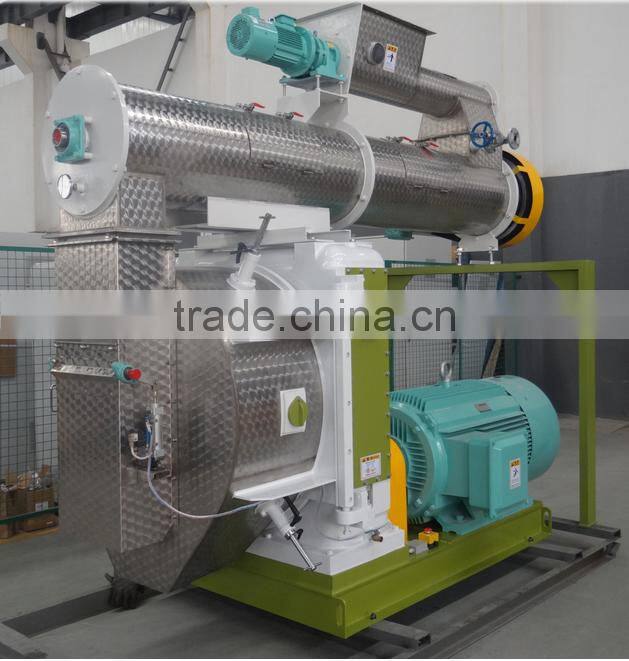

Introduction of feed pellet mill



pellet mill,also known as a pellet press,is a type of mill or machine press used to create pellets from powdered material.Pellet mills are unlike grinding mills,in that they combine small materials into a larger,homogeneous mass,rather than break large materials into smaller pieces.

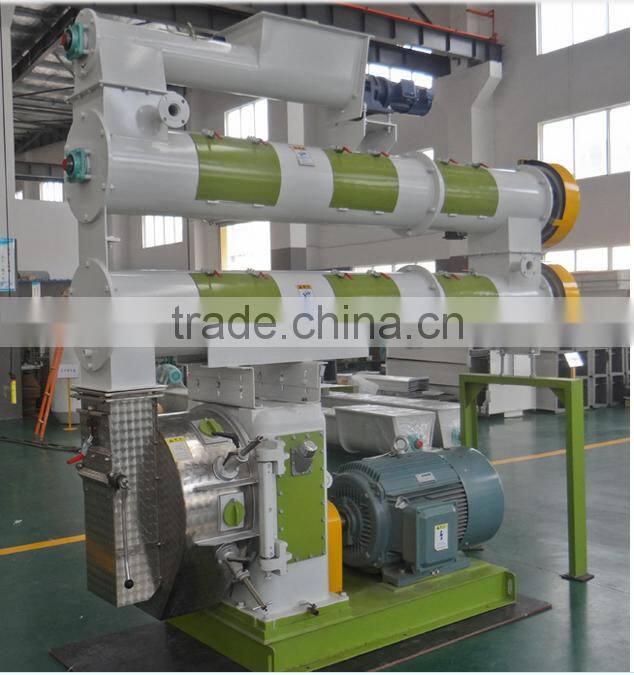

High Quality Ring Die Animal Feed Pellet Mill







 Technical parameters of ZLG series pellet mill







Model

Capacity

(kg.h)

Power

(kw)

Diameter of

Pellet(mm)

Weight

(T)

Dimension

(mm)

  DY 560

 1000-1500

    90

   4-12

   6.1

2600*1300*2310

  DY 720

 1500-2500

   160

   4-12

   7.3

2910*1300*2410

  DY 850

 2000-3000

   220

   4-12

   15

3500*1700*2900

  DY 920

 3000-4500

   315

   4-12

  18.5

3900*1780*3500

 DY 1050

 4500-6000

   315

   4-12

   22

 4200*1850*3600

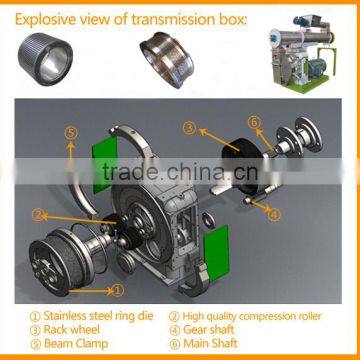

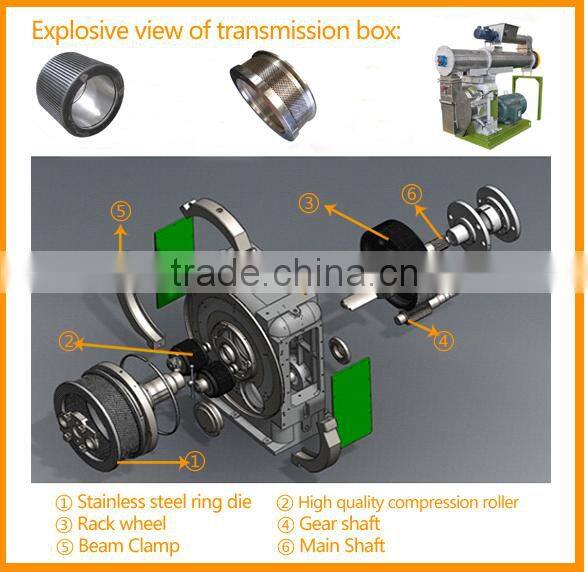

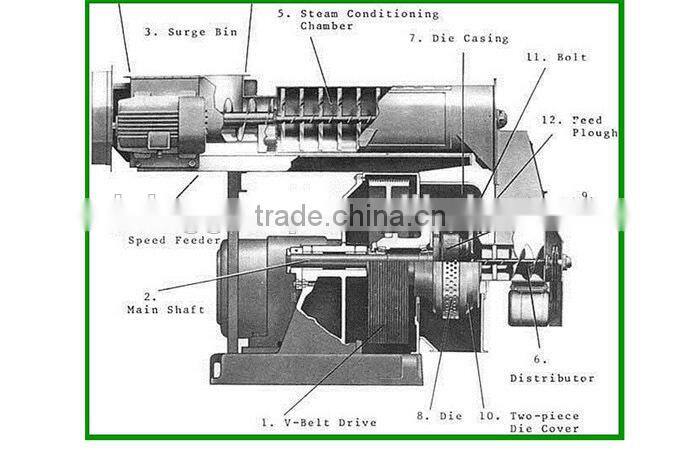

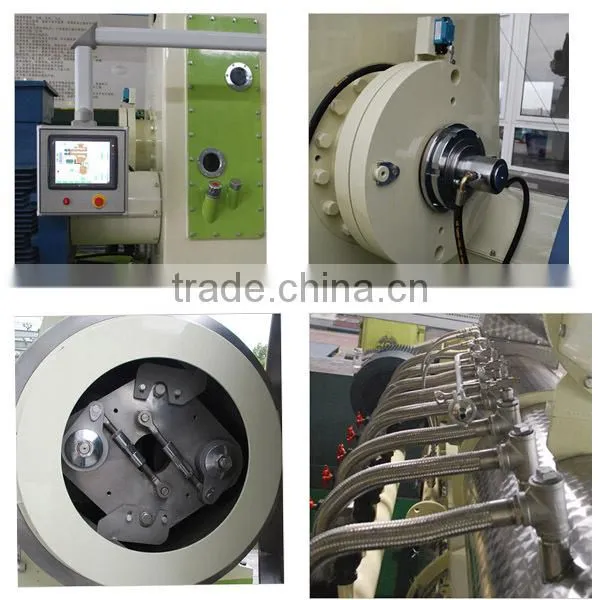

The parts of pellet mill








  The raw materials of the pellet mill







About the pellets produced by our pellet mill:



(1)The finished pellets diameter can be  4mm, 6mm, 8mm, 10mm, and 12mm according to clients’ needs.



(2)high density:1100-1400kg/m3



(3)less ash content:The line include a dedust equipment.



(4)moisture:less 10%



(5)high fuel value:3800-4800 Kcal for woods type.





The main process of the pellet mill include the following steps:



(1) Dryer (dry the raw material to proper moisture before making pellets)



(2) Pellet mill(press raw material into pellets)



(3)Cooler (cool down pellets and remove some moisture)



(4) Screener (remove dust, and broken pellets)



(5)Packing machine (pack pellets into bags of required weight)

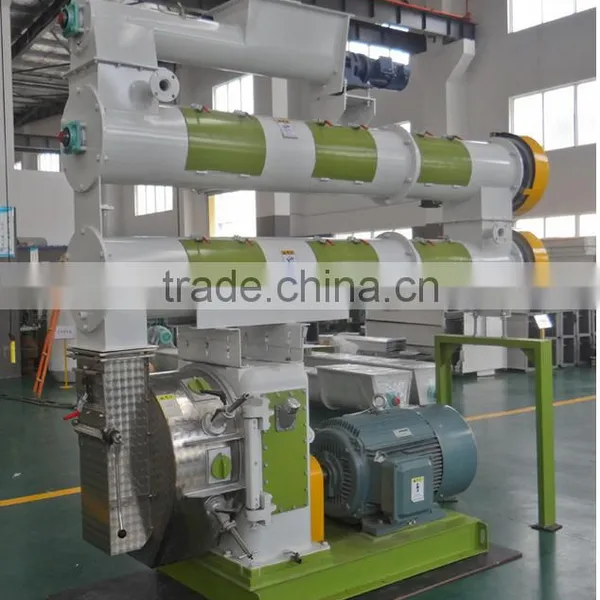

 High Quality Ring Die Animal Feed Pellet Mill





 Final Product
